1544732 Hose Clamp | Genuine Volvo Penta Part

🔧 Product Description

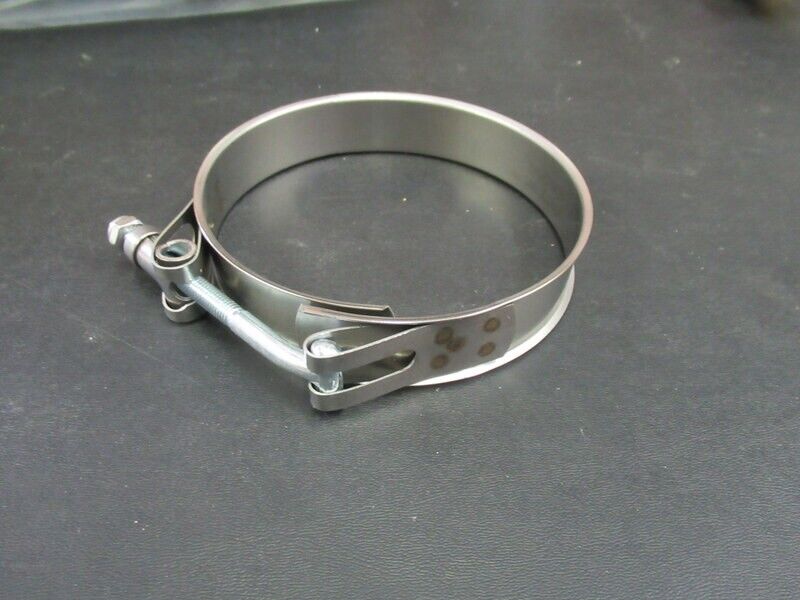

Genuine Volvo Penta hose clamp (part number 1544732), listed under Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials. It secures a flexible hose onto its spigot or fitting so the joint stays sealed under operating pressure, vibration and thermal cycling. Used across D13 marine and industrial engines as well as the TWD, TID and TD series.

🚤 Compatibility

• Engine Family: TD, D, TWD, TID

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 1544732
• System group: Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
• Net weight approximately 0.073 kg
• Fits D13 marine and industrial engines plus TWD, TID and TD series engines
• Genuine Volvo Penta replacement clamp for hose joint retention
• Engine type: Volvo Penta 12- and 16-litre diesel
• Quantity varies by assembly, most commonly one

🔌 Function

The clamp compresses a flexible hose against its connecting spigot to create and maintain a leak-free joint. It holds that clamping load in service so the hose cannot loosen or blow off under pressure and vibration.

⚠️ Common Signs of Failure

• Coolant, fuel, oil or air leaking at the hose joint
• Visible corrosion, pitting or rust weakening the clamp band
• Stripped, seized or rounded tightening screw that will no longer torque up
• Hose slipping, creeping or blowing off the spigot under pressure
• Cracked or distorted band that has lost its clamping tension

🛠️ Service Notes

• Match the clamp to the hose outside diameter so the band closes well within its working range rather than at the very end of its travel
• Position it over the spigot behind the bead or barb, with the screw where a driver or spanner can still reach it once everything is refitted
• Tighten to seal, not to crush — an over-tightened worm-drive clamp cuts into soft hose and starts the leak you were trying to stop
• Renew clamps when a hose is changed rather than reusing them, and keep band, housing and screw all marine-grade stainless so the clamp does not corrode against itself
• Where two clamps are fitted to one connection, stagger the screw heads and recheck both after the first running period

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 11059301 - related Volvo clamp reference
• 1544733 - companion air-filter clamp
• 1544734 - companion air-filter clamp
• 3825778 - related air filter

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C2-A MP, D13C4-A MP, D13B-A MP, D13B-H MP, D13B-G MP, D13B-L MP, D13B-K MP, D13B-C MP, D13C6-A MP, D13C5-A MP
• Volvo Penta TID162AG, TID162AGP, TID162AP, TID162APB
• Volvo Penta TWD1210G, TWD1210P, TWD1210V
• Volvo Penta TWD1211V, TWD1211P, TWD1211G
• Volvo Penta TWD1630G, TWD1630P, TWD1630V
• Volvo Penta TD121G-87, TD121GP
• Volvo Penta TD1210G
• Volvo Penta TWD1620G
