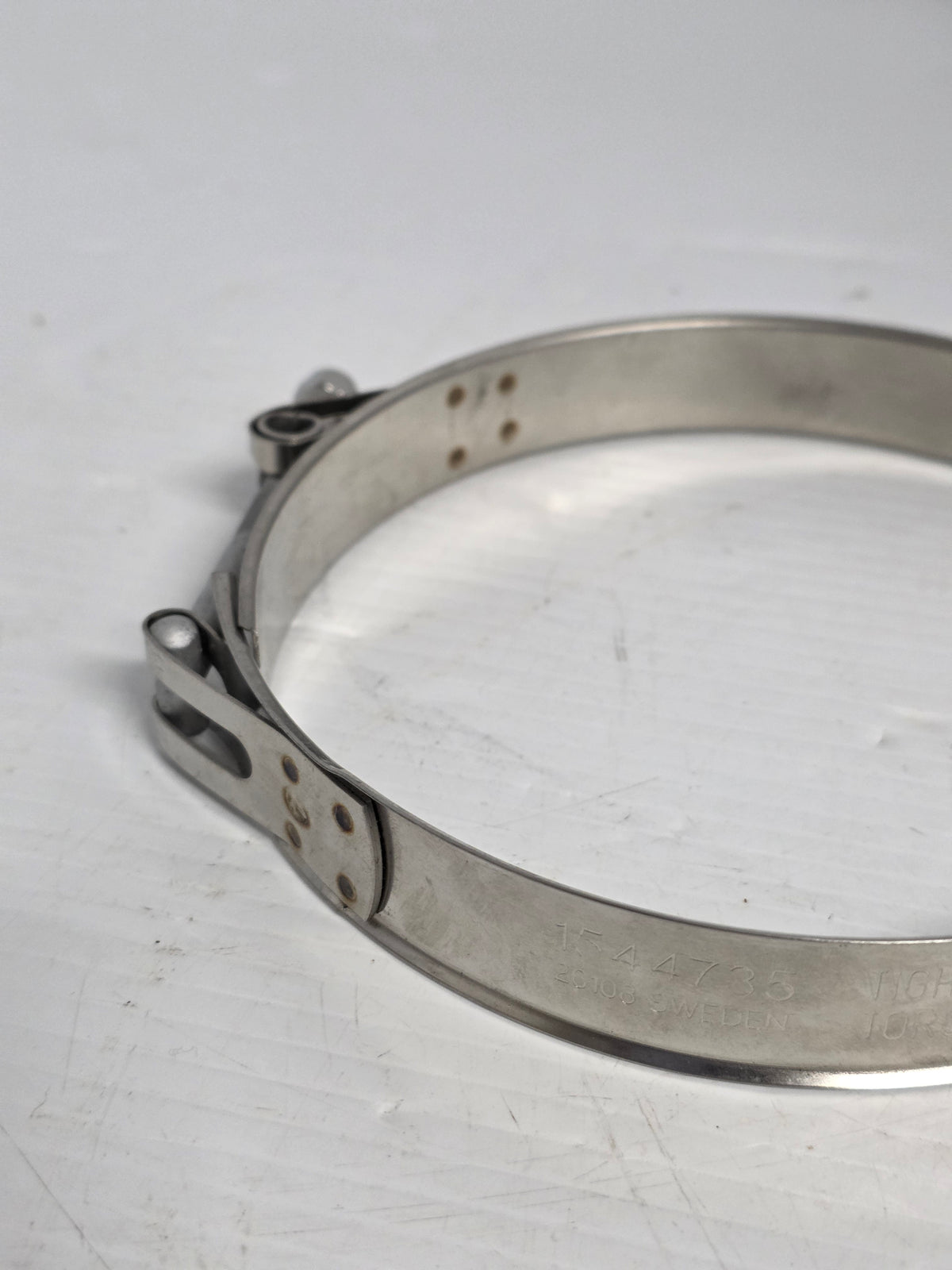

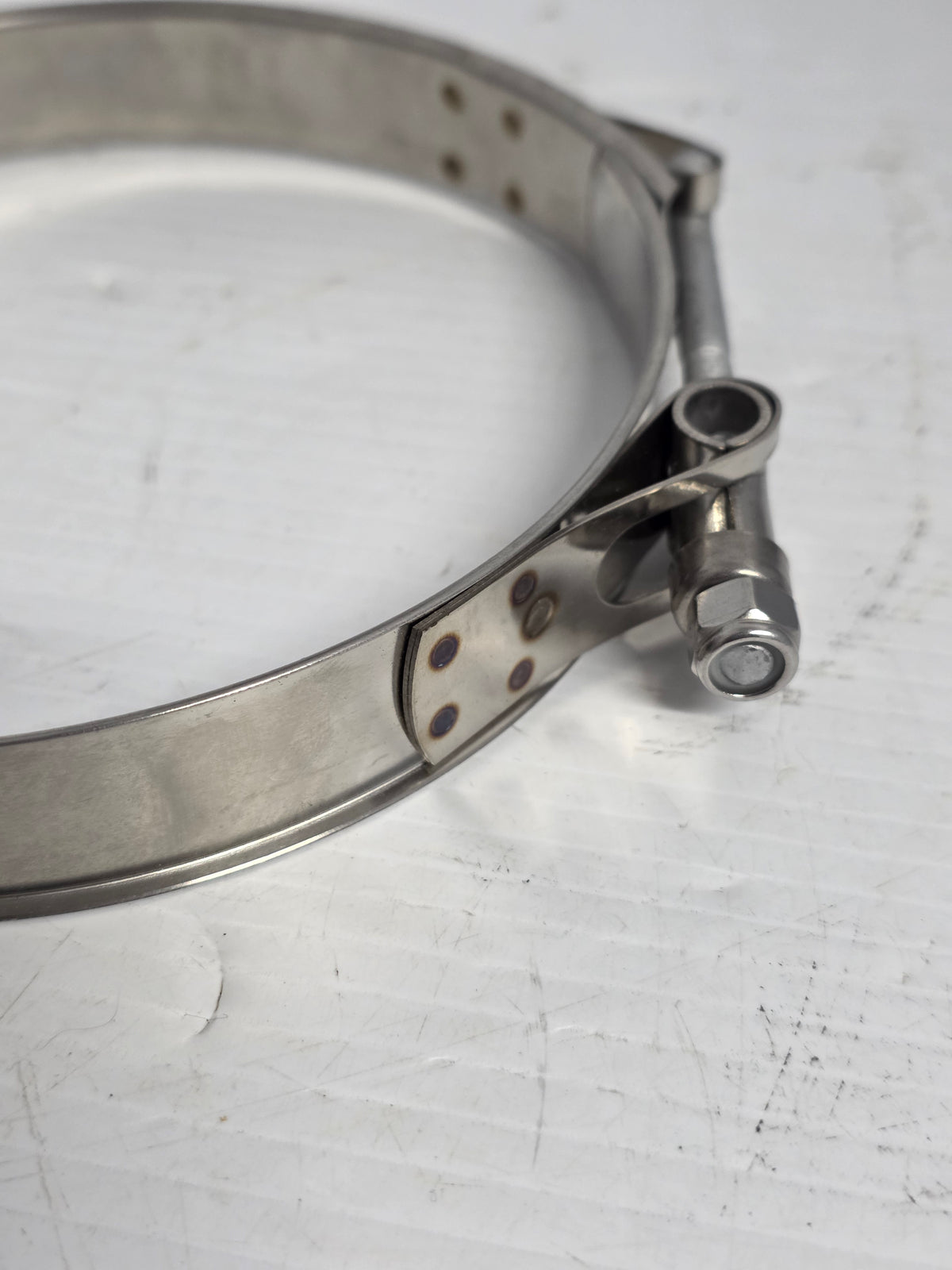

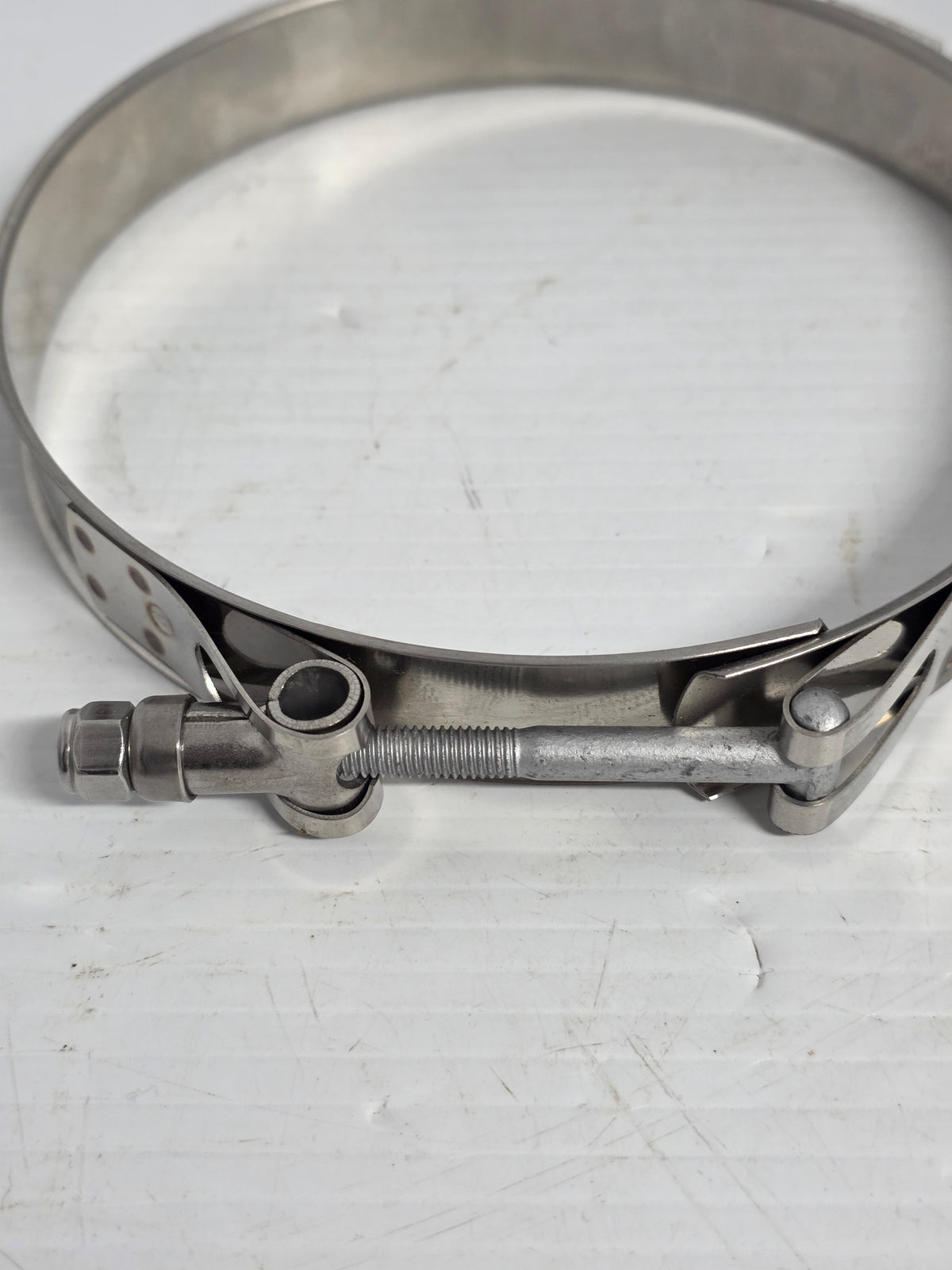

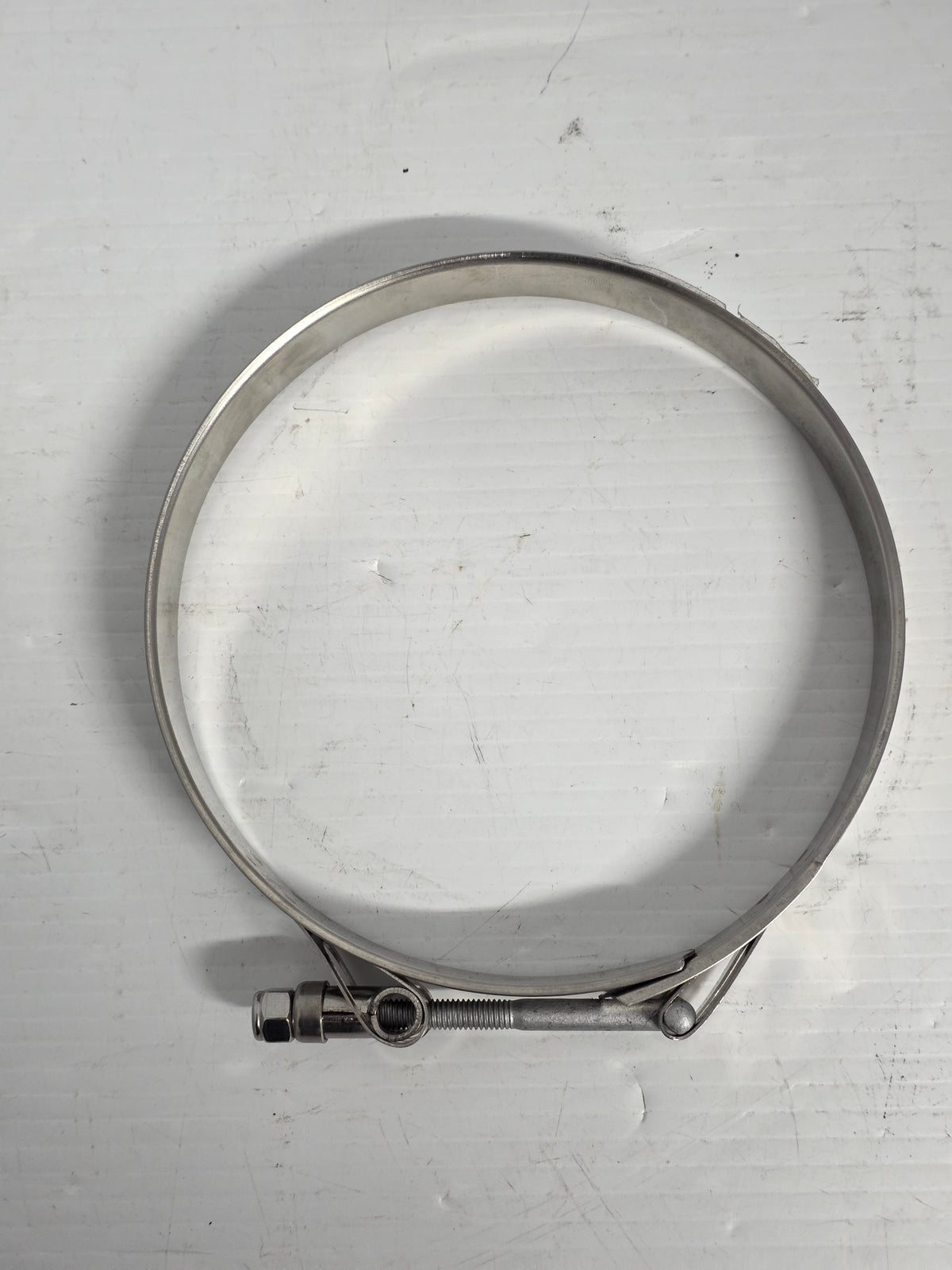

1544735 Hose Clamp | Genuine Volvo Penta Part

🔧 Product Description

This is a genuine Volvo Penta hose clamp with a 127 mm clamping diameter, supplied under the fastening, spacing, locking and support group. It secures large-bore hoses and ducting - such as charge-air, coolant and intake connections - to their mating stubs so the joint stays sealed under pressure and vibration. The 127 mm diameter is what sets this clamp apart from the other sizes sharing the same name, so check the hose or spigot size before ordering.

🚤 Compatibility

• Engine Family: D, TAD, TD, TWD, THD, DH

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 1544735
• Clamping diameter: D=127mm
• System group: Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
• Net weight: 0.098 kg
• Fits D8, D11, D13 and D16 marine engines plus TD, THD, TAD and TWD industrial and generator-set engines
• Engine type: Volvo Penta 10-, 12- and 13-litre diesel

🔌 Function

A hose clamp compresses a flexible hose evenly onto its spigot or connector to form a leak-free joint. It maintains that clamping load through engine vibration, thermal cycling and pressure pulses in air, coolant and fluid lines.

⚠️ Common Signs of Failure

• Coolant, oil or air leaking at the hose-to-spigot joint
• Hose creeping or blowing off the connection under pressure
• Corrosion, pitting or rust staining on the clamp band or screw housing
• Stripped, seized or rounded tightening screw that will no longer hold torque
• Cracked or distorted band, or a clamp that has lost tension and can be turned by hand

🛠️ Service Notes

• Match the clamp to the hose outside diameter so the band closes well within its working range rather than at the very end of its travel
• Position it over the spigot behind the bead or barb, with the screw where a driver or spanner can still reach it once everything is refitted
• Tighten to seal, not to crush — an over-tightened worm-drive clamp cuts into soft hose and starts the leak you were trying to stop
• Renew clamps when a hose is changed rather than reusing them, and keep band, housing and screw all marine-grade stainless so the clamp does not corrode against itself
• Where two clamps are fitted to one connection, stagger the screw heads and recheck both after the first running period

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 1544731 - companion DH10A clamp
• 1544733 - companion DH10A clamp
• 1544449 - related air-filter insert
• 3825972 - related TAD12 connection pipe

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C1-A MP, D13C3-A MP, D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-F MG, D13B-F MG (FE), D13B-N MH, D13B-N MH (FE), D13B-B MP, D13B-D MP, D13B-J MP, D13B-M MP, D13C1-A MH, D13C2-A MH, D13C2-A MG, D13C1-A MG
• Volvo Penta D11C1-A MP, D11C3-A MP, D11C2-A MP, D11C4-A MP, D11B3-A MP, D11B4-A MP, D11B2-A MP, D11B1-A MP
• Volvo Penta D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta D8A2-A MP, D8A5-A MH, D8A6-A MH, D8A5-A MG, D8A6-A MG, D8A1-A MP, D8A3-A MP, D8A4-A MP
• Volvo Penta TAD1030P, TAD1030G, TAD1030V
• Volvo Penta TAD1341-43GE-B, TAD1341VE, TAD1341GE
• Volvo Penta TAD1344-45GE-B, TAD1344VE, TAD1344GE
• Volvo Penta TAD1641VE-B, TAD1641GE, TAD1641VE
• Volvo Penta TAD1642VE-B, TAD1642GE, TAD1642VE
• Volvo Penta TAD1650VE-B/51VE, TAD1650GE, TAD1650VE
• Volvo Penta TD121G-87, TD121GP, TD121GPB
• Volvo Penta THD102KB, THD102KD, THD102K-KB
• Volvo Penta TWD1210G, TWD1210P, TWD1210PB
• Volvo Penta TAD1230G, TAD1230V
• Volvo Penta TAD1342VE, TAD1342GE
• Volvo Penta TAD1343VE, TAD1343GE
• Volvo Penta TAD1345GE, TAD1345VE
• Volvo Penta TAD1350GE, TAD1350VE
• Volvo Penta TAD1640-42GE-B, TAD1640GE
• Volvo Penta TAD1643VE-B, TAD1643VE
• Volvo Penta TWD1211P, TWD1211G
• Volvo Penta DH10A
• Volvo Penta TAD1231GE
• Volvo Penta TAD1232GE
• Volvo Penta TAD1340VE
• Volvo Penta TAD1346GE
• Volvo Penta TAD1351GE
• Volvo Penta TAD1352GE
• Volvo Penta TAD1353GE
• Volvo Penta TAD1354GE
• Volvo Penta TAD1355GE
• Volvo Penta TAD1651GE
• Volvo Penta TAD1660-62VE
• Volvo Penta TAD1662VE EU5
• Volvo Penta TAD1670-72VE
• Volvo Penta TD1210G
• Volvo Penta TWD1230ME
• Volvo Penta TWD1231VE
• Volvo Penta TWD1643GE
• Volvo Penta TWD1644-45GE
• Volvo Penta TWD1652GE
• Volvo Penta TWD1653GE
• Volvo Penta TWD1663GE
• Volvo Penta TWD1672-1673GE
• Volvo Penta TWD1682-83GE
• Volvo Penta TWD1683VE
• Volvo Penta TWD1744GE
