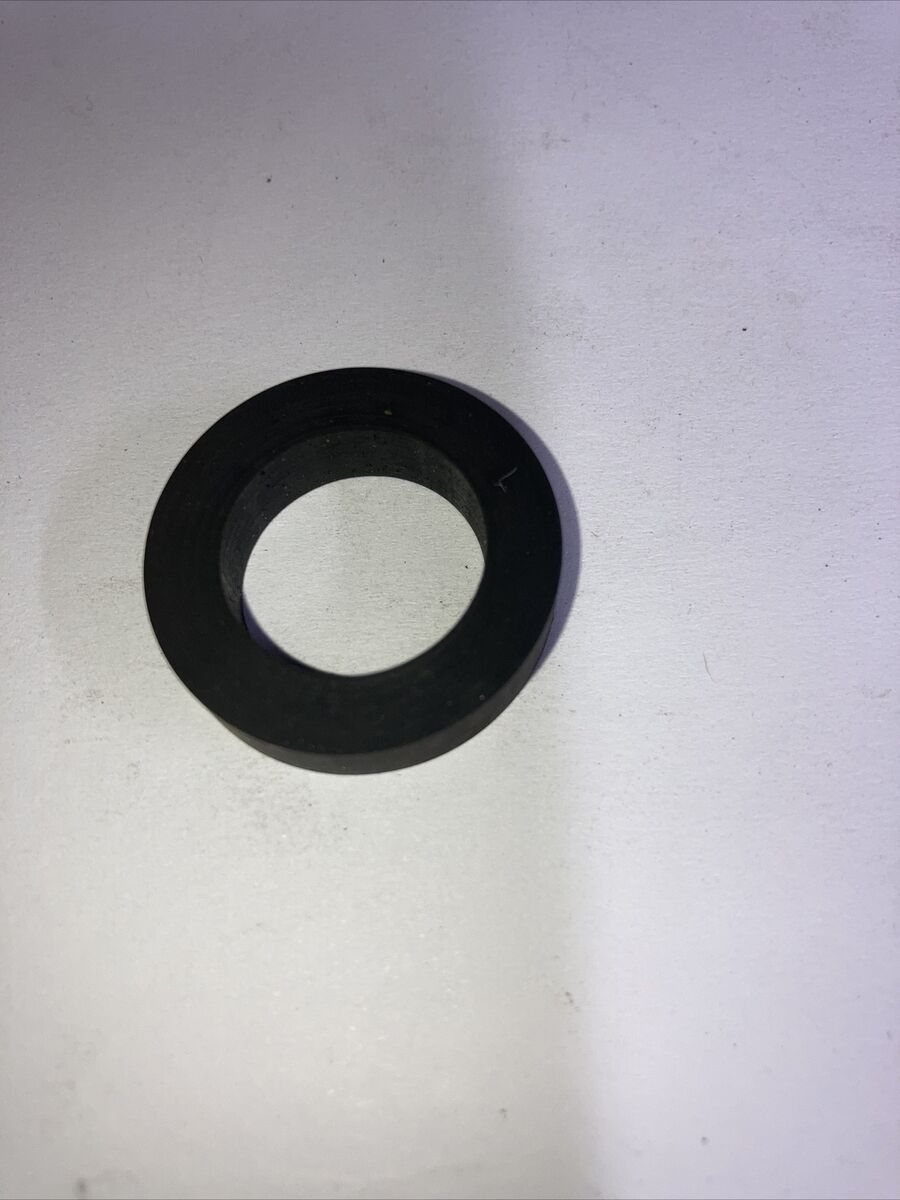

1545271 Sealing Ring | Genuine Volvo Penta Part

🔧 Product Description

This is the late-type sealing ring from the lubricating and oil system group for Volvo Penta marine and industrial engines. It provides the static seal at an oil-system joint, and the "Late type" designation distinguishes it from the earlier-specification ring it replaces, so the later version should be used where this reference applies. It supersedes three earlier part numbers and covers a broad span of older AQ, MD, TMD, TAMD, AD, KAD/KAMD and TD/TWD series engines.

🚤 Compatibility

• Engine Family: MD, TMD, AQ, TD, TAMD, AD, D, TWD, BB, TID, B, TAD, MB, AQD, KAD, KAMD
• HP Range: Approximately 230-450 HP
• Year Range: Approximately 1980s - early 2000s

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 1545271
• Late type specification
• System group: Lubricating and Oil System
• Net weight 0.0045 kg
• Supersedes earlier part numbers 1542383, 422178 and 859055
• Fits AQ, MD, TMD, TAMD, AD, KAD, KAMD, TD, TID and TWD series marine and industrial engines
• Engine type: Six-cylinder turbocharged diesel
• Also supersedes Volvo part numbers 1544125, 1544141 and 860718

🔌 Function

The sealing ring forms a static seal at a joint in the engine's lubricating oil system, preventing oil leakage and loss of oil pressure at that connection. It is a routine replacement item whenever the joint it seals is disturbed during service.

⚠️ Common Signs of Failure

• Oil weeping or dripping from the sealed joint
• Hardened, cracked or flattened ring that has lost elasticity
• Loss of oil pressure or falling oil level between services
• Oil residue and dirt build-up around the mating faces
• Distortion or splitting noted on removal during overhaul

🛠️ Service Notes

• Treat as a single-use seal and lubricate only as specified for the engine-oil system.
• Inspect flange 1545272 and the pipe sealing surface; a new ring will not correct a scratched or distorted joint.

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 1545271 → Supersedes 1542383

OEM / Related Numbers

• 1545272 - mating flange
• 1545270 - earlier oil-pressure pipe shown in the same installation

Aftermarket / Verified Equivalents

• SLP: EPL-5271

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta TD100ARC, TD100G-85, TD100A, TD100AG, TD100CHC, TD100G, TD100GG, TD100GGP, TD100HP, TD100HPB, TD100GG-85, TD100GP, TD100GP-85, TD100CRC
• Volvo Penta TAMD31L-A, TAMD31M-A, TAMD31P, TAMD31P-A, TAMD31S, TAMD31A, TAMD31B, TAMD31D
• Volvo Penta TID100KG, TID100KGP, TID100K, TID100K-87, TID100KGP-87, TID100KP, TID100KP-87, TID100KPB-87
• Volvo Penta TAMD41B, TAMD41D, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41P, TAMD41A
• Volvo Penta AD31, AD31B, AD31D-A, AD31L-A, AD31P-A, AD31XD
• Volvo Penta AD41B, AD41D, AD41L-A, AD41P-A, AD41A, AD41BJ
• Volvo Penta AQ130C, AQ130D, AQ130A, AQ130B
• Volvo Penta TMD31A, TMD31B, TMD31D, TMD31L-A
• Volvo Penta TMD41A, TMD41B, TMD41D, TMD41L-A
• Volvo Penta AQ170B, AQ170C, AQ170A
• Volvo Penta BB115A, BB115B, BB115C
• Volvo Penta BB170B, BB170C, BB170A
• Volvo Penta D41B, D41D, D41L-A
• Volvo Penta KAD42A, KAD42B, KAD42P-A
• Volvo Penta KAMD42A, KAMD42B, KAMD42P-A
• Volvo Penta KAMD43P, KAMD43P-A, KAMD43P-B
• Volvo Penta MB20A, MB20B, MB20C
• Volvo Penta MD100A, MD100B, MD100B-CC
• Volvo Penta AQ115A, AQ115B
• Volvo Penta D100A, D100B
• Volvo Penta 100S, 110S
• Volvo Penta TAD1030V, TAD1030VE
• Volvo Penta TAMD42WJ-A, TAMD42B
• Volvo Penta TMD100A, TMD100C
• Volvo Penta AQ165A
• Volvo Penta AQD21A
• Volvo Penta B20
• Volvo Penta BB165A
• Volvo Penta KAD43P-A
• Volvo Penta MD21A
• Volvo Penta MD31A
• Volvo Penta TAMD102A
• Volvo Penta TD1010G
• Volvo Penta TD1030VE
• Volvo Penta TMD102A
• Volvo Penta TWD1010G
• Volvo Penta TWD1030ME
• Volvo Penta TWD1031VE
