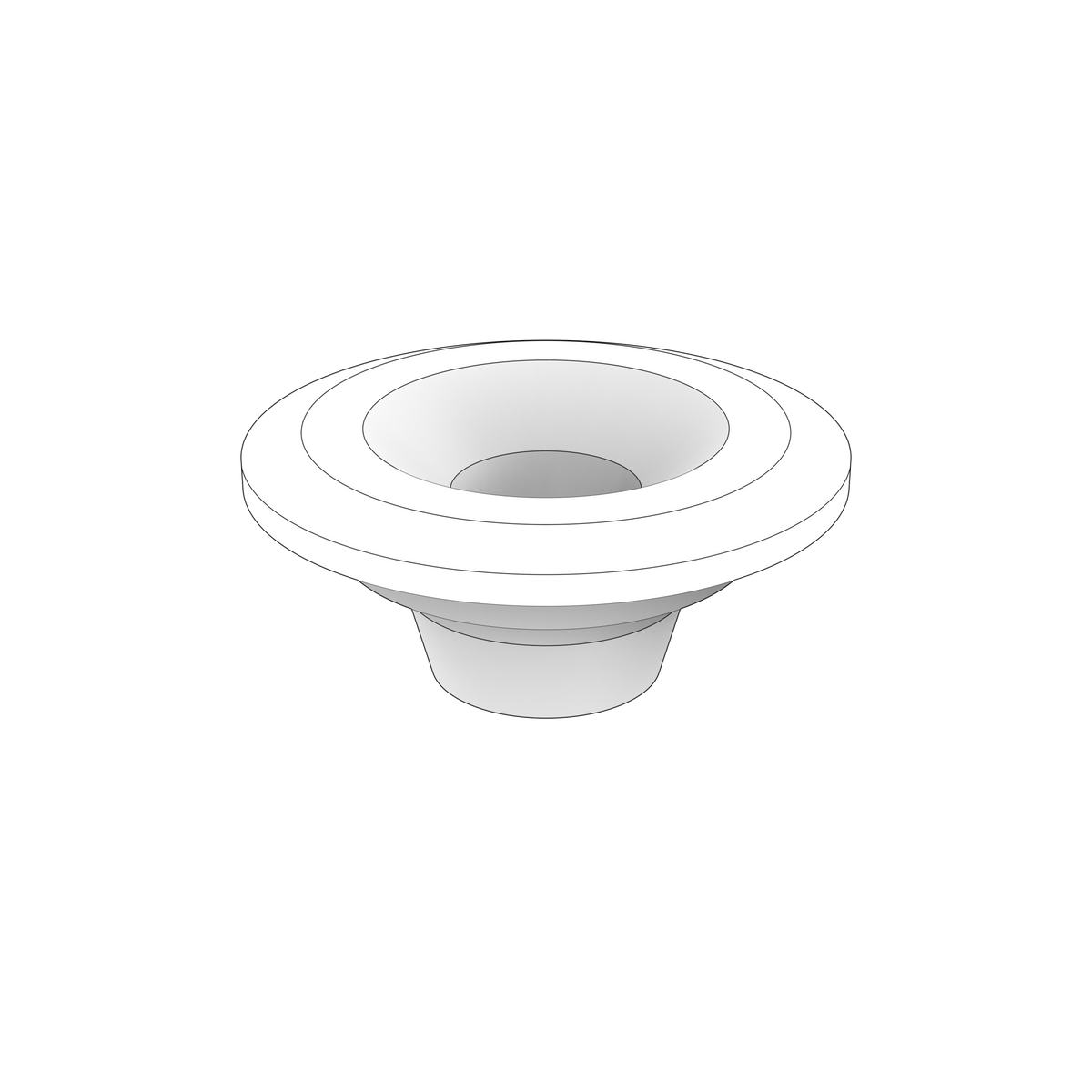

1546487 Valve Spring Washer | Genuine Volvo Penta Part

🔧 Product Description

This genuine Volvo Penta valve spring washer is a precision valve-train service component used in the valve spring and retainer assembly. It is manufactured to the original Volvo Penta dimensions and interface requirements so the valve train retains its specified geometry, clearance and load path. In service, it supports and locates the valve spring at the specified installed height within the cylinder-head valve assembly. Fitment is controlled by the exact engine or product configuration and serialised parts list; confirm OEM number 1546487 against the installed assembly before ordering.

🚤 Compatibility

• Engine Family: D, TWD, TAD

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 1546487
• System group: Engine
• Net weight 0.045 kg
• Included in exchange unit cylinder head 3803924
• Fits D12 series marine diesel engines and TWD/TAD 1200-series engines
• 24 used per assembly

🔌 Function

The valve spring washer forms the lower seat for the valve spring where it bears on the cylinder head, spreading the spring load and preventing the coil from digging into the head surface. It also keeps the spring concentric with the valve stem and guide throughout the valve's travel.

⚠️ Common Signs of Failure

• Visible grooving, scoring or dishing where the spring coil contacts the washer
• Cracking or breakage of the washer, allowing the spring to sit unevenly
• Valvetrain noise or ticking traced to a loose or misaligned valve spring
• Loss of valve spring pressure leading to poor compression, misfire or valve float at higher revs
• Wear or pitting of the cylinder head seating area beneath the washer

🛠️ Service Notes

• Renew as a set when the valve gear is stripped, and keep the parts for each valve together so nothing is mixed between cylinders
• Inspect the seating face for cupping, cracking or a wear step before reassembly and renew rather than reuse anything marked
• Make sure the seat in the head and the face of the washer are clean, with no carbon or swarf trapped underneath
• Fit the correct way up and the correct way round as shown in the workshop manual for your engine, and check the spring and any seal or shroud sit square before the spring is compressed
• Once assembled, check by hand that each valve moves freely and seats fully before the engine is turned over

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D12C-A MP, D12D-A MG, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MG, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta TAD1241GE, TAD1241VE, TAD1241-42VE
• Volvo Penta TAD1242GE, TAD1242VE
• Volvo Penta TAD1250VE, TAD1250-52VE
• Volvo Penta TAD1240GE
• Volvo Penta TAD1251VE
• Volvo Penta TAD1252VE
• Volvo Penta TWD1240VE
