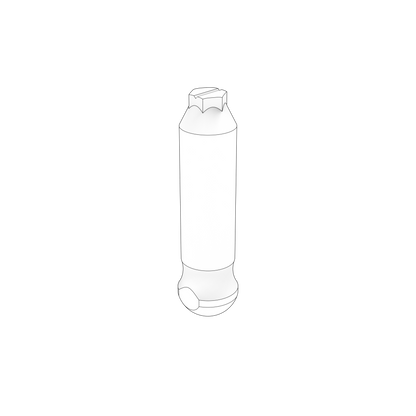

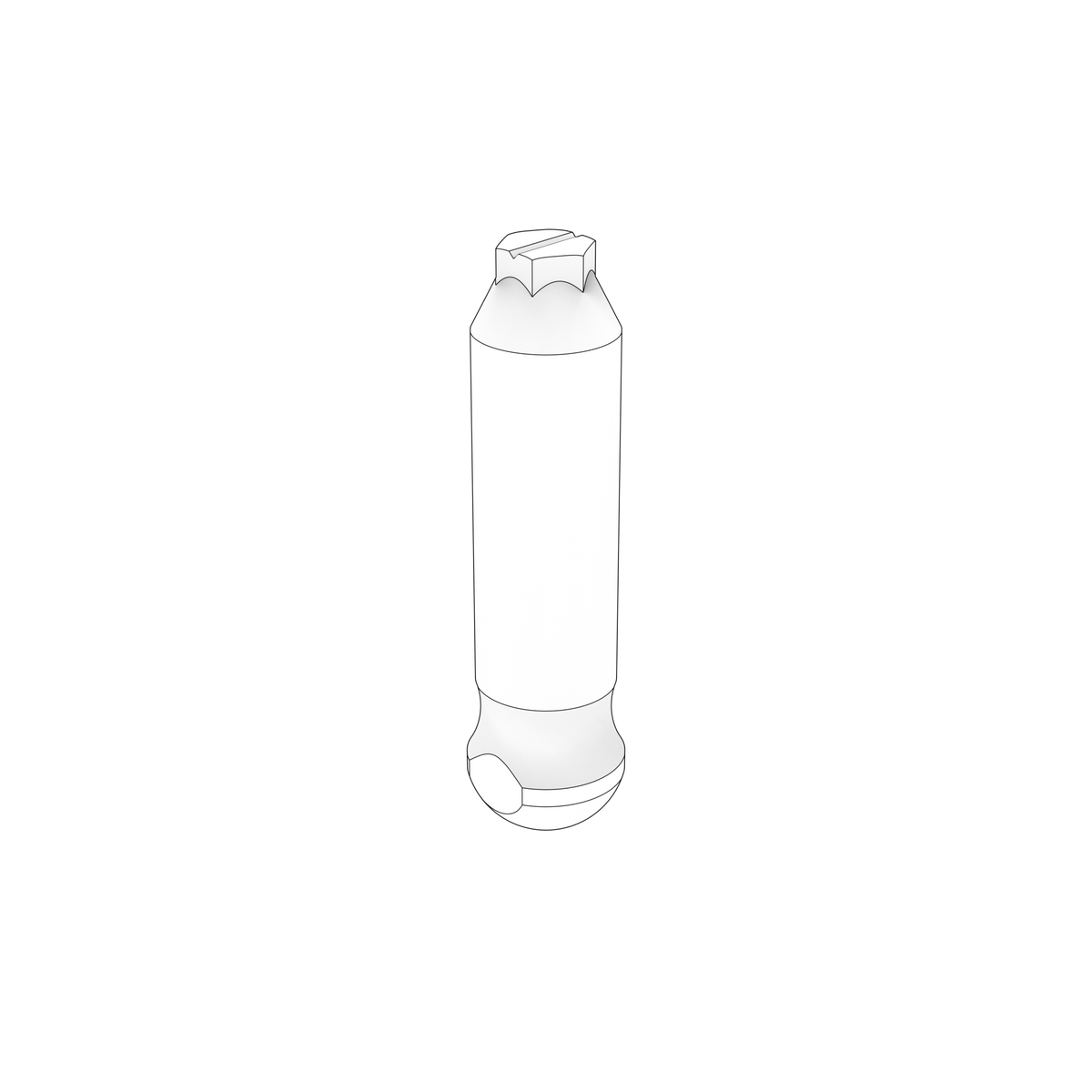

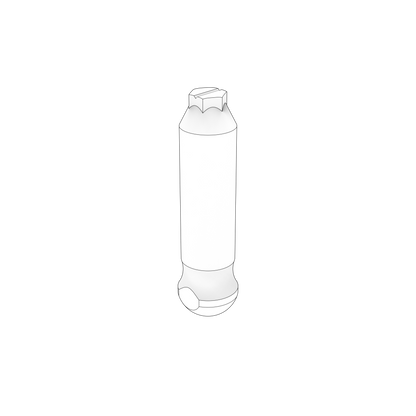

1546775 Ball Stud | Genuine Volvo Penta Part

🔧 Product Description

This genuine Volvo Penta ball stud is a precision valve-train service component used in the rocker mechanism and valve train. It is manufactured to the original Volvo Penta dimensions and interface requirements so the valve train retains its specified geometry, clearance and load path. In service, it provides a spherical contact and adjustment point within the rocker/valve mechanism. Fitment is controlled by the exact engine or product configuration and serialised parts list; confirm OEM number 1546775 against the installed assembly before ordering.

🚤 Compatibility

• Engine Family: D, TWD, TAD

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 1546775
• System group: Fuel System
• Net weight approximately 0.032 kg (32 g)
• Fits D9, D11, D12 and D13 marine diesel engines plus TAD and TWD industrial and generator engines
• Supplied as an individual ball stud

🔌 Function

The ball stud provides a spherical bearing surface that a socket-ended linkage or strut clips onto, allowing angular movement while holding the connection in place. It keeps the attached fuel system linkage correctly located and free to articulate through its travel.

⚠️ Common Signs of Failure

• Excessive play or rattling where the socket meets the ball
• Visible wear flats, scoring or reduced ball diameter
• Linkage or strut popping off the stud in service
• Corrosion or pitting on the ball surface
• Loose, stripped or damaged threads allowing the stud to back out

🛠️ Service Notes

• Clean the threads and the seat before fitting, and fit a new stud rather than one whose ball is scored, flattened or worn down
• Tighten to the figure in the workshop manual for your engine and use thread-locking compound only where the manual calls for it; a ball stud that works loose will damage its mounting
• Keep the ball smooth and lightly greased, unless the socket fitting onto it is a dry type that the manual says must not be lubricated
• Press the socket on squarely by hand or with the proper tool — never hammer a gas strut or linkage socket onto the ball
• Check that the strut or linkage moves through its full travel without binding or fouling before putting it back into service

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D12C-A MP, D12D-A MG, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MG, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-A MP, D13B-H MP, D13B-G MP, D13B-L MP, D13B-K MP, D13B-B MP, D13B-D MP, D13B-J MP, D13B-M MP, D13B-C MP, D13C6-A MP, D13C5-A MP
• Volvo Penta D11B3-A MP, D11B4-A MP, D11A-A, D11A-B, D11A-C, D11A-E, D11B2-A MP, D11A-C MP, D11A-D MP, D11A-E MP, D11A-C (IPS), D11B1-A MP
• Volvo Penta D9A2J, D9A2G, D9A2L MH, D9A2D, D9A2B, D9A2F, D9A2K, D9A2H, D9A2M MP, D9A2A, D9A2C, D9A2E
• Volvo Penta TAD1241GE, TAD1241VE, TAD1241-42VE
• Volvo Penta TAD1341-43GE-B, TAD1341VE, TAD1341GE
• Volvo Penta TAD1344-45GE-B, TAD1344VE, TAD1344GE
• Volvo Penta TAD1242GE, TAD1242VE
• Volvo Penta TAD1250VE, TAD1250-52VE
• Volvo Penta TAD1342VE, TAD1342GE
• Volvo Penta TAD1343VE, TAD1343GE
• Volvo Penta TAD1345GE, TAD1345VE
• Volvo Penta TAD940GE, TAD940VE
• Volvo Penta TAD941VE, TAD941GE
• Volvo Penta TAD1240GE
• Volvo Penta TAD1251VE
• Volvo Penta TAD1252VE
• Volvo Penta TAD1340VE
• Volvo Penta TAD1350VE
• Volvo Penta TAD1360-62VE
• Volvo Penta TAD1363-65VE
• Volvo Penta TAD942VE
• Volvo Penta TAD943VE
• Volvo Penta TAD950VE
• Volvo Penta TAD951VE
• Volvo Penta TAD952VE
• Volvo Penta TWD1240VE
