🔧 Product Description

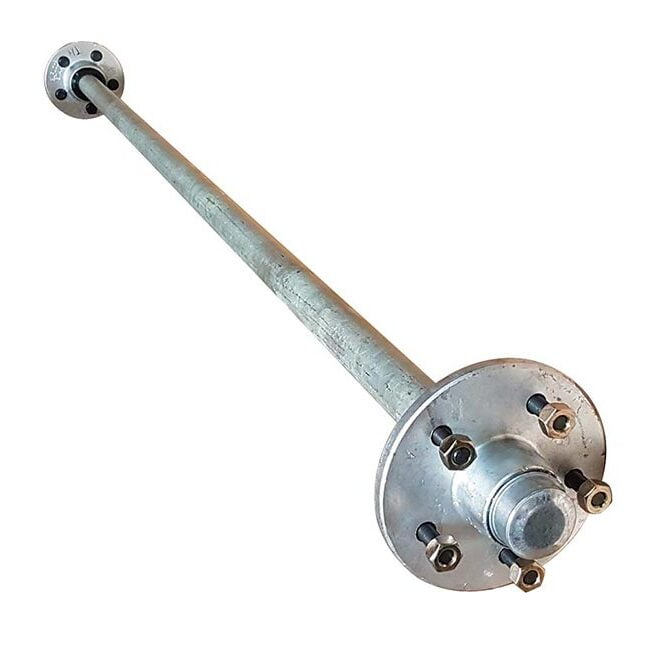

Dunbier Marine Products 39mm Round Solid Axle with Ford Hubs and LM Bearings – 1800mm – Part Number: 1550G

A complete galvanised 39mm round axle with Ford-pattern hubs and LM-series bearings. The 1800mm overall length is configured for Dunbier trailers using the matching 13-inch wheel and suspension geometry.

⚙️ Key Features

  • Galvanised steel axle construction
  • 39mm solid round section
  • Non-braked configuration
  • Manufactured for Dunbier trailer geometry
  • Critical replacement dimensions must match the original axle

📏 Specifications

  • Axle section: 39mm solid round
  • Overall axle length: 1800mm / 71 inches
  • Wheel-size guide: 13-inch
  • Brake configuration: Non-braked
  • Bearing family: LM67010 and LM11910 cups with LM67048 and LM11949 cones
  • Grease seal: Dunbier 1710
  • Legacy catalogue chassis-width guide: approximately 1465mm
  • Hub configuration: Ford-pattern non-braked hubs

🔄 Cross Reference & Related Parts

  • Dunbier: 1550G
  • Beam-only version: Dunbier 1549G
  • Shorter hubbed version: Dunbier 1562G
  • Related seal: Dunbier 1710

🚤 Trailer Compatibility & Application

  • Suitable for Dunbier trailers using Ford-pattern hubs and 39mm round axle
  • Legacy chassis-width guide: approximately 1465mm
  • Confirm stud pattern, spring centres and hub-face width

🔌 Function

Carries the trailer wheel loads between the suspension points and maintains the hub, wheel and brake alignment across the trailer.

⚠️ Common Signs of Failure

  • Axle beam is bent or wheels show abnormal camber
  • Corrosion, pitting or cracking is visible near spring seats or spindles
  • Bearing journals are scored or undersize
  • Tyres wear unevenly despite correct pressure and bearings
  • Brake or hub alignment cannot be restored

🛠️ Installation & Safety

  • Axle replacement is a safety-critical task for a competent trailer technician
  • Measure overall length, spring-centre spacing, hub face, stud pattern and brake configuration before ordering
  • Use correct U-bolts, fish plates and spring seats
  • Set and lubricate wheel bearings to specification
  • Verify wheel alignment, brake operation and wheel-nut torque before road use

📦 Condition

  • Genuine Dunbier Marine Products part
  • Brand new
  • Supplied as one complete 1800mm axle with Ford hubs and LM bearings
  • Supplied in original or equivalent packaging
