15600-93J01 Suzuki Vapor Separator | Genuine Used Part

🔧 Product Description

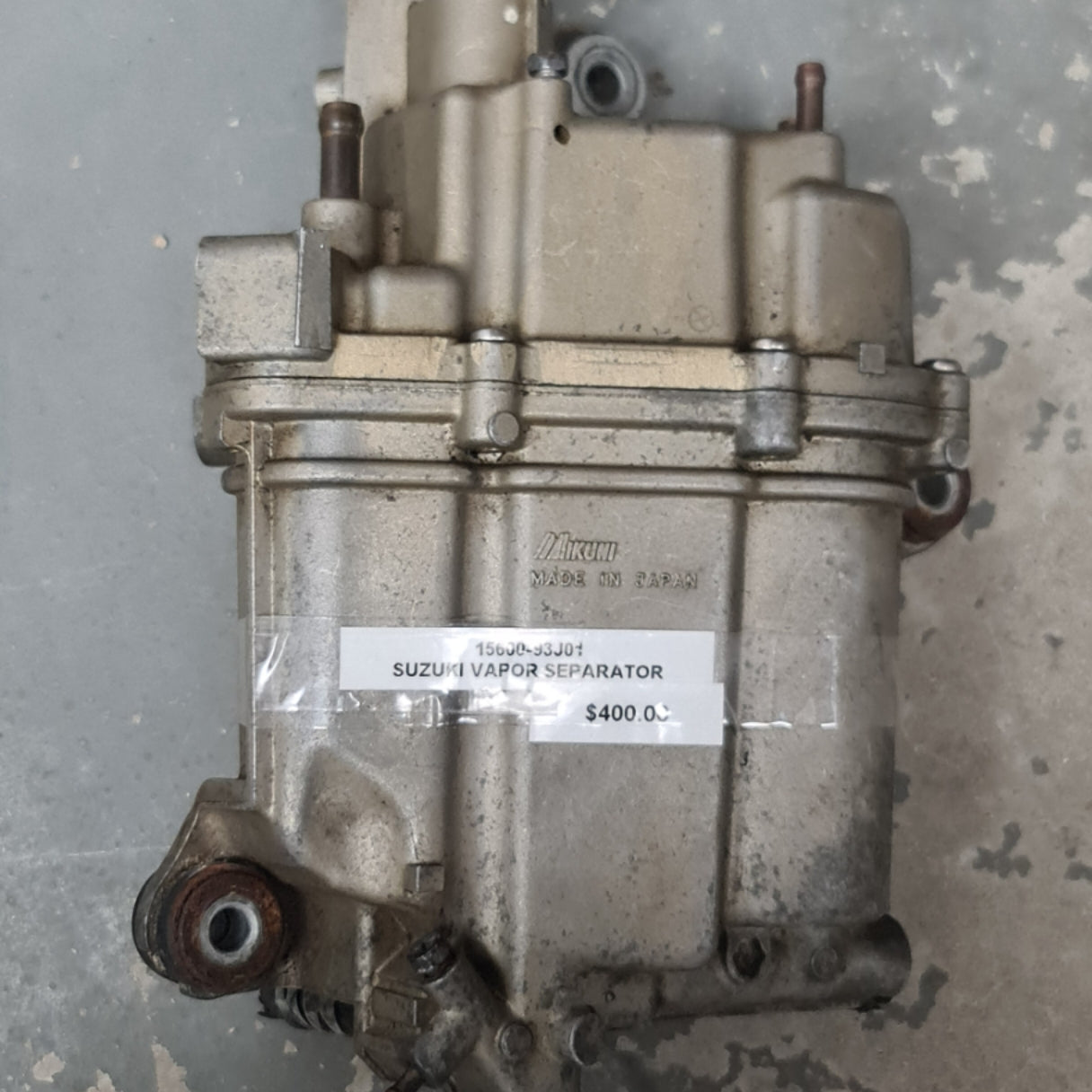

Genuine Suzuki DF200-DF250 Fuel Vapour Separator - Part Number: 15600-93J01

A genuine Suzuki vapour separator assembly for DF200, DF225 and DF250 V6 four-stroke outboards. The separator forms the engine's controlled fuel reservoir and houses the float, needle valve, filter, pressure regulator and internal high-pressure fuel pump used by the electronic fuel-injection system.

Suzuki numbers 15600-93J00 and 15600-93J01 identify the standard separator family. BRP / Johnson number 5036636 is the corresponding OEM crossover used on related Suzuki-built applications.

⚙️ Key Features

• Genuine Suzuki OEM complete vapour separator assembly
• Correct service number 15600-93J01
• Interchanges within the 15600-93J00 / 15600-93J01 separator family
• Used on Suzuki DF200, DF225 and DF250 V6 four-stroke outboards
• Johnson / BRP OEM crossover number 5036636

🚤 Compatibility

Commonly used on

• Suzuki DF200, DF225 and DF250 V6 four-stroke EFI fuel systems
• Suzuki 3.6L V6 vapour separator and high-pressure fuel-pump assemblies

Typically suits

• Engine models:
• Suzuki DF200 four-stroke V6 model family
• Suzuki DF200T / DF200Z fuel-injection configurations using 15600-93J01
• Suzuki DF225 four-stroke V6 model family
• Suzuki DF225T / DF225Z fuel-injection configurations using 15600-93J01
• Suzuki DF250 four-stroke V6 model family
• Suzuki DF250T / DF250Z fuel-injection configurations using 15600-93J01
• Suzuki-built Johnson / BRP applications using OEM crossover 5036636
• HP Range: 200HP - 250HP
• Engine Type: Suzuki 3.6L V6 EFI four-stroke outboard
• Year Range: Approximately 2004 - 2011

🔌 Function

The vapour separator regulates the fuel level, separates vapour from liquid fuel and supplies the injector rail through its internal high-pressure pump and pressure regulator.

⚠️ Common Signs of Failure

• Engine cuts out or loses power at higher RPM
• High-pressure fuel supply is low or unstable
• Extended cranking or failure to restart when hot
• Fuel leakage or strong petrol odour beneath the cowl
• Restricted filter, worn pump or sticking needle valve causes starvation or flooding

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 15600-93J01 → Later revision of 15600-93J00
• 15600-93J00 earlier OEM vapour separator reference
• 15600-93J11 related E40-emissions separator assembly
• Johnson / BRP 5036636 corresponding OEM assembly

OEM / Related Numbers

• 15600-93J00
• 15600-93J01
• 15600-93J11
• 5036636
• 13370-93J00 related needle valve
• 15200-93J01 related internal high-pressure pump
• 15626-93J00 related gasket
• 15641-90J00 related pump spacer
• 15642-90J00 related internal filter
• 15647-93J00 related bush
• 15650-93J00 related float
• 15760-93J00 related fuel-pressure regulator

Aftermarket / Verified Equivalents

• Johnson / BRP: 5036636 complete OEM crossover assembly
• Replacement fuel-pump suppliers: internal pump alternatives for 15200-93J01
• Replacement fuel-pump suppliers: internal pump cross-reference family 15200-90J00 / 15200-96J00 / 15200-98J00 where pump specification matches

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
