15600-96J12 Suzuki Marine Vapour Separator Pump | Genuine OEM Outboard Part
15600-96J12 Suzuki Marine Vapour Separator Pump | Genuine OEM Outboard Part
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
🔧 Product Description

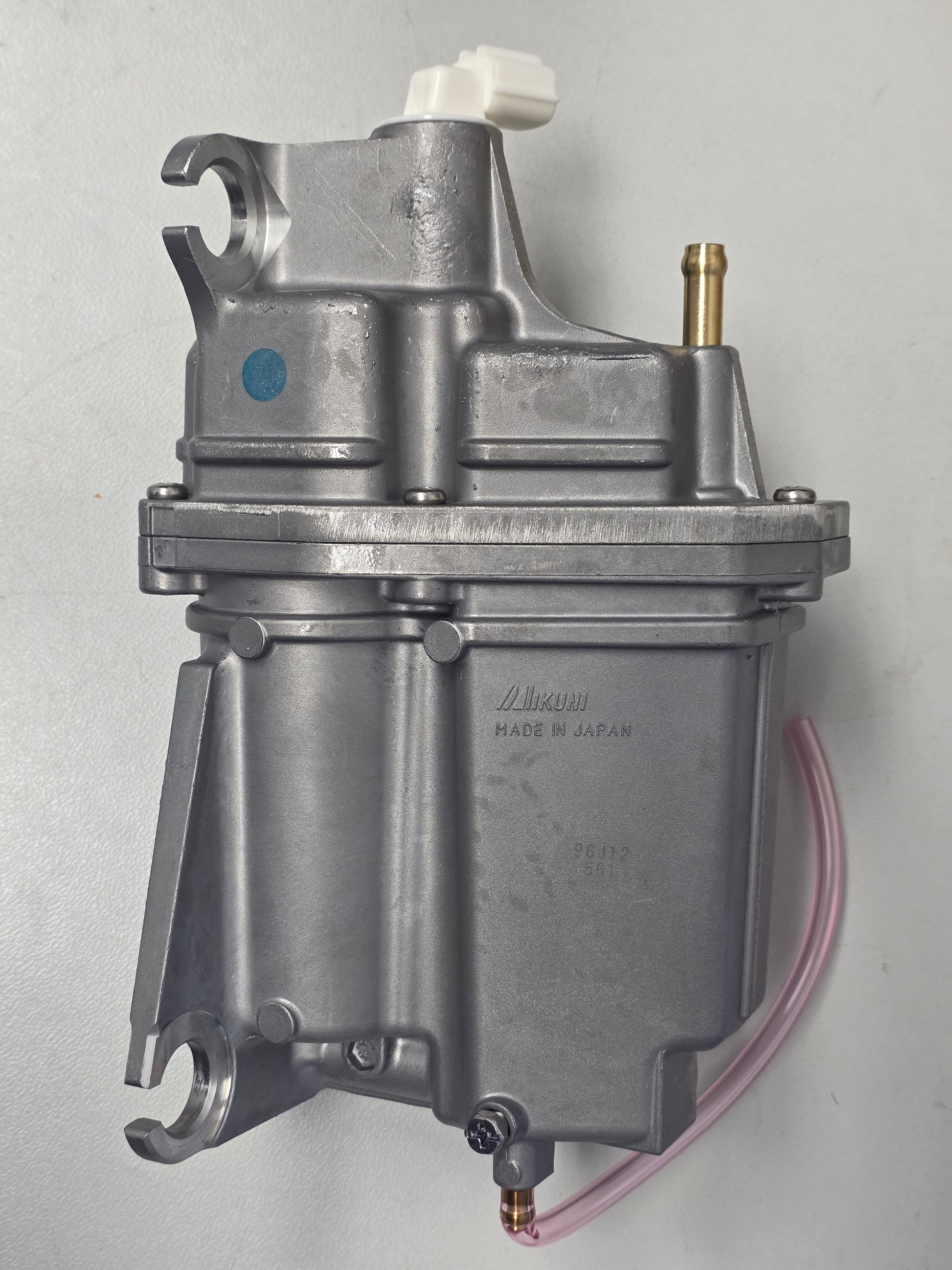

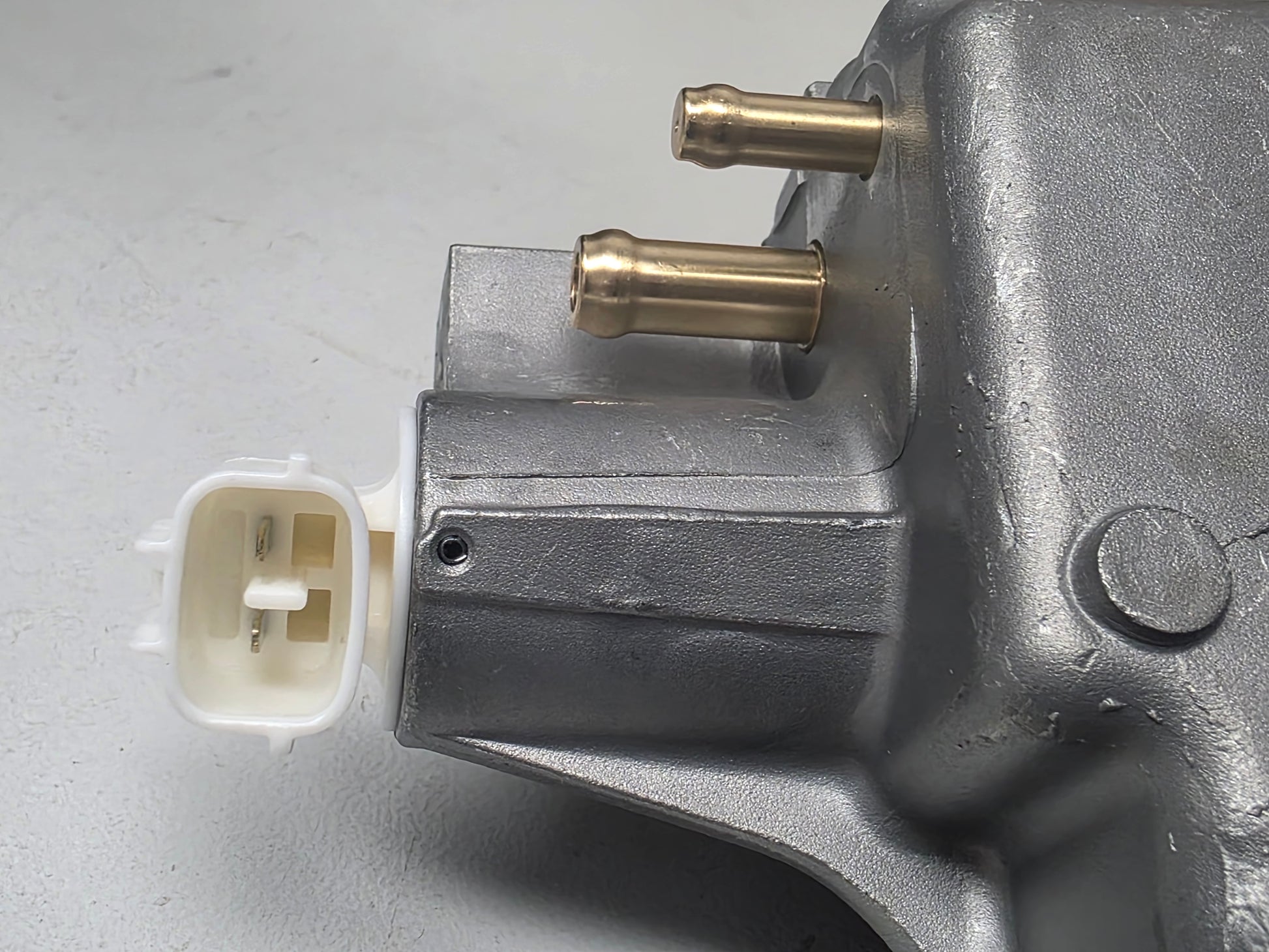

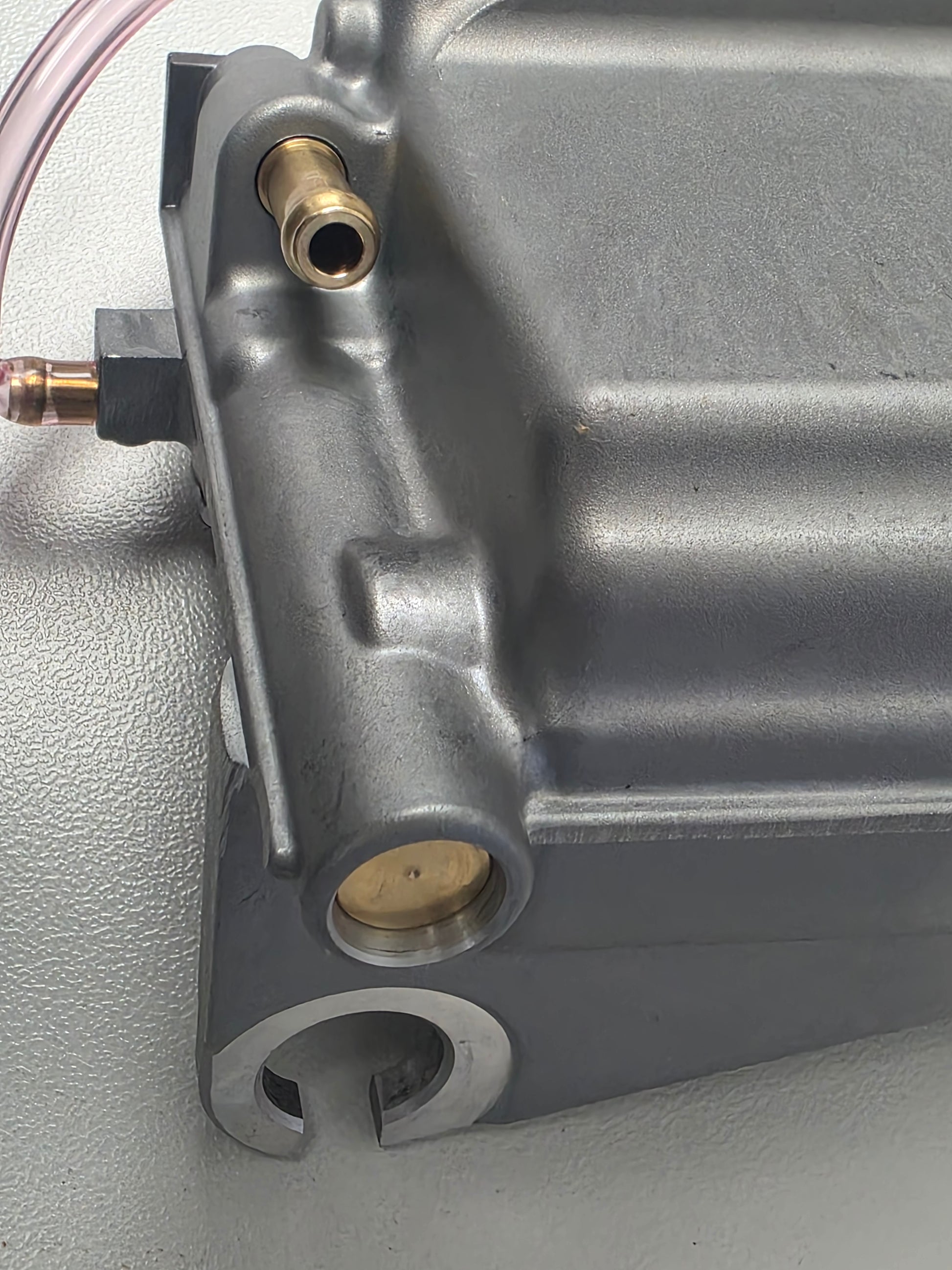

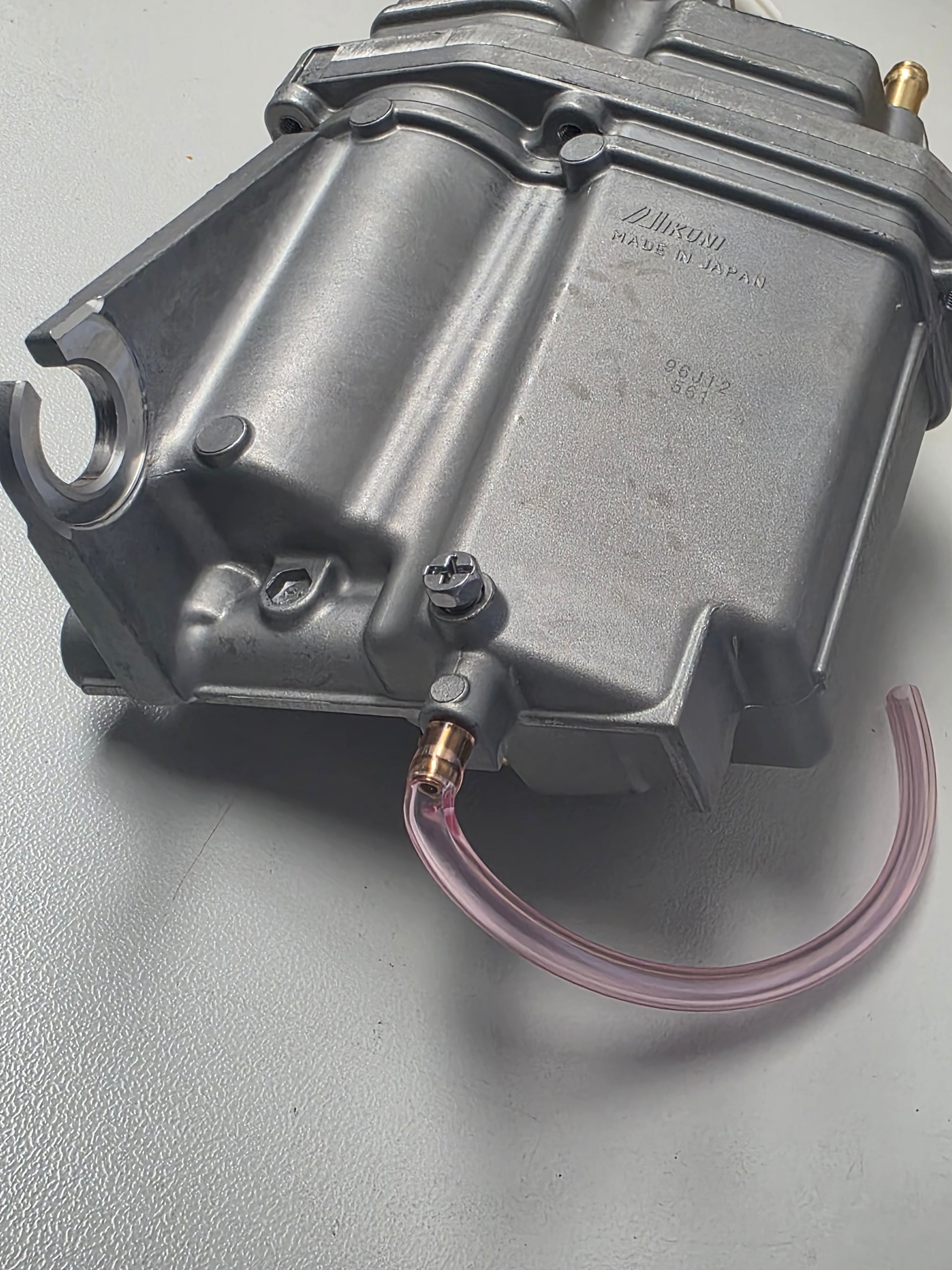

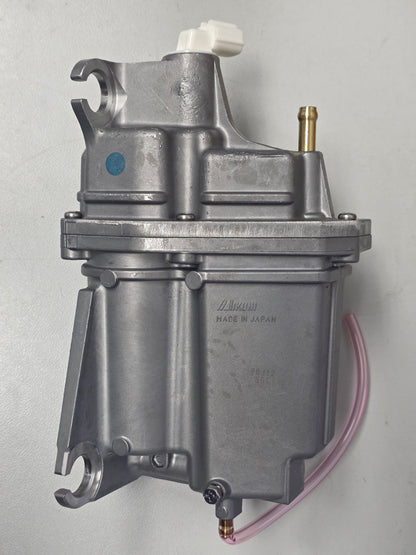

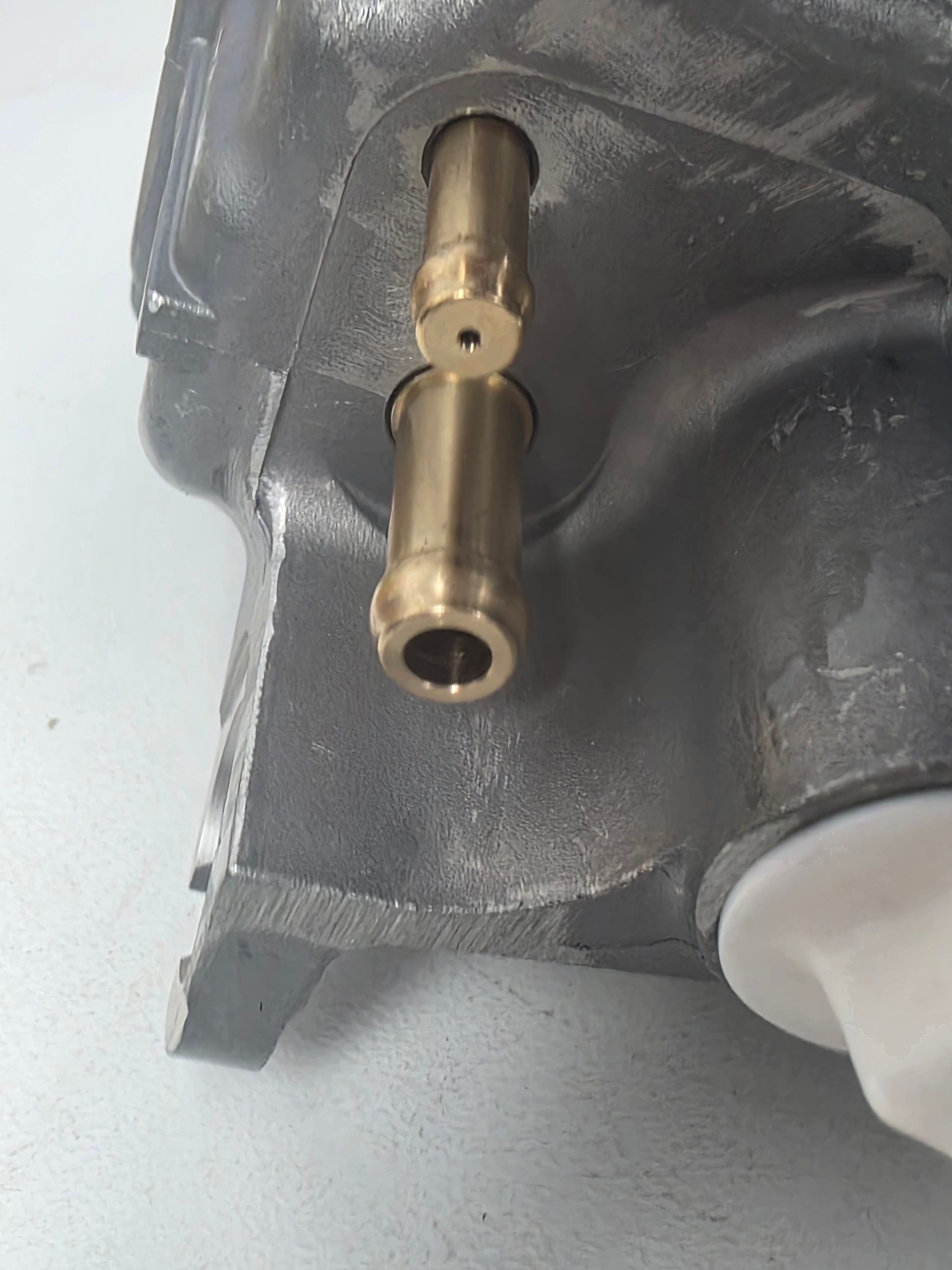

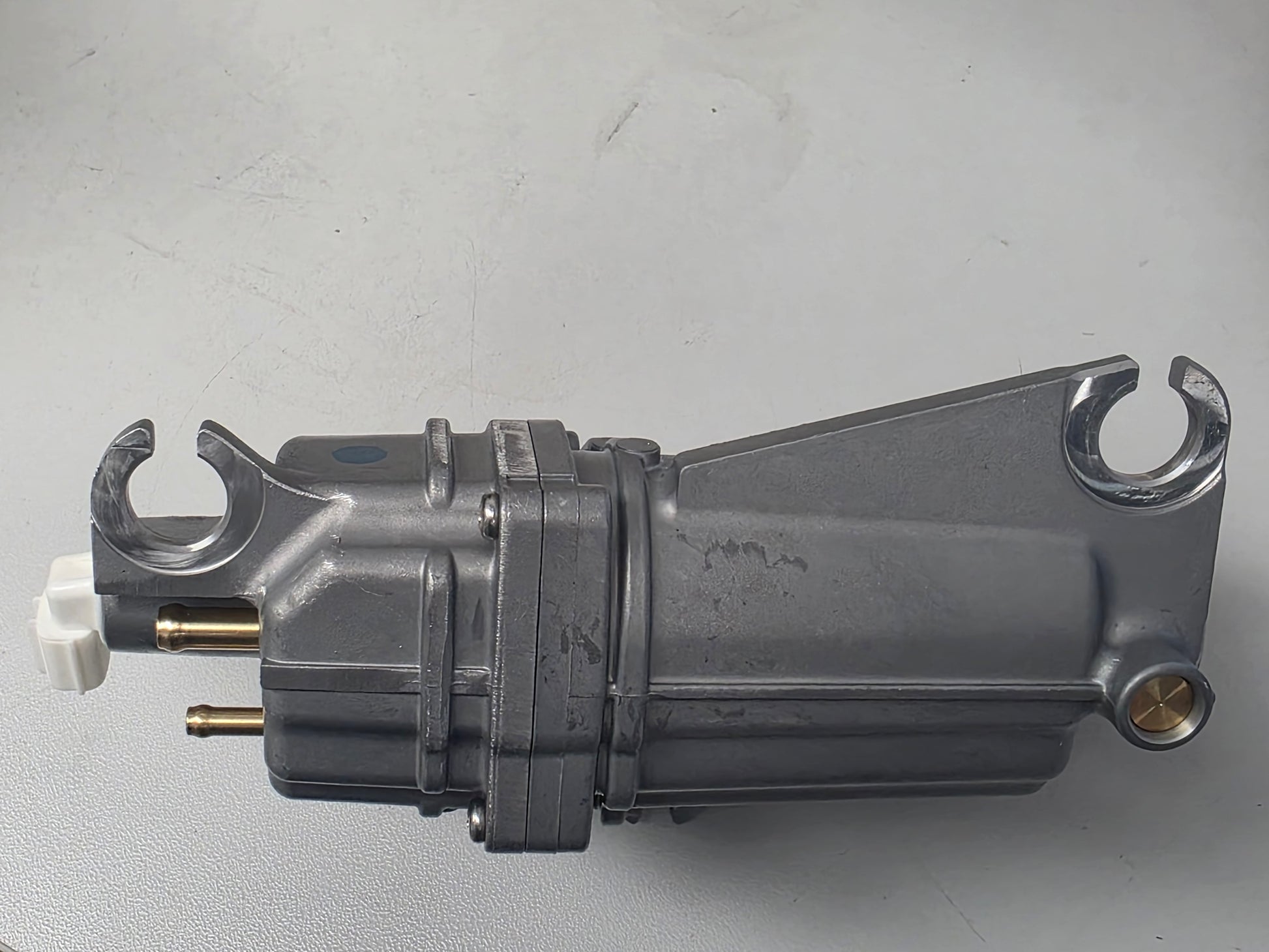

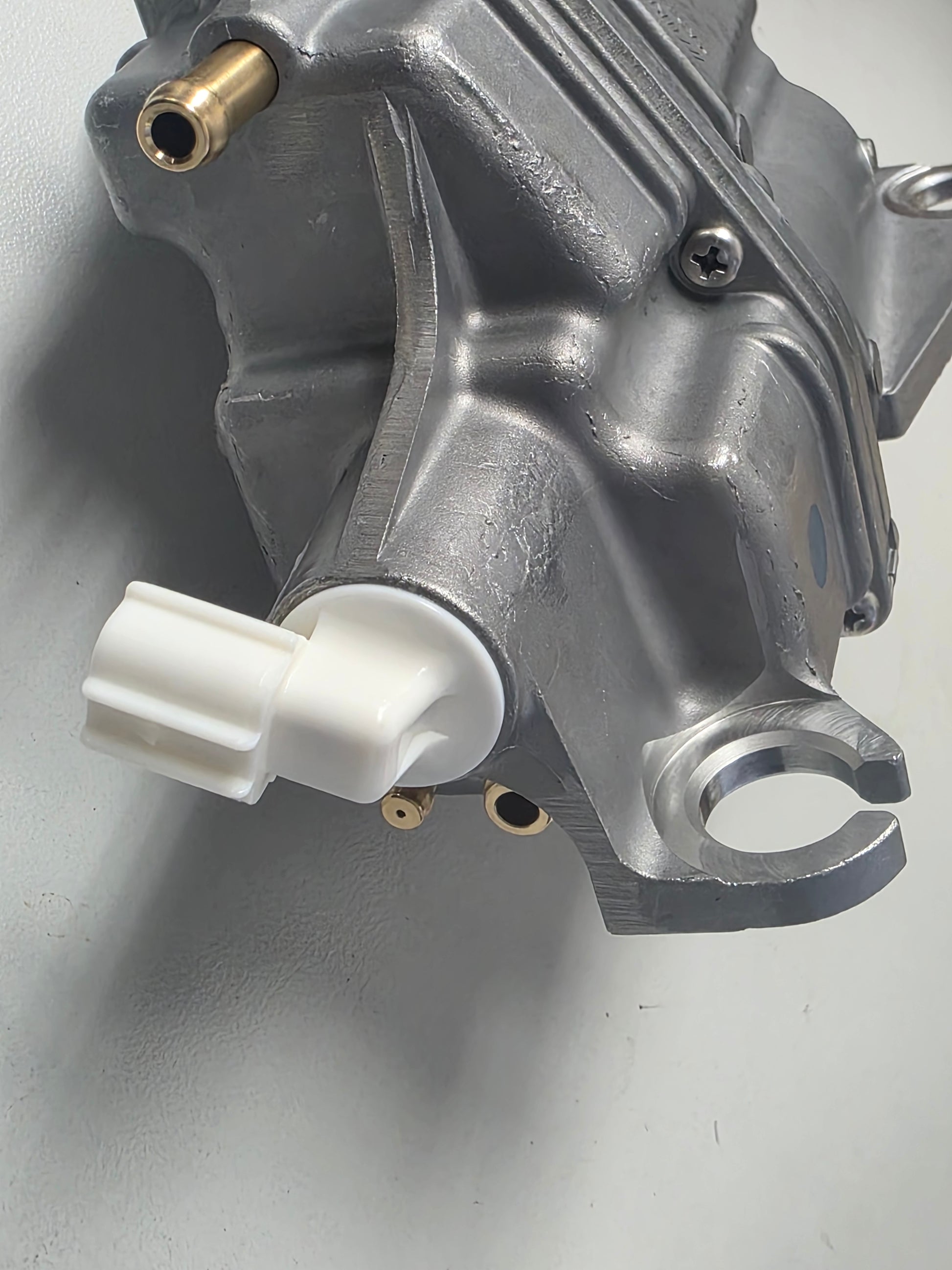

Genuine Suzuki Marine Fuel Vapour-Separator Assembly - Part Number: 15600-96J12
A complete genuine Suzuki fuel vapour-separator assembly for DF150, DF175 and DF200A inline-four EFI outboards. 15600-96J12 is the complete separator unit containing the internal high-pressure pump, float/needle components, seals and drain hardware.
⚙️ Key Features
- Complete factory vapour-separator assembly
- Includes the internal high-pressure pump and reservoir components
- Separates fuel vapour and maintains a stable liquid fuel supply
- Direct replacement for earlier 96J separator revisions
- Supplied as a matched pressure-fuel-system assembly
🚤 Compatibility
Commonly used on
- Suzuki Marine four-stroke outboard fuel vapour-separator assembly applications
Typically suits
- Engine models:
- DF150 and DF175
- DF150A and DF150AP
- DF175A and DF175AP
- DF200A and DF200AP
- Applicable E40-market and serialised 96J fuel-system configurations
- HP Range: 150HP-200HP
- Engine Type: Inline four-cylinder EFI four-stroke outboard
- Year Range: Approximately 2006 onward
🔌 Function
Stores a controlled volume of liquid fuel, separates vapour and supplies the high-pressure pump so the injector rail receives stable pressure under changing engine load.
⚠️ Common Signs of Failure
- Extended cranking or hot-start difficulty
- Engine surges or loses power as the reservoir empties
- Fuel pressure falls under load
- Fuel leaks from separator seals or drain screw
- Internal pump becomes noisy or stops operating
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 15600-96J12 → Supersedes 15600-96J02
- 15600-96J02 → Supersedes 15600-96J01
- 15600-96J01 → Supersedes 15600-96J00
OEM / Related Numbers
- Suzuki: 15600-96J12
- Internal high-pressure pump: 15200-96J10
- Needle-valve references: 13370-96J00 and 13370-96J10
- Bush: 15647-93J10
- Seal references: 15626-96J00 and 15626-96J10
- Drain screw: 15629-99E10
Aftermarket / Verified Equivalents
- No aftermarket equivalent
📦 Condition
- Genuine Suzuki Marine OEM part
- Brand new
- Supplied in original or equivalent packaging
