15710-85K00 Aftermarket Suzuki Injector | Sawley’s Select Marine Parts

🔧 Product Description

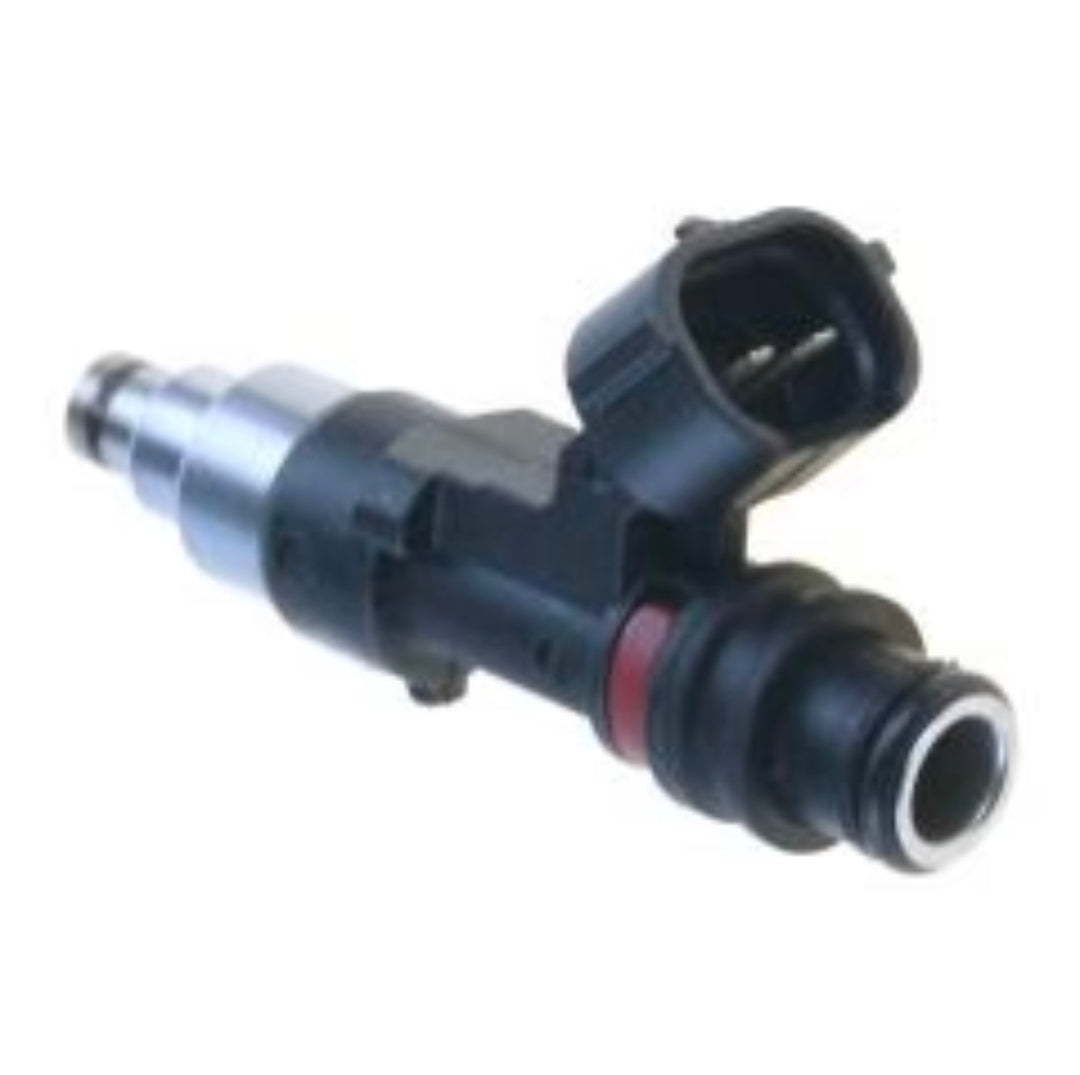

Sawley's Select Marine Parts Aftermarket Suzuki Fuel Injector - Part Number: 15710-85K00

A new aftermarket replacement fuel injector for selected Suzuki DF40A, DF50A and DF60A four-stroke outboards. This injector replaces Suzuki 15710-85K00 and is used in later EFI fuel systems where the original injector number, connector and fuel rail match.

⚙️ Key Features

• Sawley's Select Marine Parts aftermarket replacement injector

• Replaces Suzuki OEM part number 15710-85K00

• Used on selected DF40A, DF50A and DF60A four-stroke EFI engines

• 8-hole injector style in common aftermarket listings

• Match by fuel rail, connector style and Suzuki model / VIN

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 15710-85K00 Suzuki fuel injector assembly reference

• 15710-85K00-0000 full Suzuki OEM injector reference

OEM / Related Numbers:

• 15710-85K00

• 1571085K00

• 15710-85K00-0000

• Injector assy, fuel

• Fuel injector assembly

• EFI injector

• DF40A / DF50A / DF60A injector

Aftermarket / Verified Equivalents:

• Aftermarket replacement for 15710-85K00 / 15710-85K00-0000

🚤 Compatibility

Commonly used on:

• Suzuki DF40A / DF50A / DF60A four-stroke EFI fuel systems

Typically suits:

• Engine models:

• Suzuki DF40A - model-controlled EFI applications

• Suzuki DF40AQH - model-controlled EFI applications

• Suzuki DF40AQL - model-controlled EFI applications

• Suzuki DF40ATH - model-controlled EFI applications

• Suzuki DF40ATL - model-controlled EFI applications

• Suzuki DF50A - model-controlled EFI applications

• Suzuki DF50ATH - model-controlled EFI applications

• Suzuki DF50ATL - model-controlled EFI applications

• Suzuki DF50ATS - model-controlled EFI applications

• Suzuki DF60A - model-controlled EFI applications

• Suzuki DF60ATH - model-controlled EFI applications

• Suzuki DF60ATL - model-controlled EFI applications

• Suzuki DF60AV - model-controlled EFI applications

• Suzuki DF60AVTH / DF60AVTL - model-controlled EFI applications

• HP Range: 40HP - 60HP

• Engine Type: Suzuki four-stroke EFI outboard fuel system

• Year Range: approximately 2010 onward depending on model

• Serial / VIN Note: Confirmed diagram examples include DF40AQHL beginning VIN 04003F-140001 to 04003F-14XXXX and DF50ATS beginning VIN 05003F-040001 to 05003F-04XXXX. Match by exact Suzuki model code, serial / VIN, injector plug and fuel-rail layout.

🔌 Function

The fuel injector delivers a controlled fuel spray into the intake system so the ECU can maintain correct air-fuel mixture across starting, idle and running conditions.

Common signs of failure:

• Hard starting

• Rough idle

• Misfire on one cylinder

• Engine stalls at idle

• Poor acceleration

• Fuel leakage at injector body or O-rings

• Fouled spark plug on affected cylinder

• Cylinder performance changes when injector is swapped or cleaned

📦 Condition

• Aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
