15710-93J00 Aftermarket Suzuki Injector 200-225 Hp Engines (2004-2006) | Sawley’s Select Marine Parts

🔧 Product Description

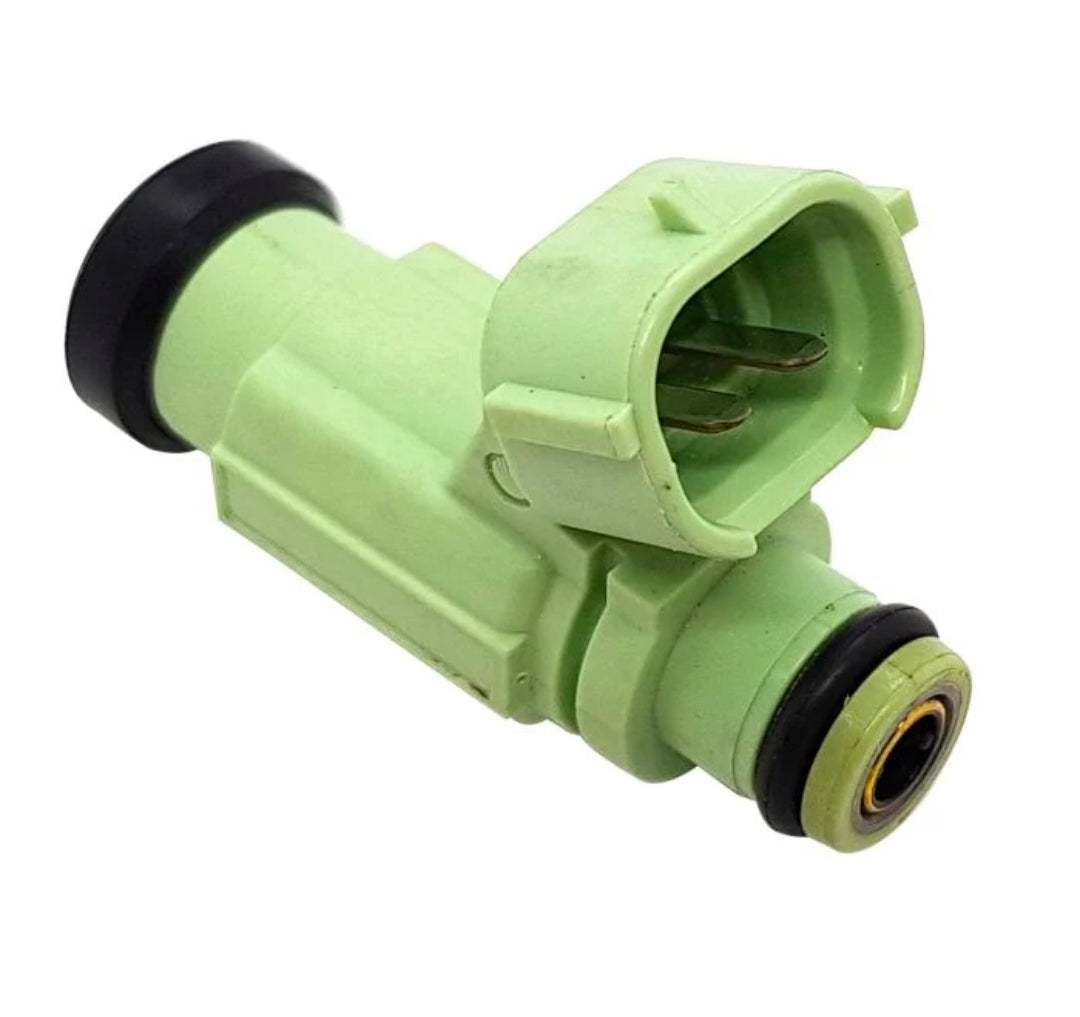

Sawley's Select Marine Parts Aftermarket Suzuki Fuel Injector - Part Number: 15710-93J00

A new aftermarket replacement fuel injector for selected Suzuki DF200, DF225 and related high-horsepower four-stroke outboards. This injector replaces Suzuki 15710-93J00 and is commonly used on 200HP and 225HP engines from 2004-2006 where the fuel-injector diagram specifies this number.

⚙️ Key Features

• Sawley's Select Marine Parts aftermarket replacement injector

• Replaces Suzuki OEM part number 15710-93J00

• Used on selected Suzuki high-horsepower EFI four-stroke outboards

• Common title application: 200HP and 225HP engines from 2004-2006

• Cross-references with Recmar REC15710-93J00

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 15710-93J00 Suzuki fuel injector assembly reference

• 15710-93J00-0000 full Suzuki OEM injector reference

OEM / Related Numbers:

• 15710-93J00

• 1571093J00

• 15710-93J00-0000

• Injector assy, fuel

• Fuel injector assembly

• EFI injector

• DF200 / DF225 injector

Aftermarket / Verified Equivalents:

• Recmar: REC15710-93J00

• Aftermarket replacement for 15710-93J00 / 15710-93J00-0000

🚤 Compatibility

Commonly used on:

• Suzuki DF200 / DF225 high-horsepower four-stroke EFI fuel systems

Typically suits:

• Engine models:

• Suzuki DF200 - 2004-2006 title application range

• Suzuki DF200TXK / DF200TXZK / DF200TLK - 2004-2010 applications using 15710-93J00

• Suzuki DF200TL / DF200TX / DF200ZX - later diagram-controlled applications where 15710-93J00 is specified

• Suzuki DF225 - 2004-2006 title application range

• Suzuki DF225TXK / DF225TXZK - 2004-2010 applications using 15710-93J00

• Suzuki DF250 - model-controlled applications using 15710-93J00

• HP Range: commonly 200HP - 225HP for title application; broader 200HP - 250HP where the injector diagram specifies 15710-93J00

• Engine Type: Suzuki high-horsepower four-stroke EFI outboard fuel system

• Year Range: title range 2004 - 2006; broader usage is model and serial / VIN controlled

• Serial / VIN Note: Match by exact Suzuki model code, serial / VIN, fuel rail, injector connector and original injector number before installation.

🔌 Function

The fuel injector delivers a controlled fuel spray into the intake system so the ECU can maintain correct fuel delivery across starting, idle, acceleration and high-load operation.

Common signs of failure:

• Hard starting

• Rough idle

• Misfire on one cylinder

• Loss of power under load

• Poor fuel economy

• Fuel smell or leaking injector

• Lean or rich cylinder fault

• Cylinder fault follows the injector during testing

📦 Condition

• Aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
