1591 Dunbier Axle 45 Square Hydraulic Brake 2340mm (92") | Marine Trailer Part
1591 Dunbier Axle 45 Square Hydraulic Brake 2340mm (92") | Marine Trailer Part
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
🔧 Product Description

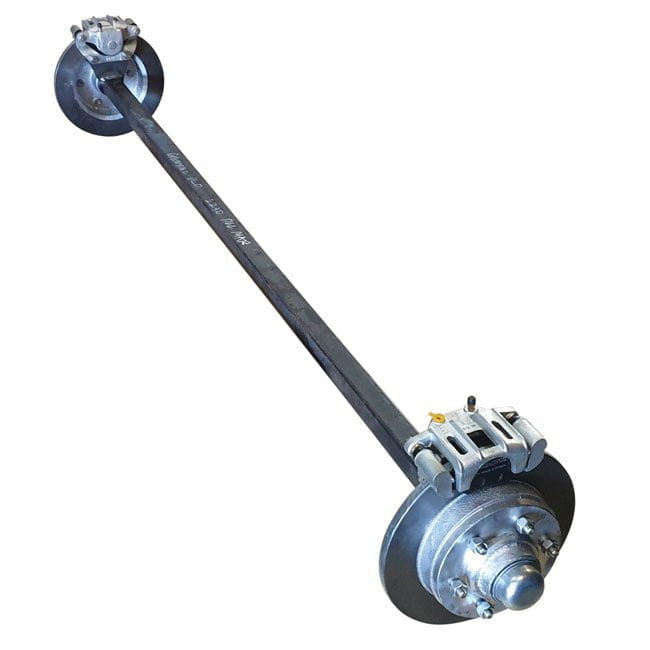

Dunbier Marine Products 45mm Square Solid Hydraulic disc brake Axle – 2340mm – Part Number: 1591
A complete galvanised 45mm solid square axle measuring 2340mm overall and configured for hydraulic disc brakes. It uses Ford-pattern wheel mounting and the Dunbier slimline bearing family for compatible wide 13- or 14-inch-wheel trailers.
⚙️ Key Features
- Galvanised steel axle construction
- 45mm solid square section
- Hydraulic disc brake configuration
- Manufactured for Dunbier trailer geometry
- Critical replacement dimensions must match the original axle
📏 Specifications
- Axle section: 45mm solid square
- Overall axle length: 2340mm / 92 inches
- Wheel-size guide: 13- or 14-inch
- Brake configuration: Hydraulic disc brake
- Bearing family: L68110 and LM12710 cups with L68149 and LM12749 cones
- Grease seal: Dunbier 1706
- Legacy catalogue chassis-width guide: approximately 1860mm
- Hub configuration: Ford-pattern disc hubs and matching brake hardware as supplied
🔄 Cross Reference & Related Parts
- Dunbier: 1591
- Beam-only axle: Dunbier 1589G
- Non-braked hubbed axle: Dunbier 1588G
- Opposite brake actuation version: Dunbier 1590G
- Current catalogues may show mechanical reference 1592G; match the supplied and original axle number before ordering
🚤 Trailer Compatibility & Application
- Suitable for Dunbier trailers using a 2340mm 45mm square braked axle
- Legacy chassis-width guide: approximately 1860mm
- Trailer coupling and control system must be compatible with hydraulic disc brakes
🔌 Function
Carries the trailer wheel loads between the suspension points and maintains the hub, wheel and brake alignment across the trailer.
⚠️ Common Signs of Failure
- Axle beam is bent or wheels show abnormal camber
- Corrosion, pitting or cracking is visible near spring seats or spindles
- Bearing journals are scored or undersize
- Tyres wear unevenly despite correct pressure and bearings
- Brake or hub alignment cannot be restored
🛠️ Installation & Safety
- Axle replacement is a safety-critical task for a competent trailer technician
- Measure overall length, spring-centre spacing, hub face, stud pattern and brake configuration before ordering
- Use correct U-bolts, fish plates and spring seats
- Set and lubricate wheel bearings to specification
- Verify wheel alignment, brake operation and wheel-nut torque before road use
📦 Condition
- Genuine Dunbier Marine Products part
- Brand new
- Supplied as one complete 2340mm 45mm square axle configured for hydraulic disc brakes
- Supplied in original or equivalent packaging
