16010-ZV4-005 Honda Marine Gasket | Genuine OEM Outboard Part

🔧 Product Description

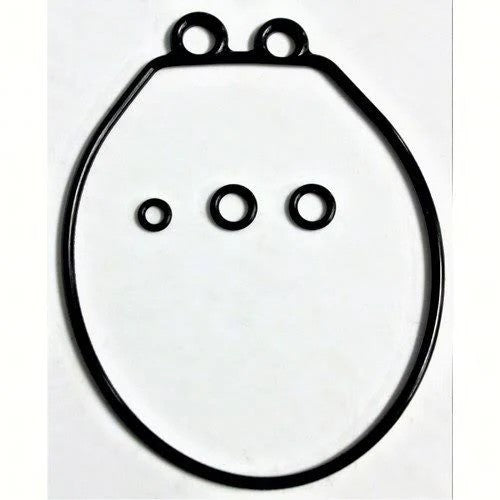

Genuine Honda Carburettor Gasket and O-Ring Set - Part Number: 16010-ZV4-005

New genuine Honda carburettor gasket set for selected carburetted mid-range Honda outboards. It renews the soft sealing components disturbed during carburettor cleaning or overhaul.

⚙️ Key Features

• Genuine Honda matched carburettor sealing set

• Fuel-resistant gasket and O-ring material

• Restores sealing at float-bowl, body and metering joints

• Suitable for individual carburettor overhaul

• Carburettor synchronisation is required after refitting on multi-carb engines

🧰 Kit / Assembly Contents

• 1 × Float-bowl gasket/seal - supplied under Honda kit P/N 16010-ZV4-005

• 1 × Carburettor-body sealing gasket - supplied under Honda kit P/N 16010-ZV4-005

• Metering-screw, passage and joint O-rings - supplied under Honda kit P/N 16010-ZV4-005

• Drain and auxiliary fuel-passage seals - supplied under Honda kit P/N 16010-ZV4-005

• Individual soft seals are serviced by Honda as the complete 16010-ZV4-005 set rather than separate numbered items

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 16010-ZV4-005 (Honda OEM carburettor gasket-set reference)

OEM / Related Numbers:

• 16010-ZV4-005

Aftermarket / Verified Equivalents:

• Sierra: 18-2480

• Recmar: REC16010-ZV4-005

🚤 Compatibility

Commonly used on:

• Honda Marine four-stroke outboard engines

Typically suits:

• Engine models:

• BF25A and BF30A carburetted engines where 16010-ZV4-005 is specified

• BF35A, BF40A, BF45A and BF50A carburetted engines

• BF75A and BF90A carburetted engines on specified carburettor diagrams

• HP Range: 25HP - 90HP

• Engine Type: Honda carburetted four-stroke outboard

• Year Range: Model, carburettor number and frame-serial dependent

🔌 Function

These seals prevent fuel leakage and uncontrolled air entry through the carburettor body and float bowl. Correct sealing is essential for stable fuel level, idle mixture and multi-carburettor synchronisation.

Common signs of failure:

• Fuel leaks from the float bowl or carburettor body

• Engine runs lean, surges or will not hold a stable idle

• Carburettor draws unmetered air

• Seals are swollen, brittle, torn or flattened

• Carburettor has been dismantled for cleaning or overhaul

📦 Condition

• Genuine Honda part

• Brand new

• Supplied in original or equivalent packaging
