16010-ZW9-003 Honda Marine Carburettor Seal Kit | Genuine OEM Outboard Part

🔧 Product Description

Genuine Honda Portable Outboard Carburettor Gasket Set - Part Number: 16010-ZW9-003

New genuine Honda carburettor gasket set for D-series BF8, BF9.9, BF10, BF15 and BF20 four-stroke outboards. It supplies the matched fuel-resistant soft seals required when the carburettor is dismantled.

⚙️ Key Features

• Genuine Honda portable-outboard carburettor seal set
• Fuel-resistant gaskets and O-rings
• Restores float-bowl and metering-passage sealing
• Suitable for cleaning, rebuilding and leak repair
• Use with the correct carburettor body and engine model code

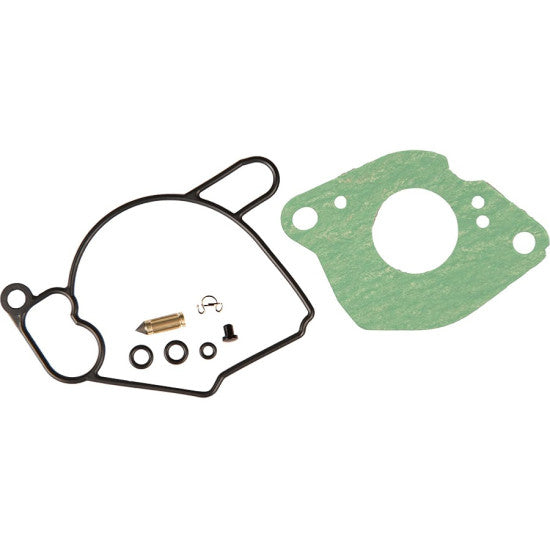

🧰 Kit / Assembly Contents

• 1 × Float-bowl gasket/seal - supplied under Honda kit P/N 16010-ZW9-003
• 1 × Carburettor-body sealing gasket - supplied under Honda kit P/N 16010-ZW9-003
• Metering-screw and internal passage O-rings - supplied under Honda kit P/N 16010-ZW9-003
• Drain-screw and auxiliary seals - supplied under Honda kit P/N 16010-ZW9-003
• Individual soft seals are serviced by Honda as the complete 16010-ZW9-003 set

🚤 Compatibility

Commonly used on

• Honda Marine four-stroke outboard engines

Typically suits

• Engine models:
• BF8D and BFP8D, principally 2002 and later
• BF9.9D and BFP9.9D, principally 2001/2002 and later
• BF10D and BFP10D
• BF15D/BFP15D and BF20D/BFP20D, principally 2003 and later
• HP Range: 8HP - 20HP
• Engine Type: Honda portable carburetted four-stroke outboard
• Year Range: Model code, shaft configuration and frame serial dependent

🔌 Function

These seals prevent fuel leakage and unmetered air entry through the carburettor body and float bowl. Correct sealing supports stable starting, idle quality and fuel delivery.

⚠️ Common Signs of Failure

• Fuel leaks from the carburettor or float bowl
• Hard starting, lean running or unstable idle
• Primer or choke operation has little effect because air enters around damaged seals
• Seals are hardened, swollen, cut or permanently compressed
• Carburettor has been dismantled for cleaning

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 16010-ZW9-003 (Honda OEM gasket-set reference)

OEM / Related Numbers

• 16010-ZW9-003

Aftermarket / Verified Equivalents

• Sierra: 18-2481 / 18-7051
• Recmar: REC16010-ZW9-003

📦 Condition

• Genuine Honda part
• Brand new
• Supplied in original or equivalent packaging
