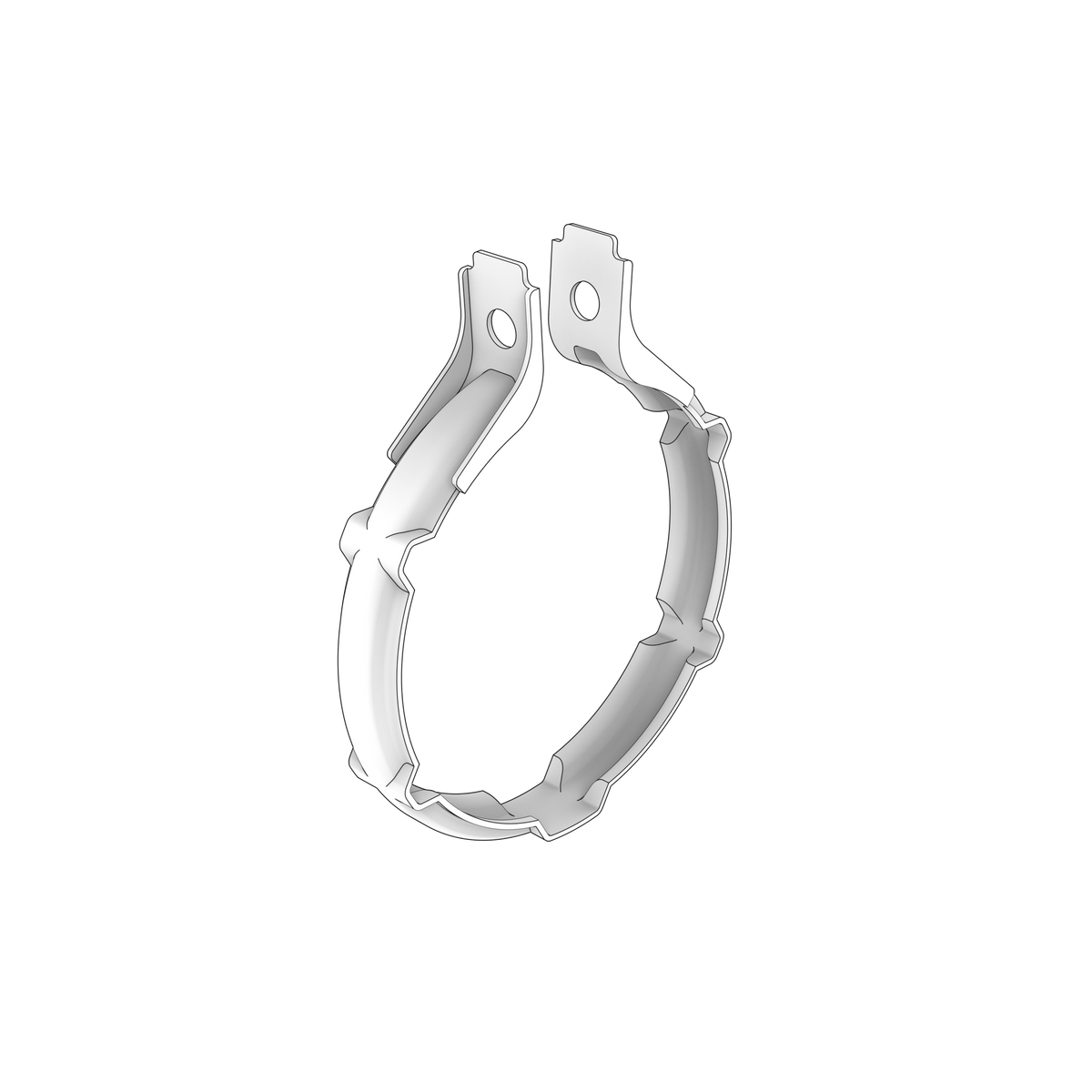

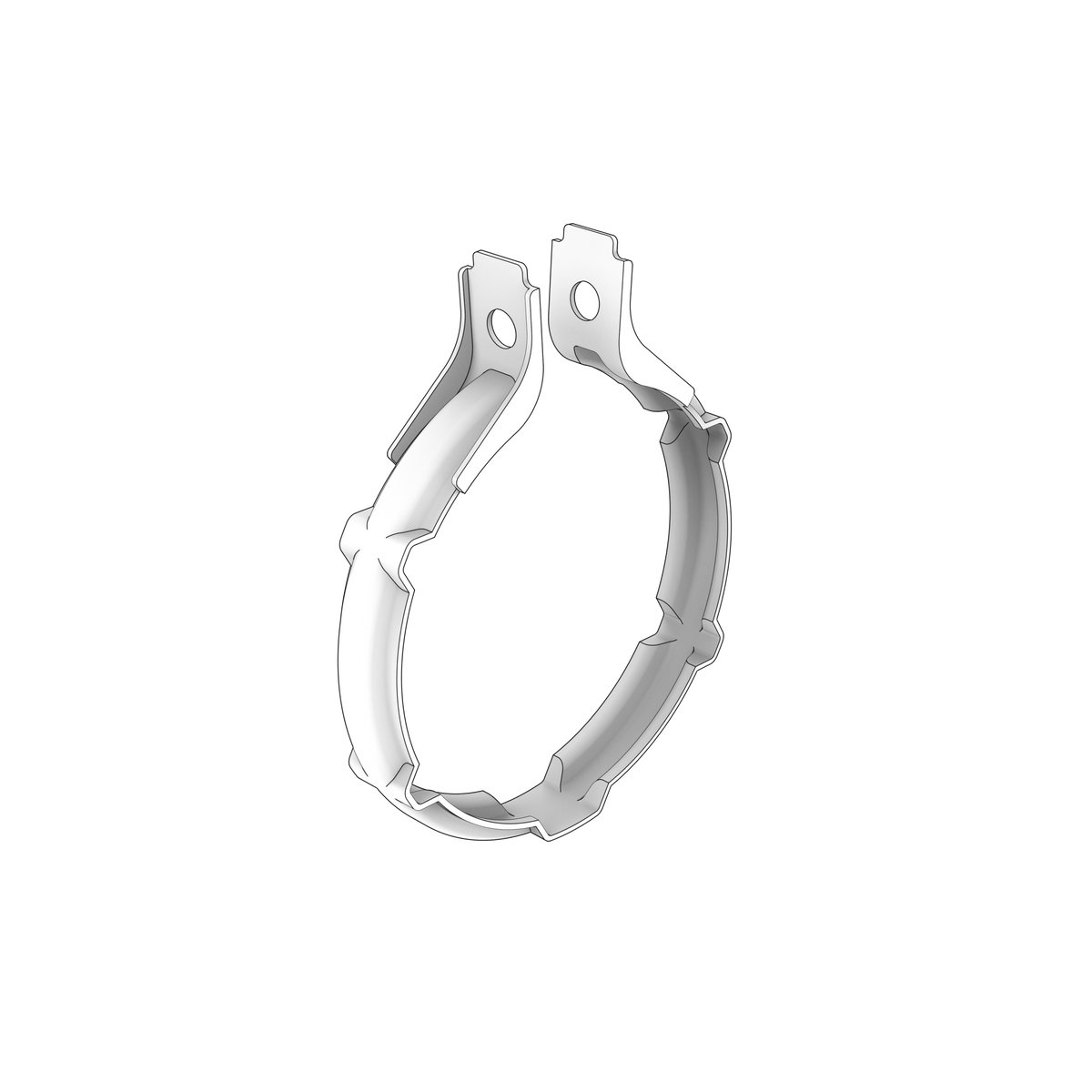

1629499 V-Clamp | Genuine Volvo Penta Part

🔧 Product Description

This is a genuine Volvo Penta V-clamp from the inlet and exhaust system group, used to join and seal ducting or turbocharger connections on TAD and TWD series industrial and genset diesel engines. The band-style clamp draws the mating flanges together to hold a gas-tight joint under pressure and vibration. Supplied as an individual clamp with a net weight of 0.28 kg.

🚤 Compatibility

Typically suits:

• Volvo Penta TAD1650VE-B/51VE
• Volvo Penta TAD1643VE-B
• Volvo Penta TAD1180-83VE
• Volvo Penta TWD1644-45GE
• Volvo Penta TAD1360-62VE
• Volvo Penta TAD1363-65VE
• Volvo Penta TAD1371-75VE
• Volvo Penta TAD1660-62VE
• Volvo Penta TAD1662VE EU5
• Volvo Penta TAD1670-72VE
• Volvo Penta TAD1170-72VE
• Volvo Penta TWD1682-83GE
• Volvo Penta TAD1150-52VE
• Volvo Penta TAD1351-53VE
• Volvo Penta TWD1672-1673GE
• Volvo Penta TAD1140-42VE
• Volvo Penta TWD1744GE

• Engine Family: TAD, TWD

⚙️ Key Features

• Genuine Volvo Penta OEM part number 1629499
• System group: Inlet and Exhaust System
• V-clamp (band-type) design for flanged inlet/exhaust joints
• Net weight 0.28 kg
• Fits TAD and TWD series industrial and generator-set diesel engines
• Engine type: Application dependent
• Quantity varies by assembly, most commonly four

🔌 Function

The V-clamp secures two flanged connections in the air intake or exhaust path, clamping them evenly around the joint circumference. This maintains a gas-tight, vibration-resistant seal so charge air and exhaust gas stay within the ducting.

⚠️ Common Signs of Failure

• Audible air or exhaust leak, whistling or hissing at the joint
• Loss of boost pressure or reduced engine power
• Corrosion, pitting or cracking of the clamp band
• Seized, stretched or stripped tensioning bolt and nut that will not hold torque
• Visible movement or separation of the clamped flanges, or soot staining around the joint

🛠️ Service Notes

• Bring the two flanges squarely together before the clamp goes on — a V-clamp centres and holds a joint but cannot pull a misaligned pipe into line
• Seat the clamp evenly round the flanges and nip it up lightly, then tap around the circumference with a soft mallet so the band settles and the flanges centre before final tightening
• Tighten in stages to the figure in the workshop manual for your engine and no further; the clamp is meant to pinch the flanges while still allowing for expansion and vibration, and overtightening distorts the band or the flanges
• Renew the clamp if the band is stretched, cracked or corroded, or if the bolt, nut or trunnion is damaged — a fatigued clamp can let the joint go completely
• Recheck the clamp after the first run up to working temperature, and again at the next service

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 59178 - related Volvo reference

Aftermarket / Verified Equivalents

• Dinex: 80921
• Dinex: 81921
• Ultimax: VB500V

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
