🔧 Product Description

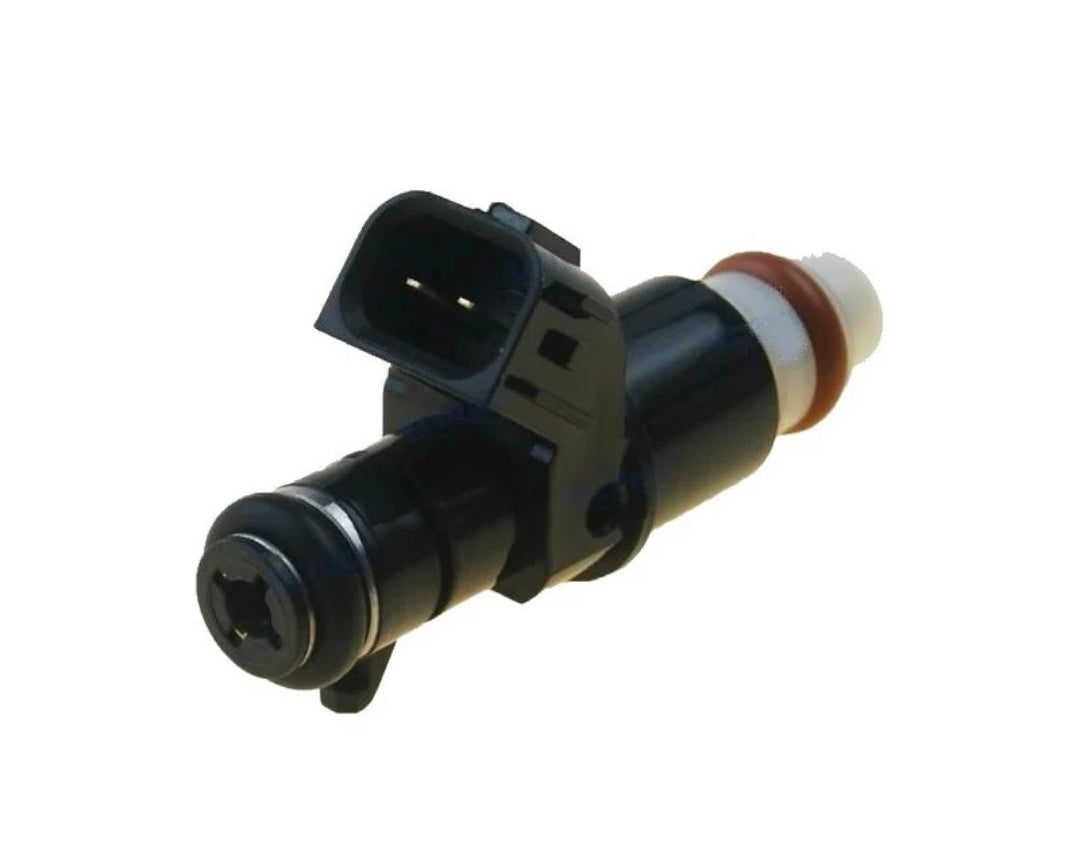

Sawley's Select Marine Parts Aftermarket Honda Fuel Injector - Part Number: 16450-ZY6-003

A new aftermarket replacement fuel injector for selected Honda BF135, BF150, BF175, BF200, BF225 and BF250 four-stroke outboards. This injector replaces Honda 16450-ZY6-003 and is used in later Honda EFI fuel pipe / injector systems where the original number matches.

⚙️ Key Features

• Sawley's Select Marine Parts aftermarket replacement injector

• Replaces Honda OEM part number 16450-ZY6-003

• Used on selected Honda 135HP to 250HP EFI four-stroke outboards

• Commonly listed for BF135, BF150, BF225 and BF250 applications

• Match by Honda frame serial, injector connector and fuel rail

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 16450-ZY6-003 Honda fuel injector assembly reference

OEM / Related Numbers:

• 16450-ZY6-003

• 16450ZY6003

• Injector assy, fuel

• Throttle body fuel injector

• Fuel injector assembly

• Honda high-horsepower fuel injector

• BF135 / BF150 / BF225 / BF250 injector

Aftermarket / Verified Equivalents:

• Aftermarket replacement for 16450-ZY6-003 / 16450ZY6003

🚤 Compatibility

Commonly used on:

• Honda BF135 to BF250 four-stroke EFI fuel systems

Typically suits:

• Engine models:

• Honda BF135A - model-controlled injector applications

• Honda BF135AK2 LA - VIN BARJ-1400001 to BARJ-1499999

• Honda BF150A - model-controlled injector applications

• Honda BF150 - 2004 and newer injector applications where 16450-ZY6-003 is specified

• Honda BF175A - model-controlled injector applications

• Honda BF175AK1 XCA - VIN BAKJ-1300001 to BAKJ-1399999

• Honda BF200A - later injector applications where 16450-ZY6-003 is specified

• Honda BF200AK0 LA - VIN BAEJ-1500001 to BAEJ-1599999

• Honda BF200D LDA - VIN BBRJ-1000001 and up

• Honda BF225A - later injector applications where 16450-ZY6-003 is specified

• Honda BF225AK1 XXCA - VIN BAHJ-1600001 to BAHJ-1699999

• Honda BF225AK3 X5 / XCA / LA / XW / XXW / XC5 / XCW applications where 16450-ZY6-003 is specified

• Honda BF250D LRA - VIN BBNJ-1000001 and up

• HP Range: 135HP - 250HP

• Engine Type: Honda four-stroke EFI outboard fuel system

• Year Range: approximately 2004 onward depending on model

• Serial / Frame Note: Match by exact Honda model code, frame serial, fuel pipe / injector diagram, injector connector and original injector number before installation.

🔌 Function

The fuel injector delivers a controlled fuel spray into the intake system so the ECU can maintain correct mixture and performance from idle through high-load operation.

Common signs of failure:

• Hard starting

• Rough idle

• Cylinder misfire

• Loss of acceleration

• Poor fuel economy

• Fuel smell or injector leakage

• Rich or lean running fault

• Cylinder issue follows injector during substitution testing

📦 Condition

• Aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
