16452 Double Nipple | Genuine Volvo Penta Part

🔧 Product Description

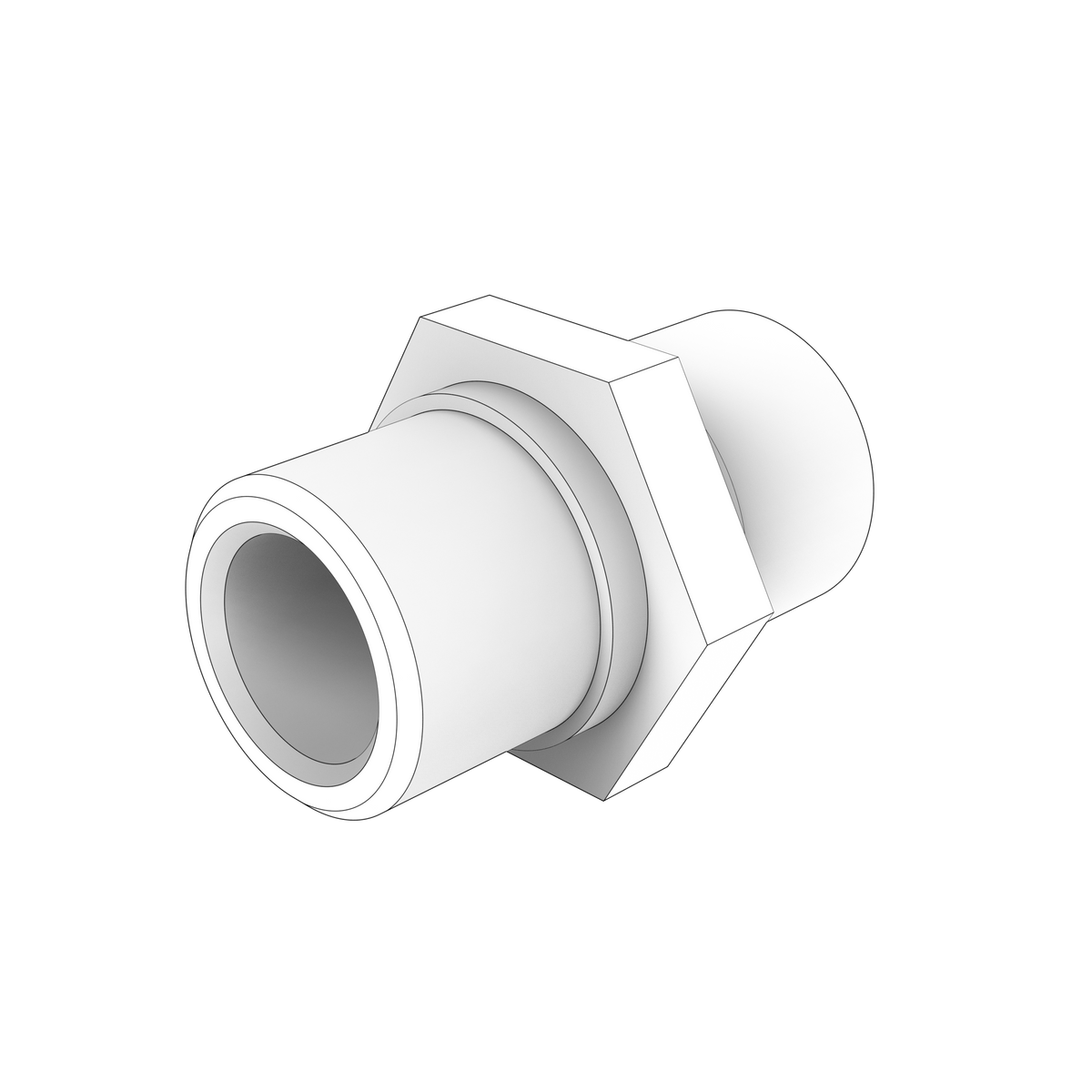

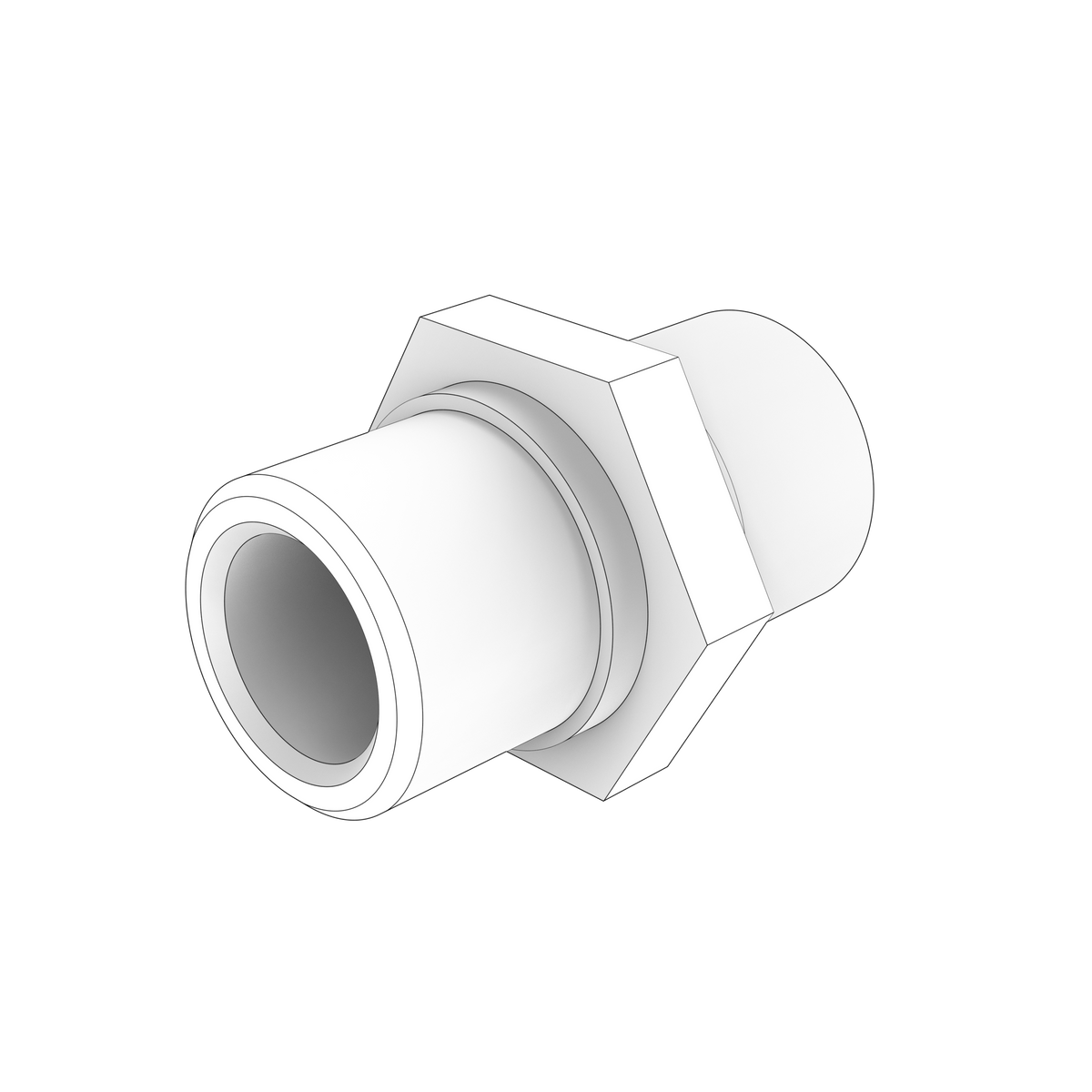

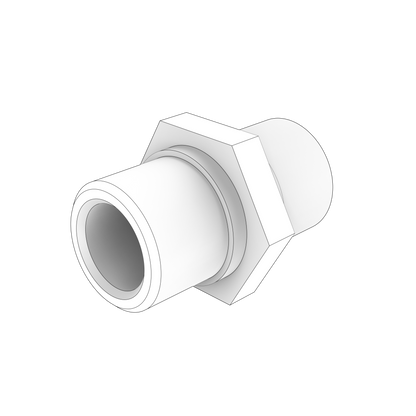

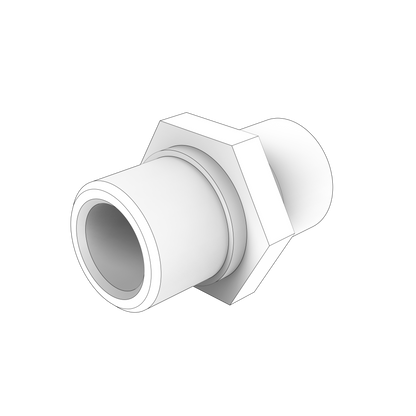

This is the Volvo Penta double nipple, a threaded coolant-system connector fitting used to join hose or pipe connections within the engine's cooling circuit. It is the current replacement for several earlier nipple and pump-related part numbers, and it is fitted across a broad span of Volvo Penta marine diesel engines from the D5A and D7A through to the D16 and the older MD, TD, TMD and TAMD series. Supplied as a single lightweight fitting, it carries a net weight of approximately 0.06 kg.

🚤 Compatibility

• Engine Family: D, MD, TMD, AQD, TD, TAMD, TAD

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 16452
• System group: Cooling System
• Double nipple connector fitting for coolant hose and pipe joints
• Net weight 0.057 kg
• Supersedes earlier part numbers 3826153, 3803434, 3830970 and 943089
• Fits D5A, D7A, D7C, D9, D11, D12, D13 and D16 series marine diesels plus MD, TD, TMD and TAMD engine families
• Engine type: Application dependent
• Quantity varies by assembly, most commonly one
• Also supersedes Volvo part number 3803302

🔌 Function

The double nipple provides a threaded male-to-male junction between two coolant lines or between a coolant line and a housing port in the engine's cooling system. It maintains a sealed passage so coolant can circulate between components without leakage.

⚠️ Common Signs of Failure

• Coolant weeping or dripping from the threaded joint
• Corrosion, pitting or scale build-up on the fitting body restricting flow
• Damaged, stripped or cross-threaded threads preventing a proper seal
• Cracking of the fitting leading to sudden coolant loss and pressure drop
• Rounded or seized hex flats making removal difficult during service

🛠️ Service Notes

• This double nipple supersedes a chain of earlier numbers (3826153, 3803434, 3830970 and 943089 among them), so on an older engine confirm which generation of fitting is actually installed before ordering
• It spans a very wide range, from the older mechanical MD/TD/TMD/TAMD engines through to the modern D5-D16 series, so check the thread form at each end against the specific hose or housing port rather than assuming one thread size fits the whole range

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 16452 → Supersedes 3826153 → Supersedes 866201

OEM / Related Numbers

• 3803434 earlier number superseded by this part
• 3830970 earlier number superseded by this part
• 943089 earlier number superseded by this part
• 3826153 earlier number superseded by this part
• 866201 earlier number superseded by this part
• 54162025 - related engine-mounted oil-drain pump parts section
• 54147945 - related oil-bilge pump parts section

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D12C-A MP, D12D-A MG, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MG, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta D13C3-B MH, D13C1-B MH, D13C4-B MH, D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-F MG, D13B-F MG (FE), D13B-N MH, D13B-N MH (FE), D13C1-A MH, D13C2-A MH, D13C2-A MG, D13C1-A MG
• Volvo Penta D16C-A MG, D16C-A MH, D16C-B MH, D16C-C MH, D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG, D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta D9A2J, D9A2G, D9A2D, D9A2B, D9A2F, D9A2K, D9A2H, D9A2A, D9A2C, D9A2E
• Volvo Penta TAMD74P-A, TAMD74P-B, TAMD74A, TAMD74C-A, TAMD74C-B, TAMD74L-A, TAMD74L-B
• Volvo Penta D7A-B TA, D7A-T, D7A-TA, D7C-B TA, D7C-TA
• Volvo Penta TD100AHC, TD100ARC, TD100A, TD100CHC, TD100CRC
• Volvo Penta D100A, D100BHC, D100BRC, D100B
• Volvo Penta D11A-A, D11A-B, D11A-C, D11A-D MP
• Volvo Penta TAMD162C-C, TAMD162A, TAMD162C, TAMD162C-B
• Volvo Penta D5A-B TA, D5A-T, D5A-TA
• Volvo Penta MD100A, MD100B, MD100B-CC
• Volvo Penta MD2010, MD2010B
• Volvo Penta TAMD102A, TAMD102D
• Volvo Penta TAMD122D, TAMD122P-A
• Volvo Penta TAMD165A, TAMD165C
• Volvo Penta TAMD63L-A, TAMD63P-A
• Volvo Penta TMD100A, TMD100C
• Volvo Penta TMD120A, TMD120B
• Volvo Penta AQD70B
• Volvo Penta D70B
• Volvo Penta MD120A
• Volvo Penta MD70B
• Volvo Penta TAD120AHC
• Volvo Penta TAMD103A
• Volvo Penta TAMD120A
• Volvo Penta TAMD121D
• Volvo Penta TAMD163A-A
• Volvo Penta TAMD70B
• Volvo Penta TAMD75P-A
• Volvo Penta TD120AHC
• Volvo Penta TMD102A
• Volvo Penta TMD121C
• Volvo Penta TMD122A
• Volvo Penta TMD70B
