1661C Dunbier 1/2" Ford Wheel Nut Pack of 5, Clamshell Pack | Marine Trailer Part
1661C Dunbier 1/2" Ford Wheel Nut Pack of 5, Clamshell Pack | Marine Trailer Part
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
🔧 Product Description

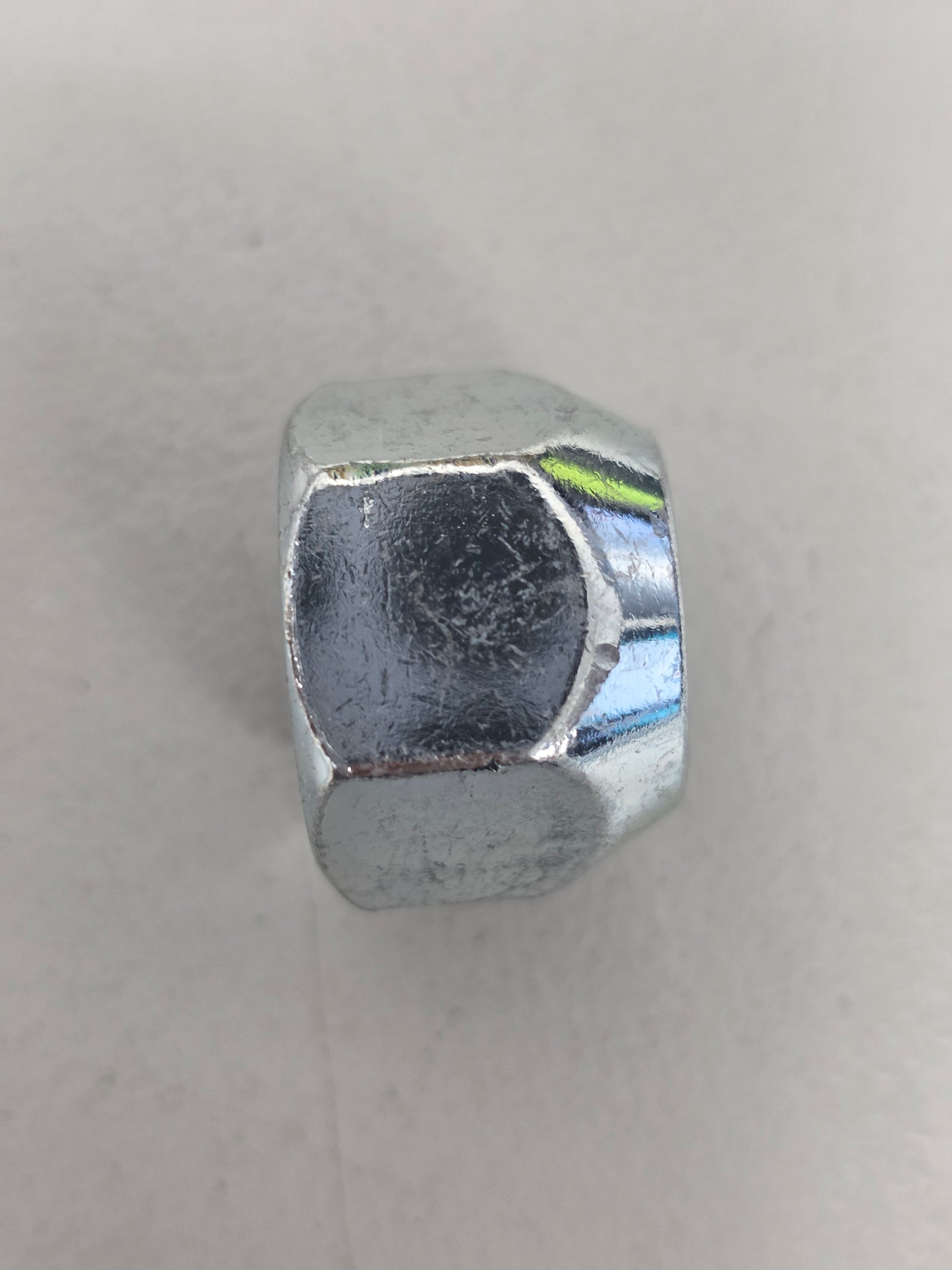

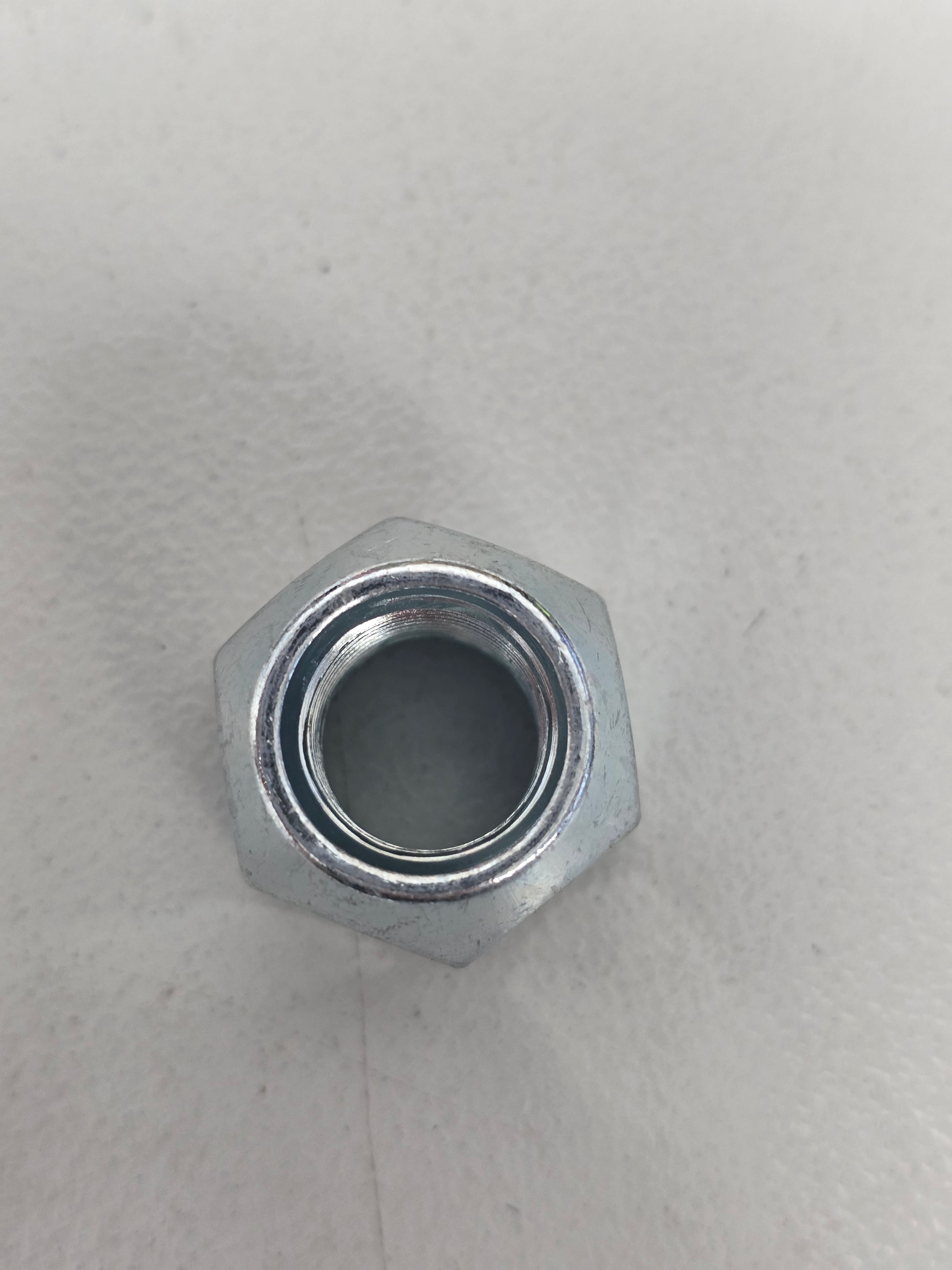

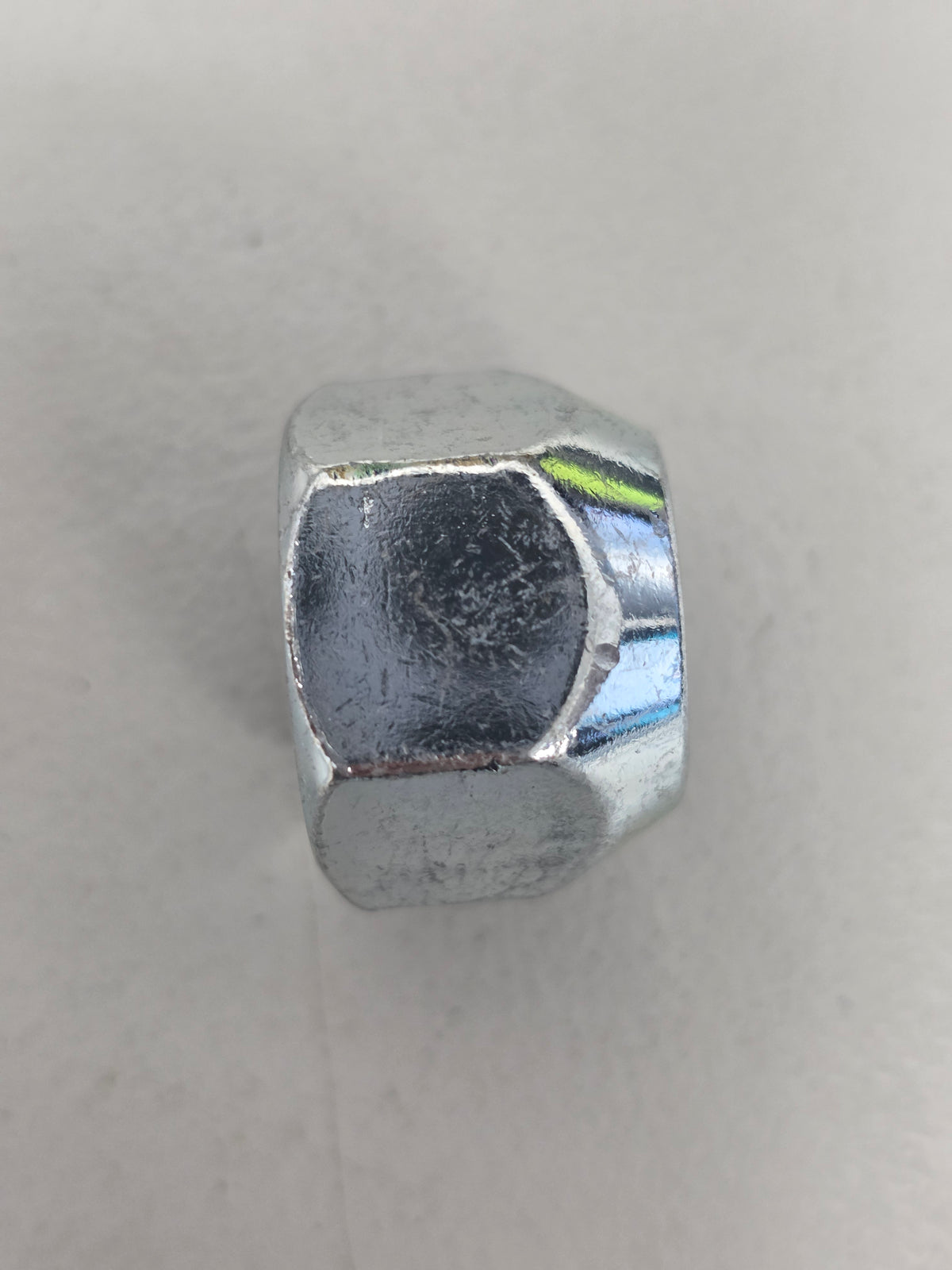

Dunbier Ford Wheel Nut 1/2" UNF – Pack of 5 – Part Number: 1661C
A replacement 1/2" UNF tapered-seat trailer wheel nut for the Ford five-stud wheel pattern. The conical seat centres the wheel on the stud and clamps it against the hub flange.
⚙️ Key Features
- Trailer wheel nut with tapered/conical seat
- 1/2" UNF thread
- Matched to Ford five-stud hub studs
- Zinc or plated finish as currently supplied

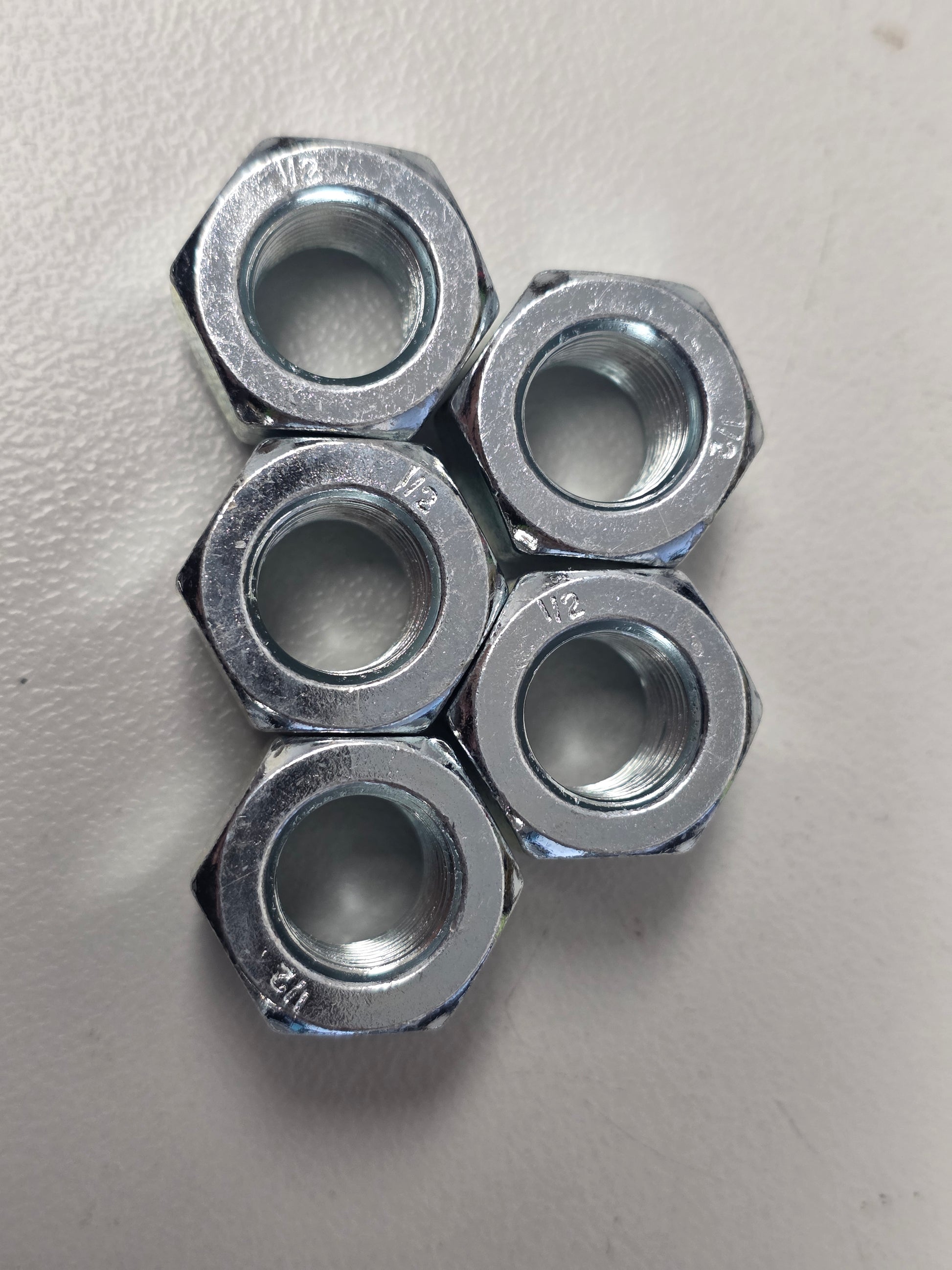

- Pack quantity: 5 nuts
📏 Specifications
- Thread: 1/2" UNF
- Wheel pattern family: Ford five-stud
- Quantity: 5 nuts
- Seat, shank, knurl and length must match the original component
🔄 Cross Reference & Related Parts
- Dunbier: 1661C
- 7/16-inch hardware is associated with Holden HT-pattern hubs
- 1/2-inch hardware is associated with Ford-pattern hubs
- Do not mix metric, 7/16-inch and 1/2-inch wheel hardware
🚤 Trailer Compatibility & Application
- Suitable only for hubs and wheels using the stated thread and seat profile
- Wheel PCD and stud count must also match
- Stud knurl diameter and grip length must be checked when replacing studs
🔌 Function
Clamps the wheel securely to the hub stud and maintains wheel-to-hub seating under road load.
⚠️ Common Signs of Failure
- Threads are stretched, crossed or stripped
- Conical nut seat is galled or cracked
- Stud spins in the hub
- Corrosion has materially reduced the thread
- Wheel repeatedly loosens despite correct torque
🛠️ Installation & Safety
- Use a torque wrench and the hub/wheel manufacturer's specified torque
- Tighten wheel nuts progressively in a star pattern
- Do not lubricate threads unless the torque specification expressly assumes lubrication
- Press studs into the hub squarely; do not pull badly mismatched studs in with a wheel nut
- Recheck torque after the first 50–100km and after wheel removal
📦 Condition
- Brand new Dunbier Marine Products trailer component
- Supplied as one clamshell pack containing 5 nuts
- Supplied in original or equivalent packaging
