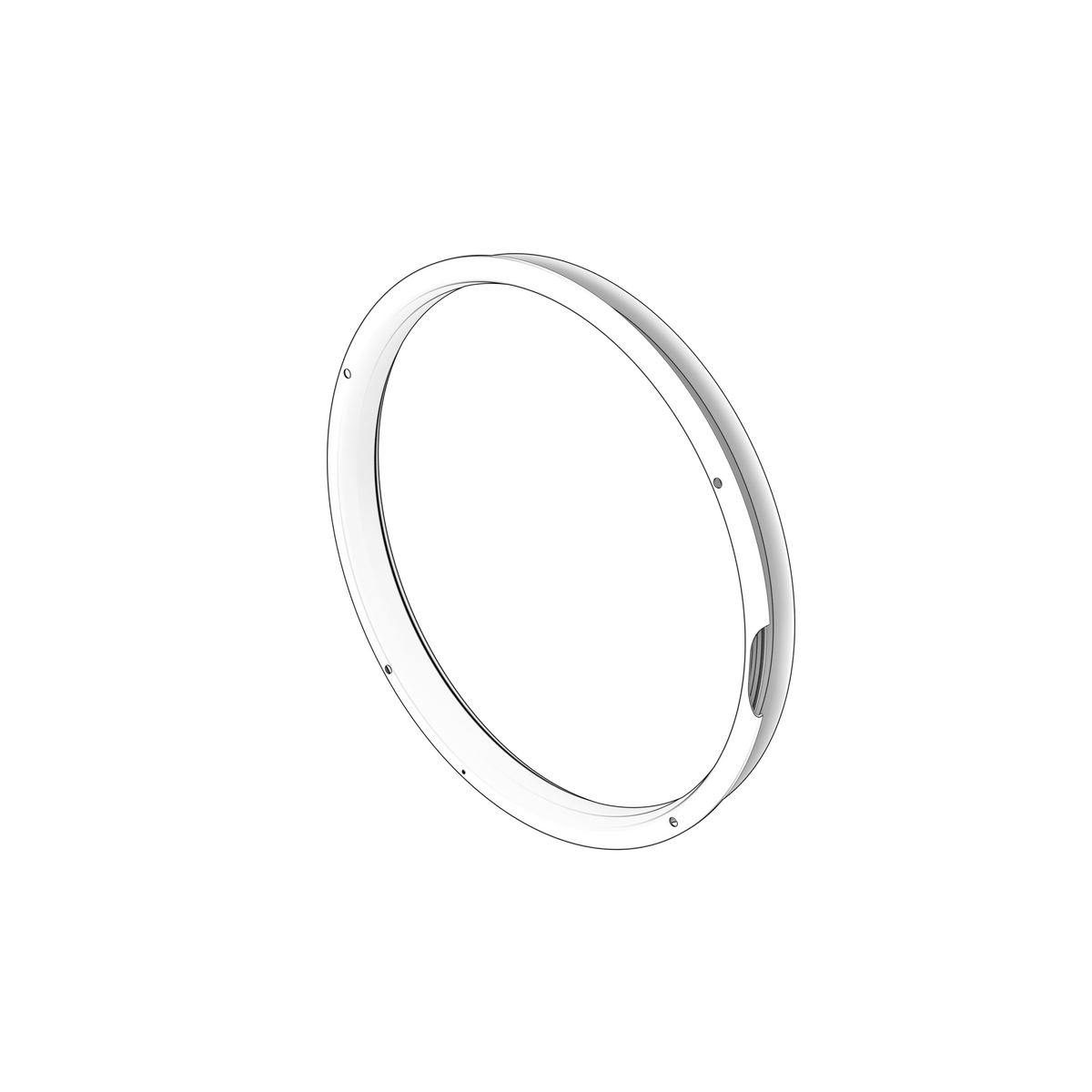

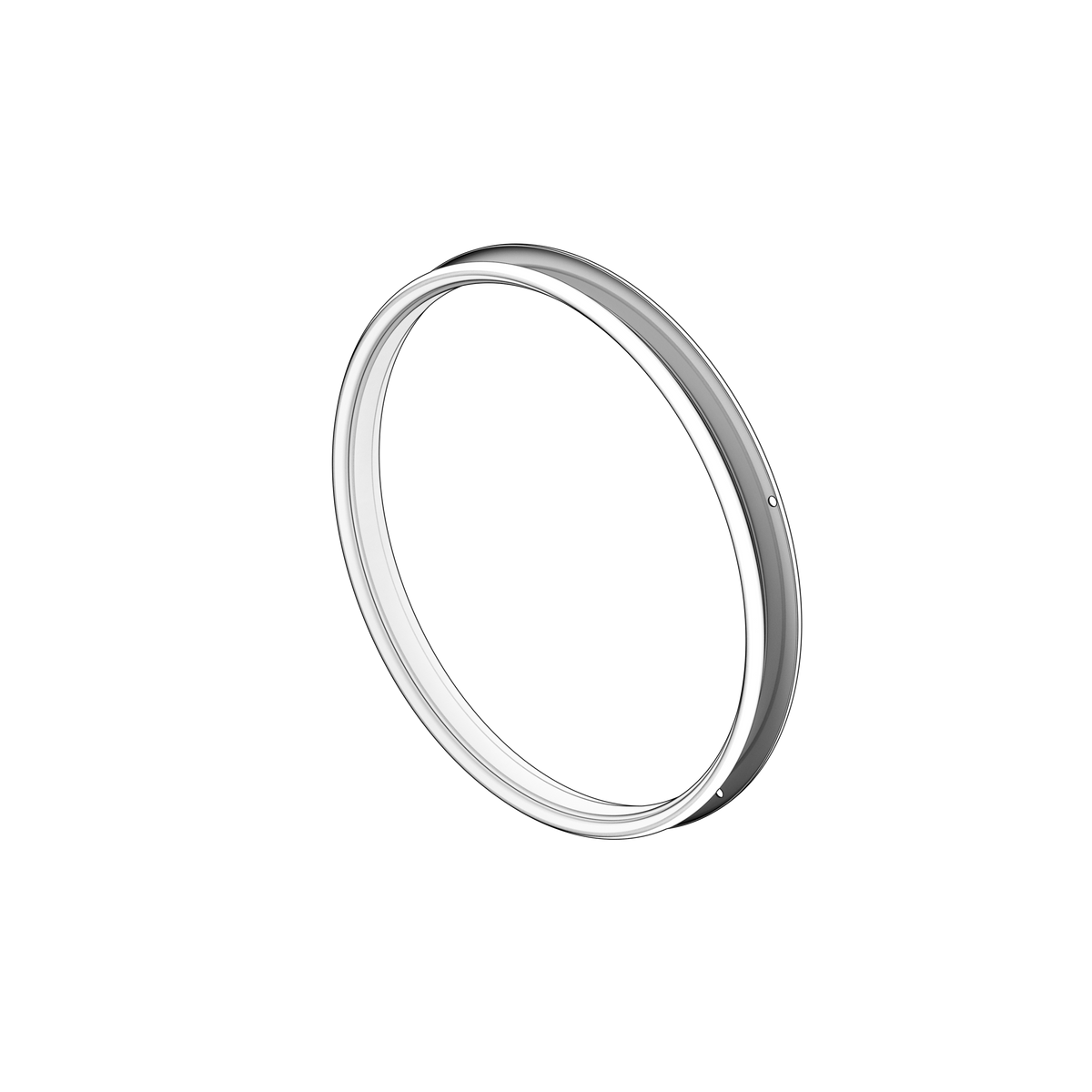

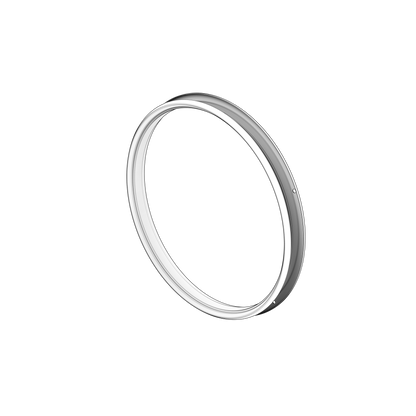

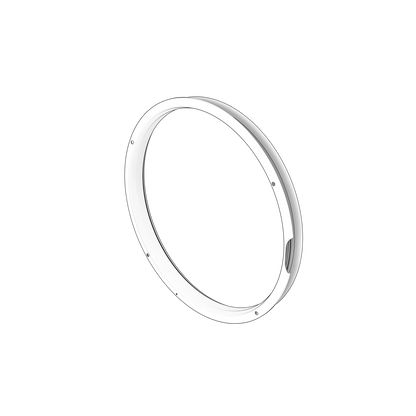

1664910 Fan Ring | Genuine Volvo Penta Part

🔧 Product Description

This genuine Volvo Penta fan ring is a cooling-airflow control ring used in the 750 mm suction-fan ring/shroud. It is manufactured to the original Volvo dimensional, material and interface requirements so the serviced assembly retains its designed alignment, sealing, load capacity and operating reliability. Nominal fan-ring diameter: 750 mm. In service, it controls airflow around the suction fan and reduces recirculation between the hot and cold sides of the radiator. Selection must be confirmed by OEM part number 1664910, the exact engine/product model, serial number and the installed assembly configuration.

🚤 Compatibility

• Engine Family: TAD, TD, TWD

Full model list at the end of this description.

⚙️ Key Features

• Volvo Penta OEM part number 1664910
• Fan ring diameter: D=750mm
• System group: Cooling System
• Net weight approximately 3.02 kg
• Supersedes earlier fan rings 1664483 and 476807 (which in turn replaced 476578)
• Fits TD, TID, TWD and TAD series industrial and generator-set diesel engines

🔌 Function

The fan ring forms a shroud around the cooling fan, closing the gap between the fan blade tips and the radiator so that airflow is drawn through the radiator core rather than recirculating around it. This maintains cooling efficiency at all engine speeds and helps guard the rotating fan.

⚠️ Common Signs of Failure

• Cracking, splitting or broken mounting points around the ring
• Contact damage or scoring from fan blade strike caused by a distorted or loose ring
• Reduced cooling performance and rising coolant temperatures from air bypassing the radiator core
• Rattling or vibration noise from the fan area under load
• Corrosion, deformation or missing sections leaving an open gap around the fan

🛠️ Service Notes

• The fan ring guides air through the cooling package and only does its job if it is complete and correctly positioned — fit it so the fan runs centrally within it with even clearance all the way round
• Turn the fan by hand through a full revolution after fitting and check that nothing touches; a ring that fouls a blade will wreck the fan
• Use all the original fixings, rubber mounts and grommets, and check for cracks around the mounting points — a ring loose on broken mounts will fret, rattle and eventually break up
• Never run the engine with the ring or fan guard removed or damaged: it costs cooling performance and it is the guard between you and the fan
• Clean the radiator or charge-air cooler faces and inspect the fan blades while the access is good

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 1664910 → Supersedes 1664483 → Supersedes 476578

OEM / Related Numbers

• 476807 earlier number superseded by this part
• 1664483 earlier number superseded by this part
• 476578 earlier number superseded by this part
• Fan 21849998 / 21328922
• Fan clutch 21372710
• Fan guard 22389861

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta TD121G-87, TD121G, TD121GG
• Volvo Penta TAD1250VE, TAD1250-52VE
• Volvo Penta TAD1140-42VE
• Volvo Penta TAD1150-52VE
• Volvo Penta TAD1170-72VE
• Volvo Penta TAD1180-83VE
• Volvo Penta TAD1251VE
• Volvo Penta TAD1252VE
• Volvo Penta TAD1351-53VE
• Volvo Penta TAD1360-62VE
• Volvo Penta TAD1363-65VE
• Volvo Penta TAD1371-75VE
• Volvo Penta TAD1380-82GE
• Volvo Penta TAD1381-85VE
• Volvo Penta TAD940VE
• Volvo Penta TAD941VE
• Volvo Penta TAD942VE
• Volvo Penta TAD943VE
• Volvo Penta TAD950VE
• Volvo Penta TAD951VE
• Volvo Penta TAD952VE
• Volvo Penta TWD1230ME
• Volvo Penta TWD1231VE
• Volvo Penta TWD1240VE
