🔧 Product Description

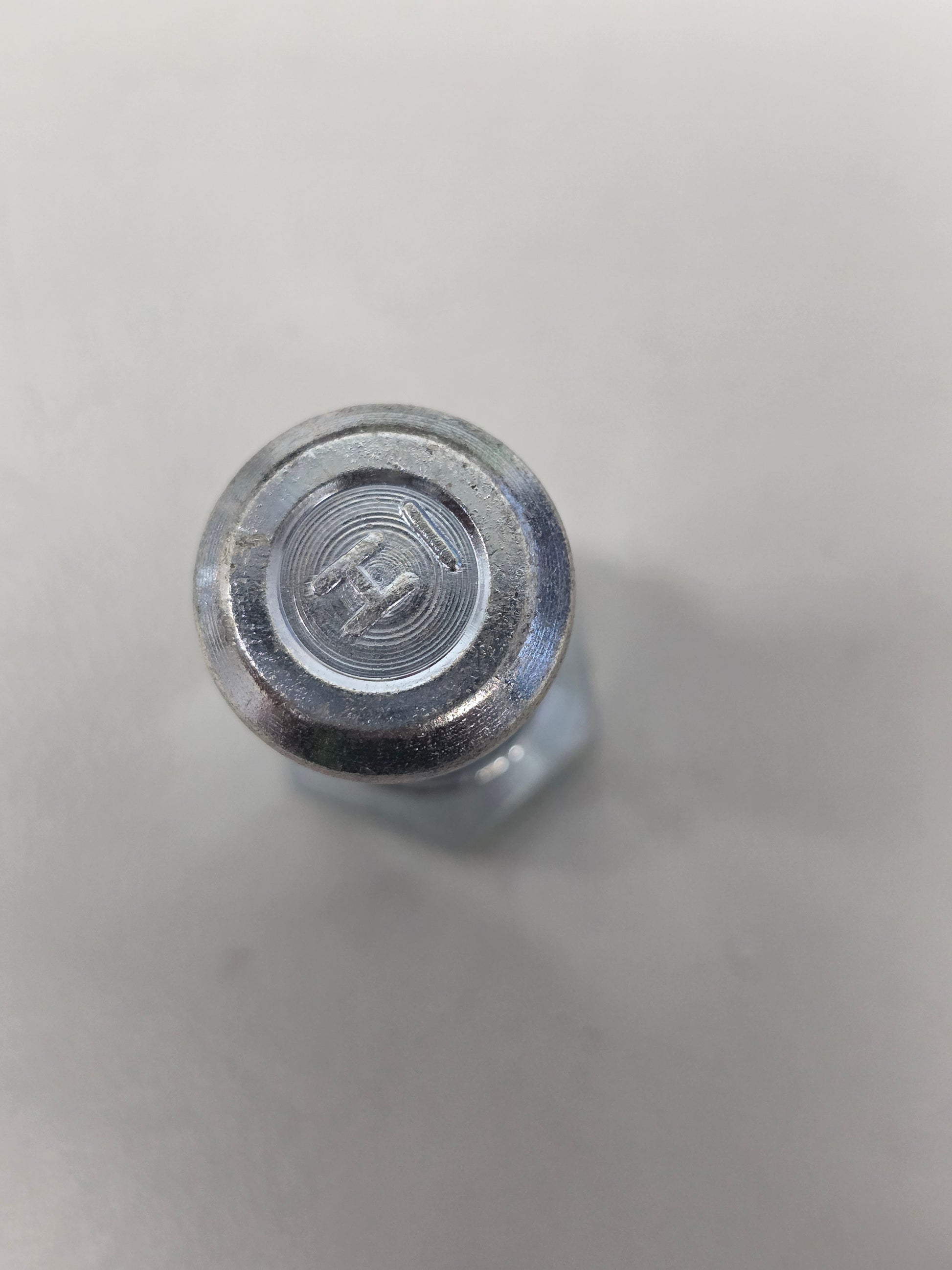

Dunbier Ford Wheel Stud and Nut Set 1/2" UNF – Pack of 5 – Part Number: 1664C

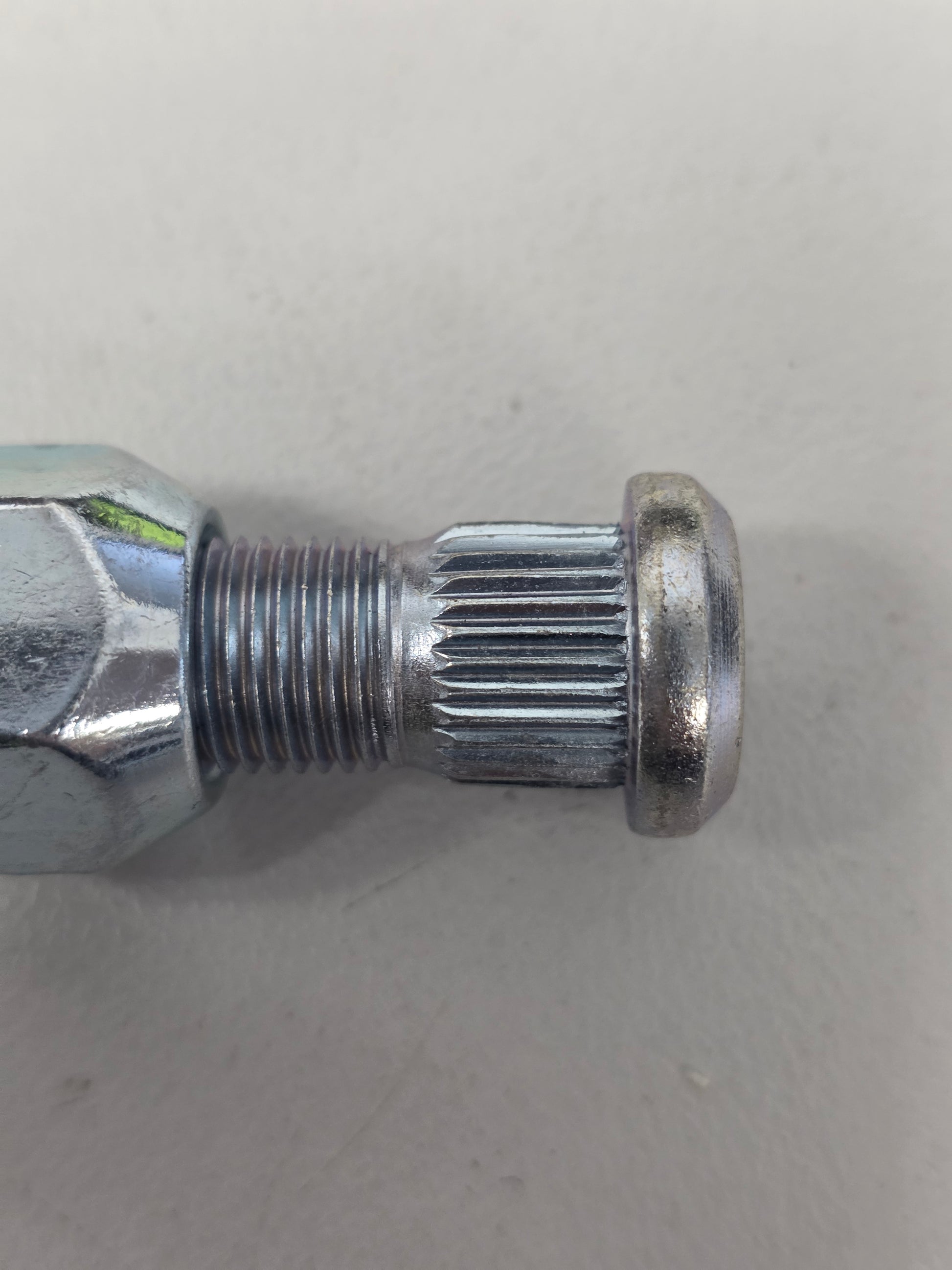

A replacement press-in 1/2" UNF wheel stud for the Ford five-stud trailer hub pattern. The serrated shoulder is pressed into the hub flange so the threaded section can accept the matching tapered wheel nut.
⚙️ Key Features
- Press-in trailer wheel stud
- 1/2" UNF wheel-nut thread
- Matched to Ford five-stud hubs
- Zinc-finished corrosion protection
- Pack quantity: 5 studs and 5 nuts

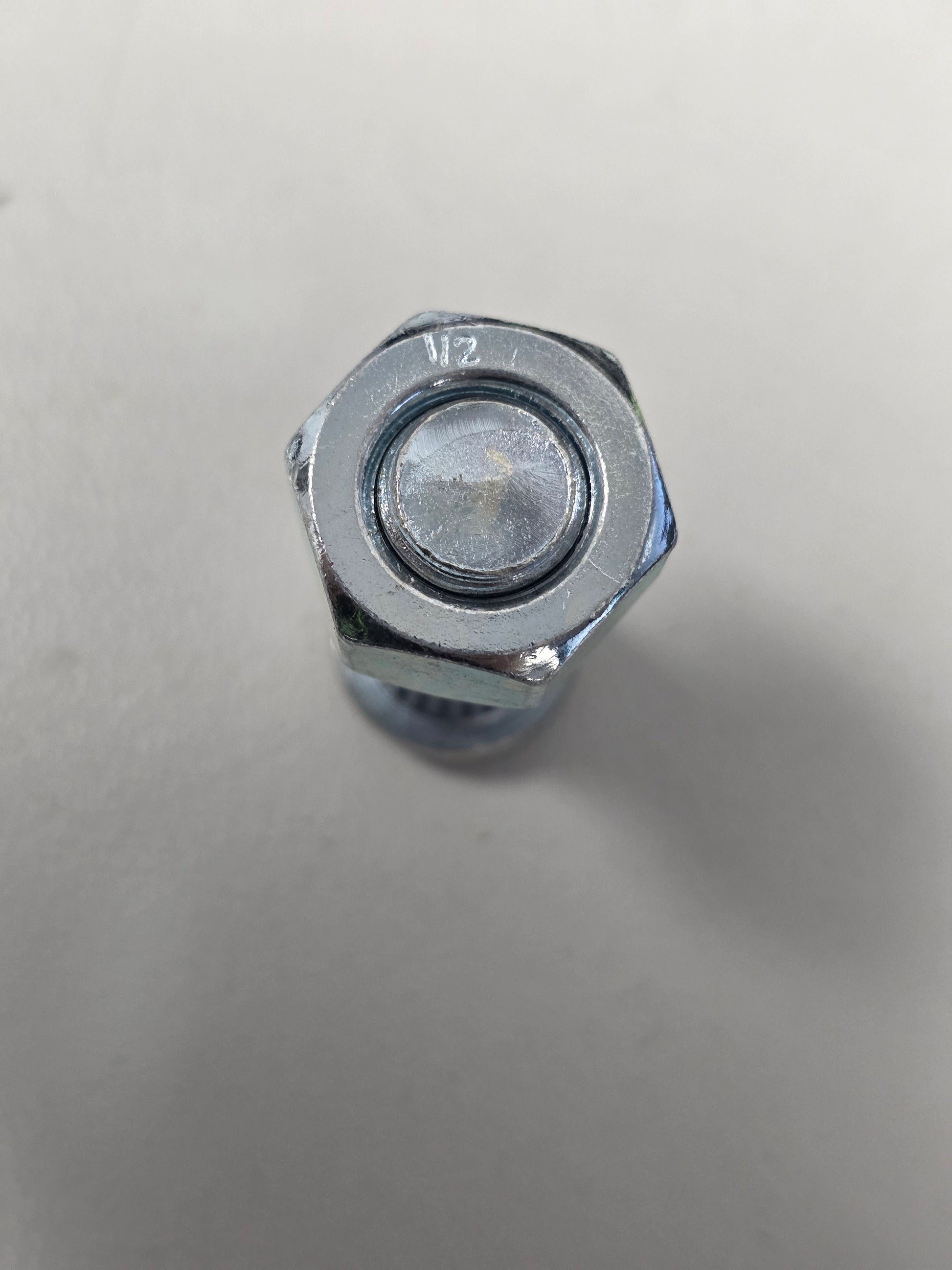

- Matching wheel nuts included
📏 Specifications
- Thread: 1/2" UNF
- Wheel pattern family: Ford five-stud
- Quantity: 5 studs and 5 nuts
- Seat, shank, knurl and length must match the original component
🔄 Cross Reference & Related Parts
- Dunbier: 1664C
- 7/16-inch hardware is associated with Holden HT-pattern hubs
- 1/2-inch hardware is associated with Ford-pattern hubs
- Do not mix metric, 7/16-inch and 1/2-inch wheel hardware
🚤 Trailer Compatibility & Application
- Suitable only for hubs and wheels using the stated thread and seat profile
- Wheel PCD and stud count must also match
- Stud knurl diameter and grip length must be checked when replacing studs
🔌 Function
Provides the fixed threaded attachment between the wheel hub and the wheel nut.
⚠️ Common Signs of Failure
- Threads are stretched, crossed or stripped
- Conical nut seat is galled or cracked
- Stud spins in the hub
- Corrosion has materially reduced the thread
- Wheel repeatedly loosens despite correct torque
🛠️ Installation & Safety
- Use a torque wrench and the hub/wheel manufacturer's specified torque
- Tighten wheel nuts progressively in a star pattern
- Do not lubricate threads unless the torque specification expressly assumes lubrication
- Press studs into the hub squarely; do not pull badly mismatched studs in with a wheel nut
- Recheck torque after the first 50–100km and after wheel removal
📦 Condition
- Brand new Dunbier Marine Products trailer component

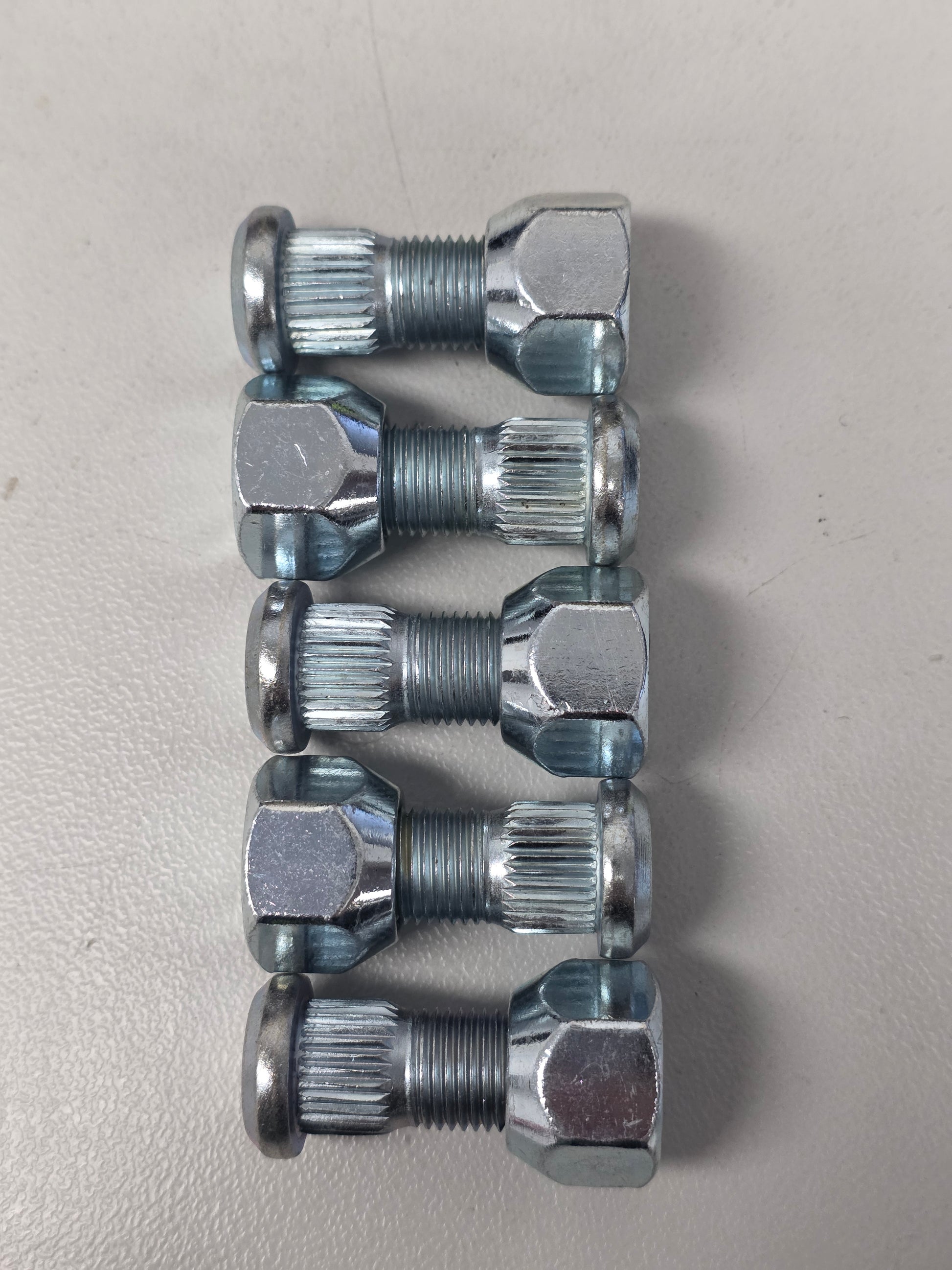

- Supplied as one clamshell pack containing 5 studs and 5 nuts
- Supplied in original or equivalent packaging
