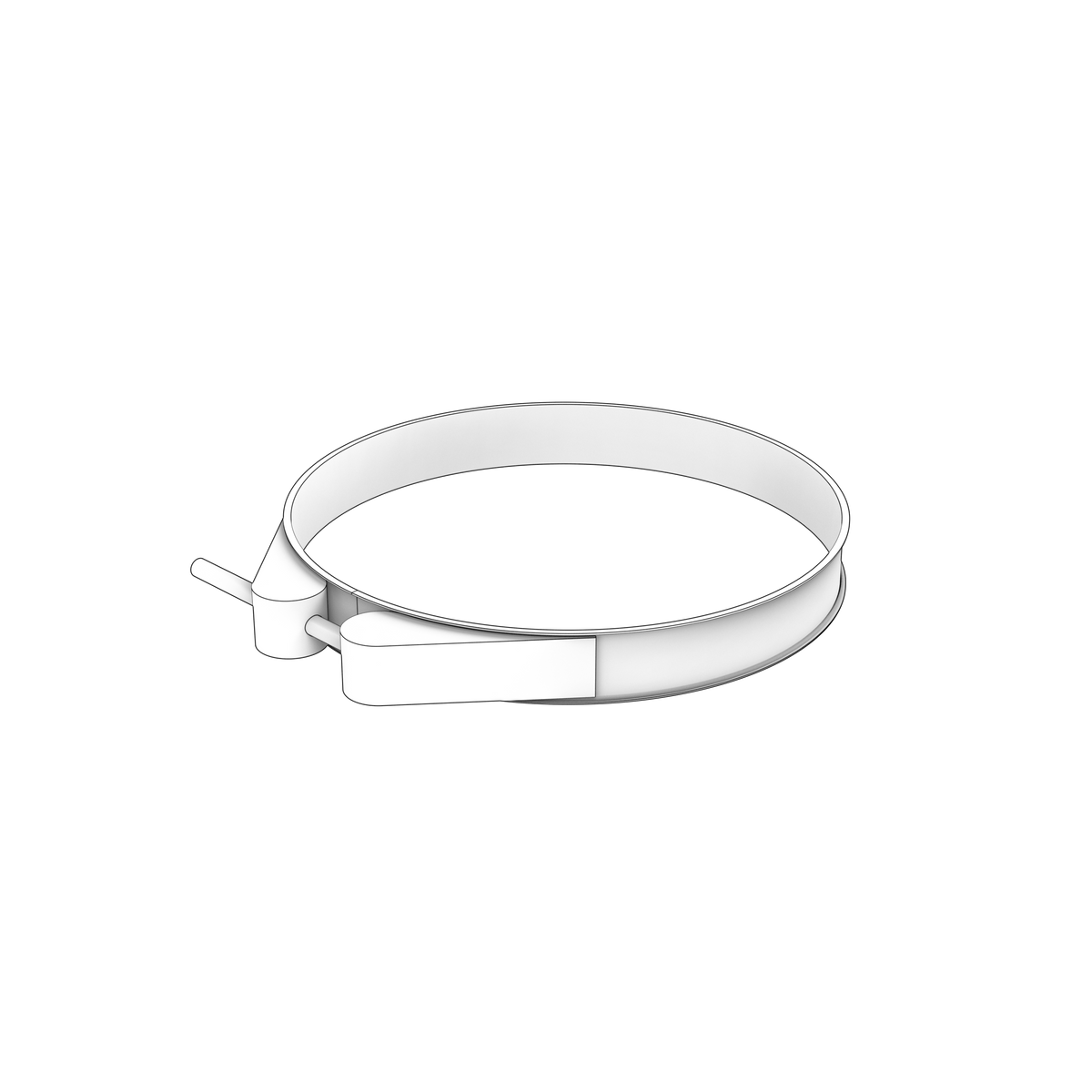

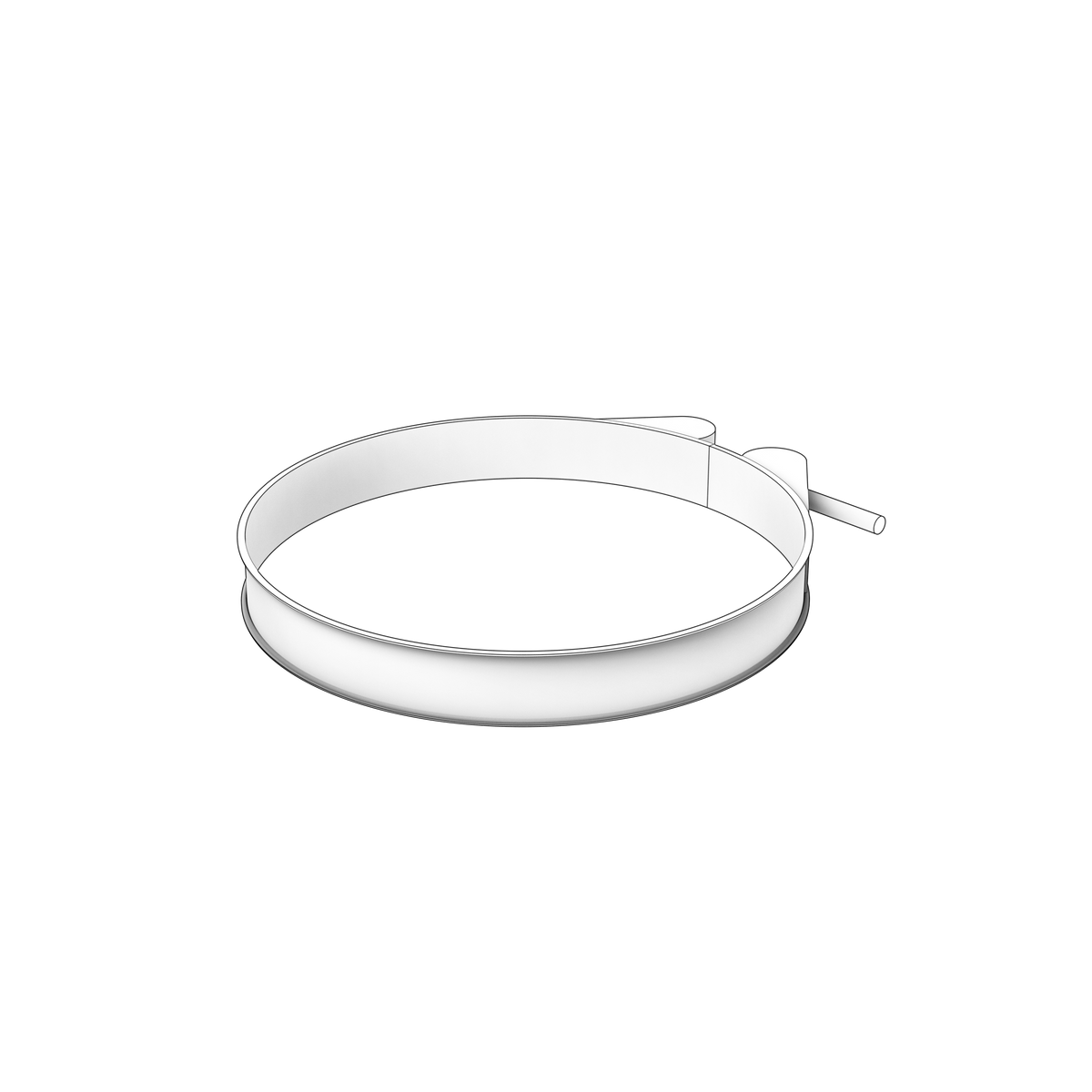

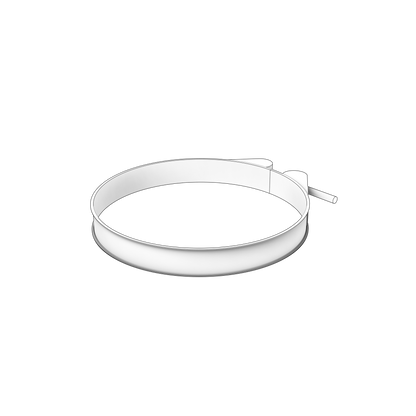

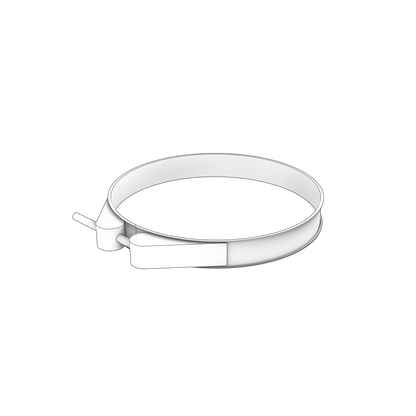

1674223 Hose Clamp | Genuine Volvo Penta Part

1674223 Hose Clamp | Genuine Volvo Penta Part

$14.20 AUD
$14.20 AUD
Sale Sold out
Shipping calculated at checkout.

In stock — Australian warehouse

Typically reaches our store in 3–5 business days

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

This is the late-type hose clamp (part number 1674223) from Volvo Penta's fastening, spacing, locking and support group. It secures hose, rubber collar and connection pipe joints, and is specified as part of the current service solution where earlier one-piece connecting pipes were replaced by a connection pipe, rubber collar and clamp combination. The "late type" designation is what separates it from the earlier clamp it supersedes, so ordering by this number ensures the current production specification.

🚤 Compatibility

  • Engine Family: D, TAD, TD, TWD

Full model list at the end of this description.

⚙️ Key Features

  • OEM Volvo Penta part number 1674223
  • Late-type version of the clamp
  • System group: Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
  • Net weight approximately 0.095 kg
  • Supersedes previous part numbers 1674243, 3838391 and 3838392
  • Used together with connection pipe and rubber collar assemblies in inlet and exhaust joints
  • Fits D13 marine engines and TAD, TWD, TD and TD-series industrial and generator-set engines

🔌 Function

The clamp compresses a hose or rubber collar onto its mating pipe or spigot to form a sealed, mechanically retained joint. It maintains that clamping load under engine vibration, heat cycling and pressure pulsations so the connection does not leak or separate.

⚠️ Common Signs of Failure

  • Rust, pitting or corrosion of the band or screw housing
  • Loss of clamping tension allowing the hose or collar to creep off its spigot
  • Air, boost, coolant or exhaust leakage at the clamped joint
  • Stripped, seized or rounded tightening screw that will not hold torque
  • Distorted, cracked or previously over-tightened band that cuts into the hose

🛠️ Service Notes

  • Match the clamp to the hose outside diameter so the band closes well within its working range rather than at the very end of its travel
  • Position it over the spigot behind the bead or barb, with the screw where a driver or spanner can still reach it once everything is refitted
  • Tighten to seal, not to crush — an over-tightened worm-drive clamp cuts into soft hose and starts the leak you were trying to stop
  • Renew clamps when a hose is changed rather than reusing them, and keep band, housing and screw all marine-grade stainless so the clamp does not corrode against itself
  • Where two clamps are fitted to one connection, stagger the screw heads and recheck both after the first running period

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 1674223 → Supersedes 1674243

OEM / Related Numbers

  • 3838392 earlier number superseded by this part
  • 3838391 earlier number superseded by this part
  • 1674243 earlier number superseded by this part

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

  • Volvo Penta D13C2-B MP, D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-A MP, D13B-H MP, D13B-G MP, D13B-L MP, D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-F MG, D13B-F MG (FE), D13B-K MP, D13B-N MH, D13B-N MH (FE), D13B-B MP, D13B-D MP, D13B-J MP, D13B-M MP, D13B-C MP, D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C5-A MP, D13C2-A MG, D13C1-A MG, D13C7-B MP, D13C9-A MP
  • Volvo Penta TAD1241GE, TAD1241VE, TAD1241-42VE
  • Volvo Penta TAD1341-43GE-B, TAD1341VE, TAD1341GE
  • Volvo Penta TAD1344-45GE-B, TAD1344VE, TAD1344GE
  • Volvo Penta TAD1630G, TAD1630GE, TAD1630P
  • Volvo Penta TAD1641VE-B, TAD1641GE, TAD1641VE
  • Volvo Penta TAD1642VE-B, TAD1642GE, TAD1642VE
  • Volvo Penta TAD1650VE-B/51VE, TAD1650GE, TAD1650VE
  • Volvo Penta TAD1031G, TAD1031GE
  • Volvo Penta TAD1242GE, TAD1242VE
  • Volvo Penta TAD1250VE, TAD1250-52VE
  • Volvo Penta TAD1342VE, TAD1342GE
  • Volvo Penta TAD1343VE, TAD1343GE
  • Volvo Penta TAD1345GE, TAD1345VE
  • Volvo Penta TAD1350GE, TAD1350VE
  • Volvo Penta TAD1351GE, TAD1351-53VE
  • Volvo Penta TAD1631GE, TAD1631G
  • Volvo Penta TAD1640-42GE-B, TAD1640GE
  • Volvo Penta TAD1643VE-B, TAD1643VE
  • Volvo Penta TAD940GE, TAD940VE
  • Volvo Penta TAD941VE, TAD941GE
  • Volvo Penta TWD1230ME, TWD1230VE
  • Volvo Penta TWD1683GE-B, TWD1683VE
  • Volvo Penta TWD740GE, TWD740VE
  • Volvo Penta TAD1032GE
  • Volvo Penta TAD1140-42VE
  • Volvo Penta TAD1150-52VE
  • Volvo Penta TAD1170-72VE
  • Volvo Penta TAD1180-83VE
  • Volvo Penta TAD1240GE
  • Volvo Penta TAD1251VE
  • Volvo Penta TAD1252VE
  • Volvo Penta TAD1340VE
  • Volvo Penta TAD1346GE
  • Volvo Penta TAD1352GE
  • Volvo Penta TAD1353GE
  • Volvo Penta TAD1354GE
  • Volvo Penta TAD1355GE
  • Volvo Penta TAD1360-62VE
  • Volvo Penta TAD1363-65VE
  • Volvo Penta TAD1371-75VE
  • Volvo Penta TAD1380-82GE
  • Volvo Penta TAD1381-85VE
  • Volvo Penta TAD1384-85VE-IWP
  • Volvo Penta TAD1651GE
  • Volvo Penta TAD1660-62VE
  • Volvo Penta TAD1662VE EU5
  • Volvo Penta TAD1670-72VE
  • Volvo Penta TAD740GE
  • Volvo Penta TAD741GE
  • Volvo Penta TAD942VE
  • Volvo Penta TAD943VE
  • Volvo Penta TAD950VE
  • Volvo Penta TAD951VE
  • Volvo Penta TAD952VE
  • Volvo Penta TD100G
  • Volvo Penta TD121G-87
  • Volvo Penta TWD1030ME
  • Volvo Penta TWD1031VE
  • Volvo Penta TWD1240VE
  • Volvo Penta TWD1630V
  • Volvo Penta TWD1643GE
  • Volvo Penta TWD1644-45GE
  • Volvo Penta TWD1652GE
  • Volvo Penta TWD1653GE
  • Volvo Penta TWD1663GE
  • Volvo Penta TWD1672-1673GE
  • Volvo Penta TWD1682-83GE
  • Volvo Penta TWD1744GE
