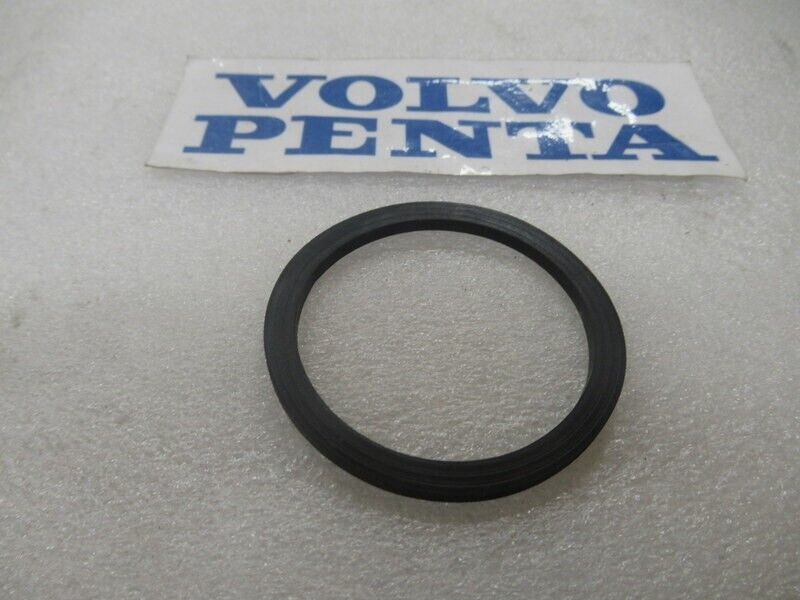

1675841 Gasket | Genuine Volvo Penta Part

🔧 Product Description

This genuine Volvo Penta gasket is a oil-compatible sealing component used in the engine-oil filler cap or lubrication-system cover gasket. It is manufactured to the original Volvo dimensional, material and interface requirements so the serviced assembly retains its designed alignment, sealing, load capacity and operating reliability. In service, it seals the oil-filler or cover joint to prevent oil mist/leakage and dirt entry. Selection must be confirmed by OEM part number 1675841, the exact engine/product model, serial number and the installed assembly configuration.

🚤 Compatibility

• Engine Family: D, TWD, TAD

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 1675841
• System group: Lubricating and Oil System
• Specified for use with component 1675839
• Net weight 0.0068 kg
• Fits D12 series marine engines and TWD1240/TAD1240-1242 series engines

🔌 Function

The gasket forms a compressible seal between two mating surfaces in the engine lubrication circuit, preventing oil leakage and loss of oil pressure. It compensates for minor surface irregularities to maintain a tight joint under operating temperature and pressure.

⚠️ Common Signs of Failure

• Visible oil seepage or wet residue around the joint face
• Dropping oil pressure or unexplained oil consumption
• Hardened, brittle or cracked gasket material on inspection
• Crushed, distorted or torn gasket after removal
• Oil contamination on surrounding components or in the bilge

🛠️ Service Notes

• Fit a new gasket every time the joint is disturbed — a gasket takes a permanent set once it has been torqued and will not seal reliably a second time
• Scrape both faces back to clean bare metal, keeping the blade at a shallow angle so it lifts the old material without gouging the surface, and use a plastic scraper on aluminium castings
• Check the faces for flatness, cracks and corrosion pitting, and make sure no old gasket, carbon or hardened sealant is left in the corners or around the bolt holes
• Fit the gasket dry unless the workshop manual for your engine calls for a sealant, and then only the type it specifies — surplus sealant squeezes out into oil, coolant and fuel passages
• Draw the fasteners down progressively in the sequence and to the torque given in the manual for your engine, and recheck after the first heat cycle where the manual asks for it

🔄 Supersession & Cross Reference

Other-Brand OEM Numbers

• Elring: 372.750

Aftermarket / Verified Equivalents

• SLP: RS-841
• DT Spare Parts: 2.11180
• LEMA: 26253.26

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D12C-A MP, D12D-A MG, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MG, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta TAD1241GE, TAD1241VE, TAD1241-42VE
• Volvo Penta TAD1242GE, TAD1242VE
• Volvo Penta TAD1240GE
• Volvo Penta TWD1240VE
