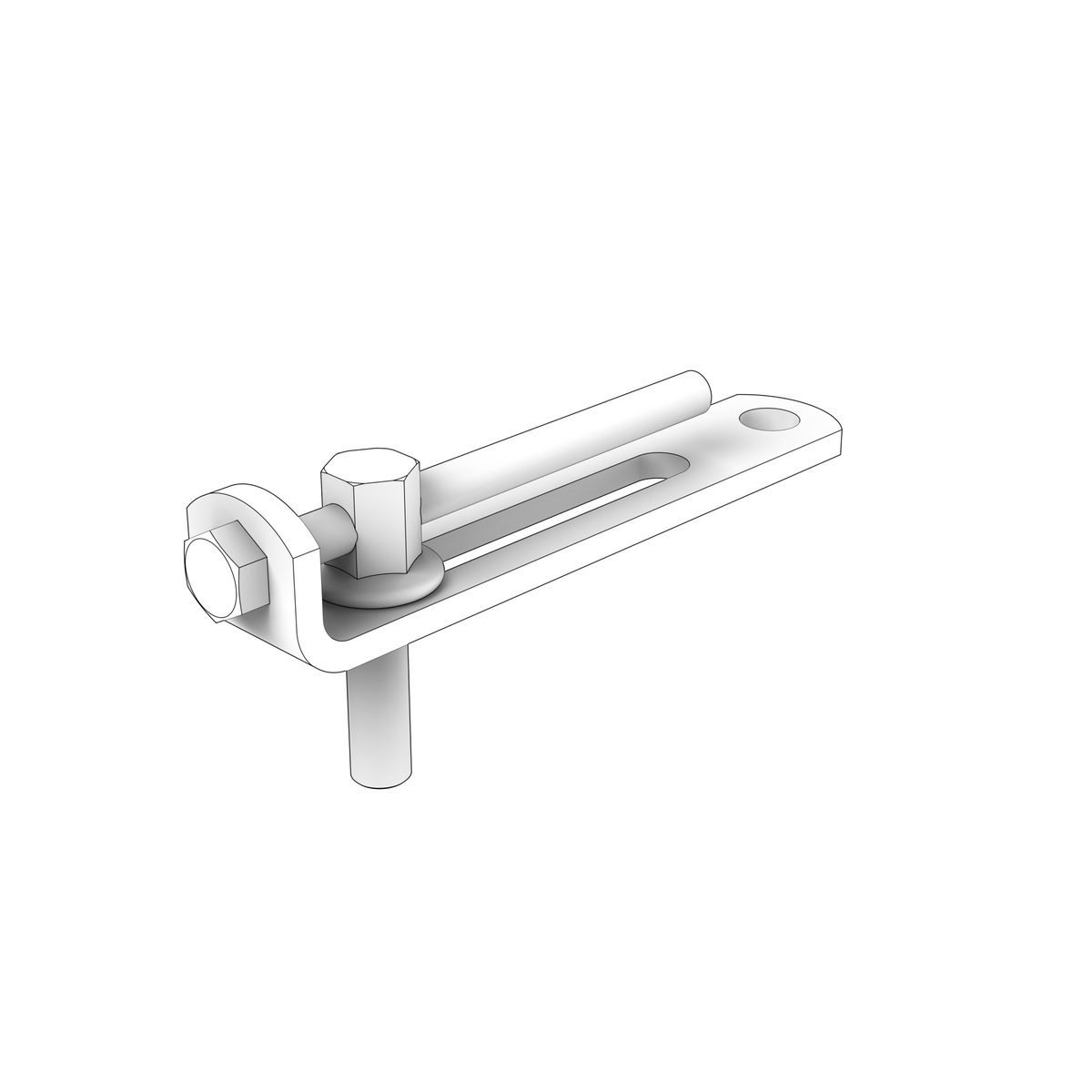

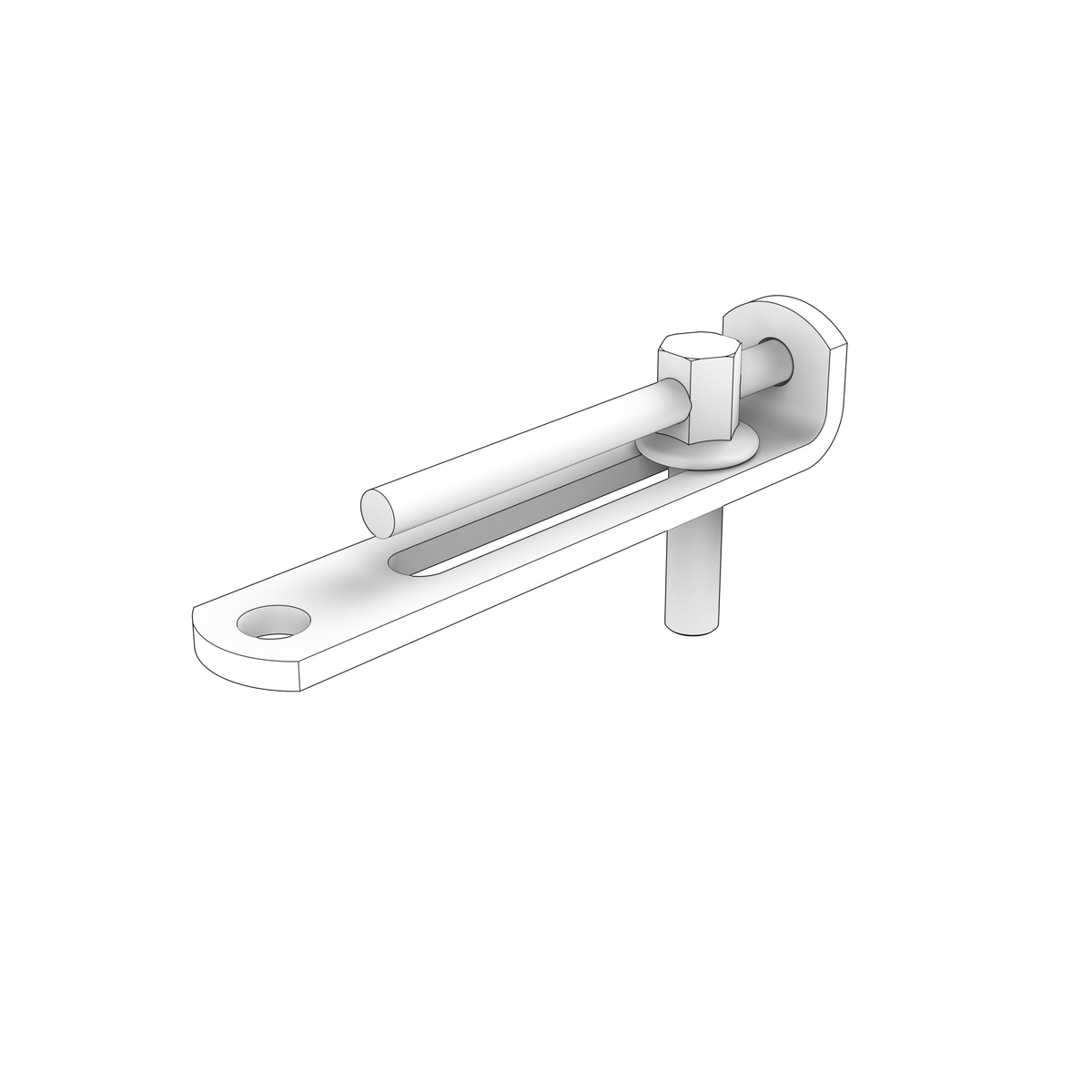

1676586 Tensioner | Genuine Volvo Penta Part

🔧 Product Description

This genuine Volvo Penta tensioner is a spring-loaded accessory-belt tensioner used in the alternator/accessory-belt tensioner. It is manufactured to the original Volvo dimensional, material and interface requirements so the serviced assembly retains its designed alignment, sealing, load capacity and operating reliability. In service, it maintains controlled tension on the alternator or accessory belt as the belt wears and the drive moves. Selection must be confirmed by OEM part number 1676586, the exact engine/product model, serial number and the installed assembly configuration.

🚤 Compatibility

• Engine Family: TD, D, TWD, TAD

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 1676586
• System group: Alternator, Charging, Electric Motor, Electric Drives
• Net weight approximately 0.218 kg
• Supersedes previous part numbers 1545307, 3827321 and 3827729
• Fits D12, TD121, TWD1000/1200 and TAD1000/1200 series marine and industrial diesel engines
• Also supersedes Volvo part number 864443

🔌 Function

The tensioner applies and holds the correct working tension on the alternator drive belt so the belt transmits crankshaft power to the alternator without slipping. Correct tension protects both the belt and the alternator bearings and ensures consistent battery charging output.

⚠️ Common Signs of Failure

• Belt squeal or chirping, particularly on start-up or under high electrical load
• Visible belt slippage with low or fluctuating charging output
• Rattling or knocking noise from the tensioner area caused by worn pivot or spring
• Rapid or uneven belt wear, glazing or edge fraying
• Inability to hold the set tension, requiring frequent re-adjustment

🛠️ Service Notes

• Renew the tensioner and the belt together, and while the belt is off check the other pulleys for wear, roughness in the bearing and any wobble
• Note the belt routing and the tensioner's mounting position and stops before removing the old unit, and check the new one carries the same pulley and offset
• Locate the tensioner properly on its dowel or stop and tighten it to the workshop manual figures — a tensioner not sitting square will run the belt off line and destroy it
• Wind the tensioner back with the correct tool or square drive, fit the belt over the pulleys by hand and release the tensioner onto it; never lever a belt on with a screwdriver and never use the tensioner arm as a pry bar
• Check every rib or tooth is seated in its groove, turn the engine over by hand, then run it up and recheck belt run and tension after the first period of running, following the procedure for your engine

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 1676586 → Supersedes 1545307

OEM / Related Numbers

• 3827321 earlier number superseded by this part
• 3827729 earlier number superseded by this part
• 1545307 earlier number superseded by this part
• 966797 referenced in the part notes

Aftermarket / Verified Equivalents

• SRP: T-76586

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D12C-A MP, D12D-A MG, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MG, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta TAD1241GE, TAD1241VE, TAD1241-42VE
• Volvo Penta TAD1242GE, TAD1242VE
• Volvo Penta TD121G-87, TD121GP
• Volvo Penta TWD1210P, TWD1210V
• Volvo Penta TWD1211V, TWD1211P
• Volvo Penta TWD1230ME, TWD1230VE
• Volvo Penta TAD1030V
• Volvo Penta TAD1230V
• Volvo Penta TAD1240GE
• Volvo Penta TD1030VE
• Volvo Penta TWD1031VE
• Volvo Penta TWD1231VE
• Volvo Penta TWD1240VE
