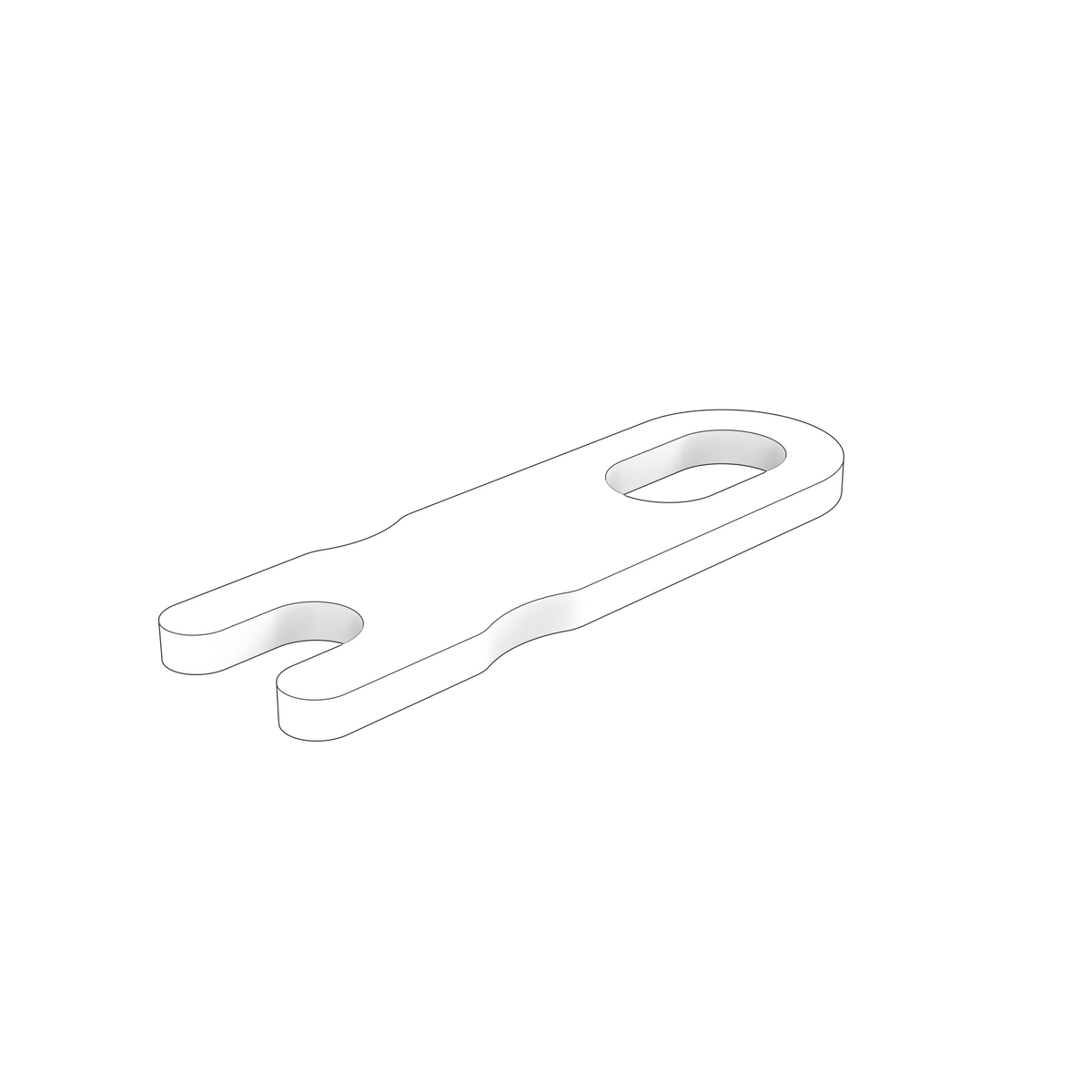

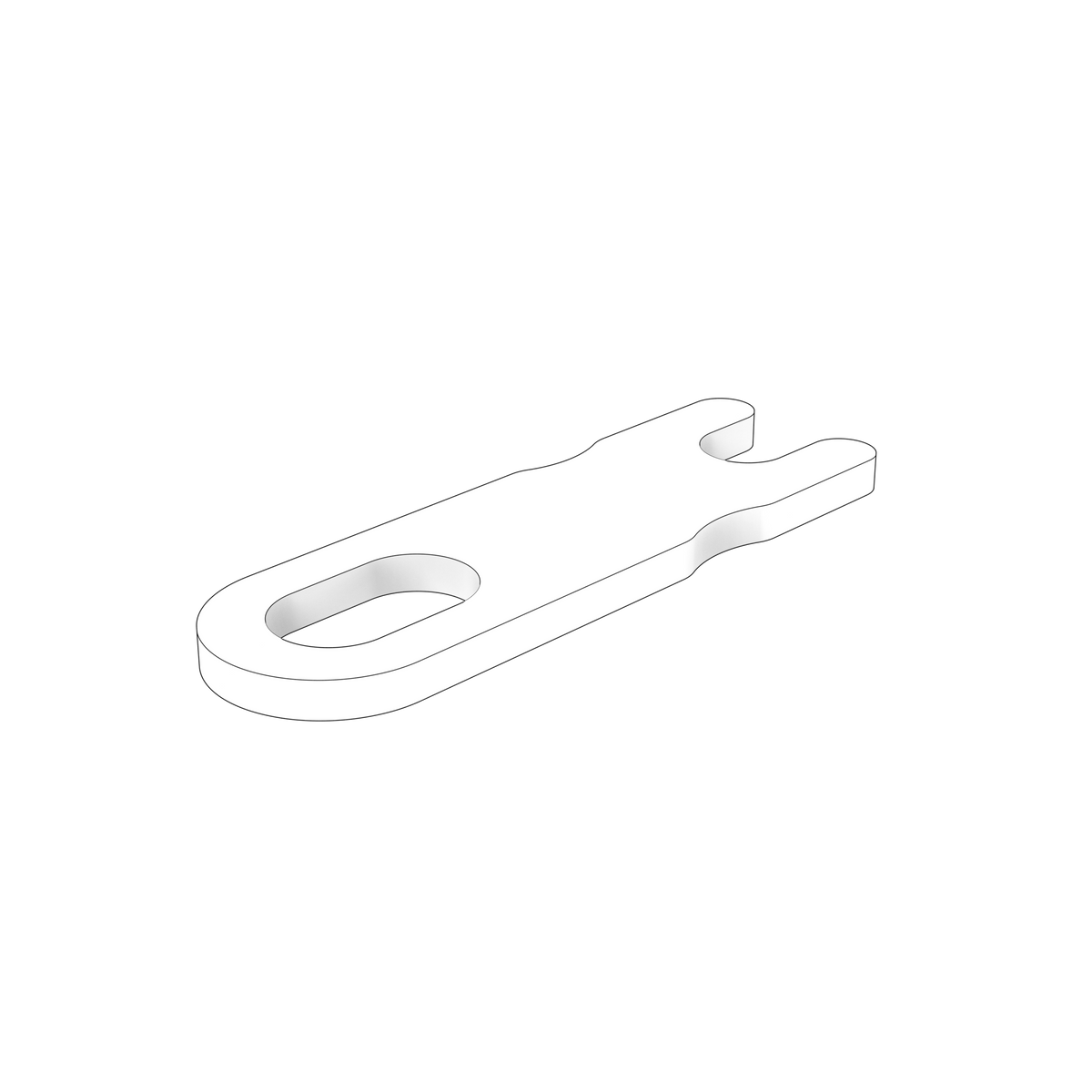

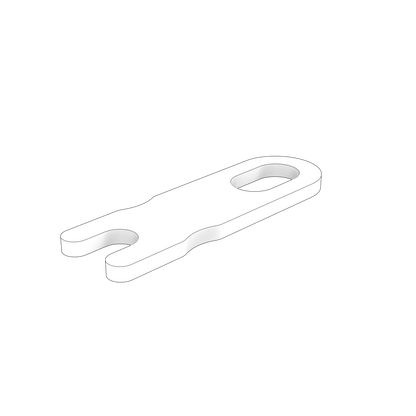

1677356 Shim | Genuine Volvo Penta Part

🔧 Product Description

This genuine Volvo Penta shim is a calibrated valve-clearance shim used in the exhaust-valve clearance adjustment. It is manufactured to the original Volvo dimensional, material and interface requirements so the serviced assembly retains its designed alignment, sealing, load capacity and operating reliability. Calibrated shim thickness: 3.35 mm. In service, it sets exhaust-valve clearance by providing a calibrated 3.35 mm thickness at the designated valve-train position. Selection must be confirmed by OEM part number 1677356, the exact engine/product model, serial number and the installed assembly configuration.

🚤 Compatibility

Typically suits:

• Volvo Penta TAD1353GE
• Volvo Penta TAD1350GE
• Volvo Penta TAD1351GE
• Volvo Penta TAD1352GE
• Volvo Penta TAD1354GE
• Volvo Penta TAD1355GE
• Volvo Penta TAD1170-72VE
• Volvo Penta TAD1140-42VE

• Engine Family: TAD

⚙️ Key Features

• OEM Volvo Penta part number 1677356
• Thickness: 3.35 mm
• System group: Engine
• Net weight: 0.018 kg
• Fits TAD1140-42VE, TAD1170-72VE and TAD1350-1355GE series industrial and generator-set diesel engines
• Thickness-specific item - one of several shims sharing the same fitment and differing only by thickness
• TH=3.35mm (Volvo assembly listing)
• 6 used per assembly

🔌 Function

The shim acts as a precision spacer, taking up and adjusting the clearance or height between two assembled engine components so the assembly falls within its specified tolerance. Correct shim selection keeps the mating parts correctly loaded and positioned in service.

⚠️ Common Signs of Failure

• Measured clearance outside the specified tolerance during service checks
• Visible wear, scoring or polishing on the shim faces
• Deformation, dishing or cracking from repeated loading
• Increased mechanical noise or knocking traced to excessive clearance
• Shim displaced or lost during disassembly, requiring replacement to reset clearance

🛠️ Service Notes

• Shims are supplied in graded thicknesses and exist to bring a setting into specification, so measure with a micrometer and select the thickness the setting procedure for your engine calls for rather than matching one by eye
• Note which shim came from which position on removal and keep them identified — once an assembly has bedded in, shims are not interchangeable between positions
• Check both faces are clean, flat and free of burrs, corrosion and old sealant before fitting; dirt trapped under a shim shifts the setting as surely as the wrong thickness does
• Discard any shim that is dished, cracked, pitted or fretted rather than reusing it, and make sure no old shim has been left behind in the recess
• Recheck the clearance or setting after the assembly is tightened down, because clamping load can change the measurement you took loose

🔄 Supersession & Cross Reference

Aftermarket / Verified Equivalents

• Vaden Original: 1300 05 028

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
