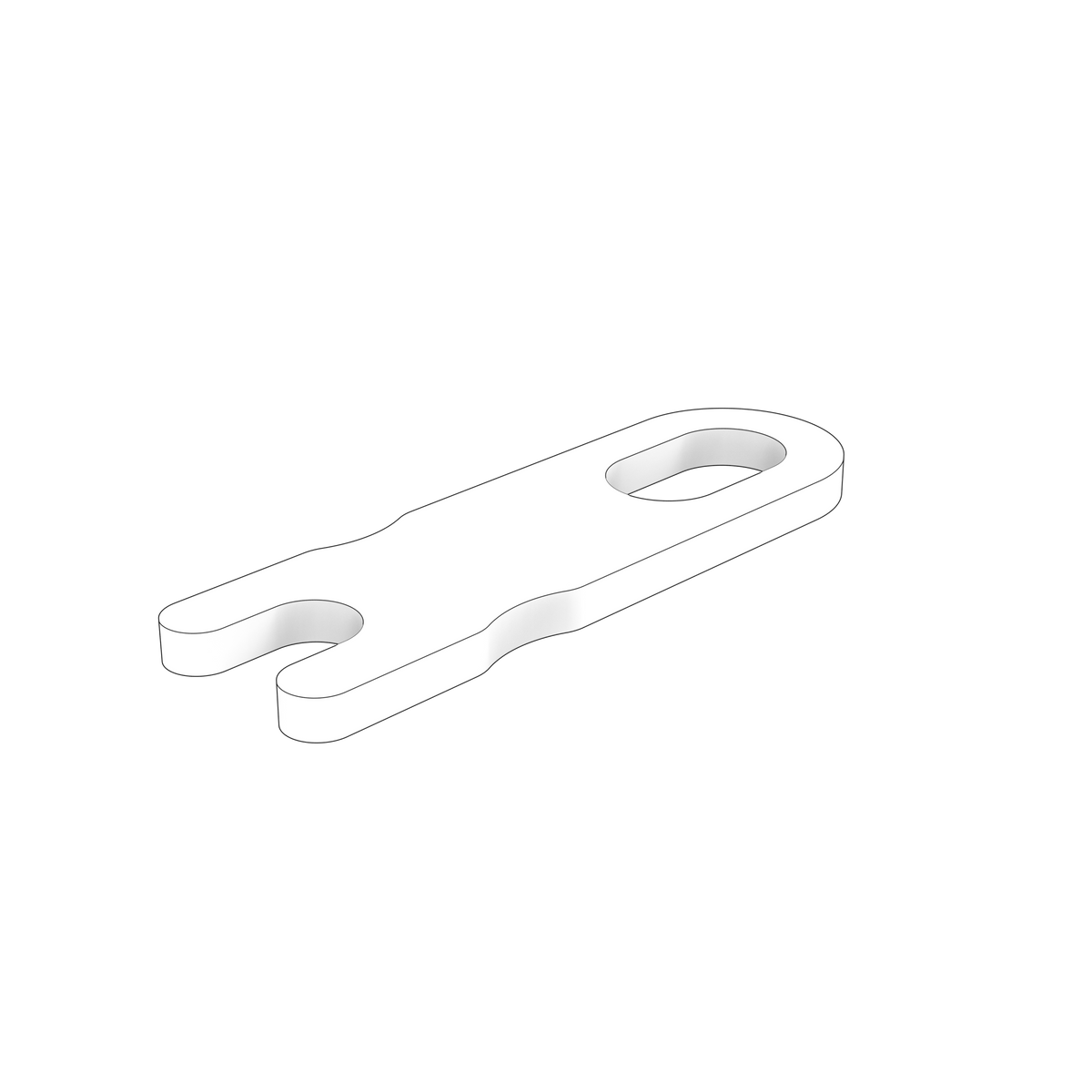

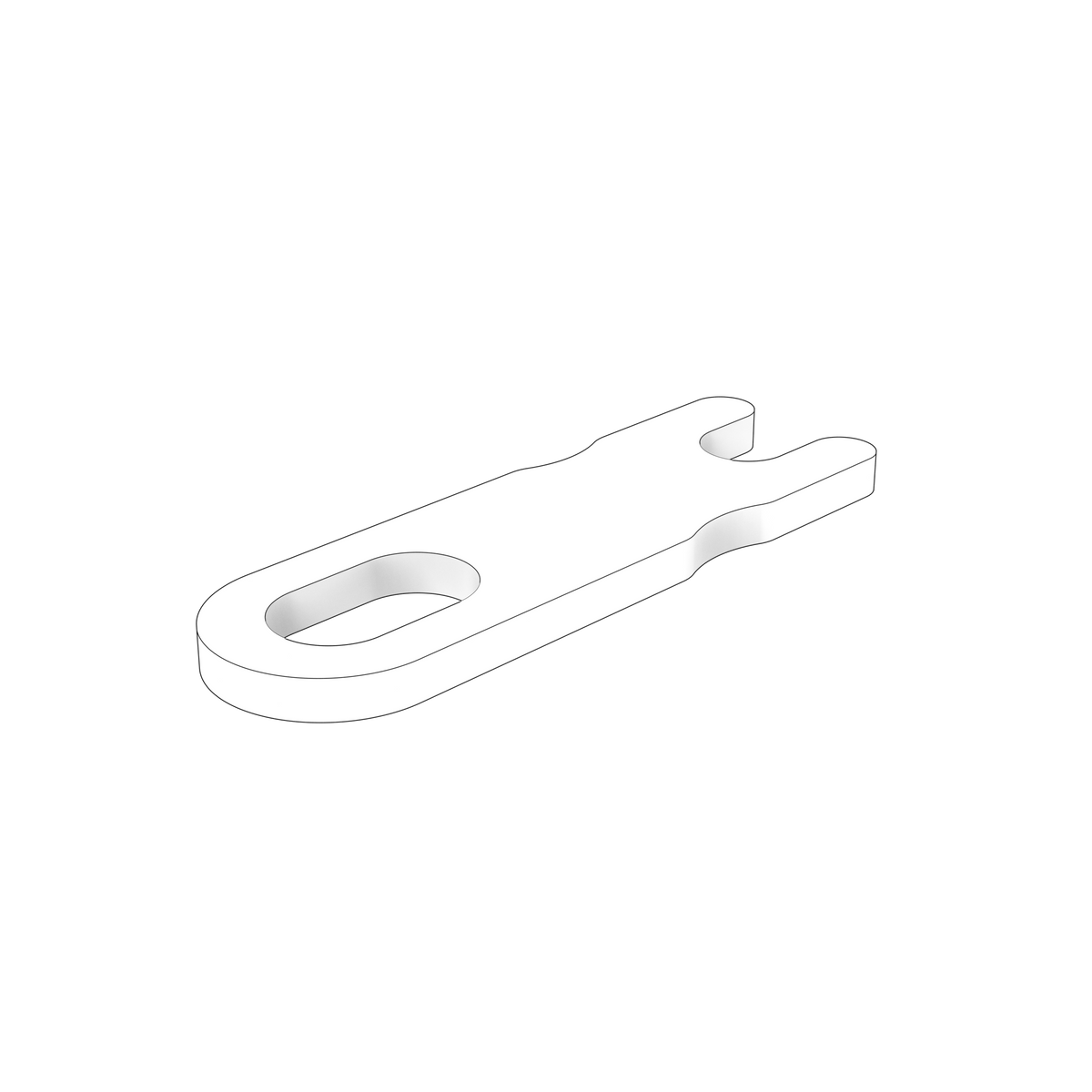

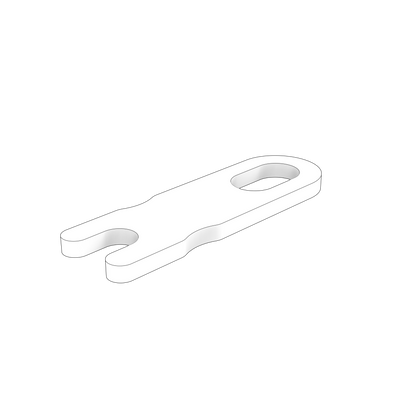

1677362 Shim | Genuine Volvo Penta Part

🔧 Product Description

This genuine Volvo Penta shim is a calibrated valve-clearance shim used in the exhaust-valve clearance adjustment. It is manufactured to the original Volvo dimensional, material and interface requirements so the serviced assembly retains its designed alignment, sealing, load capacity and operating reliability. Calibrated shim thickness: 3.65 mm. In service, it sets exhaust-valve clearance by providing a calibrated 3.65 mm thickness at the designated valve-train position. Selection must be confirmed by OEM part number 1677362, the exact engine/product model, serial number and the installed assembly configuration.

🚤 Compatibility

Typically suits:

• Volvo Penta TAD1353GE
• Volvo Penta TAD1350GE
• Volvo Penta TAD1351GE
• Volvo Penta TAD1352GE
• Volvo Penta TAD1354GE
• Volvo Penta TAD1355GE
• Volvo Penta TAD1170-72VE
• Volvo Penta TAD1140-42VE

• Engine Family: TAD

⚙️ Key Features

• OEM Volvo Penta part number 1677362
• Thickness: 3.65 mm
• Net weight: 0.027 kg
• System group: Engine
• Fits TAD-series generator-set and industrial diesel engines
• TH=3.65mm (Volvo assembly listing)
• 6 used per assembly

🔌 Function

A shim is a precision-thickness spacer fitted between two mating components to set a required clearance, preload or endfloat. Selecting the correct thickness brings the assembly within its specified tolerance without machining either part.

⚠️ Common Signs of Failure

• Measured clearance or endfloat outside the specified tolerance at assembly
• Visible wear, scoring or polishing on the shim faces
• Distortion, dishing or cracking from over-tightening or shock loading
• Corrosion or pitting reducing effective thickness
• Repeat failure of the adjacent component due to an incorrect clearance being set

🛠️ Service Notes

• Shims are supplied in graded thicknesses and exist to bring a setting into specification, so measure with a micrometer and select the thickness the setting procedure for your engine calls for rather than matching one by eye
• Note which shim came from which position on removal and keep them identified — once an assembly has bedded in, shims are not interchangeable between positions
• Check both faces are clean, flat and free of burrs, corrosion and old sealant before fitting; dirt trapped under a shim shifts the setting as surely as the wrong thickness does
• Discard any shim that is dished, cracked, pitted or fretted rather than reusing it, and make sure no old shim has been left behind in the recess
• Recheck the clearance or setting after the assembly is tightened down, because clamping load can change the measurement you took loose

🔄 Supersession & Cross Reference

Aftermarket / Verified Equivalents

• Vaden Original: 1300 05 034

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
