1677591 Shim | Genuine Volvo Penta Part

🔧 Product Description

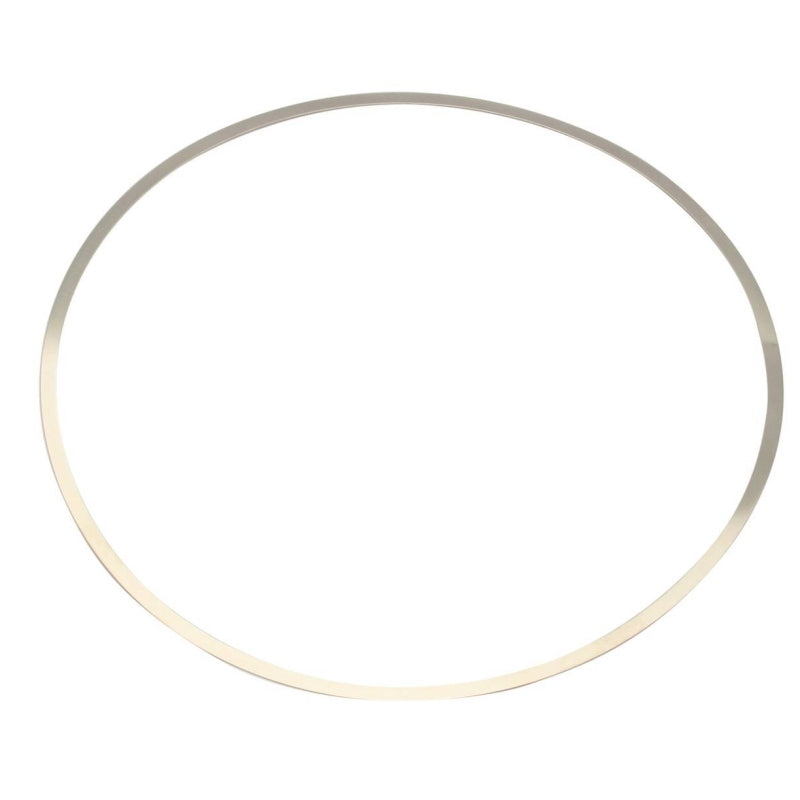

This genuine Volvo Penta shim is a calibrated cylinder-liner adjustment shim used in the cylinder-liner protrusion adjustment. It is manufactured to the original Volvo dimensional, material and interface requirements so the serviced assembly retains its designed alignment, sealing, load capacity and operating reliability. Calibrated adjustment thickness: 0.20 mm. In service, it adjusts cylinder-liner installed height/protrusion by 0.20 mm to support correct fire-ring and head-gasket loading. Selection must be confirmed by OEM part number 1677591, the exact engine/product model, serial number and the installed assembly configuration.

🚤 Compatibility

• Engine Family: TAD, D, TWD

Full model list at the end of this description.

⚙️ Key Features

• OEM part number 1677591
• Calibrated adjustment thickness: 0.20 mm
• Measure each liner at the specified points with the correct clamping method; never select by appearance alone
• Production/serial control: Used across documented production sections including serial 1012631189-1012645018 and from serial 1012645019; select by measured liner protrusion and the exact block configuration
• TH=0.20mm / TH=0.2mm (Volvo assembly listing)
• Quantity varies by assembly, most commonly one

🔌 Function

A shim is a precision-thickness spacer fitted between two mating components to set a required clearance, preload or endfloat. Selecting the correct thickness brings the assembly within its specified tolerance without machining either part.

⚠️ Common Signs of Failure

• Measured clearance or endfloat outside the specified tolerance at assembly
• Visible wear, scoring or polishing on the shim faces
• Distortion or dishing from over-tightening or shock loading
• Corrosion or pitting reducing effective thickness
• Repeat failure of the adjacent component due to an incorrect clearance being set

🛠️ Service Notes

• Shims are supplied in graded thicknesses and exist to bring a setting into specification, so measure with a micrometer and select the thickness the setting procedure for your engine calls for rather than matching one by eye
• Note which shim came from which position on removal and keep them identified — once an assembly has bedded in, shims are not interchangeable between positions
• Check both faces are clean, flat and free of burrs, corrosion and old sealant before fitting; dirt trapped under a shim shifts the setting as surely as the wrong thickness does
• Discard any shim that is dished, cracked, pitted or fretted rather than reusing it, and make sure no old shim has been left behind in the recess
• Recheck the clearance or setting after the assembly is tightened down, because clamping load can change the measurement you took loose

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-A MP, D13B-H MP, D13B-G MP, D13B-L MP, D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-F MG, D13B-F MG (FE), D13B-K MP, D13B-N MH, D13B-N MH (FE), D13B-B MP, D13B-D MP, D13B-J MP, D13B-M MP, D13B-C MP, D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C5-A MP, D13C2-A MG, D13C1-A MG
• Volvo Penta D12C-A MP, D12D-A MG, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MG, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta TAD1241GE, TAD1241VE, TAD1241-42VE
• Volvo Penta TAD1341-43GE-B, TAD1341VE, TAD1341GE
• Volvo Penta TAD1344-45GE-B, TAD1344VE, TAD1344GE
• Volvo Penta TAD1242GE, TAD1242VE
• Volvo Penta TAD1250VE, TAD1250-52VE
• Volvo Penta TAD1342VE, TAD1342GE
• Volvo Penta TAD1343VE, TAD1343GE
• Volvo Penta TAD1345GE, TAD1345VE
• Volvo Penta TAD1350GE, TAD1350VE
• Volvo Penta TAD1351GE, TAD1351-53VE
• Volvo Penta TAD1240GE
• Volvo Penta TAD1251VE
• Volvo Penta TAD1252VE
• Volvo Penta TAD1340VE
• Volvo Penta TAD1352GE
• Volvo Penta TAD1353GE
• Volvo Penta TAD1354GE
• Volvo Penta TAD1355GE
• Volvo Penta TAD1360-62VE
• Volvo Penta TAD1363-65VE
• Volvo Penta TAD1371-75VE
• Volvo Penta TAD1380-82GE
• Volvo Penta TAD1381-85VE
• Volvo Penta TAD1384-85VE-IWP
• Volvo Penta TWD1240VE
