16911-ZY3-010 Honda Marine Fuel Filter | Genuine OEM Outboard Part

🔧 Product Description

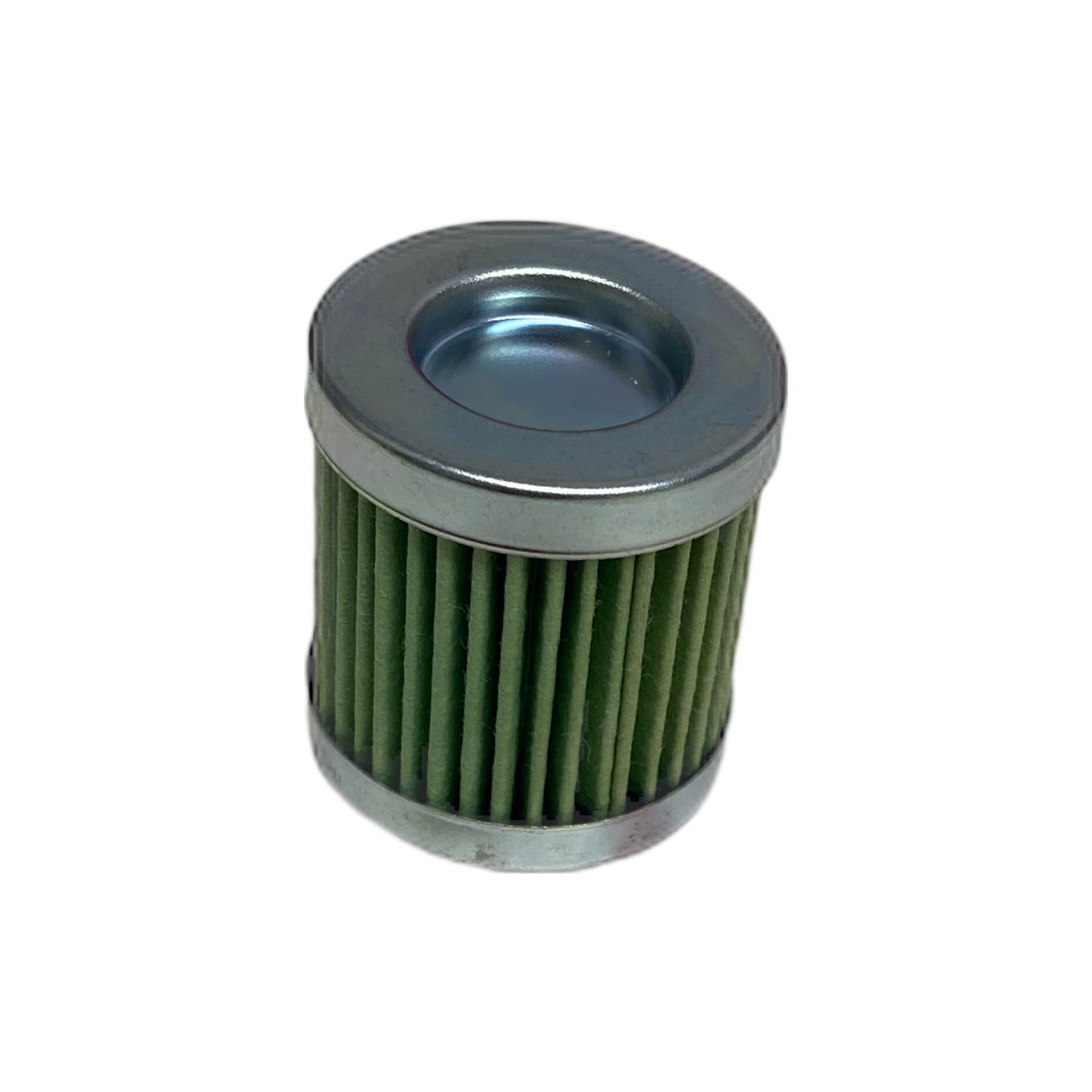

Genuine Honda High-Pressure Fuel Filter Screen - Part Number: 16911-ZY3-010

New genuine Honda high-pressure fuel-filter screen fitted inside the vapour separator on large EFI outboards. It protects the high-pressure pump, fuel rail and injectors from fine contamination.

⚙️ Key Features

• Genuine Honda high-pressure filter screen
• Installs inside the vapour-separator assembly
• Protects high-pressure pump and injectors
• Fine filtration for EFI fuel systems
• Use with new sealing O-ring 16078-ZY3-000 where specified

🚤 Compatibility

Commonly used on

• Honda Marine four-stroke outboard engines

Typically suits

• Engine models:
• BF90D on specified fuel-system diagrams
• BF115A/BF115D and BF130A
• BF135A/BF135D and BF150A/BF150D
• BF175A/BF175D, BF200A/BF200D, BF225A/BF225D and BF250A/BF250D
• HP Range: 90HP - 250HP
• Engine Type: Honda EFI four-stroke outboard
• Year Range: Vapour-separator and frame-serial dependent

🔌 Function

The filter removes abrasive particles, rust, gum and other contamination from the fluid stream before it reaches sensitive engine components. Correct filtration protects bearings, oil galleries, injectors, fuel pumps, carburettor passages and precision control valves from restriction and wear.

⚠️ Common Signs of Failure

• Fuel-rail pressure is low
• Engine will not reach full power or enters protection mode
• Injectors or high-pressure pump are contaminated
• Filter screen is dark or restricted
• Vapour separator is opened for service

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 16911-ZY3-010 → Supersedes 16911-ZY3-000

OEM / Related Numbers

• 16911-ZY3-000
• 16911-ZY3-010
• 16078-ZY3-000 associated O-ring

Aftermarket / Verified Equivalents

• Sierra: 18-79908
• Aftermarket Honda 90HP-250HP high-pressure filter screens

📦 Condition

• Genuine Honda part
• Brand new
• Supplied in original or equivalent packaging
