• 1696924 Pinion | Genuine Volvo Penta Part
1 1

1696924 Pinion | Genuine Volvo Penta Part

1696924 Pinion | Genuine Volvo Penta Part

$159.65 AUD
$159.65 AUD
Sale Sold out
Shipping calculated at checkout.

In stock — Australian warehouse

Typically reaches our store in 3–5 business days

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

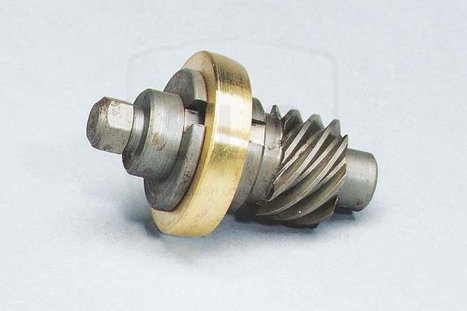

This genuine Volvo Penta pinion is a left-hand Z-cam adjuster drive pinion used in the left-hand Z-cam brake-adjuster drive pinion. It is manufactured to the original Volvo dimensional, material and interface requirements so the serviced assembly retains its designed alignment, sealing, load capacity and operating reliability. In service, it transfers adjustment input through the left-hand Z-cam brake adjuster to maintain brake-shoe running clearance. Selection must be confirmed by OEM part number 1696924, the exact engine/product model, serial number and the installed assembly configuration.

⚙️ Key Features

  • Genuine Volvo Penta OEM pinion
  • OEM part number 1696924
  • Confirm left-hand orientation and tooth condition, lubricate correctly and verify the complete adjuster moves freely
  • Also supersedes Volvo part number 272837

🔌 Function

Transfers adjustment input through the left-hand Z-cam brake adjuster to maintain brake-shoe running clearance. Confirm left-hand orientation and tooth condition, lubricate correctly and verify the complete adjuster moves freely.

⚠️ Common Signs of Failure

  • Brake adjuster will not take up shoe clearance
  • Pinion teeth chipped, rounded or heavily worn
  • Adjuster binds or skips during operation
  • Uneven braking and excessive brake travel
  • Corrosion or contamination inside the Z-cam adjuster

🛠️ Service Notes

  • This is the left-hand pinion for the Z-cam brake adjuster; the right-hand pinion in this range is 1696925 — confirm orientation before fitting so the adjuster does not bind
  • Inspect the mating Z-cam and reverse lock at the same time; wear on this pinion usually points to wear elsewhere in the adjuster

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 1696924 → Supersedes 272906

OEM / Related Numbers

  • Right-hand pinion 1696925
  • Thrust pin 1696446
  • Cover plate 1696449
  • Cross shaft 272910
  • 68191510 related reference
  • Ulupar 20081008

Other-Brand OEM Numbers

  • Renault 5001868125

Aftermarket / Verified Equivalents

  • Ulupar: 20081008
  • OURI: OVGP-001

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging
