173944 Aftermarket Bombardier Power Trim Unit for Small Outboard Engines | Sawley's Select Marine Parts

🔧 Product Description

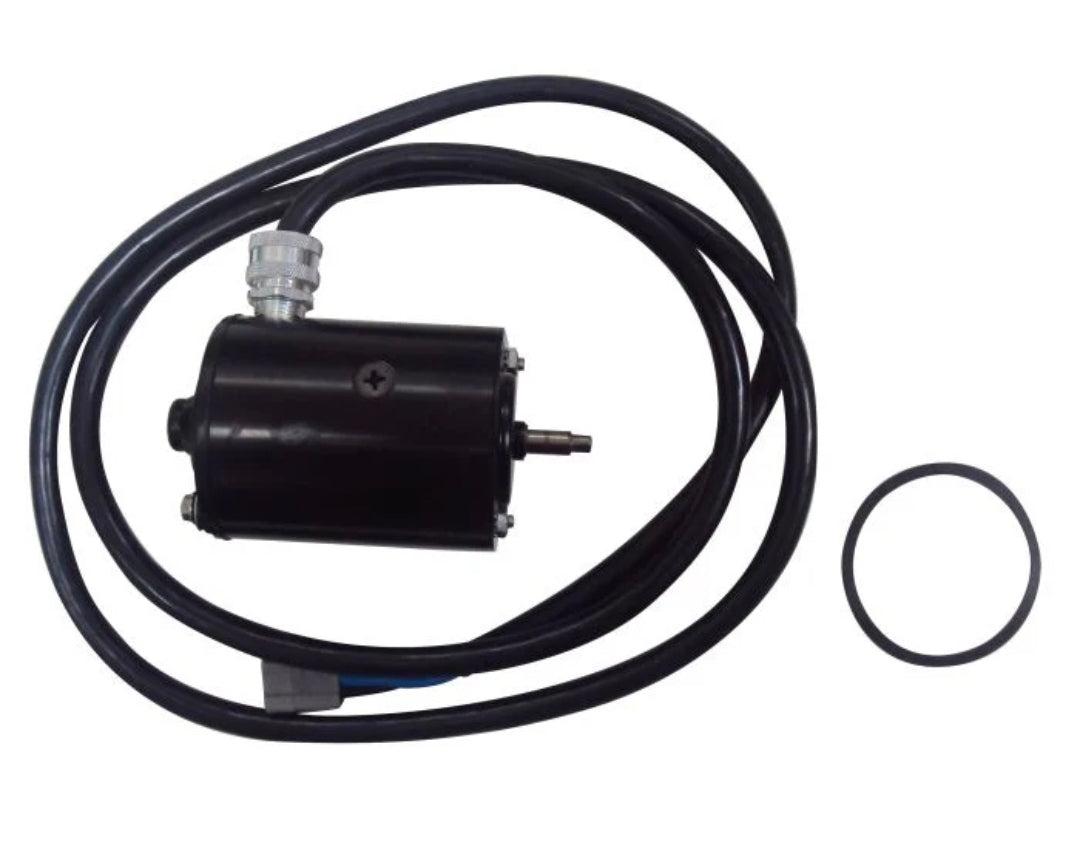

Aftermarket replacement Three-Wire Tilt Motor - Replaces Part Number: 173944

New aftermarket 12-volt three-wire tilt motor replacing OMC 173944/0173944 and 172588. It mounts horizontally on the external single-ram retrofit tilt system using pump assembly 173946.

⚙️ Key Features

• Three-wire reversible OMC tilt motor

• Two-bolt horizontal mounting

• Approximately 71mm motor diameter and 135mm overall length

• Tanged drive shaft for pump assembly 173946

• Includes long wiring harness and mounting gasket on specified aftermarket versions

🧰 Kit / Assembly Contents

• 1 × Complete tilt motor - P/N 173944

• 1 × Approximately 3.5-foot wiring harness - supplied on PH200-T049/API PT102NM-style replacements

• 1 × Motor mounting gasket - supplied on specified replacement packages

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 173944 / 0173944 ↔ Supersedes/cross-references 172588 / 0172588

• Used with OMC pump assembly 173946

OEM / Related Numbers:

• 172588

• 173946

• Prestolite EFT4003

• ESI4001

• ESZ4015

• ESZ4017

• ARCO 6228

Aftermarket / Verified Equivalents:

• ARCO: 6228

• API: PT102NM

• Sierra: 18-6756

• Protorque/DB Electrical: PH200-T049 / 430-20010

• Recmar: REC173944

🚤 Compatibility

Commonly used on:

• Johnson/Evinrude external single-ram tilt systems

Typically suits:

• Engine / Drive models:

• 20HP, 25HP, 30HP and 35HP retrofit tilt-kit applications

• 40HP, 50HP, 55HP, 60HP and 65HP applications using pump 173946

• 70HP and 75HP small-outboard tilt applications using the listed motor

• HP / Drive Range: 20HP - 75HP

• System Type: Outboard external single-ram power-tilt system

• Year Range: Approximately 1981 - 1999; retrofit-kit and model dependent

• Serial / Component Identification: Confirm three wires, two-bolt horizontal mount and pump assembly 173946.

🔌 Function

The reversible 12-volt trim/tilt motor drives the hydraulic pump in both directions. The pump then raises or lowers the outboard or sterndrive while hydraulic valves hold the selected position.

Common signs of failure / service requirement:

• Trim or tilt does not operate in either direction

• Motor clicks, turns slowly or draws excessive current

• Intermittent operation caused by worn brushes or corroded wiring

• Hydraulic pump works only when the motor is struck or cooled

• Water intrusion, corrosion or a burnt electrical smell

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
