17400-92J00 Suzuki Marine Water Pump Repair Kit | Genuine OEM Outboard Part

🔧 Product Description

Genuine Suzuki Marine Water-Pump Repair Kit - Part Number: 17400-92J00

Genuine Suzuki water-pump overhaul kit for first-generation DF90, DF100, DF115 and DF140 four-stroke outboards. It renews the principal impeller, wear surfaces and sealing components required to restore raw-water pump performance.

⚙️ Key Features

• Genuine Suzuki complete water-pump service kit
• Renews the impeller, wear cup, plate, gasket and pump-case seals
• Designed for the original DF90-DF140 water-pump configuration
• Suitable for scheduled maintenance and cooling-system repairs
• Key should be inspected and replaced if worn or corroded

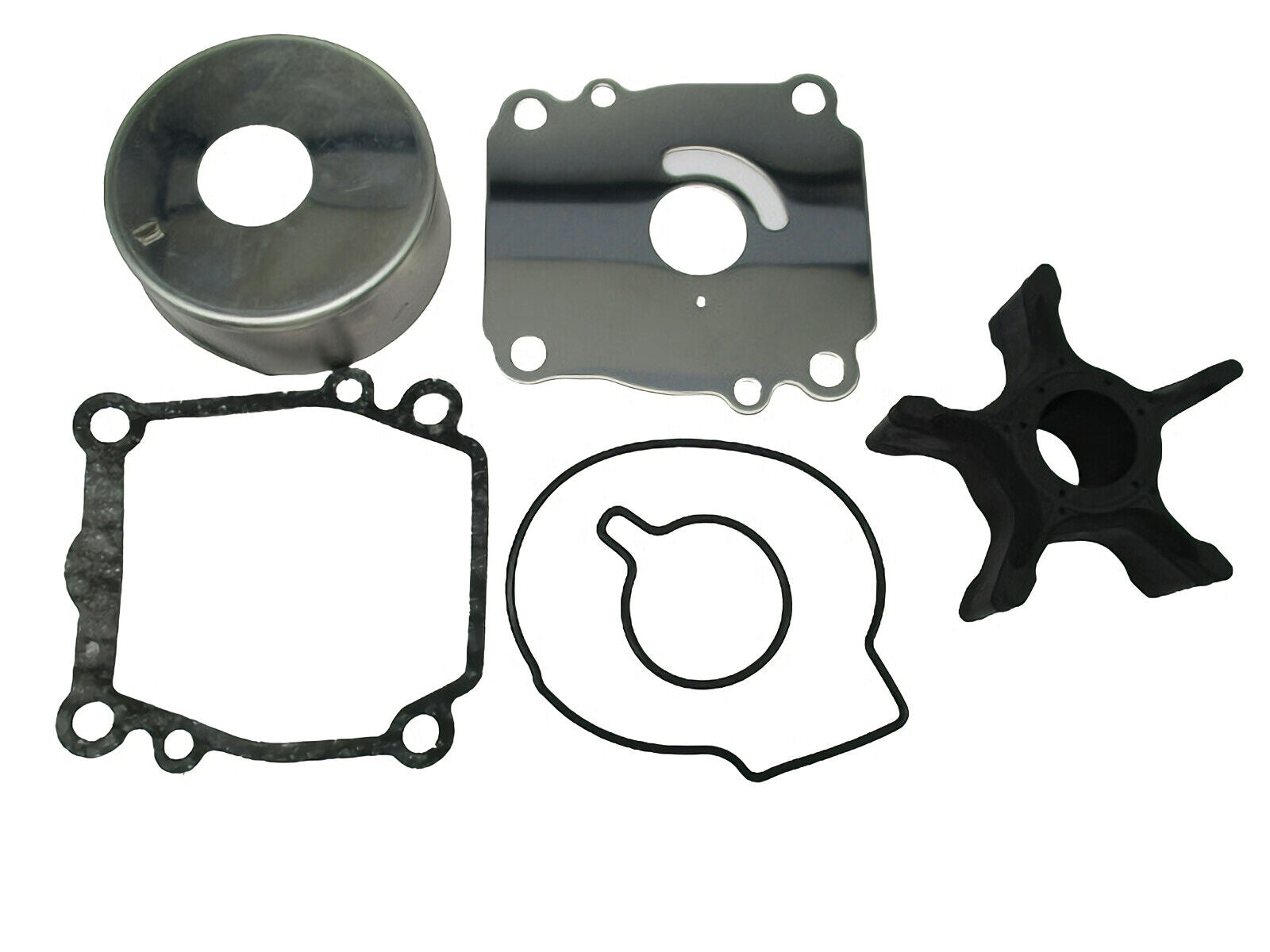

Kit Contents

• 1 × Water-pump impeller — 17461-90J01
• 1 × Water-pump case sleeve / wear cup — 17413-92J01
• 1 × Pump-case outer plate — 17471-92J00
• 1 × Pump-case plate gasket — 17472-87E10
• 1 × Water-pump case seal No. 1 — 17416-92J00
• 1 × Water-pump case seal No. 2 — 17417-92J00
• 1 × Impeller key — 09420-05009 where supplied for the applicable production package

🚤 Compatibility

Commonly used on

• First-generation Suzuki DF90, DF100, DF115 and DF140 water-pump assemblies

Typically suits

• Engine models:
• DF90 four-stroke — approximately 2001-2008
• DF100 four-stroke — approximately 2009-2011
• DF115 and DF115Z — approximately 2001-2011
• DF140 and DF140Z — approximately 2002-2010
• HP Range: 90HP-140HP
• Engine Type: Inline-four four-stroke outboards
• Serial Guidance:
• DF90 applications include the original DF90 generation before DF90A
• DF115 fitment includes applicable engines up to approximately 11501F-983178 and 11501Z-980055
• DF140 fitment includes applicable engines up to approximately 14001F-983645 and 14001Z-980353
• Exclusion Note: Not intended for later DF90A, DF100B, DF115A or DF140A pump configurations unless the original kit number matches.

🔌 Function

The water pump draws raw water through the lower-unit intake and circulates it through the powerhead and exhaust cooling passages.

⚠️ Common Signs of Failure

• Weak or intermittent tell-tale flow
• Overheating at idle or low engine speed
• Impeller blades are cracked, missing or permanently bent
• Pump will not prime after launch
• Melted or scored wear-cup and plate surfaces
• Broken impeller fragments found in downstream cooling passages

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 17400-92J00 (documented original kit reference for this pump family)

OEM / Related Numbers

• 17461-90J01
• 17413-92J01
• 17471-92J00
• 17472-87E10
• 17416-92J00
• 17417-92J00
• 09420-05009

Aftermarket / Verified Equivalents

• BRP / Johnson / Evinrude: 5037176
• HJ Marine: SHJB-92J00
• GLM Marine: 15350

📦 Condition

• Genuine Suzuki Marine water-pump repair kit
• Brand new
• Supplied in original or equivalent protective packaging
