17400-96823 Suzuki Marine DF150-DF175 Service Kit | Genuine OEM Outboard Part

🔧 Product Description

Genuine Suzuki Marine Maintenance Service Kit - Part Number: 17400-96823

Genuine Suzuki scheduled-maintenance kit for selected DF150 and DF175 four-stroke outboards. This is a complete service package containing lubrication, ignition, fuel-system, water-pump and corrosion-protection components; it is not only a water-pump kit.

⚙️ Key Features

• Genuine Suzuki multi-system maintenance kit
• Services the engine-oil, fuel, ignition and raw-water cooling systems
• Includes sacrificial anodes and service sealing components
• Suitable for major scheduled maintenance
• Later kit revisions may contain current superseding component numbers

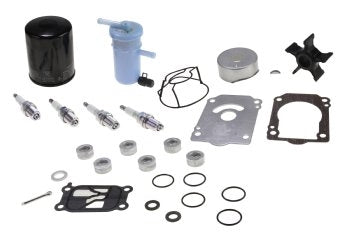

Kit Contents

• 1 × Engine oil filter — 16510-96J10; current replacement 16510-96J11
• 1 × Fuel filter — 15410-96J00
• 1 × Water-pump repair kit — 17400-96J04
• 4 × Spark plugs — 09482-00427, NGK BKR6E
• 6 × Internal sacrificial anodes — 55321-87J01
• 1 × Propeller-nut cotter pin — 09204-03003
• 1 × Engine-oil drain gasket — 09168-12012
• 2 × Gearcase drain/fill plug seals — 09168-10034
• 5 × Anode-cover O-rings — 09280-22019

Water-Pump Sub-Kit 17400-96J04 Includes

• 1 × Impeller — 17461-90J01
• 1 × Pump-case sleeve — 17413-96J01
• 1 × Pump-case seal — 17416-96J00
• 1 × Lower wear plate — 17471-93J02
• 1 × Pump-case plate gasket — 17472-93J00
• 1 × Impeller key — 09420-05009

🚤 Compatibility

Commonly used on

• Suzuki DF150 and DF175 scheduled maintenance

Typically suits

• Engine models:
• DF150
• DF150SS where the service components match
• DF175
• HP Range: 150HP-175HP
• Engine Type: Inline-four four-stroke outboards
• Year Range: Principal applications approximately 2006-2018
• Model/Serial Note: Later DF150A, DF150AP, DF175A and DF175AP engines can use revised maintenance-kit packages. Confirm the complete model and frame serial.

🔌 Function

The kit provides the principal consumable components required to maintain lubrication, ignition, fuel quality, cooling-water flow and internal corrosion protection.

⚠️ Common Signs of Failure

• Scheduled annual or operating-hour interval has been reached
• Reduced cooling-water discharge
• Difficult starting, misfire or increased fuel use
• Contaminated oil or restricted filters
• Sacrificial anodes are heavily eroded
• Gearcase seals are compressed or leaking

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 17400-96825 → Supersedes 17400-96824
• 17400-96824 → Supersedes 17400-96823
• 17400-96823 → Supersedes 17400-96822
• 17400-96822 → Supersedes 17400-96821

OEM / Related Numbers

• 17400-96821
• 17400-96822
• 17400-96823
• 17400-96824
• 17400-96825

Aftermarket / Verified Equivalents

• No direct single-package aftermarket equivalent

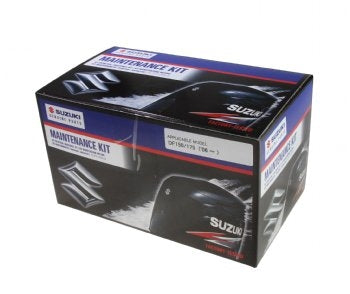

📦 Condition

• Genuine Suzuki Marine maintenance kit
• Brand new
• Supplied in original or equivalent protective packaging
