17400-96J04 Suzuki Marine Repair Kit | Genuine OEM Outboard Part

🔧 Product Description

Genuine Suzuki Marine Water-Pump Repair Kit - Part Number: 17400-96J04

Genuine Suzuki water-pump overhaul kit for selected DF150, DF175 and inline-four DF200A/AP outboards. It replaces the principal rotating, wear and sealing components within the lower-unit raw-water pump.

⚙️ Key Features

• Genuine Suzuki complete pump-service package

• Includes the impeller, key, wear plate, gasket, seal and pump sleeve

• Designed for the 96J-series water-pump housing

• Suitable for annual servicing and cooling-system repairs

• Not intended for the earlier V6 DF200 water-pump system

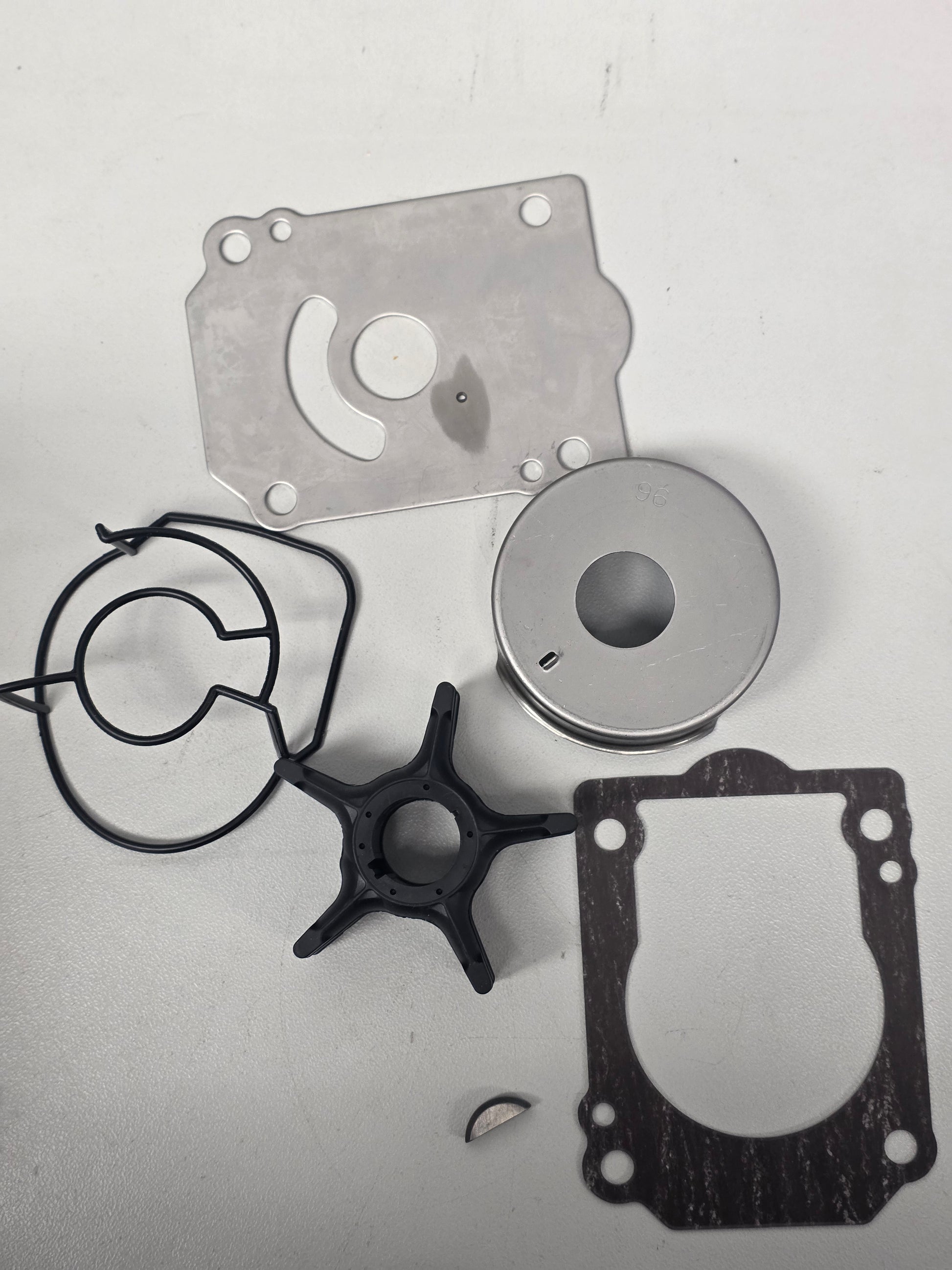

Kit Contents:

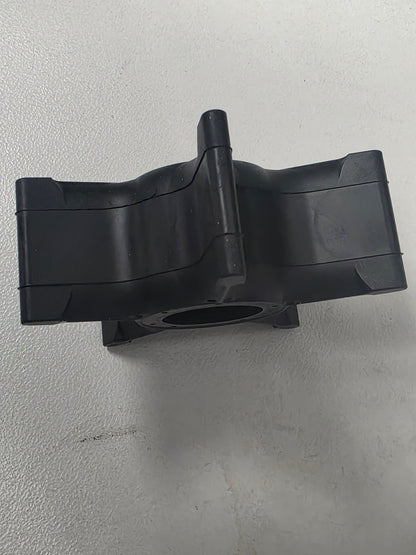

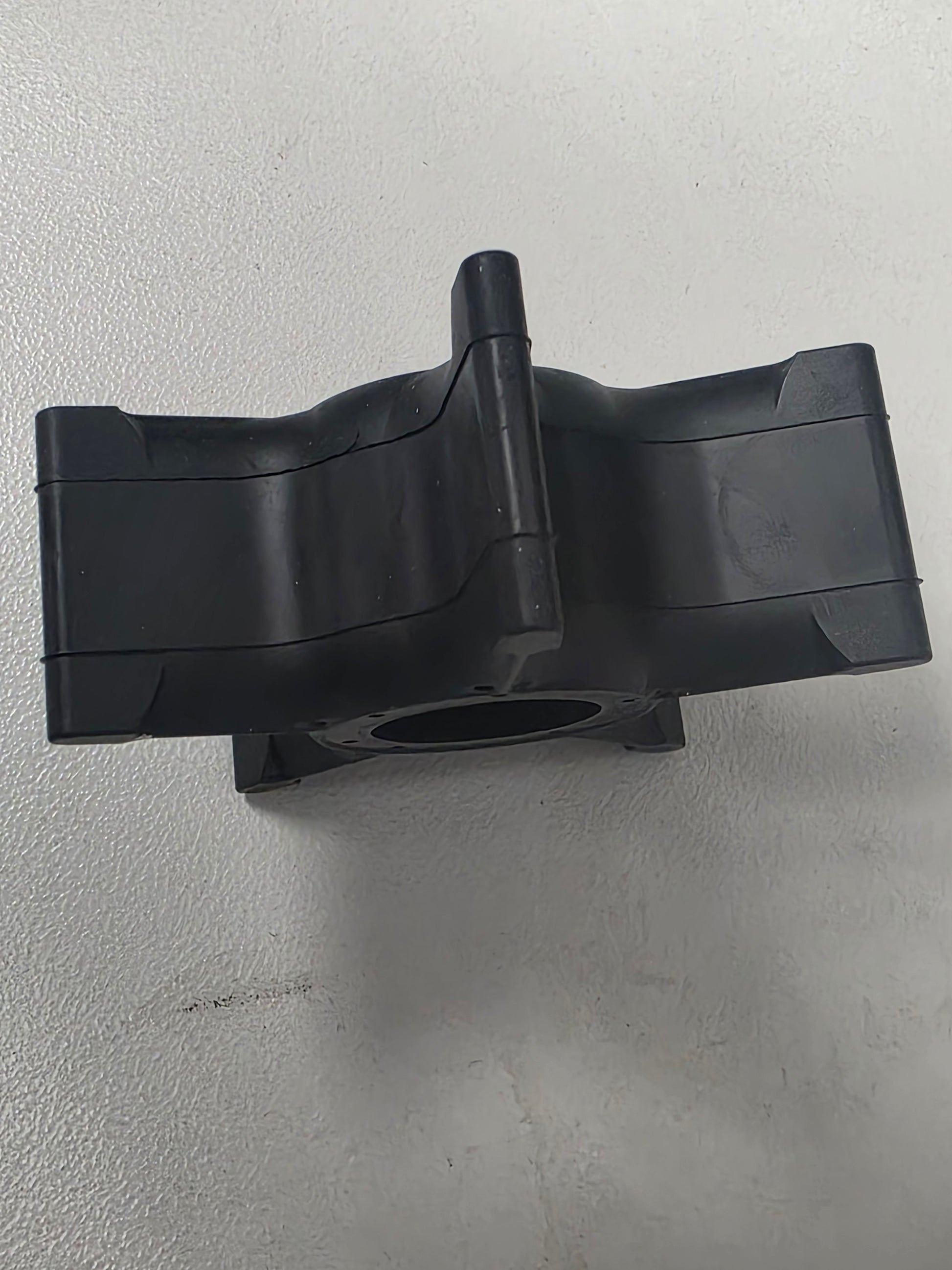

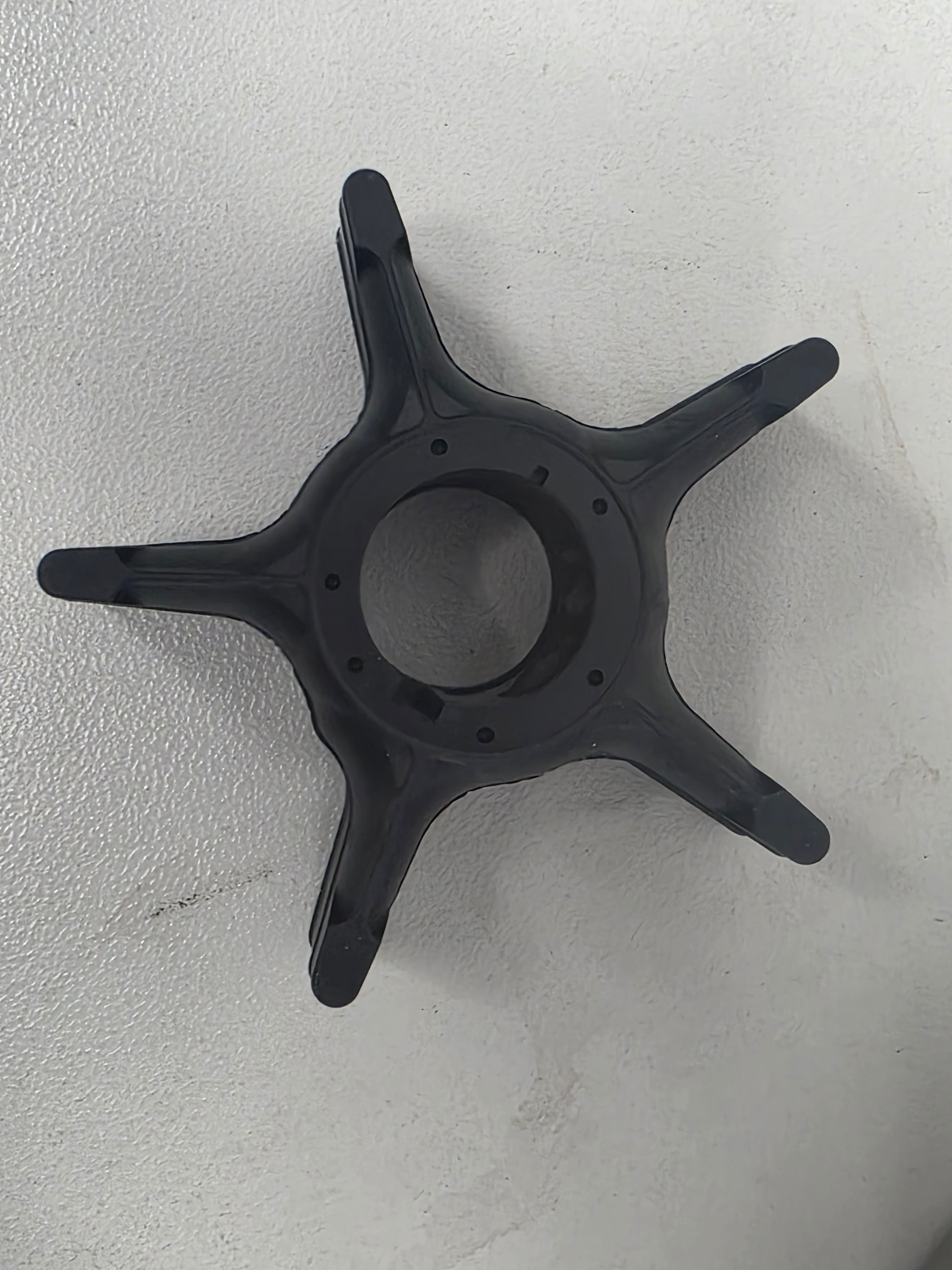

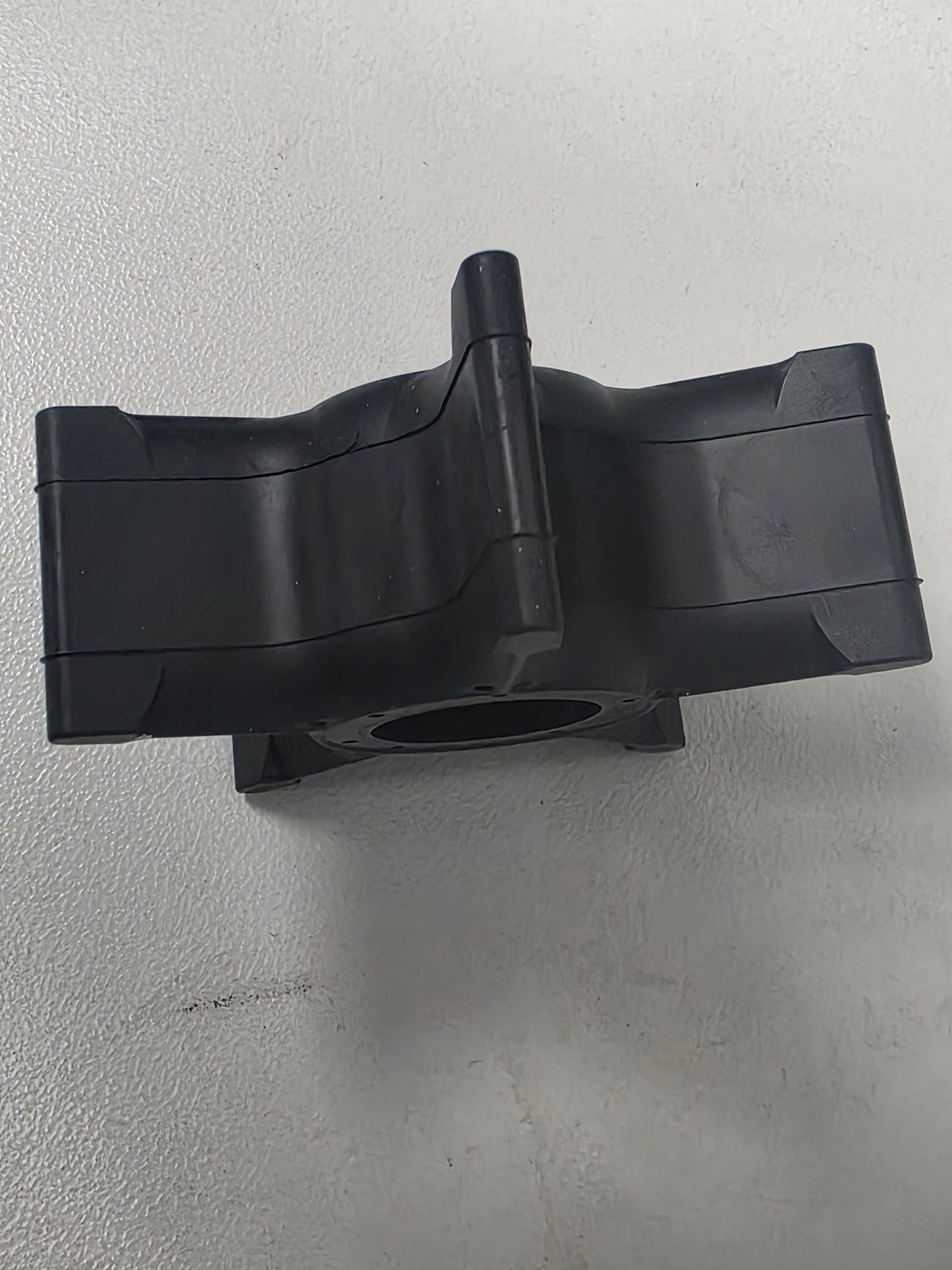

• 1 × Water-pump impeller — 17461-90J01

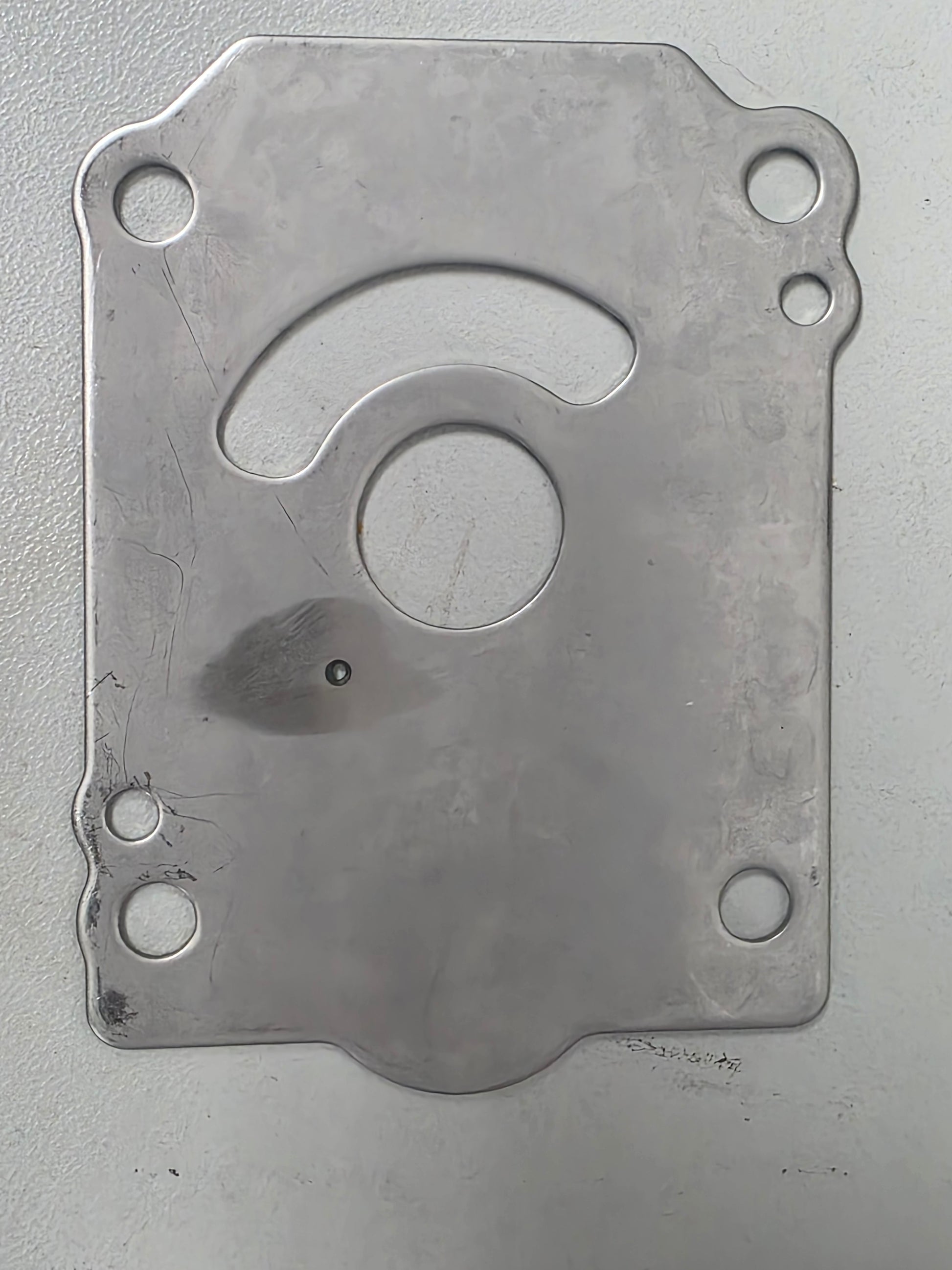

• 1 × Lower wear plate — 17471-93J02

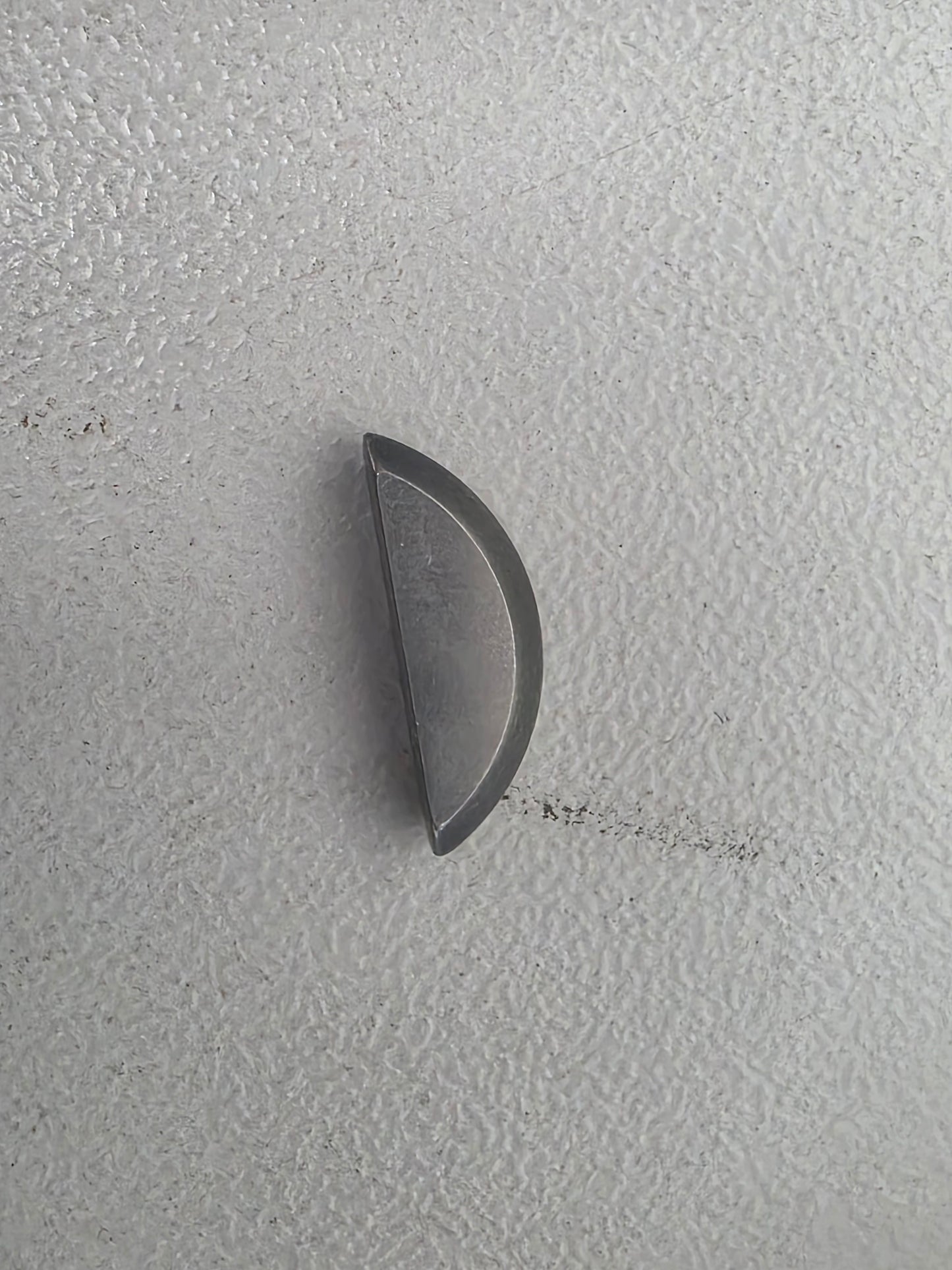

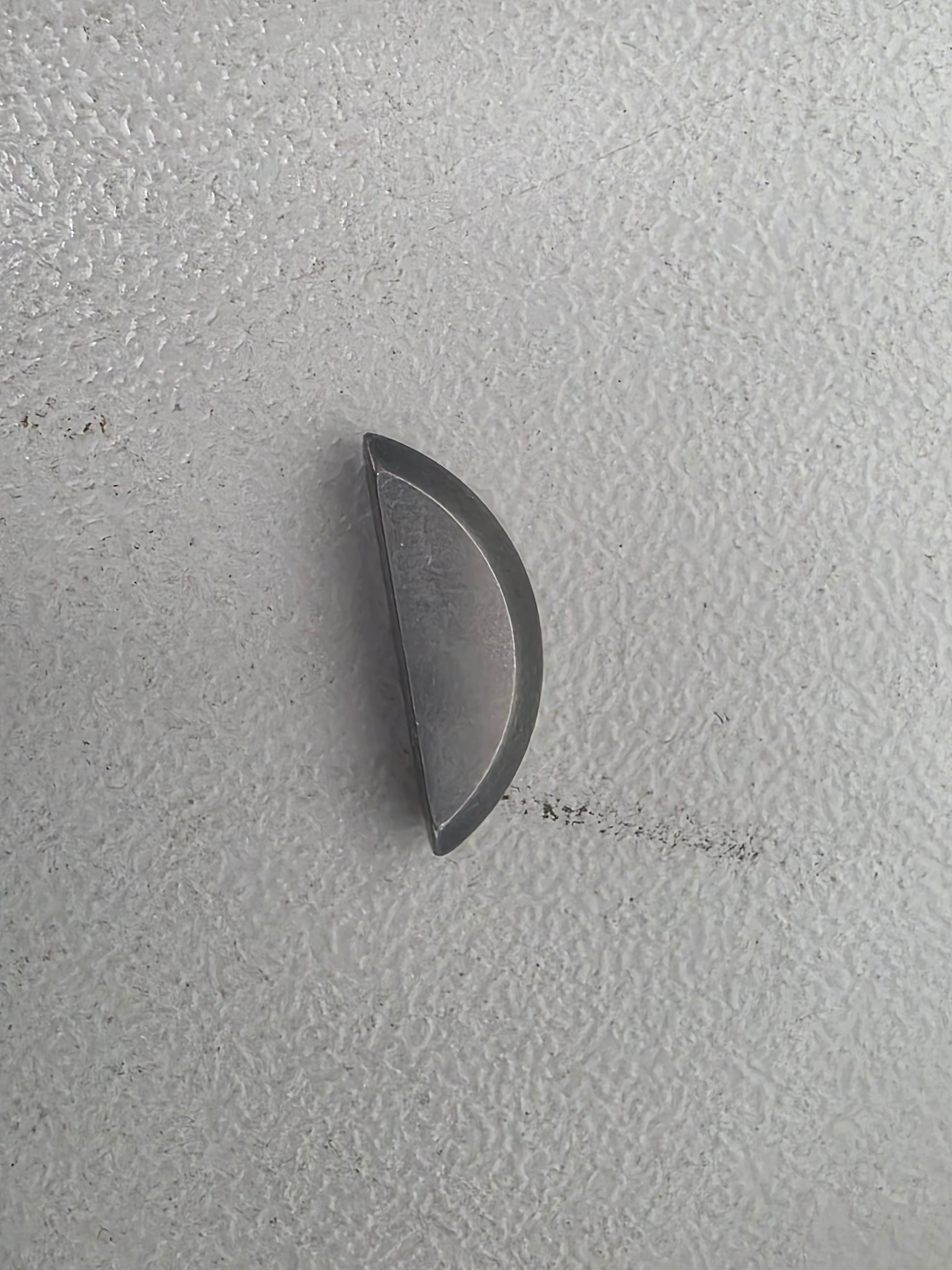

• 1 × Impeller key — 09420-05009

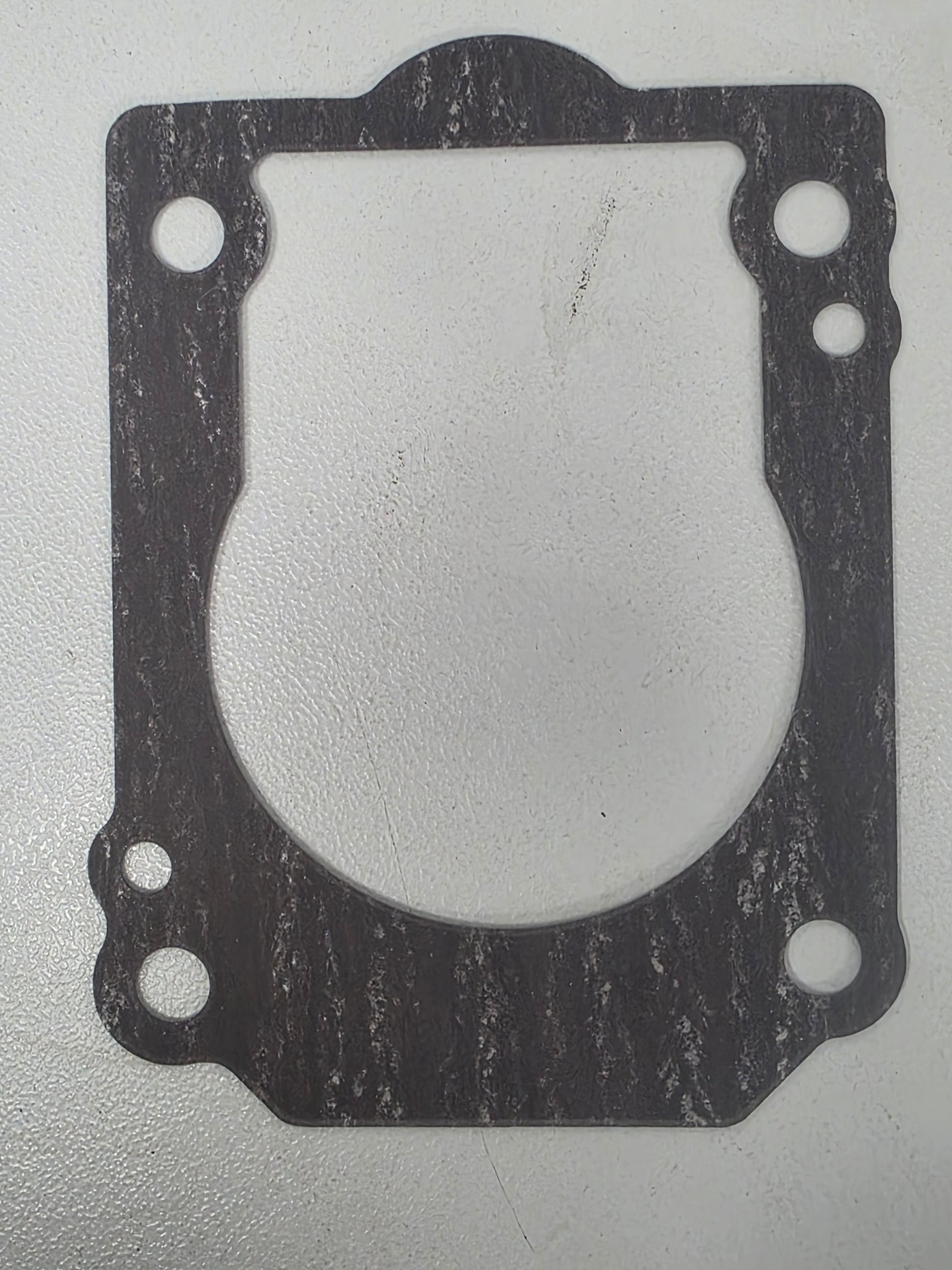

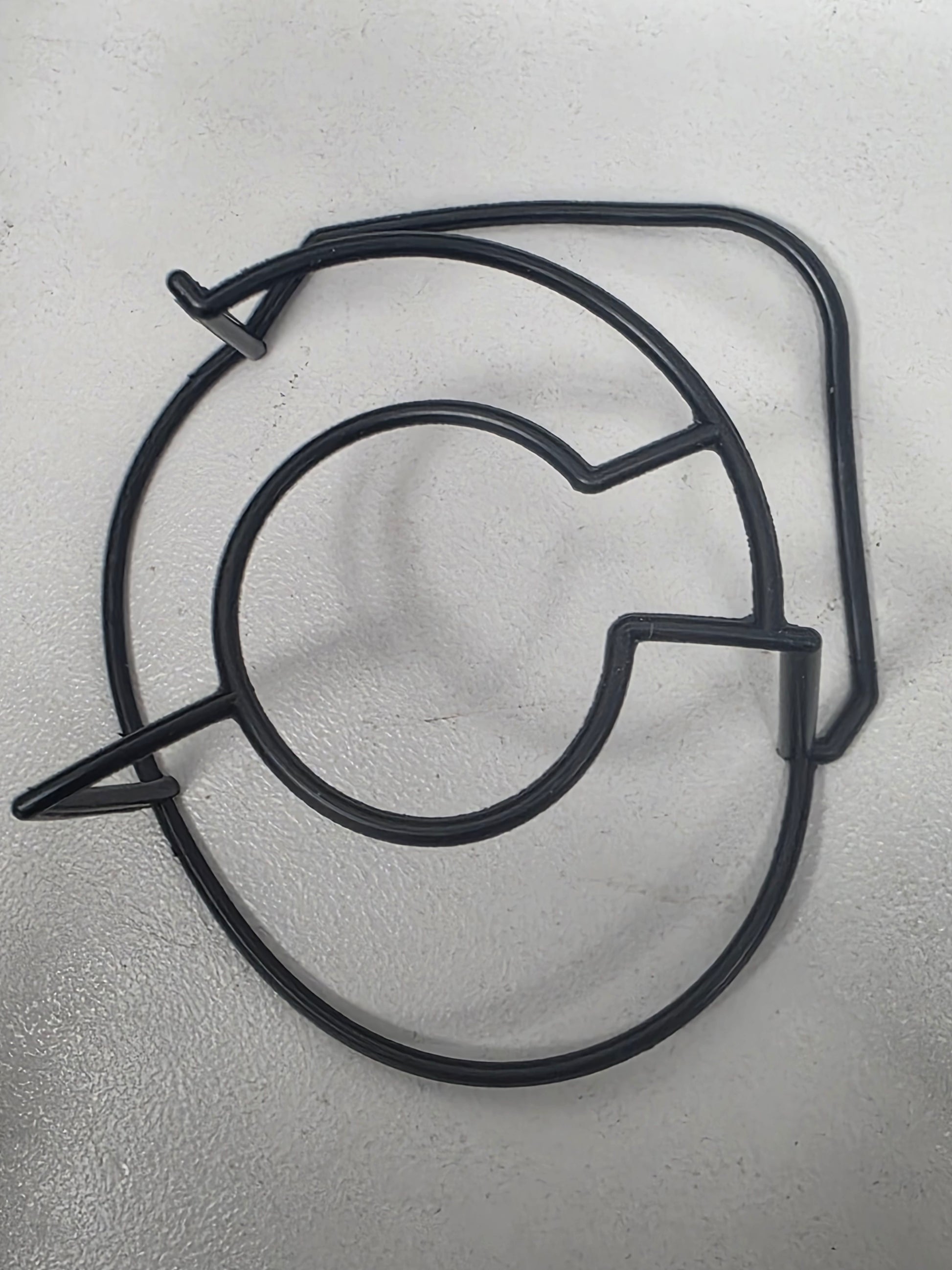

• 1 × Pump-case plate gasket — 17472-93J00

• 1 × Water-pump case seal — 17416-96J00

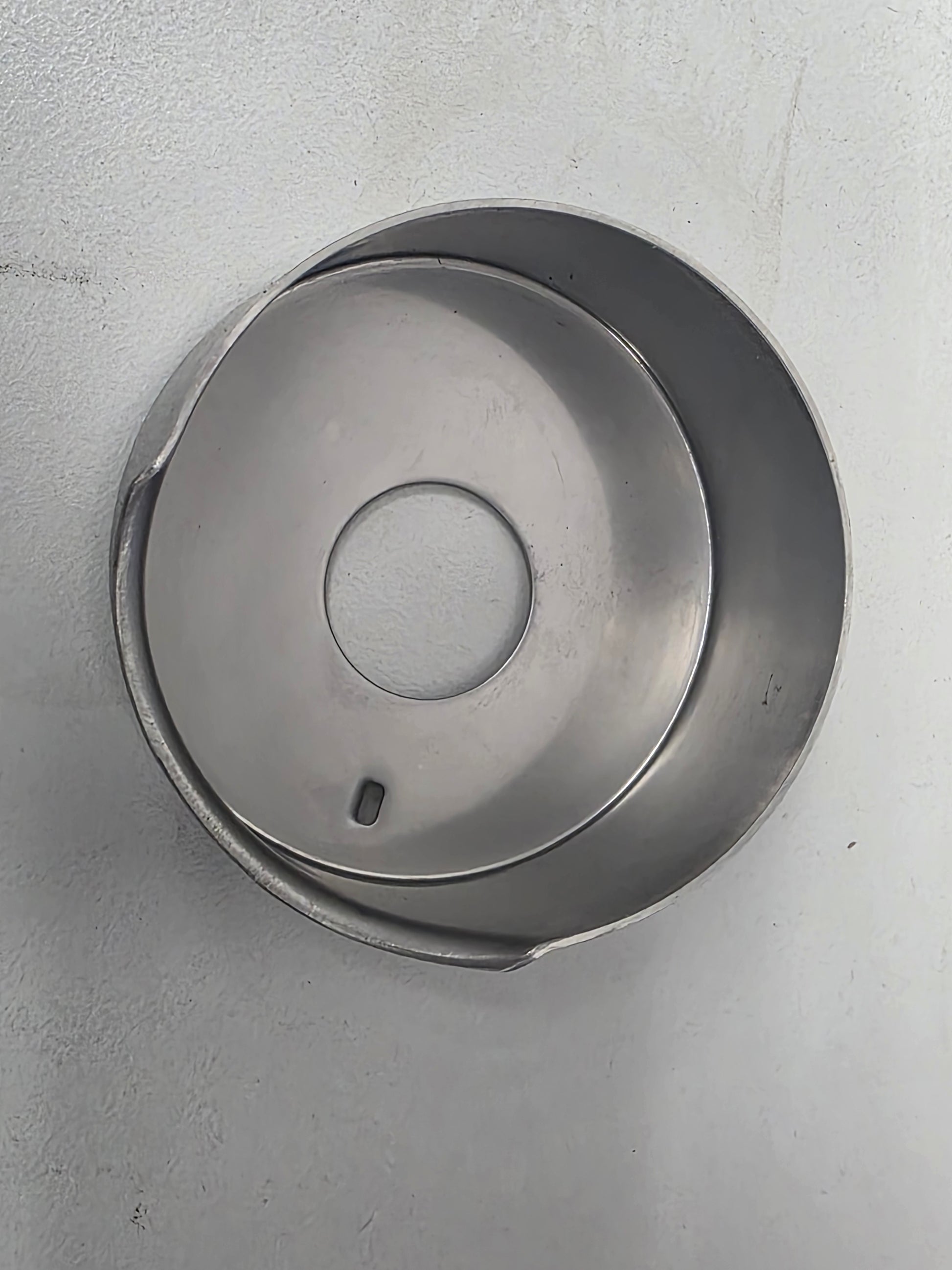

• 1 × Water-pump case sleeve / cup — 17413-96J01

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 17400-96J04 → Supersedes 17400-96J03

• 17400-96J03 → Supersedes 17400-96J02

• 17400-96J02 → Supersedes 17400-96J01

• 17400-96J01 → Supersedes 17400-96J00

OEM / Related Numbers:

• 17400-96J00

• 17400-96J01

• 17400-96J02

• 17400-96J03

• 17400-96J04

Aftermarket / Verified Equivalents:

• Sierra Marine: 18-4558

• Mercury / Quicksilver: 8M6012814

• RECMAR: REC17400-96J03

• GLM Marine: 15380

🚤 Compatibility

Commonly used on:

• Suzuki inline-four large-horsepower water-pump assemblies

Typically suits:

• Engine models:

• DF150 and DF175 — approximately 2006-2018

• DF150A and DF175A — approximately 2019 onward

• DF150AP and DF175AP — approximately 2017 onward

• DF200A and DF200AP — approximately 2015 onward

• HP Range: 150HP-200HP

• Engine Type: Inline-four four-stroke outboards

• Exclusion Note: Does not suit the earlier V6 DF200 manufactured approximately 2004-2014.

• Serial Note: Confirm the complete model and frame serial before installation.

🔌 Function

The water pump circulates raw water through the engine block, cylinder head and exhaust cooling passages.

Common signs service is required:

• Weak tell-tale discharge

• High-temperature warning or guardian-mode activation

• Pump does not prime reliably

• Scored sleeve or wear plate

• Cracked or missing impeller blades

• Cooling-water leakage within the extension housing

📦 Condition

• Genuine Suzuki Marine water-pump repair kit

• Brand new

• Supplied in original or equivalent protective packaging
