17400-98J04 Suzuki Marine Water Pump Repair Kit | Genuine OEM Outboard Part

🔧 Product Description

Genuine Suzuki Marine Water-Pump Repair Kit - Part Number: 17400-98J04

Genuine Suzuki water-pump repair kit for selected DF250SS, DF250AP, DF300 and DF300AP outboards. It renews the impeller, pump-case sleeve, plates, gasket, seal and drive key used in the large V6 gearcase water-pump assembly.

⚙️ Key Features

• Genuine Suzuki V6 water-pump service kit
• Includes both pump plates and the principal sealing components
• Designed for the 98J-series water-pump configuration
• Restores pump displacement and sealing efficiency
• Later 98J05 and 98J06 kits are updated service replacements

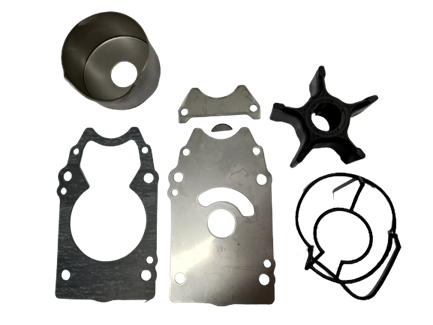

Kit Contents

• 1 × Water-pump impeller — 17461-93J01; current replacement 17461-93J02
• 1 × Lower pump plate — 17471-98J01
• 1 × Pump-plate gasket — 17472-98J00
• 1 × Upper / secondary pump plate — 17473-98J00
• 1 × Water-pump case seal — 17416-93J01
• 1 × Impeller key — 09420-05009
• 1 × Water-pump case sleeve / cup — 17413-93J02

🚤 Compatibility

Commonly used on

• Suzuki large V6 water-pump assemblies

Typically suits

• Engine models:
• DF250SS — approximately 2008 onward
• DF250AP — approximately 2013 onward
• DF300 — approximately 2007-2011
• DF300AP — approximately 2012 onward
• HP Range: 250HP-300HP
• Engine Type: V6 four-stroke outboards
• Model/Serial Note: Later DF300B and DF350A gearcases can use different pump kits. Match the original kit and complete engine serial.

🔌 Function

The pump draws cooling water through the gearcase intake and supplies it to the powerhead and exhaust system.

⚠️ Common Signs of Failure

• Reduced exhaust-water or tell-tale flow
• Overheating under load
• Pump fails to prime
• Scored pump sleeve or plates
• Broken or permanently curved impeller vanes
• Impeller fragments lodged in cooling passages

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 17400-98J06 → Supersedes 17400-98J05
• 17400-98J05 → Supersedes 17400-98J04
• 17400-98J04 → Supersedes 17400-98J03
• 17400-98J03 → Supersedes 17400-98J02
• 17400-98J02 → Supersedes 17400-98J01
• 17400-98J01 → Supersedes 17400-98J00

OEM / Related Numbers

• 17400-98J00
• 17400-98J01
• 17400-98J02
• 17400-98J03
• 17400-98J04
• 17400-98J05
• 17400-98J06

Aftermarket / Verified Equivalents

• HJ Marine: SHJB-98J04

📦 Condition

• Genuine Suzuki Marine water-pump repair kit
• Brand new
• Supplied in original or equivalent protective packaging
