17411-95206 Suzuki Marine Water Pump Case | Genuine OEM Outboard Part

🔧 Product Description

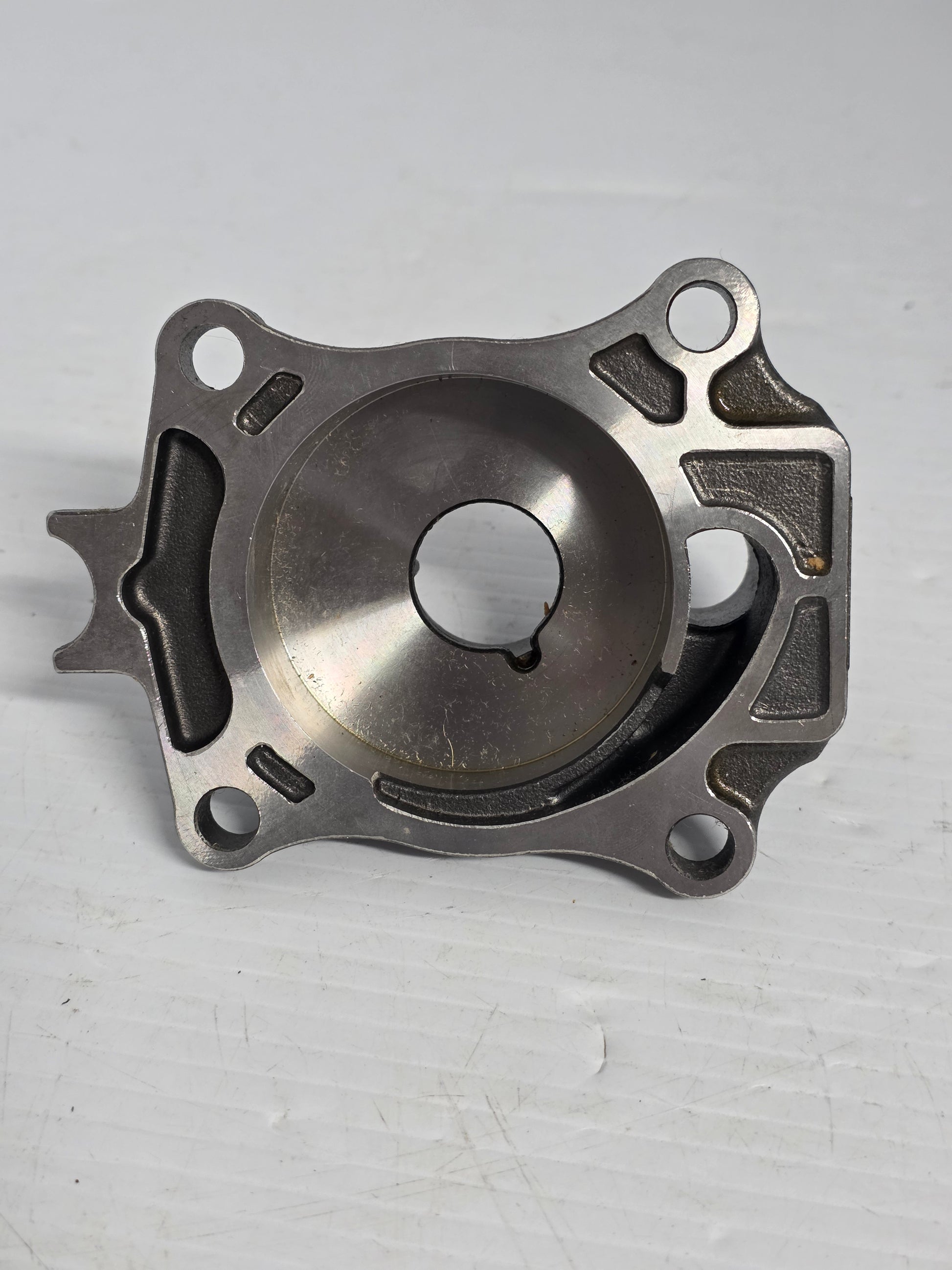

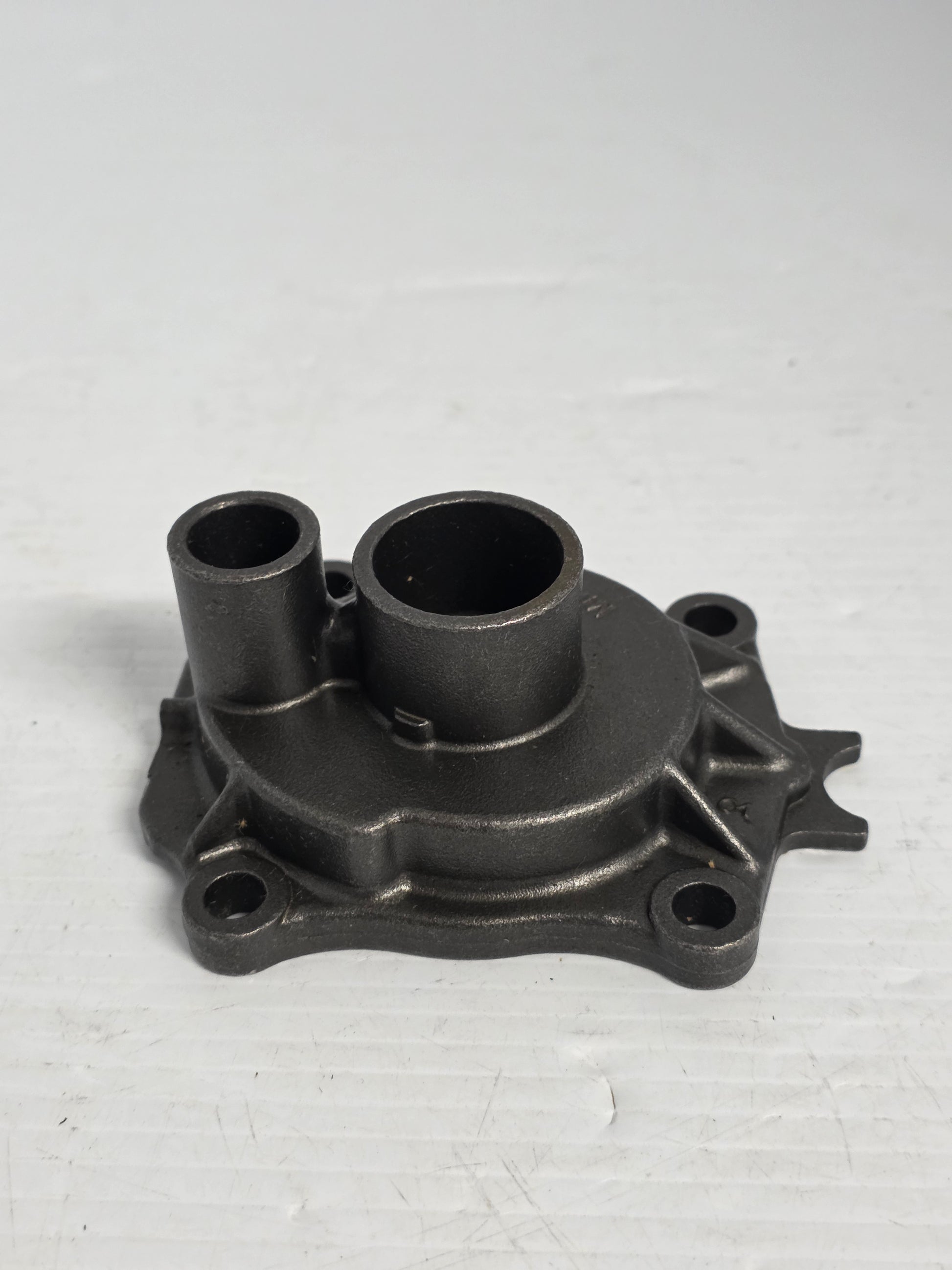

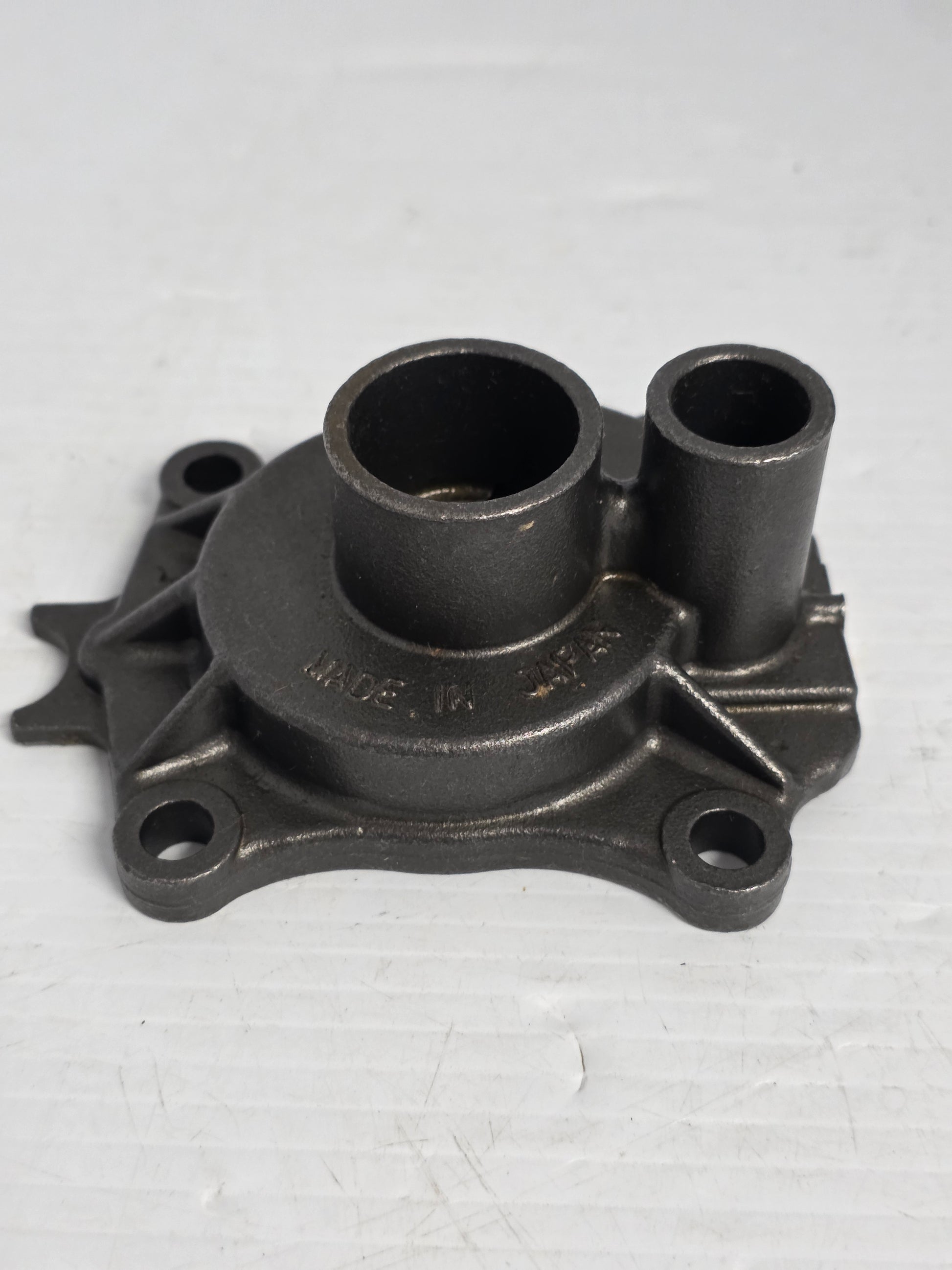

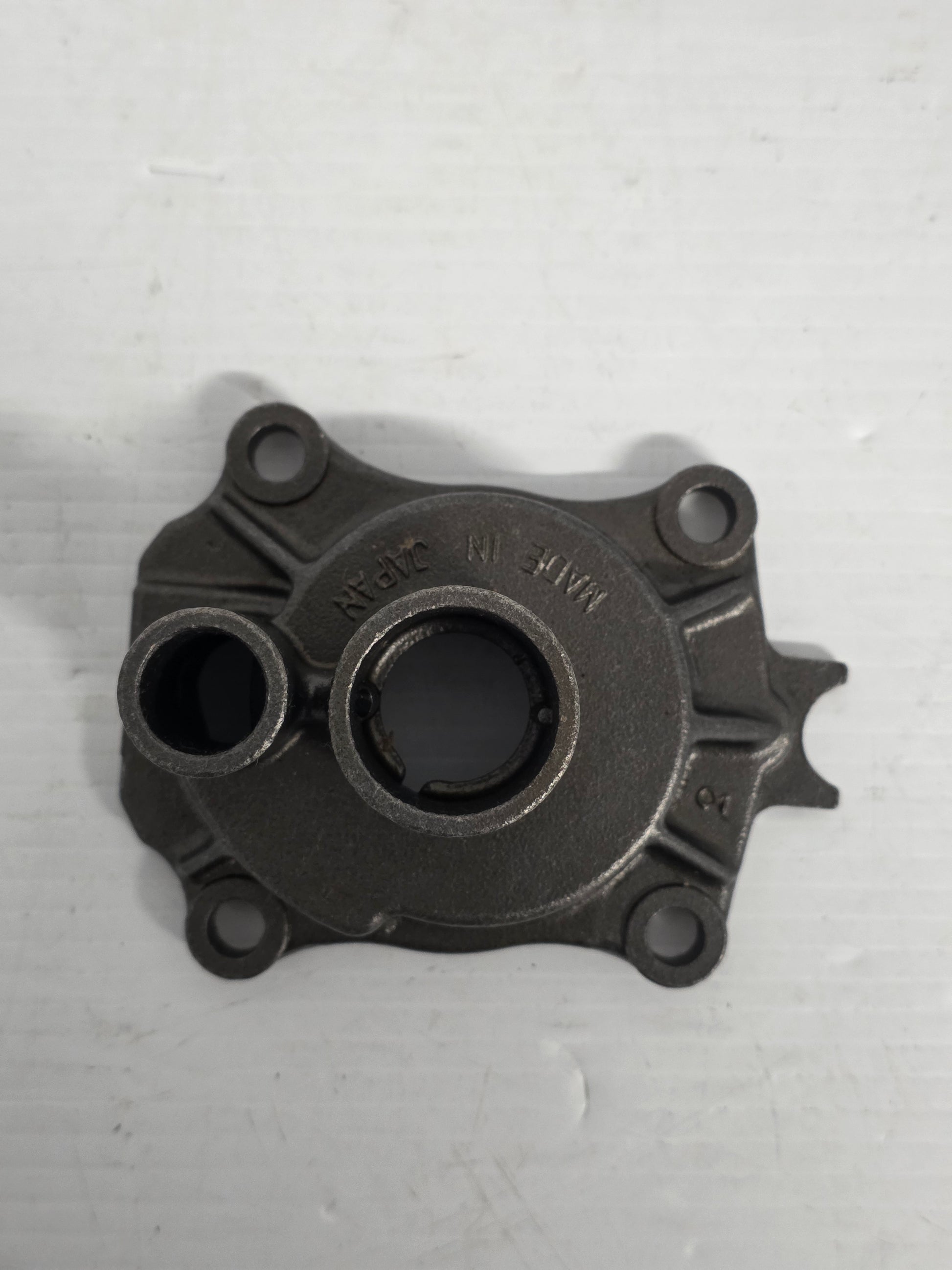

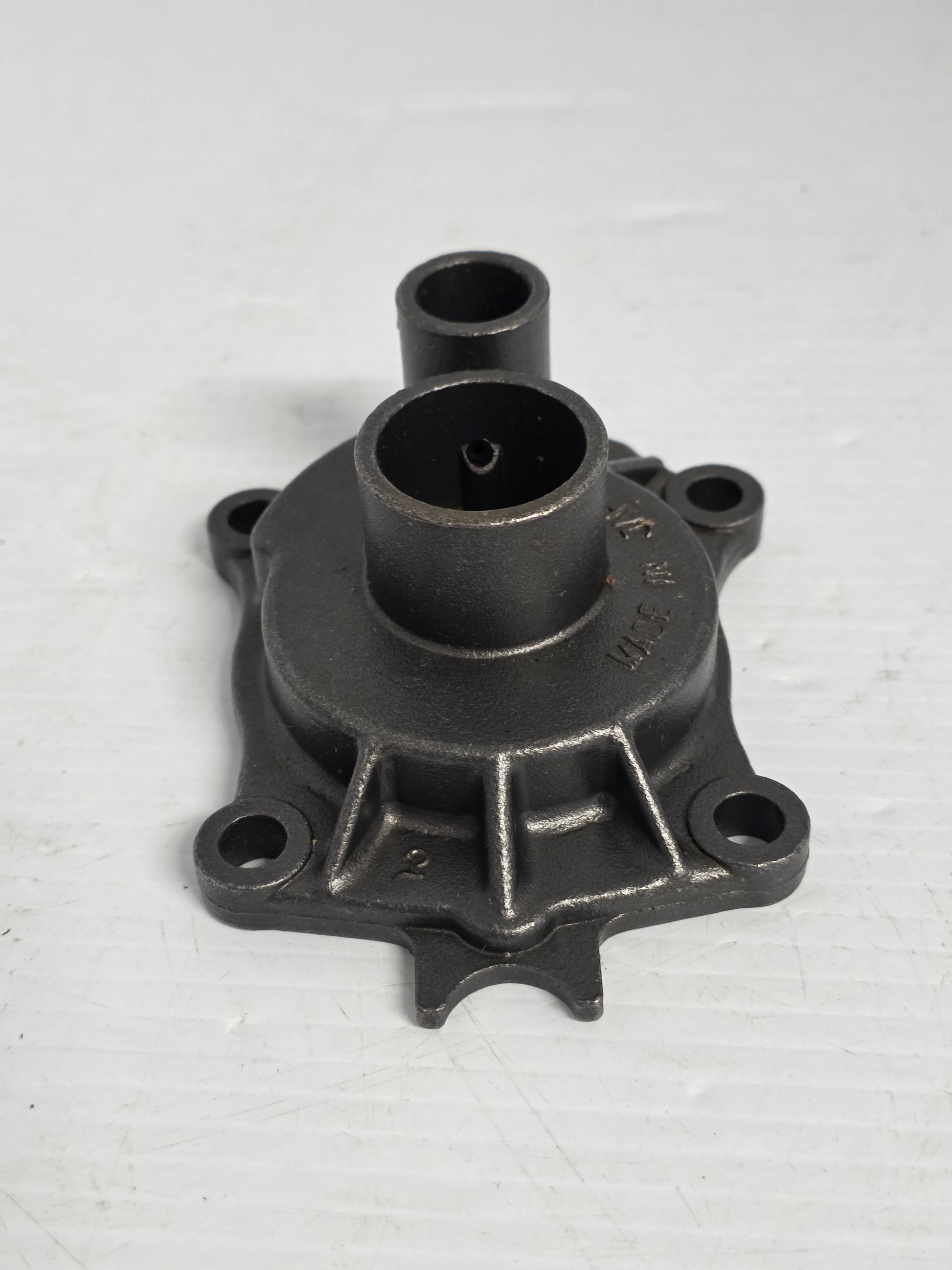

Genuine Suzuki Marine Water-Pump Case - Part Number: 17411-95206

Genuine Suzuki upper water-pump housing for selected DT50A through DT85 two-stroke outboards. It surrounds the impeller and directs water from the lower-unit intake into the engine cooling tube.

⚙️ Key Features

• Genuine Suzuki moulded water-pump housing

• Correct internal pump cavity and outlet alignment

• Designed for the applicable DT-series gearcase

• Supports the impeller and pump-case sealing components

• Inspect for melting, distortion, grooves and corrosion before reuse

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 17411-95206 (final documented reference for this housing family)

OEM / Related Numbers:

• 17411-95206

• Related pump components vary by model and production year

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on:

• Suzuki DT-series two-stroke water-pump assemblies

Typically suits:

• Engine models:

• DT50A

• DT55

• DT65

• DT75

• DT85

• HP Range: 50HP-85HP

• Engine Type: Two- and three-cylinder two-stroke outboards

• Year Range: Principal applications approximately 1988-1996

• Model/Serial Note: Confirm the gearcase diagram because different shaft lengths and model years can use alternate housings.

🔌 Function

The housing forms the upper pump chamber in which the flexible impeller creates suction and water pressure.

Common signs of failure:

• Melted or distorted pump cavity

• Scoring where impeller blades contact the housing

• Cracks around mounting screws or outlet neck

• Weak cooling-water delivery despite a new impeller

• Water leakage at the pump joint

📦 Condition

• Genuine Suzuki Marine part

• Brand new

• Supplied in original or equivalent protective packaging
