17413-92J01 Suzuki Marine Water Pump Wear Cup | Genuine OEM Outboard Part

🔧 Product Description

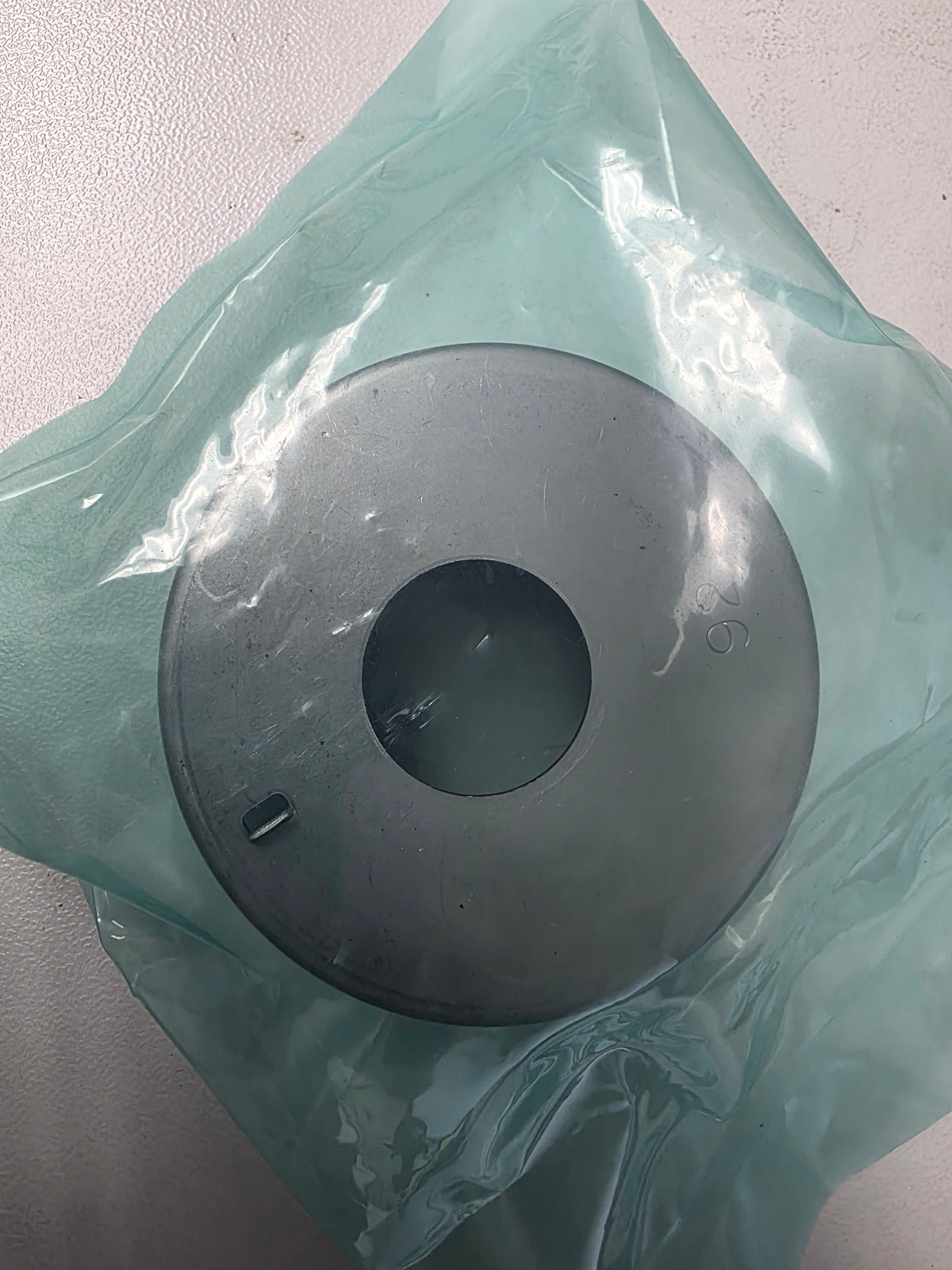

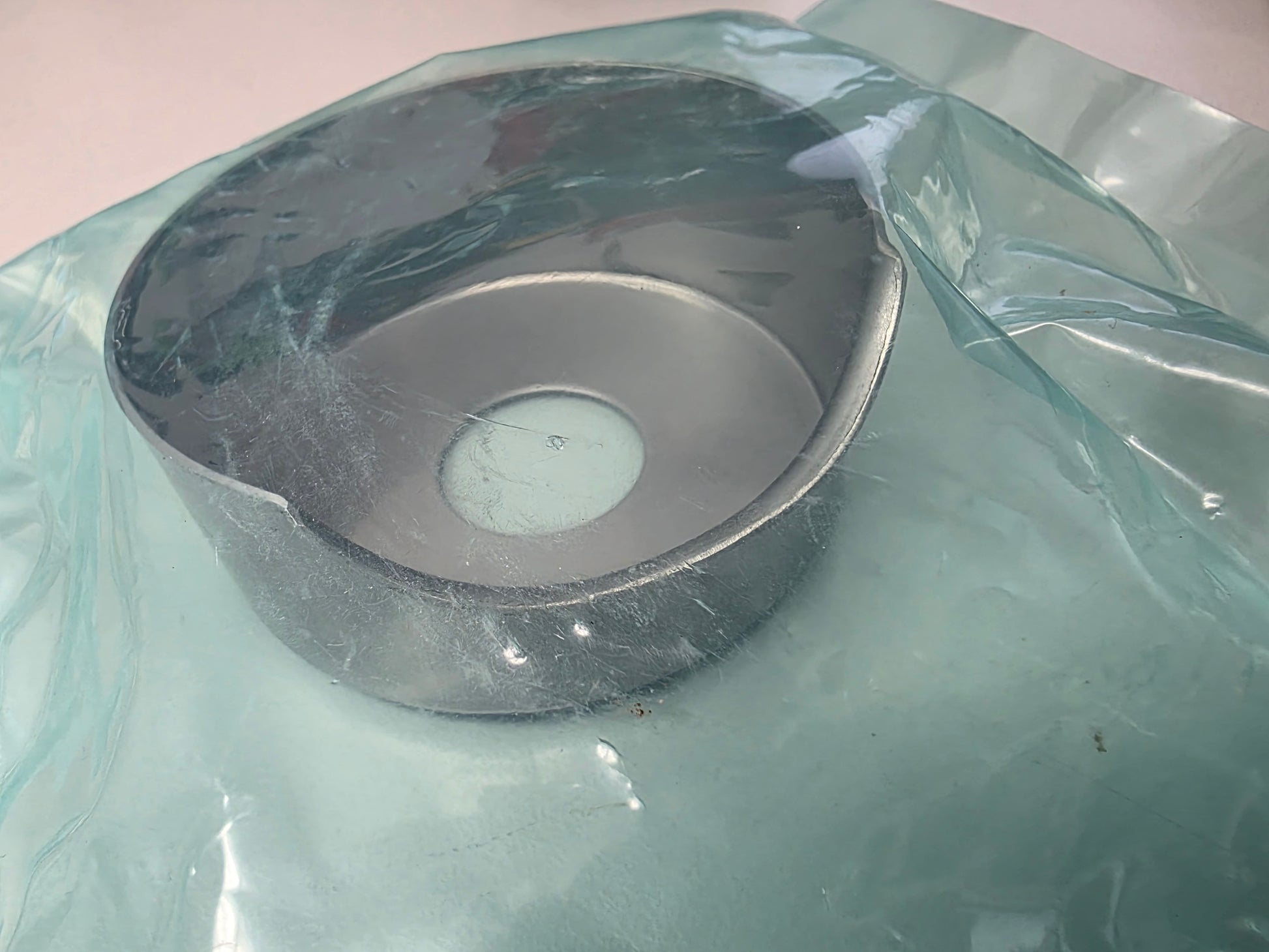

Genuine Suzuki Marine Water-Pump Case Sleeve - Part Number: 17413-92J01

Genuine Suzuki stainless pump sleeve or wear cup used within the water-pump housing of first-generation DF90, DF100, DF115 and DF140 outboards. Its smooth internal surface allows the impeller vanes to flex and produce water pressure efficiently.

⚙️ Key Features

• Genuine Suzuki stainless water-pump sleeve
• Provides the impeller's principal running surface
• Resists wear and corrosion in marine service
• Used in water-pump kit 17400-92J00
• Replace if scored, pitted, distorted or heat-discoloured

🚤 Compatibility

Commonly used on

• Original DF90-DF140 water-pump housings

Typically suits

• Engine models:
• DF90 four-stroke — approximately 2001-2008
• DF100 four-stroke — approximately 2009-2011
• DF115 and DF115Z — approximately 2001-2011
• DF140 and DF140Z — approximately 2002-2010
• HP Range: 90HP-140HP
• Engine Type: Inline-four four-stroke outboards
• Exclusion Note: Does not suit later A-series pump housings unless the original sleeve reference matches.

🔌 Function

The wear cup forms the shaped chamber that bends the impeller vanes and creates suction and discharge pressure.

⚠️ Common Signs of Failure

• Circumferential scoring inside the cup
• Pitting or corrosion on the running surface
• Heat discolouration caused by dry running
• Reduced pump output with a new impeller
• Distortion preventing correct seating in the housing

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 17413-92J01 → Supersedes 17413-92J00

OEM / Related Numbers

• 17413-92J00
• 17413-92J01
• Water-pump kit: 17400-92J00

Aftermarket / Verified Equivalents

• RECMAR: REC17413-92J01

📦 Condition

• Genuine Suzuki Marine part
• Brand new
• Supplied in original or equivalent protective packaging
