17416-92J00 Suzuki Marine 90-140HP Water Pump Gasket O-Ring OSWGJ00 | Genuine OEM Outboard Part

🔧 Product Description

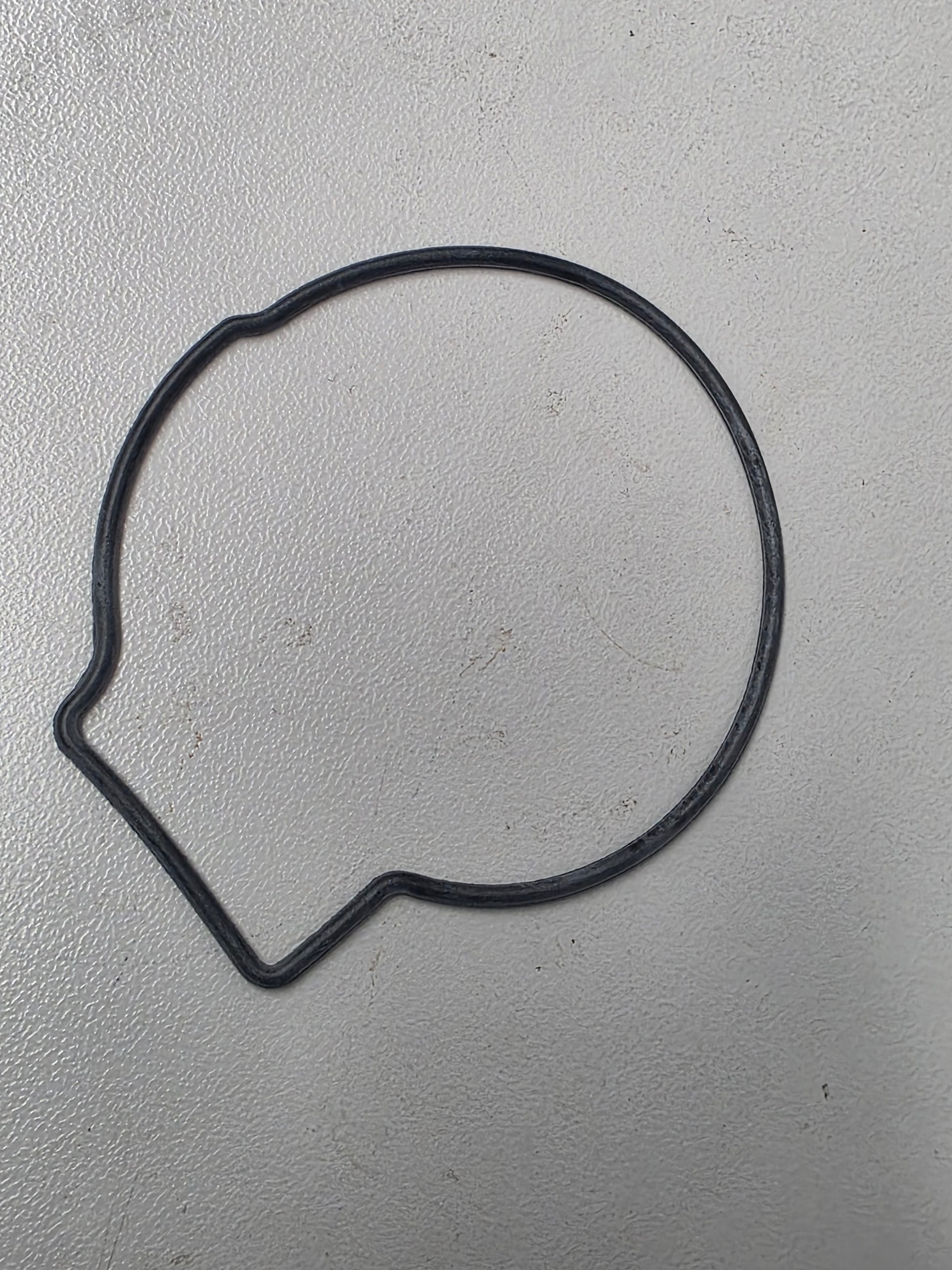

Genuine Suzuki Marine Water-Pump Case Seal No. 1 - Part Number: 17416-92J00

Genuine Suzuki sealing ring used around the pump case and sleeve on first-generation DF90, DF100, DF115 and DF140 water-pump assemblies. It prevents cooling water escaping between the housing components and helps maintain pump pressure.

⚙️ Key Features

• Genuine Suzuki water-pump seal No. 1
• Designed for the 92J-series pump case
• Resistant to water, salt and compression
• Included in water-pump repair kit 17400-92J00
• Replace whenever the pump housing is dismantled

🚤 Compatibility

Commonly used on

• First-generation Suzuki DF90-DF140 water-pump assemblies

Typically suits

• Engine models:
• DF90 — approximately 2001-2008
• DF100 — approximately 2009-2011
• DF115 and DF115Z — approximately 2001-2011
• DF140 and DF140Z — approximately 2002-2010
• HP Range: 90HP-140HP
• Engine Type: Inline-four four-stroke outboards
• Serial Guidance:
• DF115 applications include engines up to approximately 11501F-983178 and 11501Z-980055
• DF140 applications include engines up to approximately 14001F-983645 and 14001Z-980353

🔌 Function

The seal closes the joint between water-pump components so the impeller can develop cooling-water pressure without internal bypass.

⚠️ Common Signs of Failure

• Weak tell-tale flow
• Water leaking around the pump housing
• Pump loses prime
• Seal is flattened, split or hardened
• Overheating remains after impeller replacement

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 17416-92J00 (documented original seal reference)

OEM / Related Numbers

• 17416-92J00
• Companion seal No. 2: 17417-92J00
• Water-pump kit: 17400-92J00

Aftermarket / Verified Equivalents

• GLM Marine: 86624

📦 Condition

• Genuine Suzuki Marine part
• Brand new
• Supplied in original or equivalent protective packaging
