17417-92J00 Suzuki Marine Seal | Genuine OEM Outboard Part

🔧 Product Description

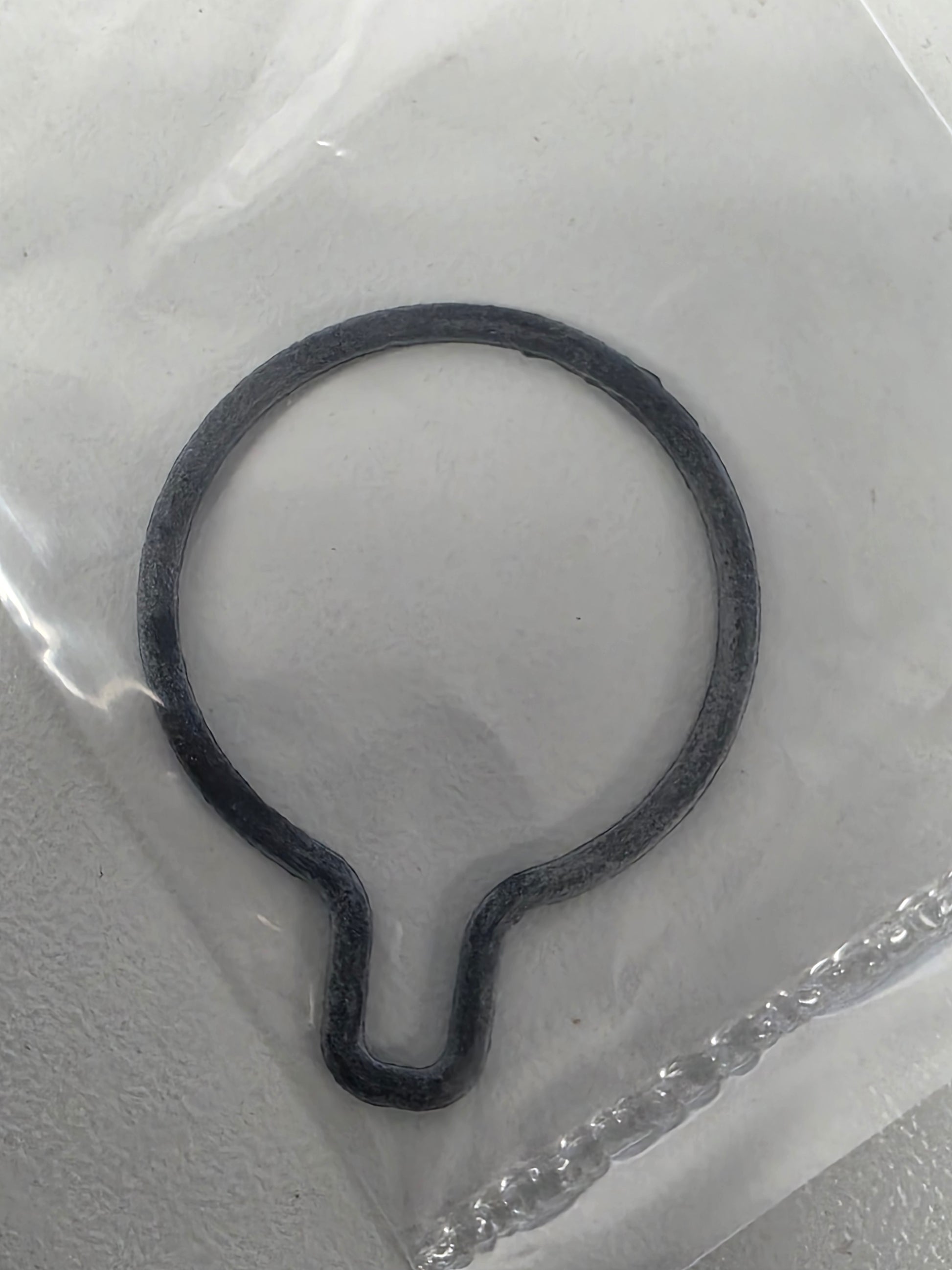

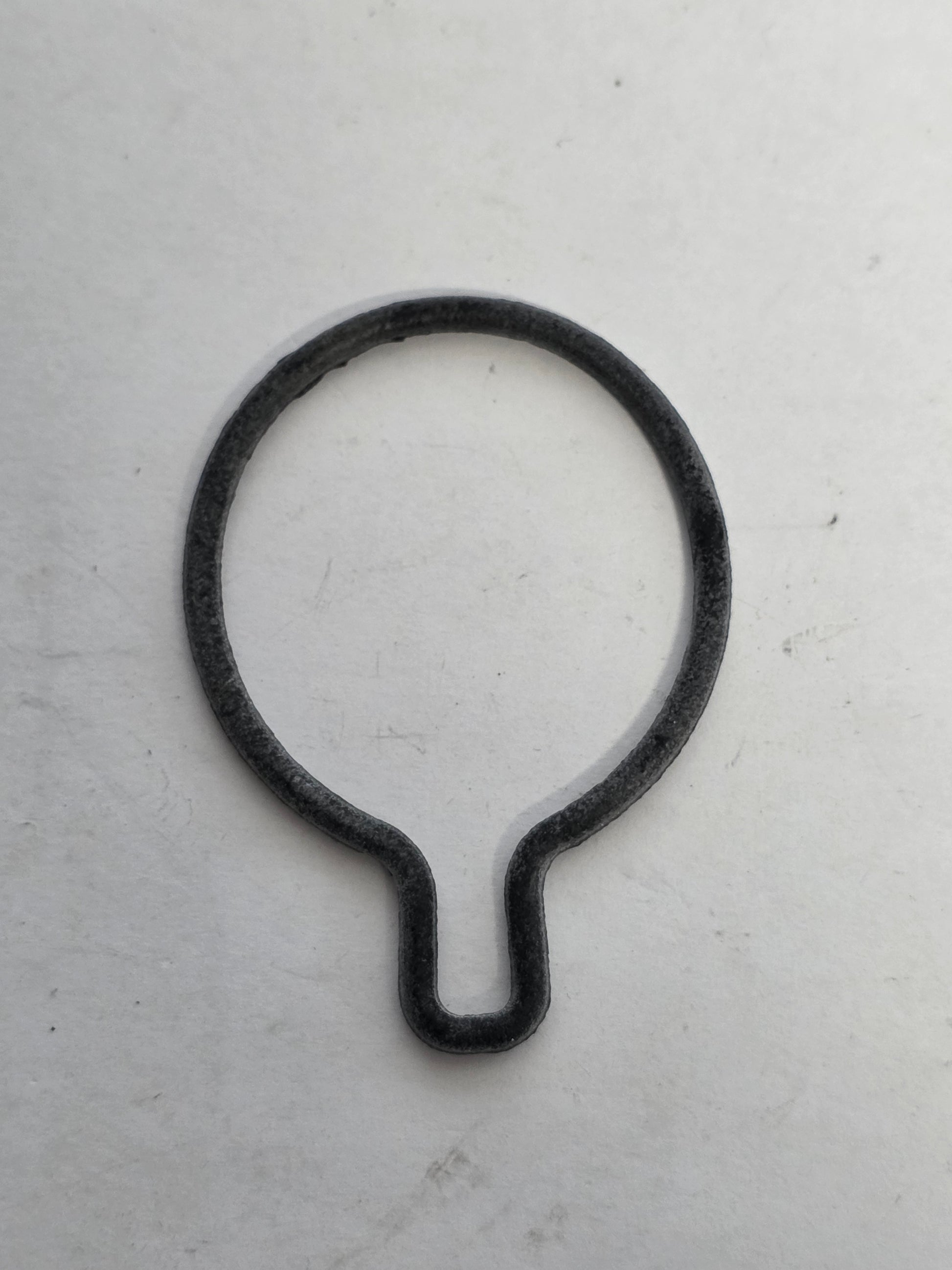

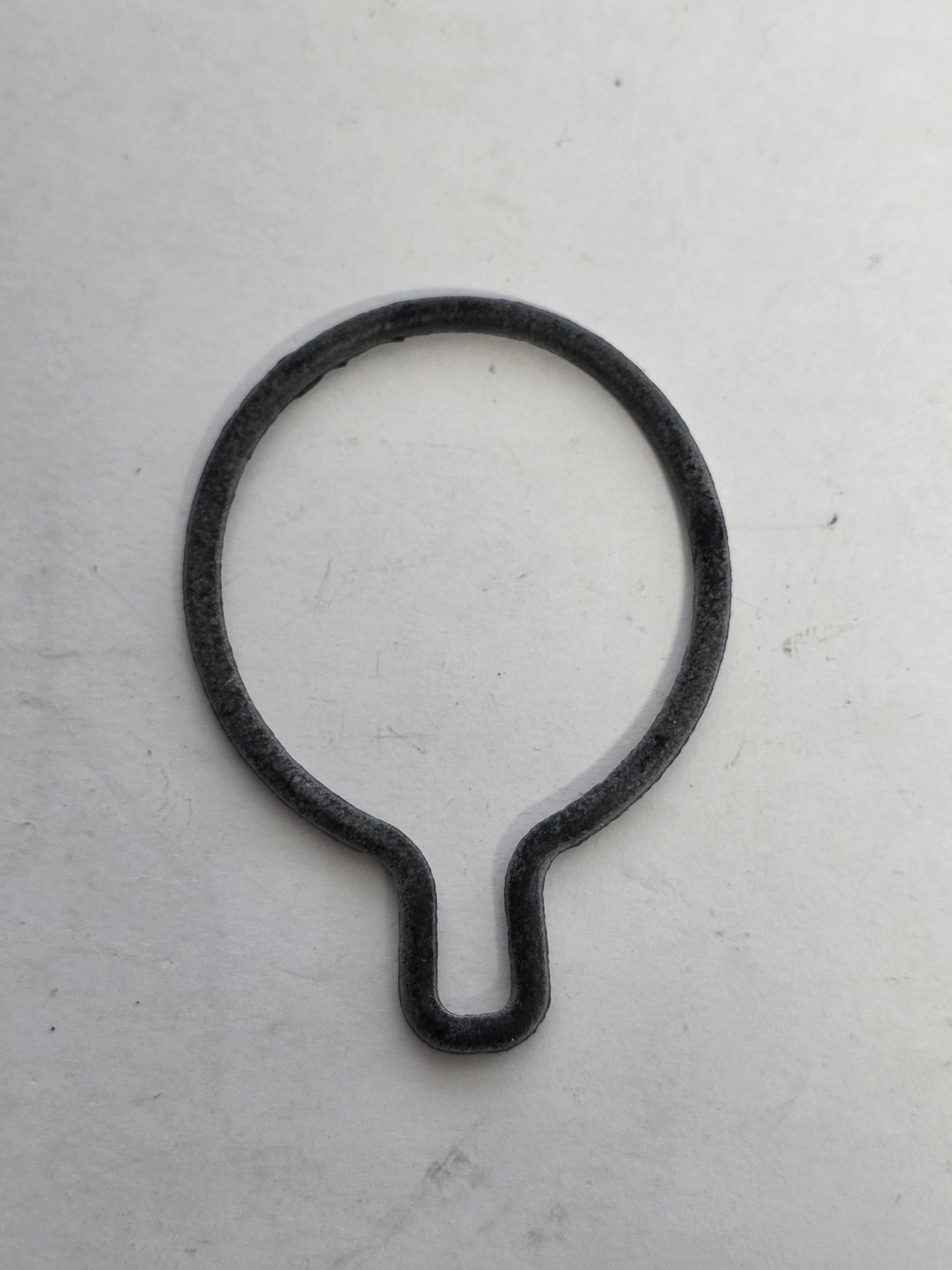

Genuine Suzuki Marine Water-Pump Case Seal No. 2 - Part Number: 17417-92J00

Genuine Suzuki secondary water-pump case seal used with the original DF90, DF100, DF115 and DF140 pump assembly. It works with seal 17416-92J00 to prevent internal water bypass and leakage around the pump sleeve and housing.

⚙️ Key Features

• Genuine Suzuki water-pump seal No. 2
• Designed for the 92J-series water-pump assembly
• Works with companion seal 17416-92J00
• Included in genuine pump kit 17400-92J00
• Replace whenever the water-pump case is removed

🚤 Compatibility

Commonly used on

• First-generation DF90-DF140 water-pump cases

Typically suits

• Engine models:
• DF90 — approximately 2001-2008
• DF100 — approximately 2009-2011
• DF115 and DF115Z — approximately 2001-2011
• DF140 and DF140Z — approximately 2002-2010
• HP Range: 90HP-140HP
• Engine Type: Inline-four four-stroke outboards
• Model/Serial Note: Not interchangeable with every later A-series water-pump seal.

🔌 Function

The seal closes the second pump-case joint and helps direct all impeller output toward the engine cooling tube.

⚠️ Common Signs of Failure

• Cooling-water leakage inside the extension housing
• Weak water-pump discharge
• Pump will not hold prime
• Seal is torn, compressed or brittle
• Engine overheats at idle despite a serviceable impeller

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 17417-92J00 (current documented reference for this pump system)

OEM / Related Numbers

• 17417-92J00
• Companion seal No. 1: 17416-92J00
• Water-pump kit: 17400-92J00

Aftermarket / Verified Equivalents

• GLM Marine: 86625

📦 Condition

• Genuine Suzuki Marine part
• Brand new
• Supplied in original or equivalent protective packaging
