17461-87E12-000 Suzuki Marine Impeller | Genuine OEM Outboard Part

🔧 Product Description

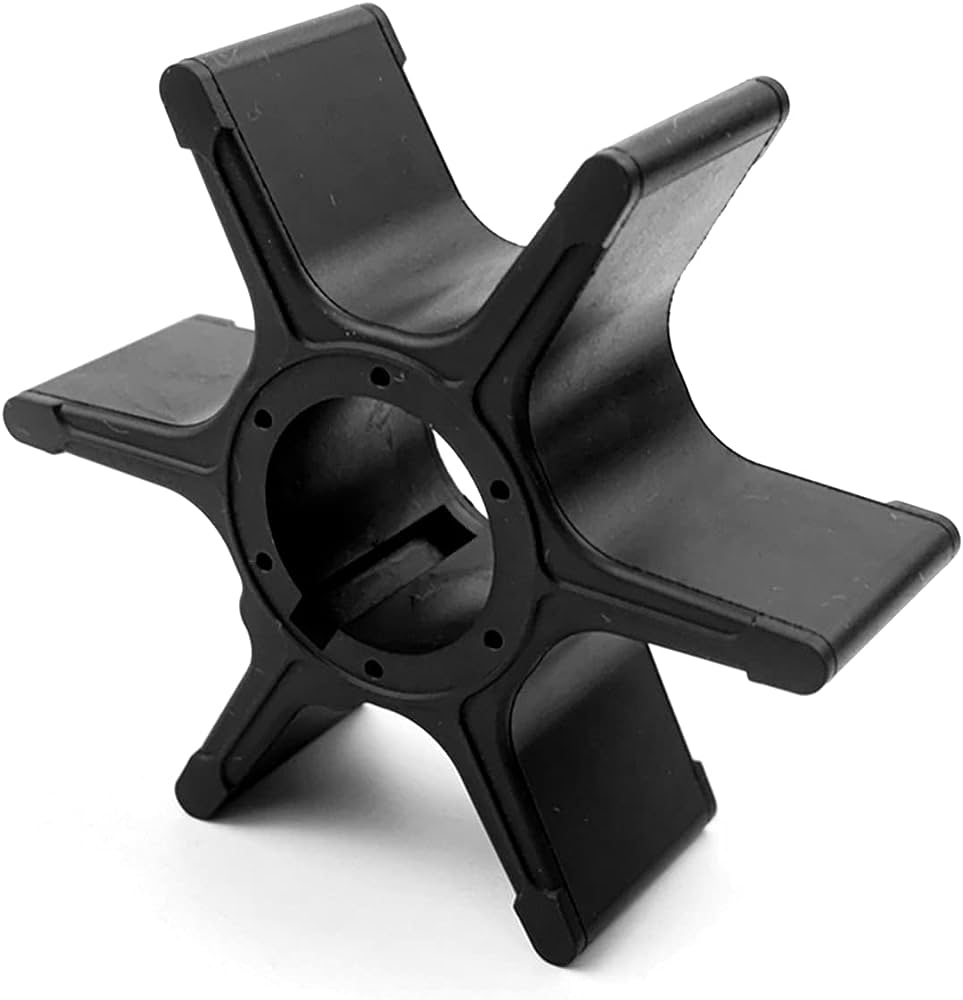

Genuine Suzuki Marine Water-Pump Impeller - Part Number: 17461-87E12-000

Genuine Suzuki flexible water-pump impeller used across selected DT two-stroke and DF four-stroke outboards. The impeller has an approximate outside diameter of 78.3mm, height of 35.1mm and shaft bore of approximately 22.2mm.

⚙️ Key Features

• Genuine Suzuki flexible marine impeller
• Approximate outside diameter: 78.3mm
• Approximate height: 35.1mm
• Approximate bore: 22.2mm
• Uses the applicable half-moon drive key

🚤 Compatibility

Commonly used on

• Suzuki DT-series two-stroke and DF-series four-stroke cooling-water pumps

Typically suits

• Engine models:
• DT90 and DT100
• DF60 original-generation models
• DF70 original-generation models
• DF40A, DF50A and DF60A where the original impeller reference matches
• DF70A, DF75A, DF80A and DF90A
• DF100B where the original impeller reference matches
• HP Range: 40HP-100HP across the complete replacement family
• Engine Type: Two-stroke and four-stroke outboards
• Year Range:
• DT90/DT100: principal applications from approximately 1988
• DF60/DF70: approximately 1998 onward
• DF70A/DF80A/DF90A: approximately 2009 onward

🔌 Function

The rotating impeller draws raw water through the gearcase intake and forces it into the engine cooling passages.

⚠️ Common Signs of Failure

• Weak tell-tale stream
• Overheating at idle
• Cracked, missing or permanently bent blades
• Impeller hub slipping on the shaft
• Pump will not prime
• Broken vane fragments lodged in cooling passages

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 17461-87E12 → Supersedes 17461-87E11
• 17461-87E11 → Supersedes 17461-87E10
• 17461-87E10 → Supersedes 17461-87E00

OEM / Related Numbers

• 17461-87E00
• 17461-87E10
• 17461-87E11
• 17461-87E12
• Impeller key: 09420-04009

Aftermarket / Verified Equivalents

• Sierra Marine: 18-3049
• HJ Marine: J-6302
• GLM Marine: 89380
• RECMAR: REC17461-87E12

📦 Condition

• Genuine Suzuki Marine part
• Brand new
• Supplied in original or equivalent protective packaging
