17461-90J01 Suzuki Marine Impeller | Genuine OEM Outboard Part

🔧 Product Description

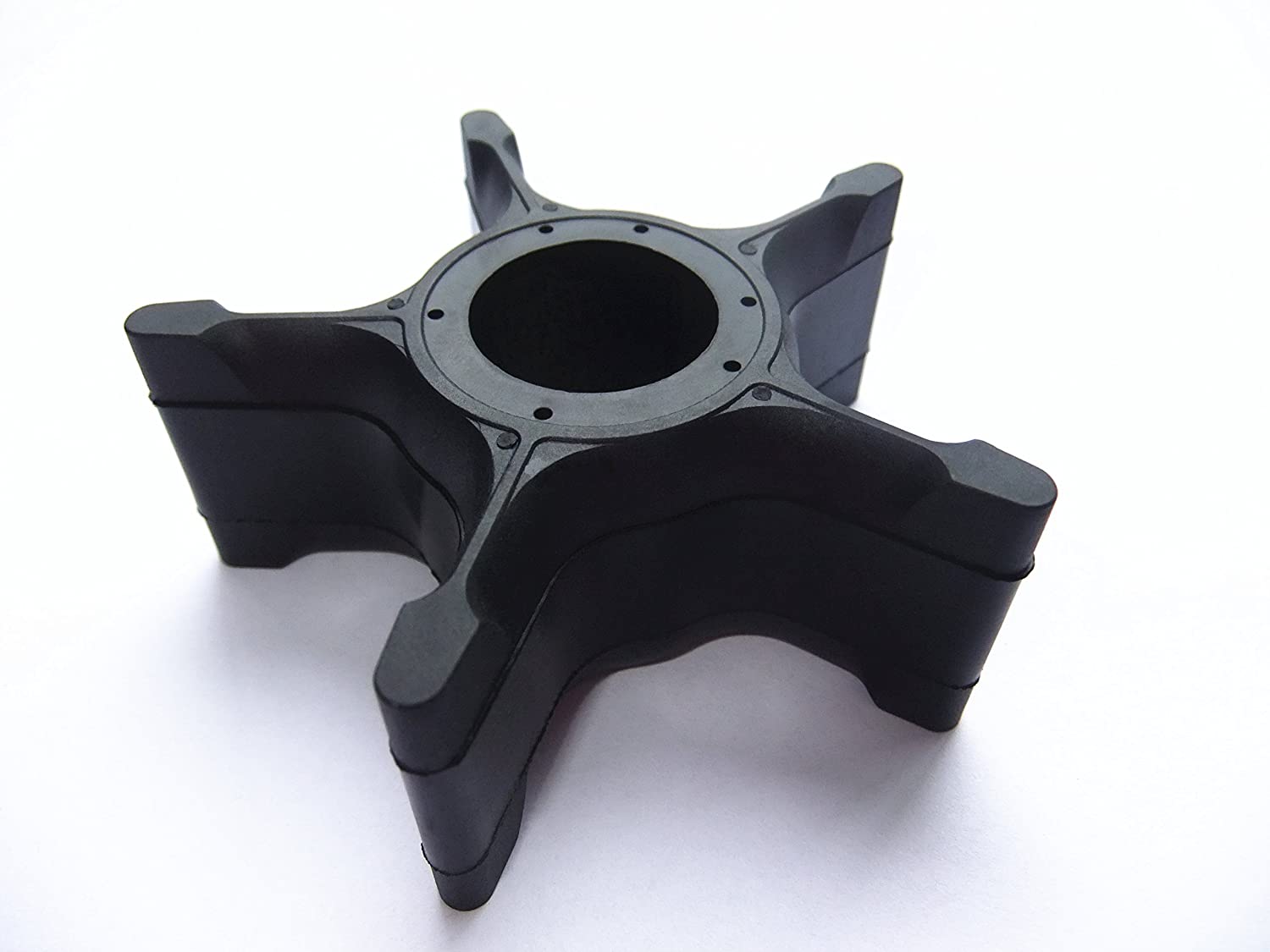

Genuine Suzuki Marine Water-Pump Impeller - Part Number: 17461-90J01

Genuine Suzuki flexible water-pump impeller used on selected DT115 through DT225 two-strokes and DF90 through DF200A four-strokes. It has an approximate 85.7mm outside diameter, 22.2mm bore and uses drive key 09420-05009.

⚙️ Key Features

• Genuine Suzuki large water-pump impeller
• Approximate outside diameter: 85.7mm
• Approximate bore: 22.2mm
• Flexible marine-grade vane construction
• Used in pump kits 17400-92J00 and 17400-96J04

🚤 Compatibility

Commonly used on

• Suzuki large two-stroke and inline-four four-stroke water-pump systems

Typically suits

• Engine models:
• Selected DT115, DT140, DT150, DT175, DT200 and DT225
• DF90, DF100, DF115 and DF140 original-generation models
• DF150 and DF175
• DF150A, DF150AP, DF175A and DF175AP
• DF200A and DF200AP
• HP Range: 90HP-225HP across the complete replacement family
• Engine Type: Two-stroke and four-stroke outboards
• Year Range:
• Original DF90-DF140: approximately 2001-2011
• DF150/DF175: approximately 2006 onward
• DF200A/AP: approximately 2015 onward
• Model/Serial Note: Confirm the original impeller number on older DT engines and distinguish inline-four DF200A from the earlier V6 DF200.

🔌 Function

The impeller pumps raw water from the gearcase intake to the engine's cooling jackets and exhaust passages.

⚠️ Common Signs of Failure

• Reduced cooling-water output
• Overheating at low speed or under load
• Missing or cracked vanes
• Hub separation or key damage
• Pump fails to prime
• Scored pump sleeve caused by debris or dry running

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 17461-90J01 → Supersedes 17461-90J00
• 17461-90J00 → Replaces earlier 17461-945-series applications where specified

OEM / Related Numbers

• 17461-90J00
• 17461-90J01
• 17461-94500 / 94501 / 94502 / 94503
• 17461-94504 / 94505 / 94506
• 17461-94510 / 94511 / 94520
• Impeller key: 09420-05009

Aftermarket / Verified Equivalents

• Sierra Marine: 18-3023
• HJ Marine: J-9001
• GLM Marine: 89370
• RECMAR: REC17461-90J01

📦 Condition

• Genuine Suzuki Marine part
• Brand new
• Supplied in original or equivalent protective packaging
