17461-939M0-000 Suzuki Marine Impeller | Genuine OEM Outboard Part

🔧 Product Description

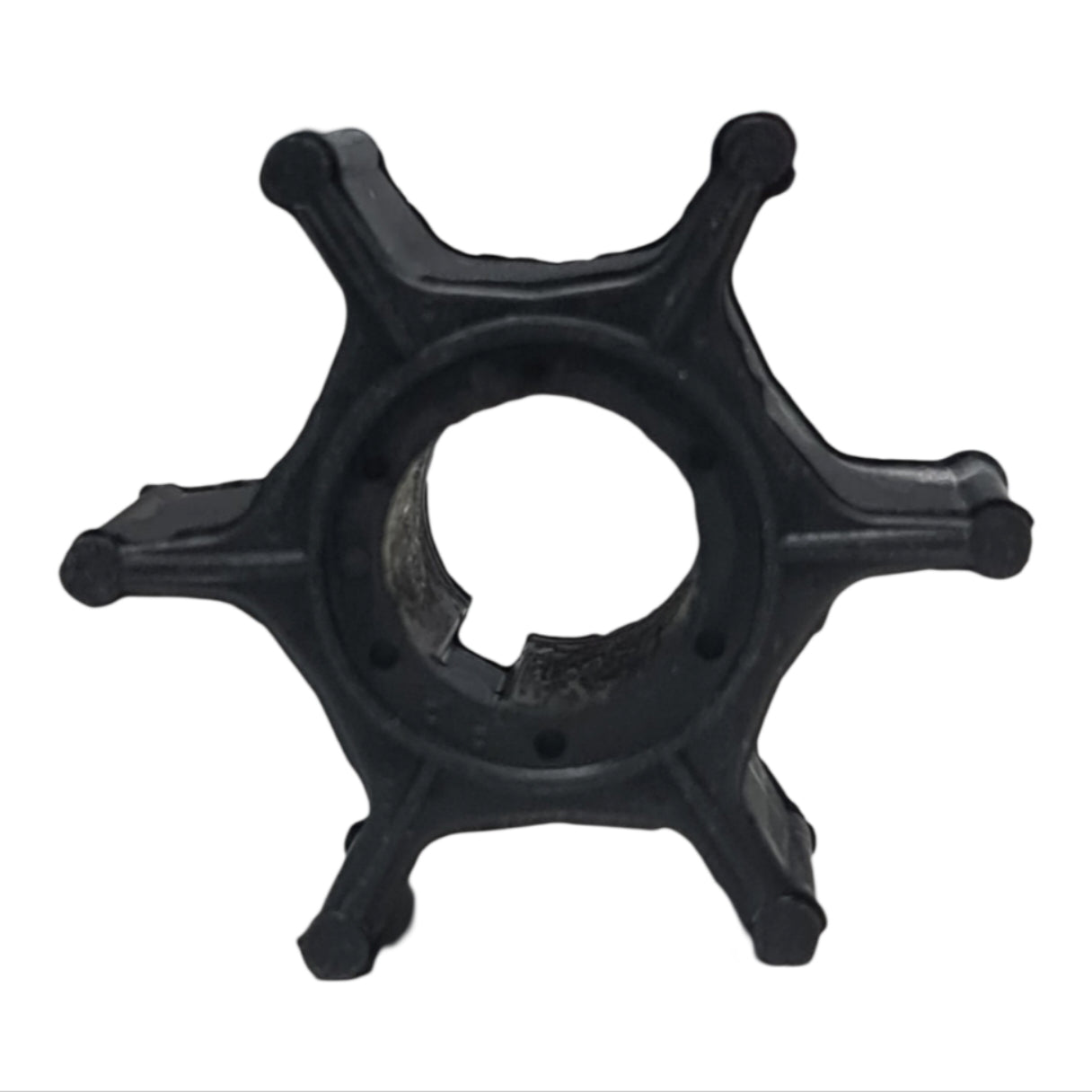

Genuine Suzuki Marine Water-Pump Impeller - Part Number: 17461-939M0-000

Genuine Suzuki flexible impeller for selected DF8 through DF20 four-stroke and DT15 two-stroke outboards. This is the latest documented replacement within the long-running 939-series impeller family.

⚙️ Key Features

• Genuine Suzuki small-outboard impeller
• Flexible multi-vane construction
• Designed for compact two- and four-stroke pump housings
• Direct replacement for earlier 939-series references
• Inspect the drive arrangement and housing before installation

🚤 Compatibility

Commonly used on

• Suzuki portable and small four-stroke water-pump assemblies

Typically suits

• Engine models:
• DF8 — approximately 2010 onward
• DF9.9 — approximately 2004 onward
• DF15 — approximately 2004 onward
• DF20 — approximately 2013 onward
• DT15 — selected applications approximately 1986-1997
• HP Range: 8HP-20HP
• Engine Type: Two-stroke and four-stroke outboards
• Model/Serial Note: Check the original impeller because different 8HP-15HP engine generations use different hub and drive arrangements.

🔌 Function

The impeller creates suction at the gearcase water intake and supplies cooling water to the powerhead.

⚠️ Common Signs of Failure

• Weak tell-tale discharge
• Engine overheats at idle
• Vanes are cracked, missing or set in one direction
• Hub slips under load
• Pump fails to prime after storage

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 17461-939M0 → Supersedes 17461-939L0
• 17461-939L0 → Supersedes 17461-93903
• 17461-93903 → Supersedes 17461-93902
• 17461-93902 → Supersedes 17461-93901
• 17461-93901 → Supersedes 17461-93900

OEM / Related Numbers

• 17461-93900
• 17461-93901
• 17461-93902
• 17461-93903
• 17461-939L0
• 17461-939M0
• 17491-93903

Aftermarket / Verified Equivalents

• BRP / Johnson / Evinrude: 5033112
• Sierra Marine: 18-3099
• Mallory Marine: 9-45500
• CEF: 500329

📦 Condition

• Genuine Suzuki Marine part
• Brand new
• Supplied in original or equivalent protective packaging
