17461-96312-000 Suzuki Marine Impeller | Genuine OEM Outboard Part

🔧 Product Description

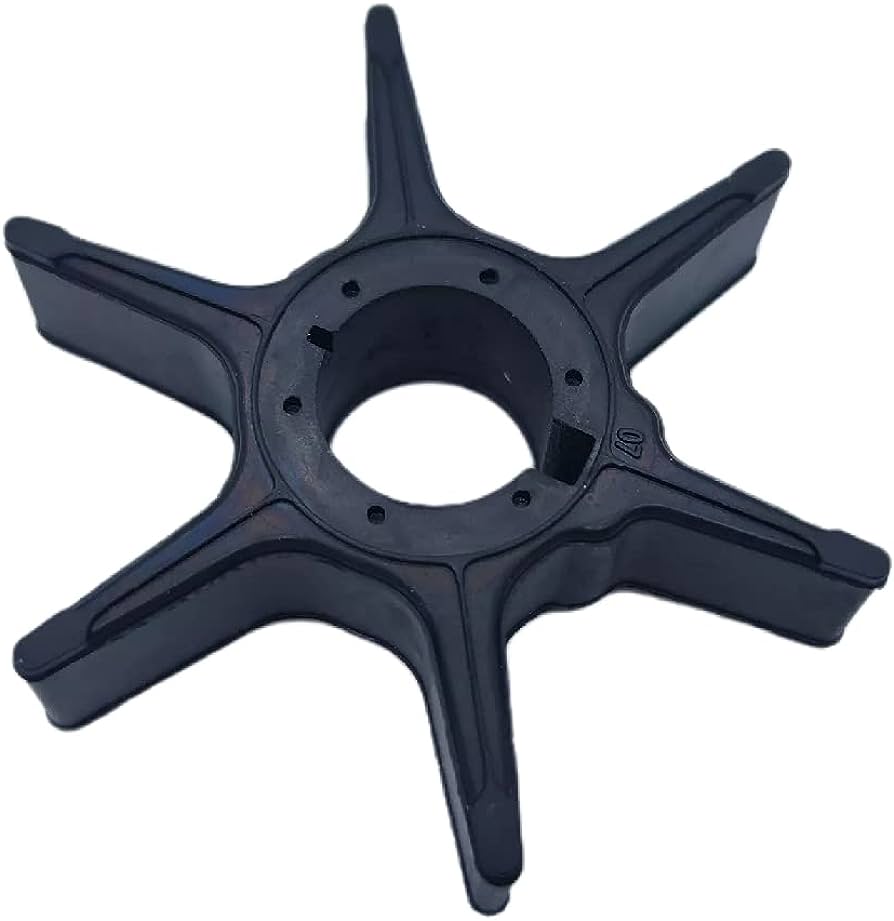

Genuine Suzuki Marine Water-Pump Impeller - Part Number: 17461-96312-000

Genuine Suzuki flexible impeller for selected DT20 through DT40 and DF20 through DF60 outboards. It has an approximate outside diameter of 63.5mm and a shaft bore of approximately 15.9mm.

⚙️ Key Features

• Genuine Suzuki medium-size impeller
• Approximate outside diameter: 63.5mm
• Approximate bore: 15.9mm
• Flexible vane construction for raw-water service
• Uses the applicable 09420-04006 drive key

🚤 Compatibility

Commonly used on

• Suzuki medium-horsepower two- and four-stroke water pumps

Typically suits

• Engine models:
• DT20, DT25, DT30, DT35 and DT40C where the original reference matches
• DF20, DF25 and DF30 original-generation models
• DF40 and DF50 original-generation models
• Selected DF60K applications
• HP Range: 20HP-60HP
• Engine Type: Two-stroke and four-stroke outboards
• Year Range: Application-dependent across several production generations
• Model/Serial Note: Later A-series engines may use a different impeller despite having the same horsepower.

🔌 Function

The impeller draws water through the gearcase inlet and pushes it into the engine cooling circuit.

⚠️ Common Signs of Failure

• Reduced cooling-water stream
• Overheating at idle
• Brittle or broken vanes
• Drive-key damage
• Pump loses prime
• Impeller hub spins independently of the blades

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 17461-96312 → Supersedes 17461-96311
• 17461-96311 → Supersedes 17461-96310
• 17461-96310 → Supersedes 17461-96302
• 17461-96302 → Supersedes 17461-96301
• 17461-96301 → Supersedes 17461-96300

OEM / Related Numbers

• 17461-96300
• 17461-96301
• 17461-96302
• 17461-96310
• 17461-96311
• 17461-96312
• Drive key: 09420-04006

Aftermarket / Verified Equivalents

• Sierra Marine: 18-3096
• HJ Marine: HJB-J-6301
• GLM Marine: 89628
• RECMAR: REC17461-96312

📦 Condition

• Genuine Suzuki Marine part
• Brand new
• Supplied in original or equivalent protective packaging
