17471-92J00 Suzuki Marine Outer Wear Plate | Genuine OEM Outboard Part

🔧 Product Description

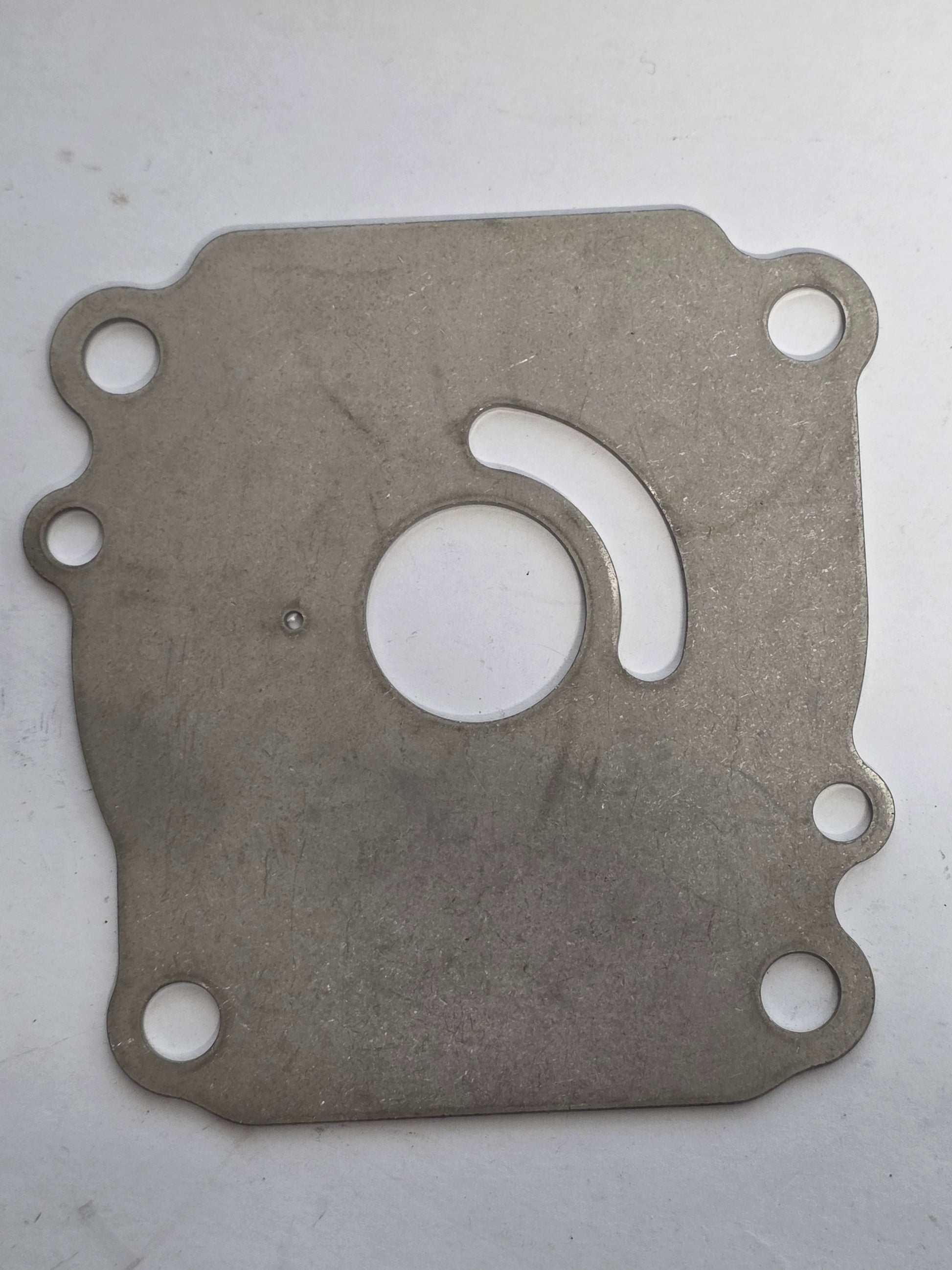

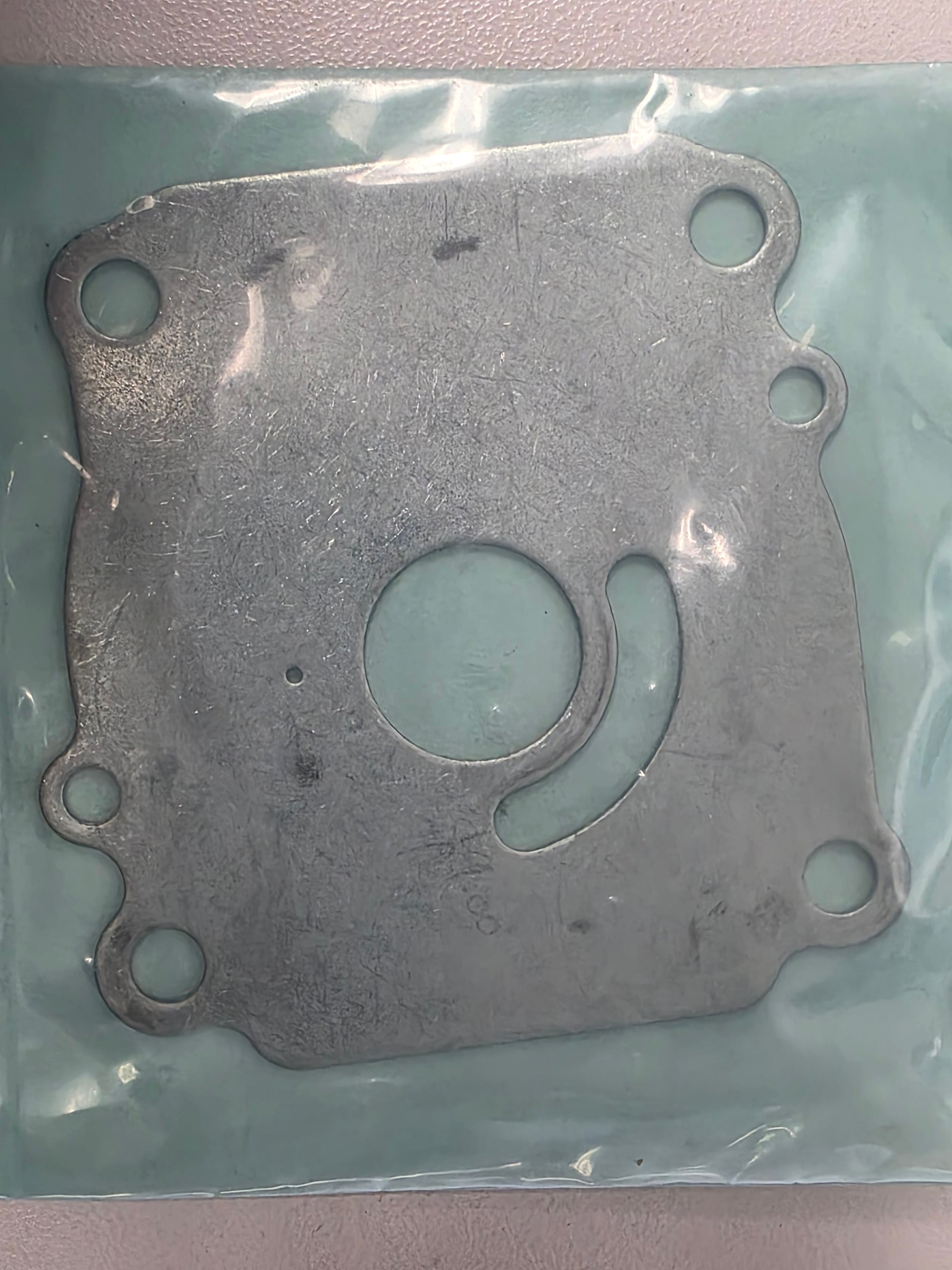

Genuine Suzuki Marine Lower Water-Pump Wear Plate - Part Number: 17471-92J00

Genuine Suzuki lower pump-case plate for first-generation DF90, DF100, DF115 and DF140 water-pump assemblies. It provides a smooth lower running surface for the impeller and separates the pump chamber from the gearcase.

⚙️ Key Features

• Genuine Suzuki stainless wear plate
• Provides the lower impeller sealing surface
• Used in water-pump kit 17400-92J00
• Resists marine corrosion and abrasion
• Replace when scored, warped, pitted or heat-discoloured

🚤 Compatibility

Commonly used on

• First-generation Suzuki DF90-DF140 water pumps

Typically suits

• Engine models:
• DF90
• DF100
• DF115 and DF115Z
• DF140 and DF140Z
• HP Range: 90HP-140HP
• Engine Type: Inline-four four-stroke outboards
• Year Range: Approximately 2001-2011, depending on model
• Exclusion Note: Does not suit DF90A or every later A-series pump assembly.

🔌 Function

The plate seals the bottom of the pump chamber and provides a flat surface against which the impeller vanes operate.

⚠️ Common Signs of Failure

• Circular scoring on the plate
• Corrosion pitting
• Warping or heat discolouration
• Low pump output with a new impeller
• Water leakage beneath the pump case

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 17471-92J00 → Replaces earlier 17471-87E10 and 17471-87E01 applications where specified

OEM / Related Numbers

• 17471-87E01
• 17471-87E10
• 17471-92J00
• BRP references: 5030724 / 5034651 / 5037170

Aftermarket / Verified Equivalents

• RECMAR: REC17471-92J00

📦 Condition

• Genuine Suzuki Marine part
• Brand new
• Supplied in original or equivalent protective packaging
