181268 Needle Roller Assembly | Genuine Volvo Penta Part

🔧 Product Description

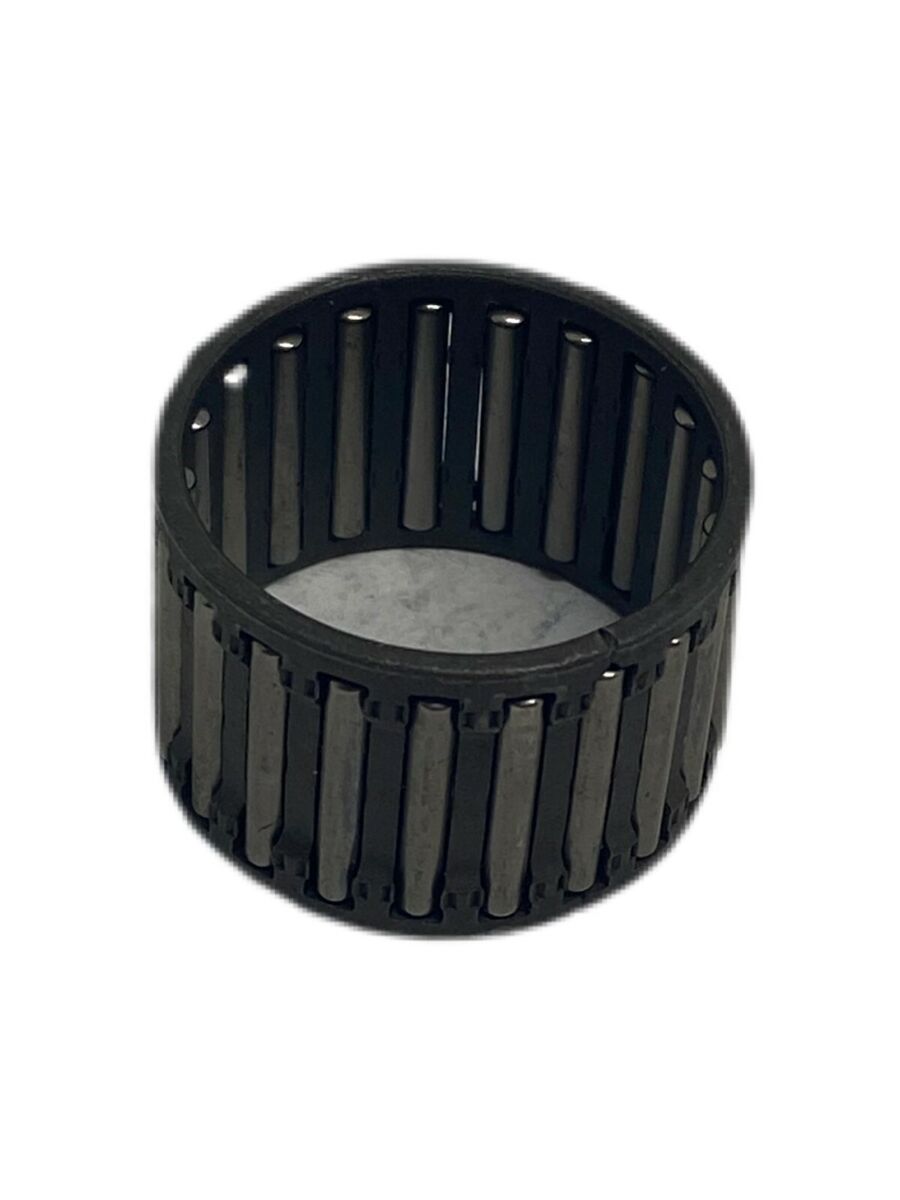

This genuine Volvo Penta needle roller assembly is a precision rolling-element or raceway component used in the upper vertical-shaft and reverse-gear needle-bearing positions. It is manufactured to the original Volvo dimensional, material and interface requirements so the serviced assembly retains its designed alignment, sealing, load capacity and operating reliability. In service, it supports the selected vertical or transmission shaft using compact needle rollers where radial space is limited. Selection must be confirmed by OEM part number 181268, the exact engine/product model, serial number and installed configuration.

🚤 Compatibility

• Engine Family: MD, MB, AQ, BB, B, AQD

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 181268
• Needle roller assembly - high radial capacity in a small radial section
• Net weight 0.016 kg
• Fits MD, MB, AQ, BB, B and AQD series engines and drives

🔌 Function

Supports the selected vertical or transmission shaft using compact needle rollers where radial space is limited. Measure shaft and housing fits, renew contaminated lubricant and related seals, and install using force only through the race being fitted. Set preload or end float to the applicable Volvo Penta specification.

⚠️ Common Signs of Failure

• Whining or rumbling that changes with shaft speed
• Scoring or brinelling marks on the shaft the needles run against
• Rollers loose in, or escaping from, the cage
• Increased shaft play or vibration
• Fine steel debris in the oil

🛠️ Service Notes

• Keep everything clean and work with clean dry hands and tools; needle bearings are intolerant of both grit and moisture
• Never press on the rollers or the cage — press only on the end face of the outer shell, using a drift or tube that matches its diameter so the load passes straight through
• Where the shell has a marked or lettered face, that face takes the drift; press the bearing in square and to the depth the manual gives
• Check the housing bore and the shaft or journal for wear, scoring and corrosion before fitting, because a new needle bearing on a worn shaft will not last
• Prime or pack the bearing with the specified lubricant before assembly and renew the adjacent seals so the new bearing stays clean

🔄 Supersession & Cross Reference

Other-Brand OEM Numbers

• INA: MP829

Aftermarket / Verified Equivalents

• Orbitrade 19068

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta AQ130C, AQ130D, AQ130A, AQ130B
• Volvo Penta AQ170B, AQ170C, AQ170A
• Volvo Penta BB115A, BB115B, BB115C
• Volvo Penta BB170B, BB170C, BB170A
• Volvo Penta MB20A, MB20B, MB20C
• Volvo Penta MD5A, MD5B, MD5C
• Volvo Penta AQ115A, AQ115B
• Volvo Penta AQD21A, AQD21B
• Volvo Penta MD11C, MD11D
• Volvo Penta MD17C, MD17D
• Volvo Penta MD21B, MD21A
• Volvo Penta MD6A, MD6B
• Volvo Penta MD7B, MD7A
• Volvo Penta 100S, 110S
• Volvo Penta AQ165A
• Volvo Penta AQD2B
• Volvo Penta B20
• Volvo Penta BB165A
• Volvo Penta MB10A
• Volvo Penta MD1B
• Volvo Penta MD2B
• Volvo Penta MD3B
• Volvo Penta MD67C
