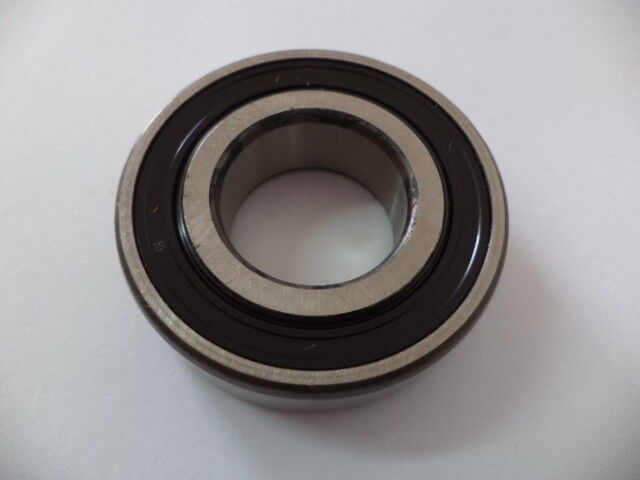

181335 Ball Bearing | Genuine Volvo Penta Part

🔧 Product Description

This genuine Volvo Penta ball bearing is a precision rolling-element or raceway component used in the flywheel pilot, alternator and cooling-fan hub bearing positions. It is manufactured to the original Volvo dimensional, material and interface requirements so the serviced assembly retains its designed alignment, sealing, load capacity and operating reliability. Standard deep-groove bearing family 6205 with sealed configuration used in documented replacements. In service, it supports the relevant flywheel pilot, alternator rotor or fan-hub shaft with low-friction radial guidance. Selection must be confirmed by OEM part number 181335, the exact engine/product model, serial number and installed configuration.

🚤 Compatibility

• Engine Family: MD, TMD, AQD, TWD, TID, TD, D, TAMD, THAMD, TAD

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 181335
• Supersedes previous part numbers 6607311 and 804708
• Net weight 0.138 kg
• Fits MD, TMD, AQD, TWD, TID and TD series engines

🔌 Function

Supports the relevant flywheel pilot, alternator rotor or fan-hub shaft with low-friction radial guidance. Measure shaft and housing fits, renew contaminated lubricant and related seals, and install using force only through the race being fitted. Set preload or end float to the applicable Volvo Penta specification.

⚠️ Common Signs of Failure

• Whining or rumbling that tracks shaft speed
• Radial play or shaft movement felt by hand
• Roughness, catching or notchiness when rotated
• Bearing housing running abnormally hot
• Fine bright metal in the oil

🛠️ Service Notes

• Work clean — leave the bearing in its wrapping until the moment it goes in, and do not wash the preservative out or blow it dry with compressed air
• Apply the fitting force only to the ring being fitted, through a tube or drift that bears on that ring alone; force pushed through the balls from one ring to the other dents the raceways and the bearing will be noisy and short-lived from the first run
• Where the fit calls for it, expand the inner ring with even, controlled heat rather than driving it on, and never heat a bearing with a flame or beyond the temperature given in the workshop manual for your engine
• Check the shaft and housing seats before fitting — scoring, burrs, corrosion or a worn seat will ruin a new bearing, and fretting marks mean the seat itself needs attention
• Fit the bearing square and fully home against its shoulder, note which way round any sealed, shielded or marked face must go, and lubricate with the grease or oil specified for the application before it is turned under load

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 181335 → Supersedes 6607311

OEM / Related Numbers

• 804708 earlier number superseded by this part
• 6607311 earlier number superseded by this part
• 20450750 referenced in the part notes
• 20450755 fan hub
• 21009699 shaft
• 20715795 bearing bracket
• 181648 ball bearing

Other-Brand OEM Numbers

• SKF 6205-2RSH
• Timken 6205-2RS
• SKF: 6205-2RS
• FAG: 6205
• Koyo: 6205

Aftermarket / Verified Equivalents

• DT Spare Parts: 2.30300
• Fersa Bearings: 6205
• Febi Bilstein: 9841

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta TD61A, TD61ACE, TD61AG, TD61AGP, TD61AP, TD61APB, TD61AW
• Volvo Penta TD71A, TD71ACE, TD71AG, TD71AGP, TD71AP, TD71APB, TD71AW
• Volvo Penta AQD70B, AQD70BL, AQD70CL, AQD70D, AQD70C
• Volvo Penta TID71A, TID71AG, TID71AGP, TID71AP, TID71APB
• Volvo Penta TAMD70B, TAMD70E, TAMD70C, TAMD70D
• Volvo Penta TD60D-83, TD60A, TD60B, TD60D
• Volvo Penta D7A-B TA, D7A-T, D7C-B TA
• Volvo Penta MD100A, MD100B, MD100B-CC
• Volvo Penta MD70B, MD70BK, MD70C
• Volvo Penta TAMD60A, TAMD60B, TAMD60C
• Volvo Penta TD70G, TD70B, TD70G-83
• Volvo Penta D5A-B TA, D5A-T
• Volvo Penta TAD721GE, TAD721VE
• Volvo Penta TAD722GE, TAD722VE
• Volvo Penta TAMD120A, TAMD120B
• Volvo Penta TD610M, TD610V
• Volvo Penta TD630ME, TD630VE
• Volvo Penta TD730ME, TD730VE
• Volvo Penta THAMD70C, THAMD70B
• Volvo Penta TID61AG, TID61AGP
• Volvo Penta TMD100A, TMD100C
• Volvo Penta TMD120A, TMD120B
• Volvo Penta TMD70C, TMD70B
• Volvo Penta TWD630ME, TWD630VE
• Volvo Penta D42A
• Volvo Penta D70B
• Volvo Penta MD120A
• Volvo Penta TAD520VE
• Volvo Penta TAD650VE
• Volvo Penta TAD660VE
• Volvo Penta TAD720VE
• Volvo Penta TAD730V
• Volvo Penta TAD732GE EDC4
• Volvo Penta TAD733GE EDC4
• Volvo Penta TAD750VE
• Volvo Penta TAD760VE
• Volvo Penta TAMD121D
• Volvo Penta TAMD122D
• Volvo Penta TID60D
• Volvo Penta TID70G
• Volvo Penta TMD121C
• Volvo Penta TWD610V
• Volvo Penta TWD710V
• Volvo Penta TWD730ME
• Volvo Penta TWD731VE
