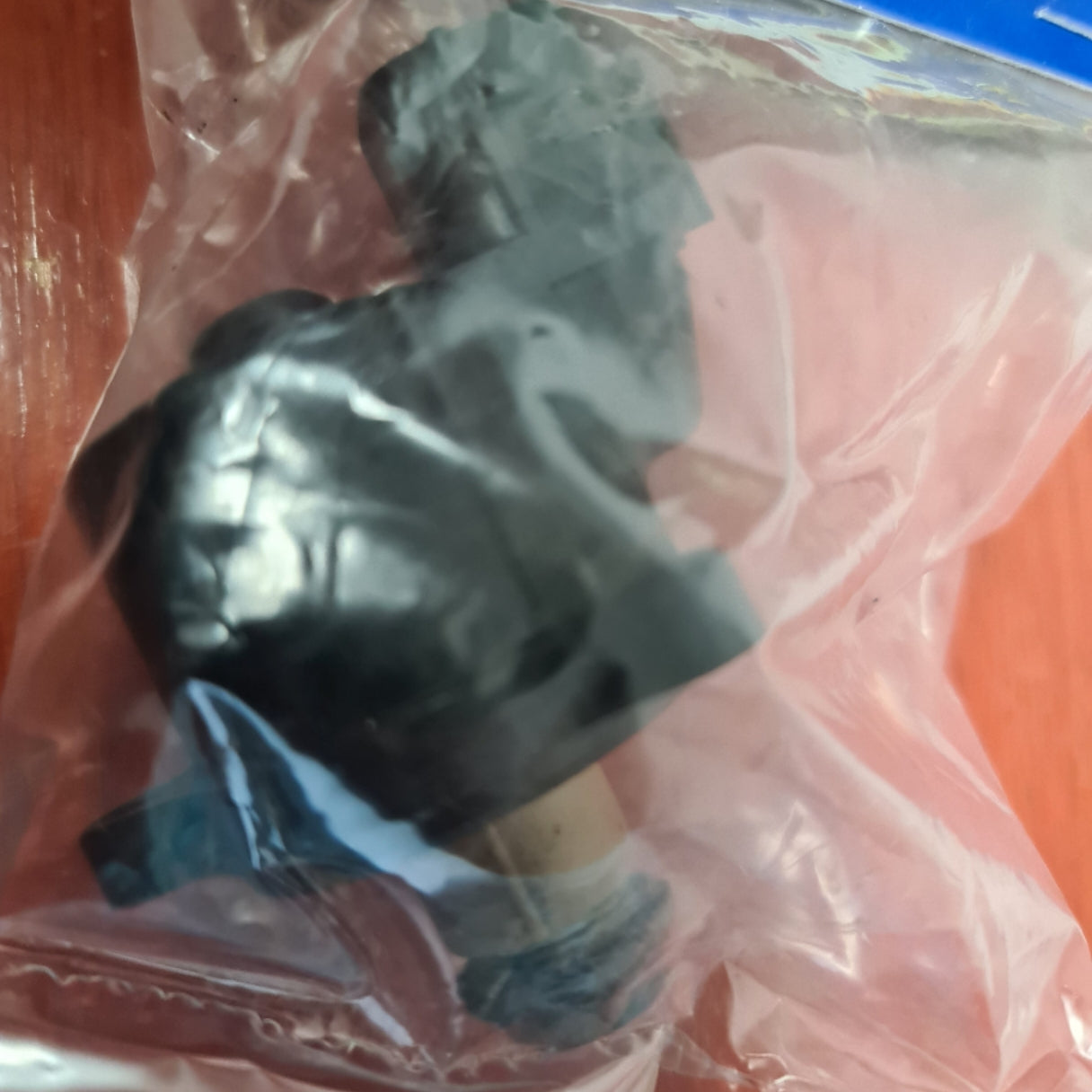

18137-93J00 18137-93J01 Suzuki IAC Valve | Genuine Used Part

18137-93J00 18137-93J01 Suzuki IAC Valve | Genuine Used Part

$200.00 AUD
$200.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

🔧 Product Description

Genuine Suzuki Idle Air Control Valve - Part Number: 18137-93J01

A genuine used Suzuki idle-air control valve for selected DF150, DF175, DF200, DF225 and DF250 four-stroke outboards.

The electrically operated valve meters bypass air around the closed throttle plates. The engine control module adjusts the valve opening to maintain stable idle speed during starting, warm-up, gear engagement and changing electrical loads.

⚙️ Key Features

  • Genuine Suzuki Marine idle-air control valve
  • Correct later part number 18137-93J01
  • Replaces earlier valve 18137-93J00
  • Electronically controlled throttle-bypass valve
  • Used on Suzuki large-displacement four-stroke outboards

🚤 Compatibility

Commonly used on

  • Suzuki V6 electronic fuel-injection intake manifolds
  • Suzuki DF150 and DF175 non-A engine families
  • Selected DF200, DF225 and DF250 engines using the 93J-series valve

Typically suits

  • Engine models:
  • Suzuki DF150
  • Suzuki DF175
  • Suzuki DF150 non-A models - approximately 2013-2018
  • Suzuki DF175 non-A models - approximately 2013-2018
  • Suzuki DF200 applications using 18137-93J00
  • Suzuki DF225 applications using 18137-93J00
  • Suzuki DF250 applications using 18137-93J00
  • HP Range: 150HP - 250HP
  • Engine Type: Suzuki electronic fuel-injected four-stroke outboard
  • Year Range: Dependent on model; 93J01 is specifically used on applicable 2013-2018 DF150 / DF175 engines

🔌 Function

The valve regulates bypass air around the throttle plates so the ECU can maintain the correct idle speed during starting, warm-up and load changes.

⚠️ Common Signs of Failure

  • Engine stalls at idle
  • Idle speed is too high, too low or unstable
  • Poor cold starting
  • Engine stalls when shifted into gear
  • IAC or idle-control fault code

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 18137-93J01 → Supersedes 18137-93J00
  • 18137-93J00 earlier Suzuki IAC valve reference

OEM / Related Numbers

  • 18137-93J01
  • 1813793J01
  • 18137-93J00
  • 1813793J00
  • 09280-29008 related IAC valve O-ring
  • IAC / ISC valve reference

Aftermarket / Verified Equivalents

  • FridayParts: Replacement IAC Valve for 18137-93J00
  • Aftermarket OEM-Style Reference: 18137-93J00 / 18137-93J01

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
