181538 Ball Bearing | Genuine Volvo Penta Part

🔧 Product Description

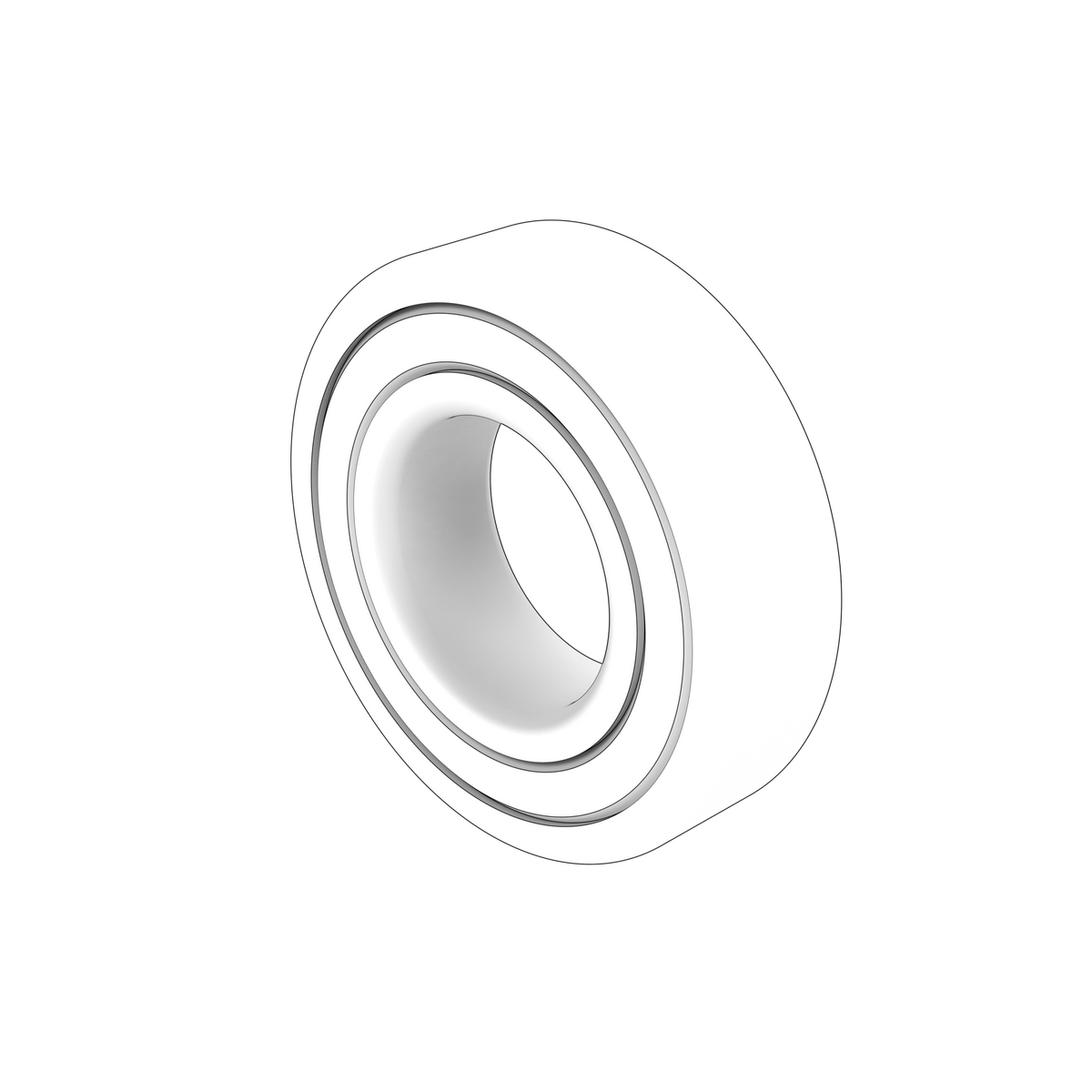

This genuine Volvo Penta ball bearing is a precision rolling-element or raceway component used in the legacy Volvo Penta ball-bearing position. It is manufactured to the original Volvo dimensional, material and interface requirements so the serviced assembly retains its designed alignment, sealing, load capacity and operating reliability. Inventory cross-reference associates this service number with standard 6210 bearing geometry; verify clearance, shielding and lubrication specification before substitution. In service, it supports a rotating shaft with low friction while controlling radial load and limited axial load. Selection must be confirmed by OEM part number 181538, the exact engine/product model, serial number and installed configuration.

🚤 Compatibility

• Engine Family: MD, TMD, D, TD, AQD, TAMD, AD, AQAD, TWD, TID, THAMD, TAD, KAMD, KAD

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 181538
• Also supplied as part of the overhaul kit
• Net weight 0.202 kg
• Fits MD, TMD, D, TD, AQD and TAMD series engines

📋 Kit Contents

• Included in overhaul kit.

🔌 Function

Supports a rotating shaft with low friction while controlling radial load and limited axial load. Measure shaft and housing fits, renew contaminated lubricant and related seals, and install using force only through the race being fitted. Set preload or end float to the applicable Volvo Penta specification.

⚠️ Common Signs of Failure

• Rumbling or growling that follows shaft speed
• Play or run-out at the shaft
• Roughness or catching when turned by hand
• Bearing housing hot to the touch after running
• Metallic debris in the oil

🛠️ Service Notes

• Work clean — leave the bearing in its wrapping until the moment it goes in, and do not wash the preservative out or blow it dry with compressed air
• Apply the fitting force only to the ring being fitted, through a tube or drift that bears on that ring alone; force pushed through the balls from one ring to the other dents the raceways and the bearing will be noisy and short-lived from the first run
• Where the fit calls for it, expand the inner ring with even, controlled heat rather than driving it on, and never heat a bearing with a flame or beyond the temperature given in the workshop manual for your engine
• Check the shaft and housing seats before fitting — scoring, burrs, corrosion or a worn seat will ruin a new bearing, and fretting marks mean the seat itself needs attention
• Fit the bearing square and fully home against its shoulder, note which way round any sealed, shielded or marked face must go, and lubricate with the grease or oil specified for the application before it is turned under load

🔄 Supersession & Cross Reference

Other-Brand OEM Numbers

• SKF 6210 geometry (configuration must be confirmed)
• SKF: 6206RSJ
• SKF: 6206RS1/C4
• Timken: RW101
• NTN: NBRW101

Aftermarket / Verified Equivalents

• DT Spare Parts: 7.18201
• National: RW101

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta TD100AHC, TD100ARC, TD100G-85, TD100A, TD100AG, TD100CHC, TD100G, TD100GG, TD100GGP, TD100HP, TD100HPB, TD100GG-85, TD100GP, TD100GP-85, TD100CRC
• Volvo Penta TD120C, TD120A, TD120G, TD120GG PP, TD120HPP, TD120GG, TD120AHC, TD120ARC, TD120BHC, TD120BRC
• Volvo Penta TAMD31L-A, TAMD31M-A, TAMD31P, TAMD31P-A, TAMD31S, TAMD31A, TAMD31B, TAMD31D
• Volvo Penta TID100KG, TID100KGP, TID100K, TID100K-87, TID100KGP-87, TID100KP, TID100KP-87, TID100KPB-87
• Volvo Penta TAMD41B, TAMD41D, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41P, TAMD41A
• Volvo Penta TAMD74P-A, TAMD74P-B, TAMD74A, TAMD74C-A, TAMD74C-B, TAMD74L-A, TAMD74L-B
• Volvo Penta AD31, AD31B, AD31D-A, AD31L-A, AD31P-A, AD31XD
• Volvo Penta AD41B, AD41D, AD41L-A, AD41P-A, AD41A, AD41BJ
• Volvo Penta TAMD122A, TAMD122A/C, TAMD122D, TAMD122P-A, TAMD122P-B, TAMD122P-C
• Volvo Penta AQD70B, AQD70BL, AQD70CL, AQD70D, AQD70C
• Volvo Penta TD70CHC, TD70CRC, TD70G, TD70B, TD70G-83
• Volvo Penta D100A, D100BHC, D100BRC, D100B
• Volvo Penta D41, D41B, D41D, D41L-A
• Volvo Penta TAMD70B, TAMD70E, TAMD70C, TAMD70D
• Volvo Penta TD60D-83, TD60A, TD60B, TD60D
• Volvo Penta TMD31A, TMD31B, TMD31D, TMD31L-A
• Volvo Penta TMD41A, TMD41B, TMD41D, TMD41L-A
• Volvo Penta D70CHC, D70CRC, D70B
• Volvo Penta KAD42A, KAD42B, KAD42P-A
• Volvo Penta KAD44P, KAD44P-B, KAD44P-C
• Volvo Penta KAMD42A, KAMD42B, KAMD42P-A
• Volvo Penta KAMD43P, KAMD43P-A, KAMD43P-B
• Volvo Penta KAMD44P-B, KAMD44P-C, KAMD44P-A
• Volvo Penta MD100A, MD100B, MD100B-CC
• Volvo Penta TAD120AHC, TAD120BHC, TAD120CHC
• Volvo Penta TAMD60A, TAMD60B, TAMD60C
• Volvo Penta TMD40A, TMD40B, TMD40C
• Volvo Penta AQAD40B, AQAD40A
• Volvo Penta MD70B, MD70C
• Volvo Penta TAD1030V, TAD1030VE
• Volvo Penta TAMD102A, TAMD102D
• Volvo Penta TAMD120A, TAMD120B
• Volvo Penta TAMD40A, TAMD40B
• Volvo Penta TAMD42WJ-A, TAMD42B
• Volvo Penta TAMD63L-A, TAMD63P-A
• Volvo Penta TAMD73P-A, TAMD73WJ-A
• Volvo Penta TD121CHC, TD121CRC
• Volvo Penta THAMD70C, THAMD70B
• Volvo Penta TID120FG, TID120HPP
• Volvo Penta TID60DG, TID60D
• Volvo Penta TMD100A, TMD100C
• Volvo Penta TMD120A, TMD120B
• Volvo Penta TMD70C, TMD70B
• Volvo Penta AQAD30A
• Volvo Penta AQD40A
• Volvo Penta D120A
• Volvo Penta D45BPP
• Volvo Penta KAD300-A
• Volvo Penta KAD32P
• Volvo Penta KAD43P-A
• Volvo Penta KAMD300-A
• Volvo Penta MD120A
• Volvo Penta MD30A
• Volvo Penta MD31A
• Volvo Penta MD40A
• Volvo Penta TAD121CHC
• Volvo Penta TAMD103A
• Volvo Penta TAMD121D
• Volvo Penta TAMD30A
• Volvo Penta TAMD71B
• Volvo Penta TAMD72A
• Volvo Penta TAMD75P-A
• Volvo Penta TD1010G
• Volvo Penta TD1030VE
• Volvo Penta TD30A
• Volvo Penta TD31ACE
• Volvo Penta TD40A
• Volvo Penta TD45B
• Volvo Penta TID121FG
• Volvo Penta TID70G
• Volvo Penta TMD102A
• Volvo Penta TMD121C
• Volvo Penta TMD122A
• Volvo Penta TMD30A
• Volvo Penta TWD1010G
• Volvo Penta TWD1030ME
• Volvo Penta TWD1031VE
