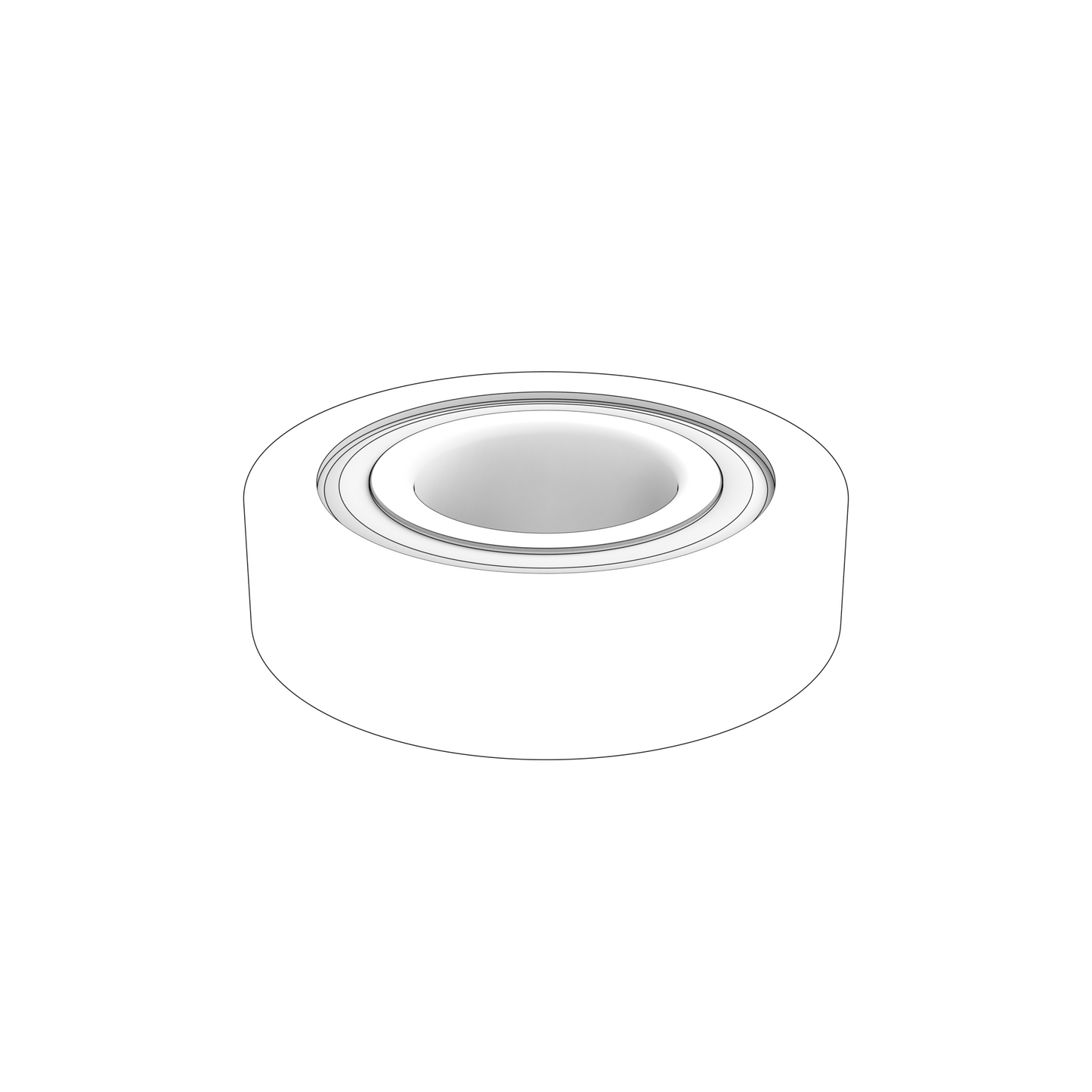

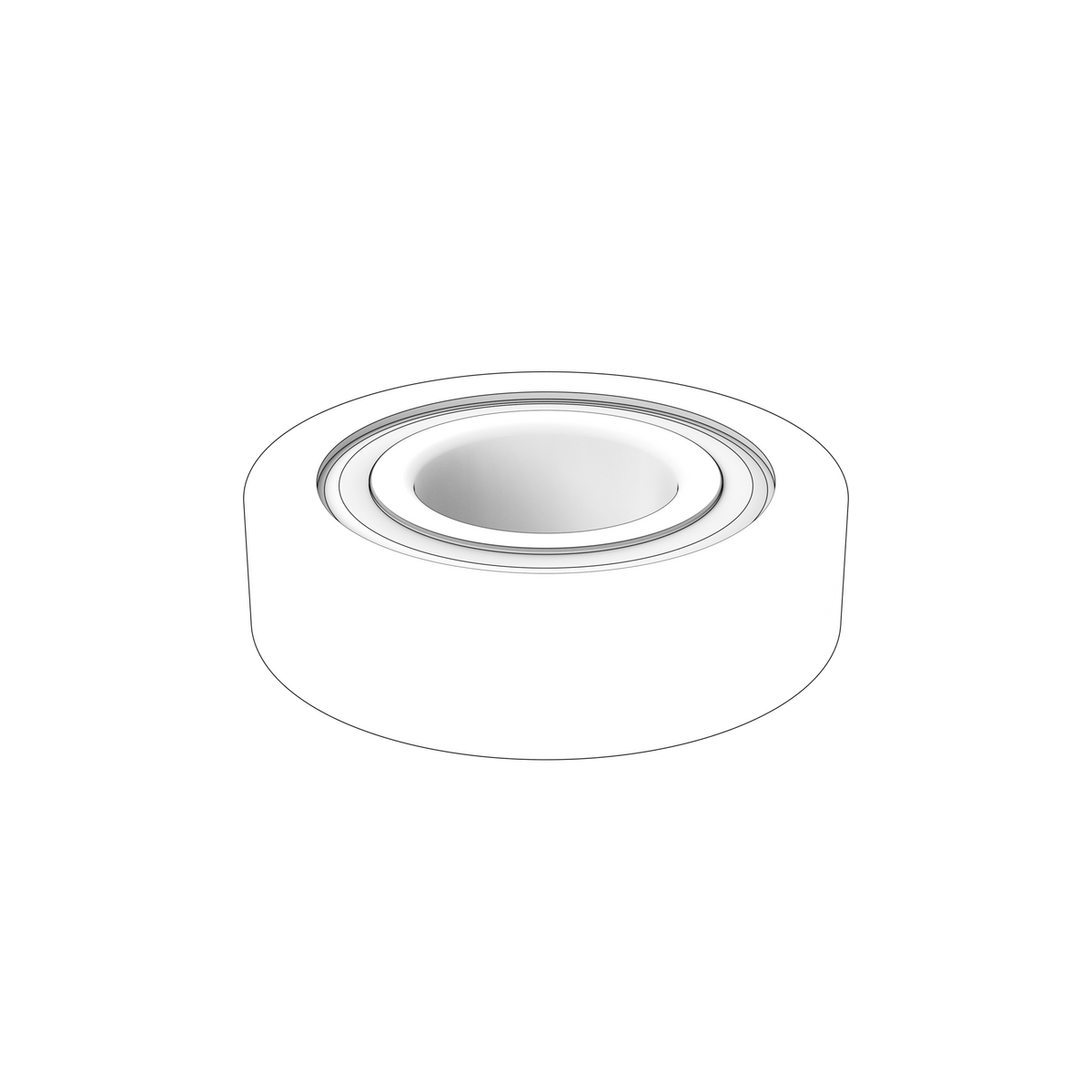

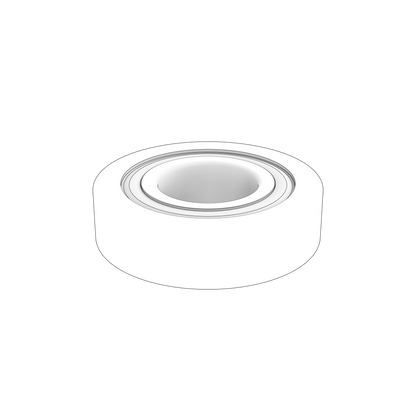

181877 Ball Bearing | Genuine Volvo Penta Part

🔧 Product Description

This genuine Volvo Penta ball bearing is a precision rolling-element or raceway component used in the jackshaft support-bearing position. It is manufactured to the original Volvo dimensional, material and interface requirements so the serviced assembly retains its designed alignment, sealing, load capacity and operating reliability. In service, it supports the intermediate jackshaft between the engine and drive while controlling radial play and driveline alignment. Selection must be confirmed by OEM part number 181877, the exact engine/product model, serial number and installed configuration.

🚤 Compatibility

• Engine Family: DPX, TMD, TD, D

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 181877
• Net weight 0.472 kg
• Listed for 251 engine and drive applications
• Fits DPX drives and TMD, TD and D series marine diesel engines

🔌 Function

Supports the intermediate jackshaft between the engine and drive while controlling radial play and driveline alignment. Measure shaft and housing fits, renew contaminated lubricant and related seals, and install using force only through the race being fitted. Set preload or end float to the applicable Volvo Penta specification.

⚠️ Common Signs of Failure

• Rumbling or growling that increases under load
• Measurable shaft play or run-out
• Rough or notchy rotation by hand
• Heat discolouration and darkened lubricant
• Metal particles in the oil or on the drain plug

🛠️ Service Notes

• Work clean — leave the bearing in its wrapping until the moment it goes in, and do not wash the preservative out or blow it dry with compressed air
• Apply the fitting force only to the ring being fitted, through a tube or drift that bears on that ring alone; force pushed through the balls from one ring to the other dents the raceways and the bearing will be noisy and short-lived from the first run
• Where the fit calls for it, expand the inner ring with even, controlled heat rather than driving it on, and never heat a bearing with a flame or beyond the temperature given in the workshop manual for your engine
• Check the shaft and housing seats before fitting — scoring, burrs, corrosion or a worn seat will ruin a new bearing, and fretting marks mean the seat itself needs attention
• Fit the bearing square and fully home against its shoulder, note which way round any sealed, shielded or marked face must go, and lubricate with the grease or oil specified for the application before it is turned under load

🔄 Supersession & Cross Reference

OEM / Related Numbers

• D120A auxiliary rotating-assembly application also specifies 181877

Other-Brand OEM Numbers

• SKF: 6307-2RS1/GJN

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 8.1Gi-B, 8.1Gi-BF, 8.1Gi-C, 8.1Gi-CF, 8.1GiC-J, 8.1GiC-JF, 8.1GiCE-JF, 8.1GiCE-J, 8.1GiCE-M, 8.1GiC-Q, 8.1Gi-D, 8.1Gi-DF, 8.1Gi-E, 8.1Gi-EF, 8.1GiE-JF, 8.1GiE-J, 8.1GiE-KF, 8.1GiE-K, 8.1GiE-M, 8.1GiE-MF, 8.1Gi-F, 8.1Gi-FF, 8.1Gi-G, 8.1Gi-GF, 8.1Gi-H, 8.1Gi-HF, 8.1Gi-J, 8.1Gi-JF, 8.1GSi-A, 8.1GXi-A, 8.1GXi-AF, 8.1GXi-B, 8.1GXi-BF, 8.1GXi-C, 8.1GXi-CF, 8.1GXi-D, 8.1GXi-DF, 8.1GXi-E, 8.1GXi-EF, 8.1GXiE-JF, 8.1GXiE-J, 8.1GXiE-K, 8.1GXiE-KF, 8.1GXiE-M, 8.1GXi-F, 8.1GXi-FF, 8.1GXi-G, 8.1GXi-GF, 8.1GXi-J, 8.1GXi-JF, 8.1OSi-A, 8.1OSi-AF, 8.1OSi-B, 8.1OSi-BF, 8.1OSi-C, 8.1OSi-CF, 8.1OSi-D, 8.1OSi-DF, 8.1OSi-J, 8.1OSi-JF, 8.1OSiE-JF, 8.1OSiE-J, 5.7GXi-A, 5.7GXi-B, 5.7GXi-C, 5.7GXi-CF, 5.7GXiC-J, 5.7GXiC-JF, 5.7GXiCE-JF, 5.7GXiCE-J, 5.7GXiCE-M, 5.7GXi-D, 5.7GXi-DF, 5.7GXi-E, 5.7GXi-EF, 5.7GXi-J, 5.7GXi-JF, 5.7GXiE-JF, 5.7GXiE-KF, 5.7GXiE-K, 5.7GXiE-M, 5.7GXiE-MF, 5.7GXi-F, 5.7GXi-FF, 5.7OSXi-D, 5.7GXi-G, 5.7GXi-GF, 5.7GXi-H, 5.7GXi-HF, 5.7OSi-300-J, 5.7OSi-300-JF, 5.7OSiE-300-JF, 5.7OSi-A, 5.7OSi-AF, 5.7OSi-B, 5.7OSi-BF, 5.7OSi-C, 5.7OSi-CF, 5.7OSi-E, 5.7OSi-EF, 5.7OSi-G, 5.7OSi-GF, 5.7OSXi-A, 5.7OSXi-AF, 5.7OSXi-B, 5.7OSXi-BF, 5.7OSXi-C, 5.7OSXi-CF, 5.7OSXi-E, 5.7OSXi-EF, 5.7OSXi-J, 5.7OSXi-JF, 5.7OSXiE-JF, 5.7OSXi-G, 5.7OSXi-GF, 5.0OSi-DF, 5.0OSi-E, 5.0OSi-EF, 5.0OSi-J, 5.0OSi-JF, 5.0OSiE-J, 5.0OSiE-JF, 5.0OSi-F, 5.0OSi-FF, 5.0OSi-G, 5.0OSi-GF, 5.7Gi-300-J, 5.7Gi-300-JF, 5.7GiE-300-JF, 5.7GiCE-300-M, 5.7GiCE-300-MF, 5.7Gi-A, 5.7Gi-B, 5.7Gi-BF, 5.7GiC-300-J, 5.7GiCE-300-J, 5.7GiCE-300-JF, 5.7GiC-300-JF, 5.7Gi-E, 5.7Gi-EF, 5.7GiE-300-K, 5.7GiE-300-KF, 5.7GiE-300-M, 5.7OSi-D, 5.7OSi-DF, 5.7Gi-F, 5.7Gi-FF, 5.7Gi-G, 5.7Gi-GF, 5.7GL-A, 5.7GL-B, 5.7GL-C, 5.7GL-D, 5.7GL-E, 4.3OSi-GF, 4.3OSi-J, 4.3OSi-JF, 5.0GiC-J, 5.0GL-A, 5.0GL-B, 5.0GL-C, 5.0GXiCE-JF, 5.0GXiCE-J, 5.0GXiC-JF, 5.0GXiCE-M, 5.0GXiCE-MF, 5.0GXi-D, 5.0GXi-DF, 5.0GXi-E, 5.0GXi-EF, 5.0GXi-J, 5.0GXi-JF, 5.0GXiE-JF, 5.0GXiE-J, 5.0GXiE-K, 5.0OSi-C, 5.0OSi-CF, 5.0OSi-D, 5.0GL-D, 5.0GL-E, 5.0GL-F, 5.0GL-FF, 5.0GL-HF, 5.0GL-J, 5.0GL-JF, 5.0GXi-A, 5.0GXi-B, 5.0GXi-BF, 5.0GXi-C, 5.0GXi-CF, 5.0GXiC-J, 5.0GL-H, 5.0GXiE-KF, 5.0GXiE-M, 5.0GXiE-MF, 5.0GXi-F, 5.0GXi-FF, 5.0GXi-G, 5.0GXi-GF, 5.0OSi-BF, 5.0OSi-B, 4.3GL-A, 4.3GL-B, 4.3GL-C, 4.3GL-D, 4.3GL-E, 4.3GL-EF, 4.3GL-G, 4.3GL-GF, 4.3GL-J, 4.3GL-JF, 4.3GXi-B, 4.3GXi-BF, 4.3GXi-C, 4.3GXi-CF, 4.3GXi-D, 4.3GXi-DF, 4.3GXi-E, 4.3GXi-EF, 4.3GXi-F, 4.3GXi-FF, 4.3GXi-G, 4.3GXi-GF, 4.3GXi-J, 4.3GXi-JF, 4.3OSi-BF, 4.3OSi-B, 4.3OSi-C, 4.3OSi-CF, 4.3OSi-D, 4.3OSi-DF, 4.3OSi-E, 4.3OSi-EF, 4.3OSi-F, 4.3OSi-FF, 4.3OSi-G
• Volvo Penta DPX375-A, DPX375-B, DPX375-BF, DPX375-CF
• Volvo Penta DPX420-CF, DPX420-A, DPX420-B, DPX420-BF
• Volvo Penta TD120A, TD120GG, TD120ARC, TD120BRC
• Volvo Penta D120A
• Volvo Penta TD121CRC
• Volvo Penta TMD122A
