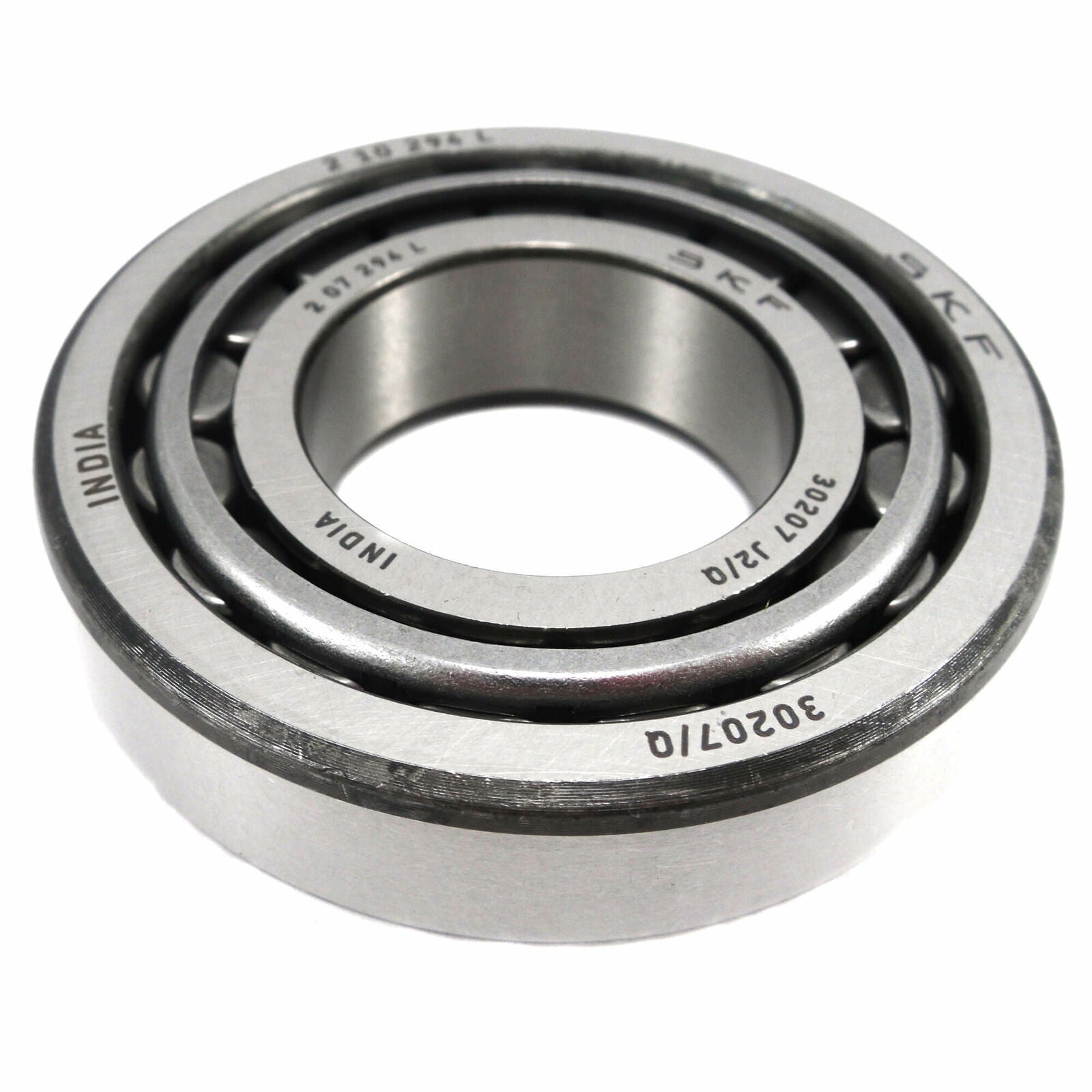

183247 Roller Bearing | Genuine Volvo Penta Part

🔧 Product Description

This genuine Volvo Penta roller bearing is a precision rolling-element or raceway component used in the transom-shield/U-joint carrier double-bearing position. It is manufactured to the original Volvo dimensional, material and interface requirements so the serviced assembly retains its designed alignment, sealing, load capacity and operating reliability. In service, it supports the input/U-joint carrier shaft and maintains concentric alignment between the engine coupler and upper gear unit. Selection must be confirmed by OEM part number 183247, the exact engine/product model, serial number and installed configuration.

🚤 Compatibility

• Engine Family: D, V, FWD, AQ, MD, TMD, AD, AQAD, BB, DPS, SX, TAMD, MS, B, DP, SP, DPX, HS, AQD, MB, KAD, KAMD
• HP Range: 130-430 HP

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 183247
• Supersedes previous part numbers 183449 and 3850853
• Net weight 0.331 kg
• Listed for 527 engine and drive applications
• Fits D, V, FWD, AQ, MD and TMD series engines and drives

🔌 Function

Supports the input/U-joint carrier shaft and maintains concentric alignment between the engine coupler and upper gear unit. Measure shaft and housing fits, renew contaminated lubricant and related seals, and install using force only through the race being fitted. Set preload or end float to the applicable Volvo Penta specification.

⚠️ Common Signs of Failure

• Rumbling or growling that varies with load
• Spalling, pitting or flaking of the raceways
• Heat discolouration of the rollers
• Shaft play, run-out or vibration
• Metallic particles in the oil

🛠️ Service Notes

• Keep the bearing in its wrapper until the moment of fitting and work with clean hands and clean tools — a roller bearing is ruined by grit long before it is ruined by use
• Apply the fitting force only to the race being fitted, using a tube or drift that bears squarely on the whole ring face, so the load never passes through the rollers; never strike the bearing or press on the loose race
• Warming the inner race evenly in oil or a purpose-made bearing heater lets an interference fit slide on without hammering — never heat a bearing with a flame, and stay within the temperature the manufacturer's instructions allow
• Check the shaft and housing seats for wear, scoring and burrs first; a slack or damaged seat will destroy a new bearing quickly
• Lubricate with the grade specified for that position, and where the bearing takes an adjustable preload or endfloat — tapered roller bearings especially — set it by the workshop manual procedure rather than by feel

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 183247 → Supersedes 183449

OEM / Related Numbers

• 3850853 earlier number superseded by this part
• 183449 earlier number superseded by this part

Other-Brand OEM Numbers

• Timken: SET1016

Aftermarket / Verified Equivalents

• RECMAR REC183247

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 100S, 110S, 740B, 8.1GiC-J, 8.1GiC-JF, 8.1GiCE-JF, 8.1GiCE-J, 8.1GiCE-M, 8.1GiCE-P, 8.1GiC-Q, 8.1GiCE-Q, 8.1GiE-KF, 8.1GiE-K, 8.1GiE-M, 8.1GiE-P, 8.1Gi-J, 8.1Gi-JF, 8.1GXiE-K, 8.1GXiE-KF, 8.1GXiE-M, 8.1GXiE-P, 8.1GXi-J, 8.1GXi-JF, 8.1OSi-J, 8.1OSi-JF, 500A, 501A, 501B, 570A, 572A, 740A, 5.7GXi-320-R, 5.7GXiE-320-R, 5.7GXiC-320-R, 5.7GXiCE-320-R, 5.7GXiC-J, 5.7GXiC-JF, 5.7GXiCE-JF, 5.7GXiCE-J, 5.7GXiCE-M, 5.7GXiC-P, 5.7GXiCE-P, 5.7GXi-J, 5.7GXi-JF, 5.7GXiE-KF, 5.7GXiE-K, 5.7GXiE-M, 5.7GXiE-P, 5.7GXi-P, 5.7OSi-300-J, 5.7OSi-300-JF, 5.7OSXi-J, 5.7OSXi-JF, 5.7Gi-300-J, 5.7Gi-300-JF, 5.7GiCE-300-M, 5.7GiE-300-N, 5.7Gi-300-N, 5.7GiE-300-P, 5.7Gi-300-P, 5.7Gi-300-R, 5.7GiE-300-R, 5.7GiC-300-J, 5.7GiCE-300-J, 5.7GiCE-300-JF, 5.7GiC-300-JF, 5.7GiC-300-P, 5.7GXiE-N, 5.7GXi-N, 5.7GiE-300-K, 5.7GiE-300-KF, 5.7GiE-300-M, 5.7GiCE-300-P, 5.7GiC-300-R, 5.7GiCE-300-R, 4.3OSi-J, 4.3OSi-JF, 430A, 430B, 431A, 431B, 432A, 434A, 5.0GiC-225-S, 5.0GiCE-225-S, 5.0GiC-J, 5.0GXiCE-JF, 5.0GXiCE-J, 5.0GXiC-JF, 5.0GXiCE-M, 5.0GXiC-P, 5.0GXiCE-P, 5.0GXi-J, 5.0GXi-JF, 5.0GXiE-K, 5.0GL-J, 5.0GL-JF, 5.0GXi-270-R, 5.0GXiE-270-R, 5.0GXiC-270-R, 5.0GXiCE-270-R, 5.0GXiC-J, 5.0GXiE-KF, 5.0GXiE-M, 5.0GXiE-N, 5.0GXi-N, 5.0GXiE-P, 5.0GXi-P, 4.3Gi-200-R, 4.3GI-Q, 4.3GL-J, 4.3GL-JF, 4.3GL-P, 4.3GXi-225-R, 4.3GXiE-225-R, 4.3GXiE-M, 4.3GXi-P, 4.3GXiE-P, 4.3GXi-Q, 4.3GXiE-Q, 4.3GXi-J, 4.3GXi-JF, 230A, 230B, 231LB, 250A, 250B, 251A, 271LB, 275A, 280B, 285A, 290A, 290DP, 3.0GLP-J, 3.0GLP-N, 3.0GXiC-J, 3.0GXi-J, 570, 500B, 500, 4.3Gi-200-S, 4.3GXi-225-S, 4.3GXiE-225-S, 571A, 430
• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-270-C-B, V8-270-CE-B, V8-300-A, V8-300-E-A, V8-300-B, V8-300-E-B, V8-300-C-A, V8-300-CE-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-320-A, V8-320-E-A, V8-320-B, V8-320-E-B, V8-320-C-A, V8-320-CE-A, V8-380-CE-A, V8-380-C-B, V8-380-CE-B, V8-380-C-D, V8-380-CE-D, V8-430-CE-D, V8-350-C-D, V8-350-CE-D, V8-380-C-A, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-225-C-A, V8-225-CE-A, V8-225-C-B, V8-225-CE-B, V8-270-A, V8-270-E-A, V8-270-B, V8-270-E-B, V8-270-C-A, V8-270-CE-A, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-G, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-G, V6-200-G, V6-200-J, V6-200-C-J, V6-200-A, V6-225-A, V6-225-E-A, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-G, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta D3-130I-C, D3-220I-G, D3-130A-C, D3-160A-C, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-190A-C, D3-170I-G, D3-200I-G, D3-160I-C, D3-190I-C, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
• Volvo Penta FWD-D2 OX, FWD-D1, FWD-D2, FWD-D1 OX, FWD-B1, FWD-B2, FWD-E1 TCC, FWD-E2 TCC, FWD-F TCC, FWD-F, FWD-F2, FWD-F2 TCC, FWD-G, FWD-G TCC, FWD-G1, FWD-G1 TCC
• Volvo Penta DP-C, DP-C1, DP-D, DP-D1, DP-E, DP-G, DP-A, DP-A1, DP-A2, DP-B, DP-B1
• Volvo Penta TAMD31L, TAMD31L-A, TAMD31M, TAMD31M-A, TAMD31P, TAMD31P-A, TAMD31S, TAMD31A, TAMD31B, TAMD31D, TAMD31P-B
• Volvo Penta DPS-D1 OX, DPS-D, DPS-D OX, DPS-D1, DPS-A, DPS-A OXI, DPS-B, DPS-B OX, DPS-B1 OX, DPS-B1
• Volvo Penta TAMD41B, TAMD41H-A, TAMD41H-B, TAMD41M-A, TAMD41P-A, TAMD41P, TAMD41P-B, TAMD41A
• Volvo Penta AD31, AD31B, AD31D, AD31D-A, AD31L-A, AD31P-A, AD31XD
• Volvo Penta AD41P-B, AD41B, AD41L-A, AD41P-A, AD41, AD41A, AD41BJ
• Volvo Penta SP-C, SP-E, SP-A2, SP-C1, SP-A, SP-A1
• Volvo Penta AQ225D, AQ225E, AQ225B, AQ225C, AQ225F
• Volvo Penta B230, B230E, B230F, B230FB, B230FX
• Volvo Penta AQ130C, AQ130D, AQ130A, AQ130B
• Volvo Penta AQ131A, AQ131B, AQ131C, AQ131D
• Volvo Penta AQ200D, AQ200C, AQ200B, AQ200F
• Volvo Penta AQ271A, AQ271C, AQ271B, AQ271D
• Volvo Penta BB225A, BB225AV, BB225B, BB225C
• Volvo Penta DPX-A, DPX-R, DPX-S1, DPX
• Volvo Penta TMD31A, TMD31B, TMD31D, TMD31L-A
• Volvo Penta AQ151A, AQ151B, AQ151C
• Volvo Penta AQ170B, AQ170C, AQ170A
• Volvo Penta BB115A, BB115B, BB115C
• Volvo Penta BB170B, BB170C, BB170A
• Volvo Penta BB260AV, BB260B, BB260C
• Volvo Penta D41, D41B, D41L-A
• Volvo Penta MB20A, MB20B, MB20C
• Volvo Penta TMD40A, TMD40B, TMD40C
• Volvo Penta TMD41A, TMD41B, TMD41L-A
• Volvo Penta AQ115A, AQ115B
• Volvo Penta AQ125B, AQ125A
• Volvo Penta AQ145B, AQ145A
• Volvo Penta AQ171A, AQ171C
• Volvo Penta AQ205LB, AQ205A
• Volvo Penta AQ231A, AQ231B
• Volvo Penta AQ255A, AQ255B
• Volvo Penta AQ260A, AQ260B
• Volvo Penta AQ311A, AQ311B
• Volvo Penta AQAD40B, AQAD40A
• Volvo Penta AQD21A, AQD21B
• Volvo Penta MD21B, MD21A
• Volvo Penta MS3B, MS3C
• Volvo Penta MS4B, MS4A
• Volvo Penta MS5A, MS5B
• Volvo Penta SX-D, SX-A
• Volvo Penta TAMD40A, TAMD40B
• Volvo Penta AD30A
• Volvo Penta AD40B
• Volvo Penta AQ120B
• Volvo Penta AQ140A
• Volvo Penta AQ165A
• Volvo Penta AQ175A
• Volvo Penta AQ190A
• Volvo Penta AQ211A
• Volvo Penta AQ240A
• Volvo Penta AQ290A
• Volvo Penta AQAD30A
• Volvo Penta AQD40A
• Volvo Penta B20
• Volvo Penta BB140A
• Volvo Penta BB145A
• Volvo Penta BB165A
• Volvo Penta BB231A
• Volvo Penta BB261A
• Volvo Penta BB740A
• Volvo Penta HS1A
• Volvo Penta KAD42B
• Volvo Penta KAMD42B
• Volvo Penta MD30A
• Volvo Penta MD31A
• Volvo Penta MD40A
• Volvo Penta TAMD30A
• Volvo Penta TAMD42B
• Volvo Penta TMD30A
