183272 Needle Roller Bearing | Genuine Volvo Penta Part

🔧 Product Description

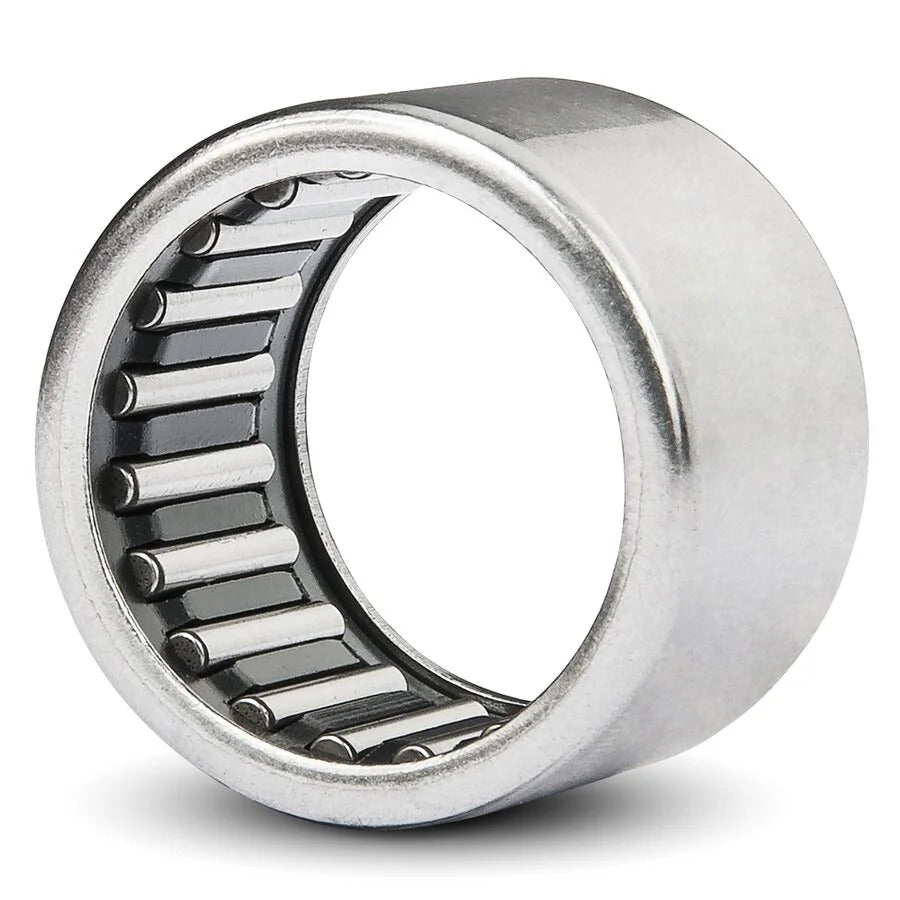

This genuine Volvo Penta needle roller bearing is a precision rolling-element or raceway component used in the outer propeller-shaft needle-bearing position. It is manufactured to the original Volvo dimensional, material and interface requirements so the serviced assembly retains its designed alignment, sealing, load capacity and operating reliability. In service, it supports the outer propeller shaft inside the lower gear housing under radial propeller and gear load. Selection must be confirmed by OEM part number 183272, the exact engine/product model, serial number and installed configuration.

🚤 Compatibility

• Engine Family: D, V, FWD, MD, TMD, AQ, AD, AQAD, XDP, DPS, BB, MS, DP, SP, DPX, AQD, TAMD, KAD, KAMD
• HP Range: 130-430 HP

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 183272
• Needle roller bearing
• Net weight 0.036 kg
• Listed for 417 engine and drive applications
• Fits D, V, FWD, MD, TMD and AQ series engines and drives

🔌 Function

Supports the outer propeller shaft inside the lower gear housing under radial propeller and gear load. Measure shaft and housing fits, renew contaminated lubricant and related seals, and install using force only through the race being fitted. Set preload or end float to the applicable Volvo Penta specification.

⚠️ Common Signs of Failure

• Whining or rumbling from the bearing position
• Scoring or brinelling of the shaft surface
• Rollers loose, flattened or missing from the cage
• Play or vibration developing at the shaft
• Fine steel debris in the oil

🛠️ Service Notes

• Press needle roller bearings in with a correctly sized mandrel — never drive them with a hammer, and never strike the cage or the shell directly
• Press on the marked end face of the shell and keep the bearing square to the bore; a drawn cup that tilts as it enters is scrap
• Check the bore and shaft for wear, scoring and size before fitting, and make sure both are spotlessly clean, as a needle bearing has no tolerance for grit
• Press to the depth called for by the workshop procedure rather than driving it hard up against a shoulder
• Leave the protective grease in place until fitting, handle the needles with clean hands only, and prime the bearing with the lubricant specified for that assembly before it goes into service

🔄 Supersession & Cross Reference

Other-Brand OEM Numbers

• INA: HK2820

Aftermarket / Verified Equivalents

• RECMAR REC183272

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 740B, 8.1GiC-J, 8.1GiC-JF, 8.1GiCE-JF, 8.1GiCE-J, 8.1GiCE-M, 8.1GiCE-P, 8.1GiC-Q, 8.1GiCE-Q, 8.1GiE-KF, 8.1GiE-K, 8.1GiE-M, 8.1GiE-P, 8.1Gi-J, 8.1Gi-JF, 8.1GXiE-K, 8.1GXiE-KF, 8.1GXiE-M, 8.1GXiE-P, 8.1GXi-J, 8.1GXi-JF, 8.1OSi-J, 8.1OSi-JF, 500A, 501A, 501B, 570A, 572A, 740A, 5.7GXi-320-R, 5.7GXiE-320-R, 5.7GXiC-320-R, 5.7GXiCE-320-R, 5.7GXiC-J, 5.7GXiC-JF, 5.7GXiCE-JF, 5.7GXiCE-J, 5.7GXiCE-M, 5.7GXiC-P, 5.7GXiCE-P, 5.7GXi-J, 5.7GXi-JF, 5.7GXiE-KF, 5.7GXiE-K, 5.7GXiE-M, 5.7GXiE-P, 5.7GXi-P, 5.7OSi-300-J, 5.7OSi-300-JF, 5.7OSXi-J, 5.7OSXi-JF, 5.7Gi-300-J, 5.7Gi-300-JF, 5.7GiCE-300-M, 5.7GiE-300-N, 5.7Gi-300-N, 5.7GiE-300-P, 5.7Gi-300-P, 5.7Gi-300-R, 5.7GiE-300-R, 5.7GiC-300-J, 5.7GiCE-300-J, 5.7GiCE-300-JF, 5.7GiC-300-JF, 5.7GiC-300-P, 5.7GXiE-N, 5.7GXi-N, 5.7GiE-300-K, 5.7GiE-300-KF, 5.7GiE-300-M, 5.7GiCE-300-P, 5.7GiC-300-R, 5.7GiCE-300-R, 4.3OSi-J, 4.3OSi-JF, 430A, 430B, 431A, 431B, 432A, 434A, 5.0GiC-225-S, 5.0GiCE-225-S, 5.0GiC-J, 5.0GXiCE-JF, 5.0GXiCE-J, 5.0GXiC-JF, 5.0GXiCE-M, 5.0GXiC-P, 5.0GXiCE-P, 5.0GXi-J, 5.0GXi-JF, 5.0GXiE-K, 5.0GL-J, 5.0GL-JF, 5.0GXi-270-R, 5.0GXiE-270-R, 5.0GXiC-270-R, 5.0GXiCE-270-R, 5.0GXiC-J, 5.0GXiE-KF, 5.0GXiE-M, 5.0GXiE-N, 5.0GXi-N, 5.0GXiE-P, 5.0GXi-P, 4.3Gi-200-R, 4.3GI-Q, 4.3GL-J, 4.3GL-JF, 4.3GL-P, 4.3GXi-225-R, 4.3GXiE-225-R, 4.3GXiE-M, 4.3GXi-P, 4.3GXiE-P, 4.3GXi-Q, 4.3GXiE-Q, 4.3GXi-J, 4.3GXi-JF, 231LB, 271LB, 275A, 280B, 285A, 290A, 290DP, 570, 500B, 500, 4.3Gi-200-S, 4.3GXi-225-S, 4.3GXiE-225-S, 430
• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-270-C-B, V8-270-CE-B, V8-300-A, V8-300-E-A, V8-300-B, V8-300-E-B, V8-300-C-A, V8-300-CE-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-320-A, V8-320-E-A, V8-320-B, V8-320-E-B, V8-320-C-A, V8-320-CE-A, V8-380-CE-A, V8-380-C-B, V8-380-CE-B, V8-380-C-D, V8-380-CE-D, V8-430-CE-D, V8-350-C-D, V8-350-CE-D, V8-380-C-A, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-225-C-A, V8-225-CE-A, V8-225-C-B, V8-225-CE-B, V8-270-A, V8-270-E-A, V8-270-B, V8-270-E-B, V8-270-C-A, V8-270-CE-A, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-G, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-G, V6-200-G, V6-200-J, V6-200-C-J, V6-200-A, V6-225-A, V6-225-E-A, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-G, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta D3-130I-C, D3-220I-G, D3-130A-C, D3-160A-C, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-190A-C, D3-170I-G, D3-200I-G, D3-160I-C, D3-190I-C, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
• Volvo Penta DP-C, DP-C1, DP-D, DP-D1, DP-E, DP-G, DP-A, DP-A2, DP-B, DP-B1, DP-S, DP-S1, DP-SM, DP-SMTD, DP-SMTD1, DP-SMTD3
• Volvo Penta FWD-D2 OX, FWD-D1, FWD-D2, FWD-D1 OX, FWD-B1, FWD-B2, FWD-E1 TCC, FWD-E2 TCC, FWD-F TCC, FWD-F, FWD-F2, FWD-F2 TCC, FWD-G, FWD-G TCC, FWD-G1, FWD-G1 TCC
• Volvo Penta DPS-D1 OX, DPS-D, DPS-D OX, DPS-D1, DPS-A, DPS-A OXI, DPS-B, DPS-B OX, DPS-B1 OX, DPS-B1
• Volvo Penta AD31, AD31B, AD31D, AD31D-A, AD31XD
• Volvo Penta AQ271A, AQ271C, AQ271B, AQ271D
• Volvo Penta BB225A, BB225AV, BB225B, BB225C
• Volvo Penta TAMD31M, TAMD31A, TAMD31B, TAMD31D
• Volvo Penta AQ225D, AQ225E, AQ225F
• Volvo Penta DPX-A, DPX-R, DPX-S1
• Volvo Penta SP-C, SP-A2, SP-C1
• Volvo Penta TMD31A, TMD31B, TMD31D
• Volvo Penta TMD40A, TMD40B, TMD40C
• Volvo Penta AD41B, AD41BJ
• Volvo Penta AQ200D, AQ200F
• Volvo Penta AQ205LB, AQ205A
• Volvo Penta AQ231A, AQ231B
• Volvo Penta AQAD40B, AQAD40A
• Volvo Penta MS3B, MS3C
• Volvo Penta MS4B, MS4A
• Volvo Penta TAMD40A, TAMD40B
• Volvo Penta TAMD41B, TAMD41P
• Volvo Penta XDP-B, XDP-D3
• Volvo Penta AD40B
• Volvo Penta AQ211A
• Volvo Penta AQD40A
• Volvo Penta BB740A
• Volvo Penta D41B
• Volvo Penta KAD42B
• Volvo Penta KAMD42B
• Volvo Penta MD31A
• Volvo Penta MD40A
• Volvo Penta TAMD42B
• Volvo Penta TMD41B
