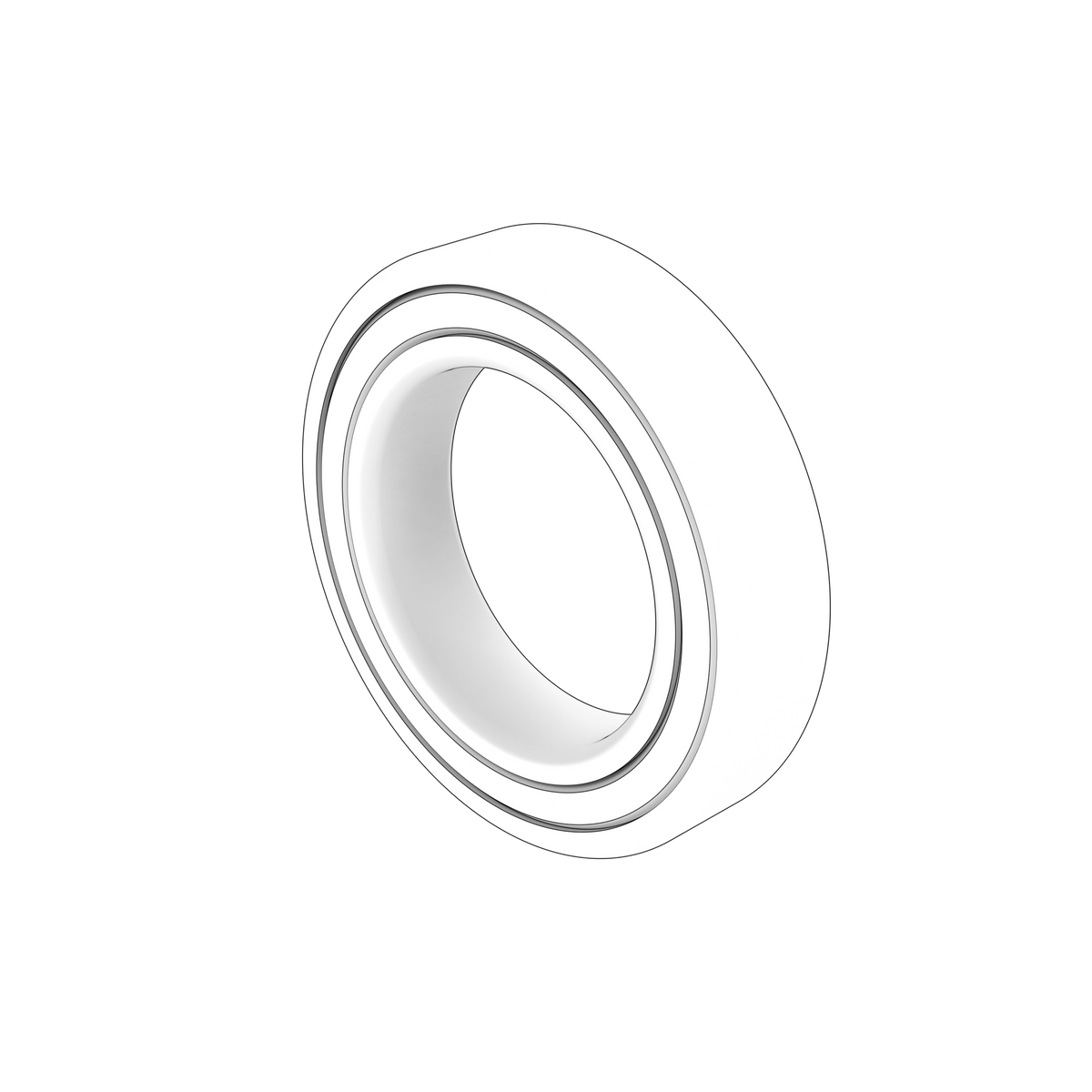

183803 Ball Bearing | Genuine Volvo Penta Part

🔧 Product Description

This genuine Volvo Penta ball bearing is a precision rolling-element or raceway component used in the legacy marine reverse-gear shaft ball-bearing position. It is manufactured to the original Volvo dimensional, material and interface requirements so the serviced assembly retains its designed alignment, sealing, load capacity and operating reliability. In service, it supports the reverse-gear shaft and maintains gear and selector alignment. Selection must be confirmed by OEM part number 183803, the exact engine/product model, serial number and installed configuration.

🚤 Compatibility

Typically suits:

• Volvo Penta MD7B
• Volvo Penta MB10A
• Volvo Penta MD1B
• Volvo Penta MD2B
• Volvo Penta MD3B
• Volvo Penta MD6A
• Volvo Penta MD6B
• Volvo Penta MD7A
• Volvo Penta MD67C
• Volvo Penta MD5A
• Volvo Penta MD5B
• Volvo Penta MD5C
• Volvo Penta MD11C
• Volvo Penta MD11D
• Volvo Penta AQD2B
• Volvo Penta MD17C
• Volvo Penta MD17D

• Engine Family: MD, MB, AQD

⚙️ Key Features

• OEM Volvo Penta part number 183803
• Net weight 0.236 kg
• Listed for 17 specific engine applications
• Fits MD, MB and AQD series engines

🔌 Function

Supports the reverse-gear shaft and maintains gear and selector alignment. Measure shaft and housing fits, renew contaminated lubricant and related seals, and install using force only through the race being fitted. Set preload or end float to the applicable Volvo Penta specification.

⚠️ Common Signs of Failure

• Rumbling or whining rising with shaft speed
• Radial play detectable at the shaft
• Rough or notchy rotation by hand
• Heat build-up at the bearing housing
• Bright metal particles in the oil

🛠️ Service Notes

• Work clean — leave the bearing in its wrapping until the moment it goes in, and do not wash the preservative out or blow it dry with compressed air
• Apply the fitting force only to the ring being fitted, through a tube or drift that bears on that ring alone; force pushed through the balls from one ring to the other dents the raceways and the bearing will be noisy and short-lived from the first run
• Where the fit calls for it, expand the inner ring with even, controlled heat rather than driving it on, and never heat a bearing with a flame or beyond the temperature given in the workshop manual for your engine
• Check the shaft and housing seats before fitting — scoring, burrs, corrosion or a worn seat will ruin a new bearing, and fretting marks mean the seat itself needs attention
• Fit the bearing square and fully home against its shoulder, note which way round any sealed, shielded or marked face must go, and lubricate with the grease or oil specified for the application before it is turned under load

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
