190713 Hollow Screw | Genuine Volvo Penta Part

🔧 Product Description

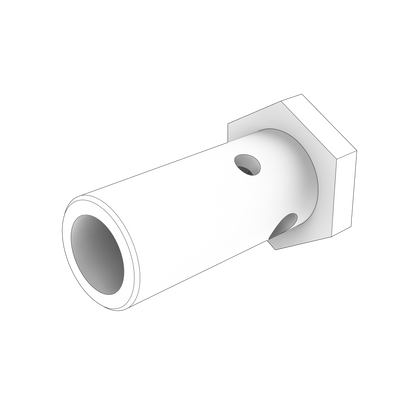

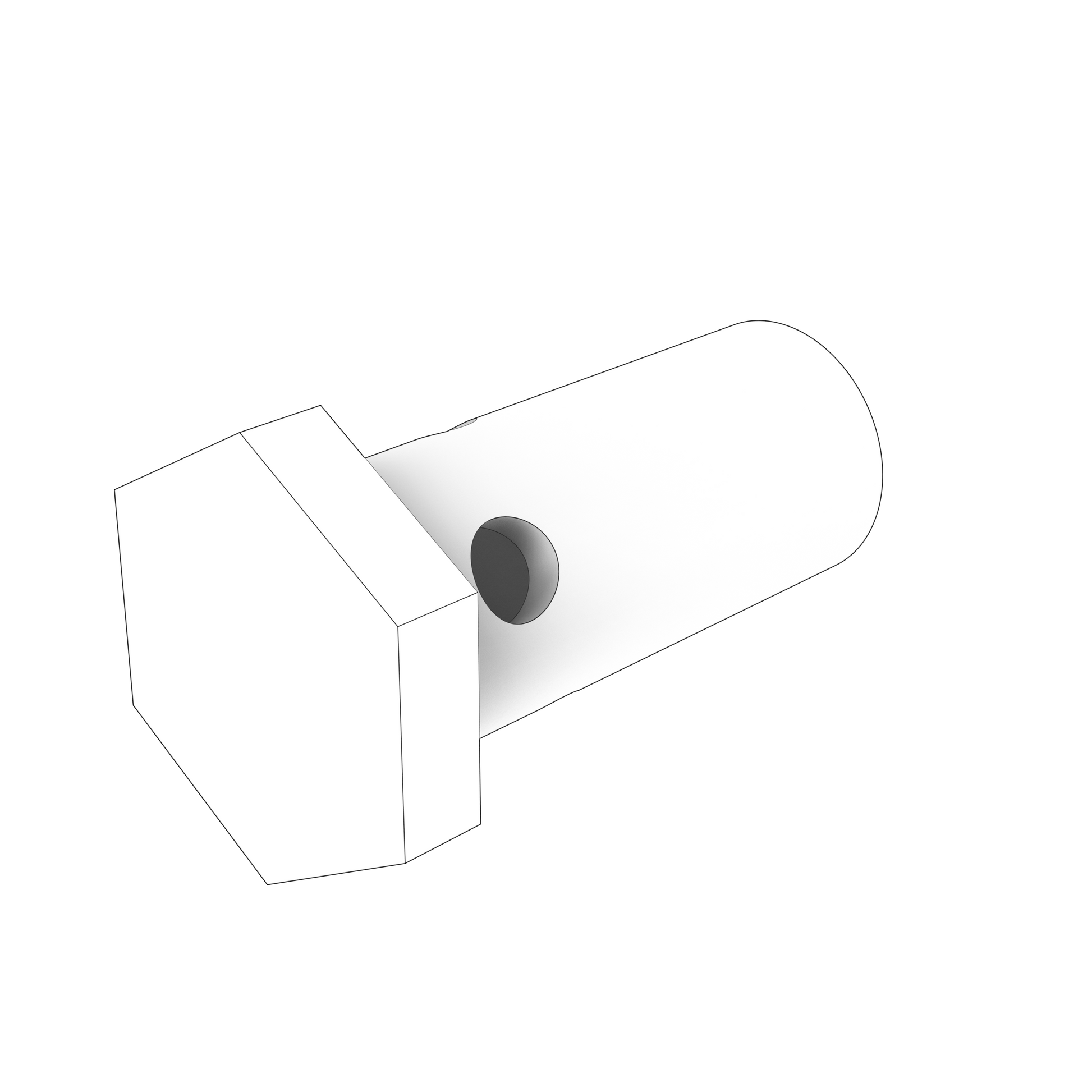

This genuine Volvo Penta hollow screw is a cross-drilled hollow screw designed to clamp a banjo fitting while carrying fluid through the joint used in the fuel-filter and low-pressure fuel-line banjo connection. It is manufactured to the original Volvo Penta dimensional, material and interface requirements so the serviced assembly retains its designed alignment, sealing, load capacity and operating reliability. In service, it clamps a banjo fitting while providing an internal passage for fuel flow. Selection must be confirmed by OEM part number 190713, the exact engine or product model, serial number and installed configuration.

🚤 Compatibility

• Engine Family: D, AQD, TAD, TWD, TD, TAMD, THAMD
• Serial Range: SN-2300049279

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta OEM hollow screw
• OEM part number 190713
• Clean the bore and cross-drillings, renew both sealing washers, align the banjo without stress and tighten to the specified torque.
• Quantity varies by assembly, most commonly one

🔌 Function

Clamps a banjo fitting while providing an internal passage for fuel flow. Clean the bore and cross-drillings, renew both sealing washers, align the banjo without stress and tighten to the specified torque.

⚠️ Common Signs of Failure

• Fluid leakage around the banjo sealing washers
• Restricted flow from blocked internal drillings
• Damaged threads, stretched shank or cracked head
• Air entry, pressure loss or poor fuel/oil delivery
• Repeated loosening or distorted banjo sealing faces

🛠️ Service Notes

• Check the through-passage is clear and clean before fitting; a blocked hollow screw starves whatever it feeds
• Always fit new sealing washers, one each side of the union where the original had them, and never reuse a crushed washer
• Hold the fitting or pipe end against turning as you tighten, so the line is not twisted and the union is not pulled out of position
• Tighten to the figure in the workshop manual for your engine — these seal by crushing the washer, not by force, and over-tightening splits the head or shears the shank
• Bring the system up to working pressure and check for weeps before closing the space up

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 22035823 fuel-filter housing

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C2-B MP, D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-A MP, D13B-H MP, D13B-G MP, D13B-L MP, D13B-K MP, D13B-B MP, D13B-D MP, D13B-J MP, D13B-M MP, D13B-C MP, D13C6-A MP, D13C5-A MP
• Volvo Penta D12C-A MP, D12D-A MG, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MG, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta D16C-A MG, D16C-A MH, D16C-B MH, D16C-C MH, D16C1-E MG, D16C1-F MG, D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta AQD70B, AQD70BL, AQD70CL, AQD70D, AQD70C
• Volvo Penta TAMD70B, TAMD70E, TAMD70C, TAMD70D
• Volvo Penta 2003TB, 2003T, 2003TR
• Volvo Penta D100A, D100B
• Volvo Penta TAD1640GE, TAD1640-42VE-C
• Volvo Penta TAD1641GE, TAD1641VE
• Volvo Penta TAD1642GE, TAD1642VE
• Volvo Penta TAD1643VE-B, TAD1643VE
• Volvo Penta TAMD122A/C, TAMD122D
• Volvo Penta TD100A, TD100AG
• Volvo Penta THAMD70C, THAMD70B
• Volvo Penta TWD740GE, TWD740VE
• Volvo Penta D70B
• Volvo Penta TAD1371-75VE
• Volvo Penta TAD1650VE-B/51VE
• Volvo Penta TAD1670-72VE
• Volvo Penta TAD740GE
• Volvo Penta TAD741GE
• Volvo Penta TD70B
• Volvo Penta TWD1643GE
• Volvo Penta TWD1683VE
